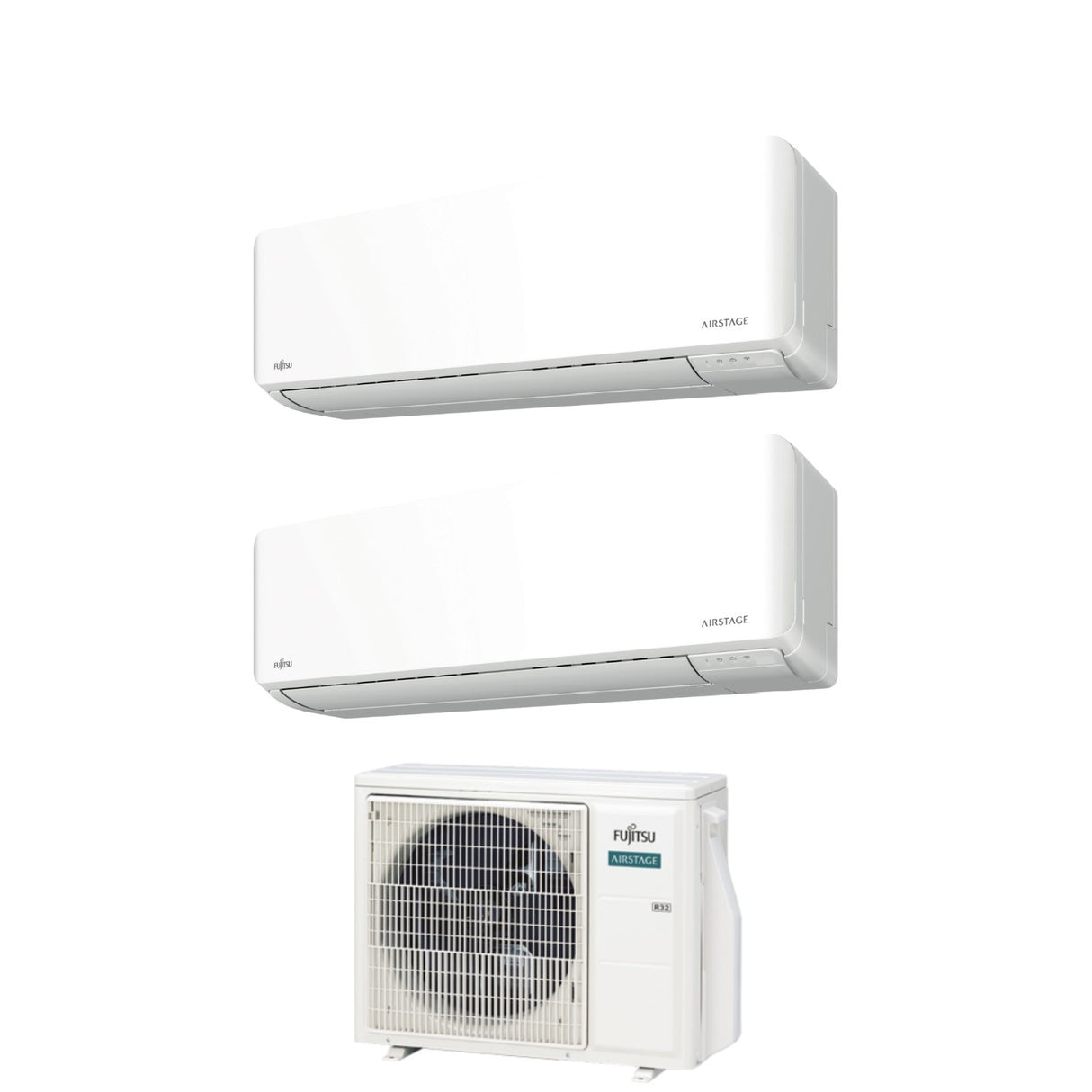

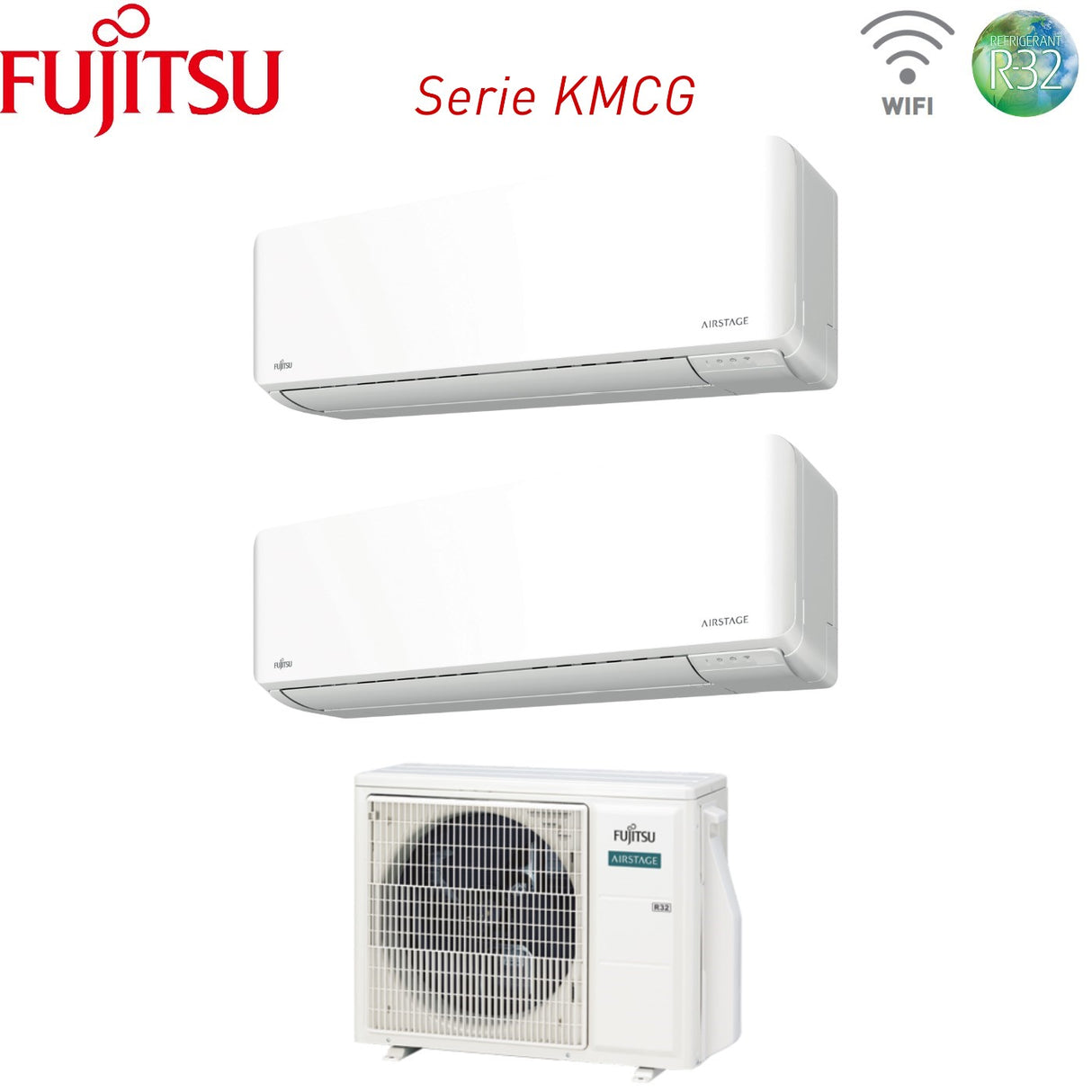

Fujitsu Dual Split Inverter Air Conditioner KM 9+14 series with AOYG18KBTA2 R-32 Integrated Wi-Fi 9000+14000
Fujitsu Dual Split Inverter Air Conditioner KM 9+14 series with AOYG18KBTA2 R-32 Integrated Wi-Fi 9000+14000 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
How shipping works
How shipping works
I costi di spedizione variano a seconda del peso e della modalità di spedizione dell'ordine.
I nostri servizi di spedizione:
- Spedizione standard: consegna stimata dai 2 ai 5 giorni lavorativi
- Spedizione Premium: consegna garantita in 24 ore lavorative
- Spedizione Premium + Consegna al piano: consegna garantita in 24 ore lavorative
Consulta le tabelle per i prezzi della spedizione standard per l'Italia e per le Isole Minori e Zone Disagiate.
Per ulteriori dettagli sulla Spedizione Premium, consulta la pagina di spedizione premium.
Servizio clienti
Servizio clienti
Il nostro servizio di assistenza è dedicato a fornire supporto ai nostri clienti per qualsiasi problema o domanda che possano avere prima o dopo l’acquisto dei nostri prodotti.
Utilizza il canale di comunicazione diretta per parlare con un nostro operatore, oppure inviaci una mail ad uno degli indirizzi elencati nella pagina contattaci.
Il nostro team di assistenza clienti è composto da professionisti altamente qualificati e sempre pronti ad aiutare i clienti a risolvere qualsiasi problema o rispondere a qualsiasi domanda in modo rapido ed efficiente. Ci impegniamo a garantire la massima soddisfazione del cliente e a fornire un servizio di assistenza post-vendita di altissima qualità. Quindi, se hai bisogno di assistenza, non esitare a contattarci; saremo lieti di aiutarti in ogni modo possibile.
Description
Description
Important Notice on Regulations for Fluorinated Gases IN ITALY
In accordance with Regulation (EU) No. 517/2014 and Presidential Decree No. 146/2018, equipment containing fluorinated gases that is not hermetically sealed can only be sold if installed by a certified company.
By law, each sale must be recorded in the Fluorinated Gas Database, including a declaration from the buyer ensuring that the installation complies with the regulations. Therefore, before completing the order, it will be necessary to provide this mandatory declaration.
Technical features

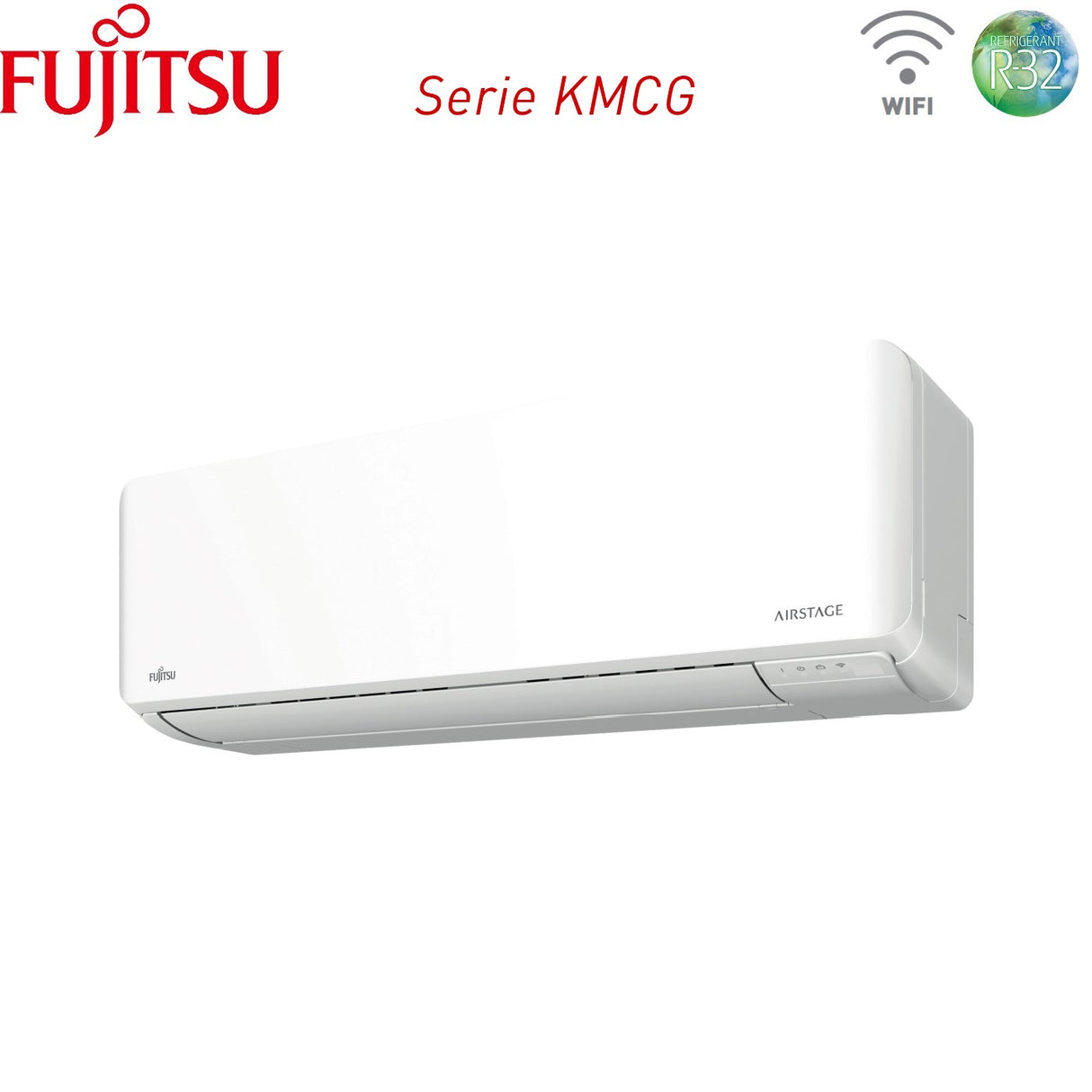

Internal units
1) Model
- Indoor unit catalog code: 1x ASYG09KMCF
- Indoor unit code: 3NGF82113
- Power: 9000 btu/h
- Cooling capacity: 2.5 kW
- Heating capacity: 2.8 kW
- Air flow rate: 700 m 3 /h
- Sound power level: 55~57 dB(A)
- Sound pressure level: 21~42 dB(A)
- Liquid pipe diameter: 6.35 mm (1/4")
- Gas pipe diameter: 9.52 mm (3/8")
- Dimensions (HxWxD): 270x834x222 mm
- Weight: 10.0 kg
- Built-in Wi-Fi
2) Model
- Indoor unit catalog code: 1x ASYG14KMCF
- Indoor unit code: 3NGF82115
- Power: 14000 btu/h
- Cooling capacity: 4.2 kW
- Heating capacity: 5.4 kW
- Air flow: 770 m 3 /h
- Sound power level: 57~59 dB(A)
- Sound pressure level: 21~44 dB(A)
- Liquid pipe diameter: 6.35 mm (1/4")
- Gas pipe diameter: 9.52 mm (3/8")
- Dimensions (HxWxD): 270x834x222 mm
- Weight: 10.0 kg
- Built-in Wi-Fi
External unit
- Outdoor unit catalog code: AOYG18KBTA2
- Outdoor unit code: 3NGF7089
- Number of connectable internal units: Up to 2 internal units
Energy efficiency
- SEER: 8.6
- SCOP: 4.7
- Cooling energy efficiency class: A+++
- Heating energy efficiency class: A++
Performance
- Cooling capacity: 5.0 kW
- Heating capacity: 5.6 kW
- Sound power level: 60~62 dB(A)
- Sound pressure level: 47~50 dB(A)
Electrical data
- Power (V/Hz/Φ): 230/50/1
- Refrigerant gas: R-32
- Guaranteed temperature range:
- - Cooling: -10° ~ 46°C
- - Heating: -15° ~ 24°C
Installation data
- Liquid tube diameter: 6.35 mm (1/4") x2
- Gas pipe diameter: 9.52 mm (3/8") x2
- Maximum pipe length: 30 m
- Maximum height difference between internal unit and external unit: 15 m
Dimensions and weight
- External unit dimensions (HxWxD): 632x799x290 mm
- External unit weight: 37.0 kg
High energy saving
High-tech components: DC technology is used for the compressor, indoor/outdoor fan motor and inverter control. High efficiency is guaranteed by a high-efficiency heat exchanger, a large fan and a new refrigerant.
New R32 refrigerant
Its low global warming potential (GWP) of one third compared to the most common refrigerant used for air conditioning represents an advantage for protecting the environment
Fujitsu KM Series
It is possible to control the air conditioners of the entire KM range even remotely via smartphone and tablet: simply download the FGLair application for free, also available in Italian.
The design is characterized by the essentiality of the elegant linear edges: a minimal concept that allowed Fujitsu Climatizzatori to win the "Good Design Award", in which the evaluation for the assignment of the recognition includes criteria such as ease of use, concepts basis of product development, functionality and new technologies used.
Slim and elegant design
The slim and elegant shape is achieved thanks to the multi-pass high-density heat exchanger and high-efficiency fan
Intelligent control device included
The air conditioner can be controlled from anywhere using the built-in wireless LAN interface. The wireless LAN interface is installed in the indoor unit.
Thanks to the AIRSTAGE Mobile App, you can control the air conditioner anytime, anywhere.
Functions
- Up and down movement of the flaps Automatic opening and closing of the flaps
- Automatic ventilation speed Automatic modification of the ventilation speed according to the temperature required in the room
- Automatic Restart In the event of a temporary power failure, the air conditioner restarts automatically when the power returns
- 10°C HEAT 10°C is the minimum attenuation temperature that can be set in heating
- Automatic switch-off Sleep Night-time comfort is guaranteed by the gradual regulation of the temperature before the programmed shutdown of the air conditioner
- Daily timer Four possible selections within 24 hours ON, OFF, ON OFF or OFF ON
- Maximum Power Function that allows you to activate the air conditioner at maximum power for rapid comfort
- Automatic cold/heat switching By comparing the room temperature and the set temperature, the air conditioner automatically activates heating or cooling
- Energy saving Control system for energy saving
- Filter status indicator Allows you to check the cleaning of the filters
Product Warranty: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.
Scheda Tecnica
Scheda Tecnica
- peso: 55.0 kg
- classe energetica raffreddamento: A+++
- classe energetica riscaldamento: A++
- gas: R-32
- marca: Fujitsu
- metri quadri : 25/42
- modello: KMCF 9+14 18_1
- potenza btu: 9000+14000
