Fujitsu  |  SKU: ASYG14KMCF

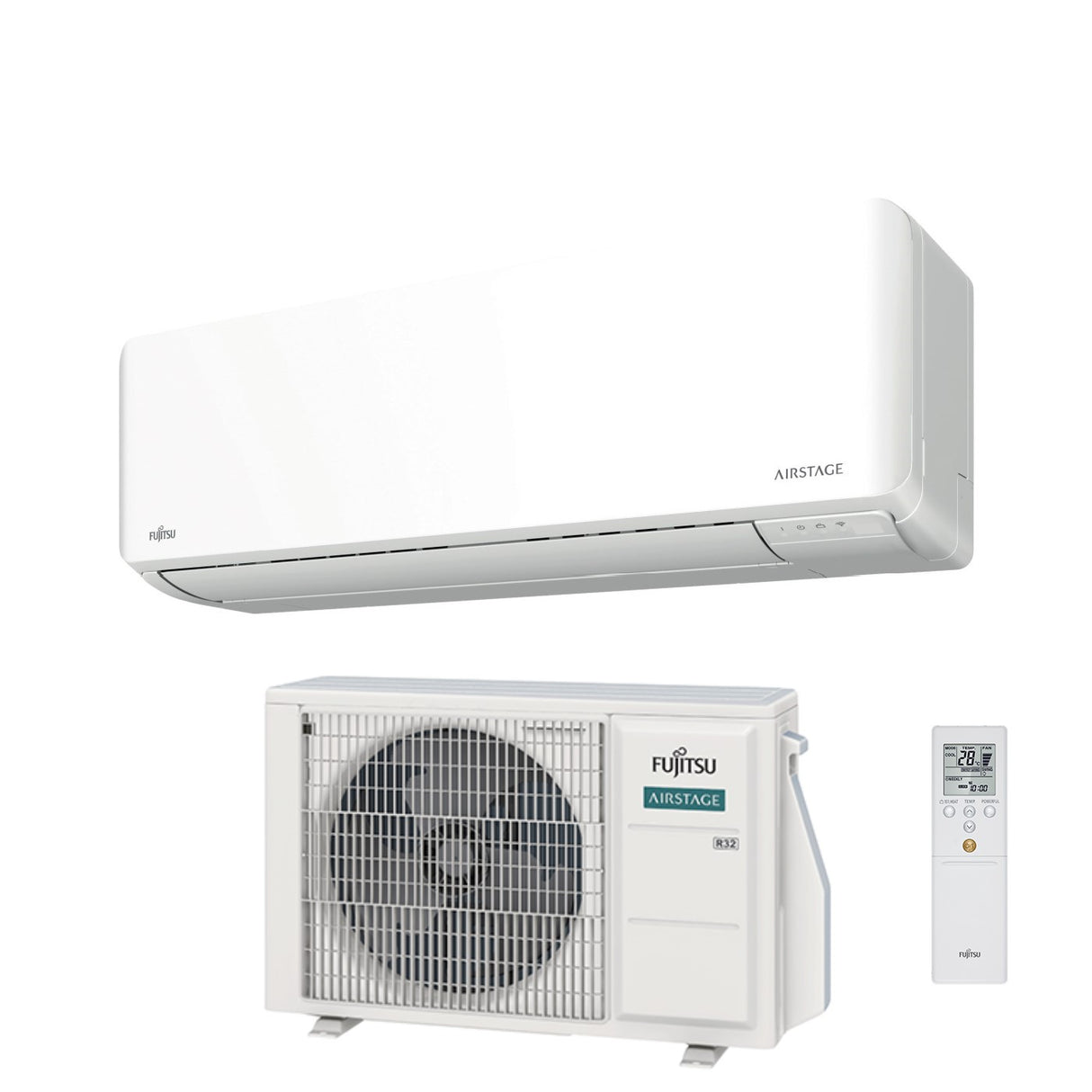

Fujitsu Inverter Air Conditioner KM series 14000 Btu ASYG14KMCF Code 3NGF87285 R-32 Integrated Wi-Fi Class A++/A+

Trustpilot
€1.070,00 VAT included
Tax included Shipping calculated at checkout.
Costi di spedizione calcolati in fase di checkout

How shipping works

I costi di spedizione variano a seconda del peso e della modalità di spedizione dell'ordine.

I nostri servizi di spedizione:

  • Spedizione standard: consegna stimata dai 2 ai 5 giorni lavorativi
  • Spedizione Premium: consegna garantita in 24 ore lavorative
  • Spedizione Premium + Consegna al piano: consegna garantita in 24 ore lavorative

Consulta le tabelle per i prezzi della spedizione standard per l'Italia e per le Isole Minori e Zone Disagiate.

Per ulteriori dettagli sulla Spedizione Premium, consulta la pagina di spedizione premium.

Servizio clienti

Il nostro servizio di assistenza è dedicato a fornire supporto ai nostri clienti per qualsiasi problema o domanda che possano avere prima o dopo l’acquisto dei nostri prodotti.

Utilizza il canale di comunicazione diretta per parlare con un nostro operatore, oppure inviaci una mail ad uno degli indirizzi elencati nella pagina contattaci.

Il nostro team di assistenza clienti è composto da professionisti altamente qualificati e sempre pronti ad aiutare i clienti a risolvere qualsiasi problema o rispondere a qualsiasi domanda in modo rapido ed efficiente. Ci impegniamo a garantire la massima soddisfazione del cliente e a fornire un servizio di assistenza post-vendita di altissima qualità. Quindi, se hai bisogno di assistenza, non esitare a contattarci; saremo lieti di aiutarti in ogni modo possibile.

Description

Technical features

  • Indoor unit catalog code: ASYG14KMCF
  • Outdoor unit catalog code: AOYG14KMCC
  • Kit code: 3NGF87285
  • Power: 14000 Btu
  • Integrated Wi-Fi

Energy efficiency

  • SEER: 6.90
  • SCOP: 4.10
  • Cooling energy efficiency class: A++
  • Heating energy efficiency class: A+
  • Annual energy consumption in cooling: 213 kWh/a
  • Annual energy consumption in heating: 1366 kWh/a
Performance
  • Cooling capacity: 4.2 kW
  • Heating capacity: 5.4 kW
  • Cooling absorption: 1,220 kW
  • Heating absorption: 1,410 kW
  • Indoor unit air flow: 770 m 3 /h
  • Indoor unit sound power level: 57~59 dB(A)
  • External unit sound power level: 65~66 dB(A)
  • Indoor unit sound pressure level: 20~44 dB(A)
  • External unit sound pressure level: 50 dB(A)

Electrical data

  • Power supply (V,Hz, Ø): 230/50/1
  • Refrigerant gas: R32
  • Operating range
  • - Cooling: -10° ~ 46°C
  • - Heating: -15° ~ 24°C
Installation data
  • Liquid pipe diameter: 6.35 mm (1/4")
  • Gas pipe diameter: 9.52 mm (3/8")
  • Maximum pipe length: 20 m
  • Maximum height difference between internal unit and external unit: 15 m

Dimensions and weight

  • Indoor unit dimensions (HxWxD): 270x834x222 mm
  • Indoor unit weight: 10.0 kg
  • External unit dimensions (HxWxD): 542x799x290 mm
  • External unit weight: 31.0 kg

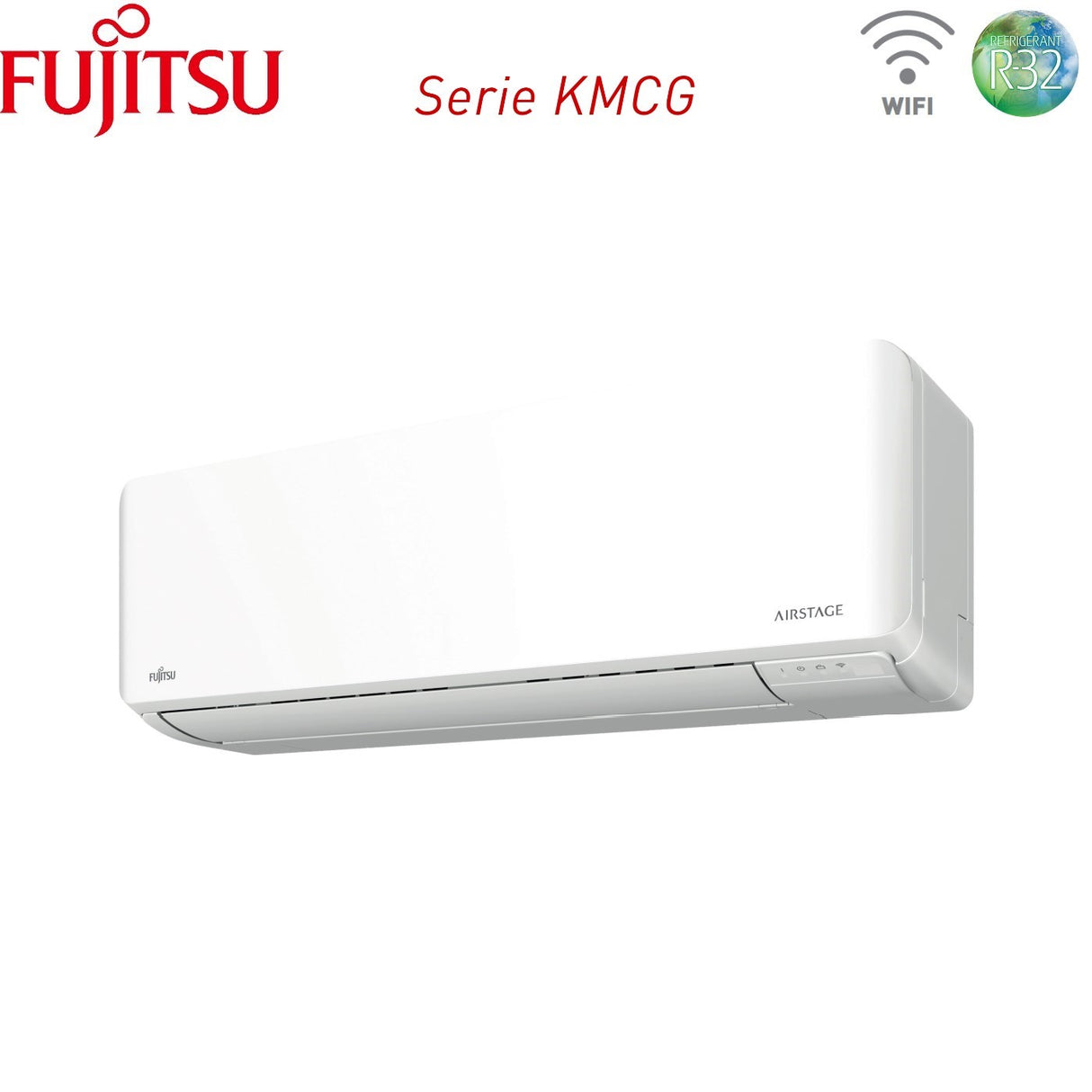

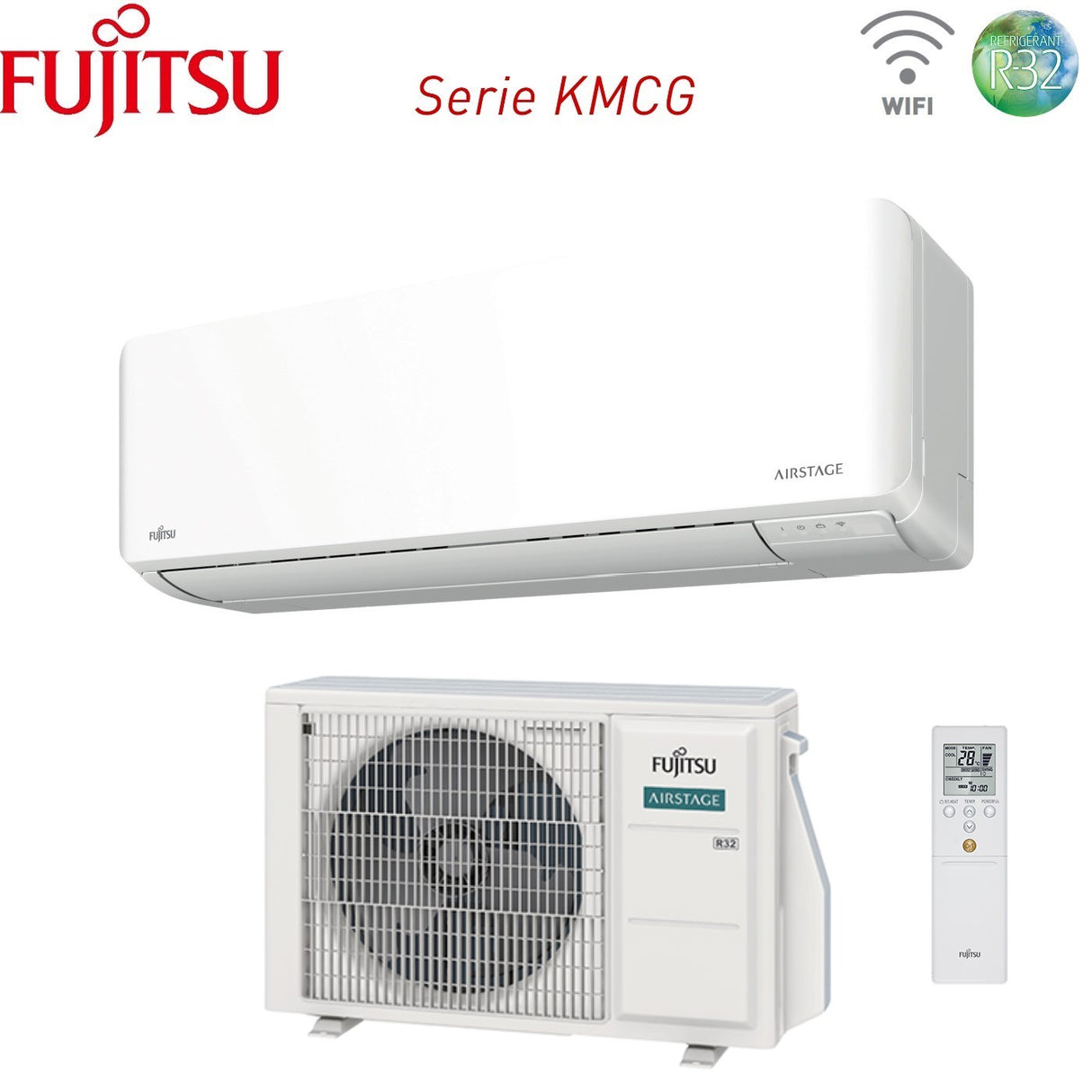

Fujitu KM Series air conditioner

KM models are equipped with R32 refrigerant gas which allows a 67% reduction in the global warming indicator (from a value of 2,088 to 675), bringing the Ozone Depletion Potential (ODP) to a value close to zero. In the 9000 and 12000 Btu versions the seasonal energy efficiency index (SEER) is 7.40 and 7.30 respectively (in the previous models of the same series the index was equal to 7.00). The attention to consumption and energy saving are also confirmed by the double class A in cooling.

Other pluses of the KM range are silence and small dimensions: split only 222 mm deep. The air conditioner can in fact operate at just 20 decibels when cooling. Thanks to a particular high-density multi-pass heat exchanger and a powerful ventilation system, it was possible to combine high performance with a reduction in size to obtain an aesthetic capable of fitting harmoniously into any type of residential environment.

The design is characterized by the essentiality of the elegant linear edges: a minimal concept that allowed Fujitsu Climatizzatori to win the "Good Design Award", in which the evaluation for the assignment of the recognition includes criteria such as ease of use, concepts basis of product development, functionality and new technologies used.

New R32 refrigerant

Its low global warming potential (GWP) of one third compared to the most common refrigerant used for air conditioning represents an advantage for protecting the environment

Refrigerante R32

Inverter technology Twin rotary DC compressor
Twin rotary DC is the high efficiency compressor used in all our product ranges. Its innovative design guarantees greater energy efficiency than normal compressors. The DC fan motor supports the high efficiencies required in all our air conditioners.
  • Maximum operating power Only 20 minutes at maximum power: with this function the air conditioner quickly reaches the comfort conditions required inside the rooms.
  • Silent mode for external unit Activating this function of the remote control reduces the noise of the external machine.
  • Maintenance temperature 10°C The temperature maintenance mode at 10°C prevents the temperature of unoccupied rooms from dropping excessively

High energy saving

High efficiency is guaranteed by a high-efficiency heat exchanger, a large fan and a new refrigerant

Slim and elegant design

The slim and elegant shape is achieved thanks to the multi-pass high-density heat exchanger and high-efficiency fan

Scambiatore

Intelligent control device included

The air conditioner can be controlled from anywhere using the built-in wireless LAN interface. The wireless LAN interface is installed in the indoor unit.

Thanks to the AIRSTAGE Mobile App, you can control the air conditioner anytime, anywhere.

Dispositivo di Controllo Intelligente

Comfortable ventilation and quiet operation

Large baffle and new diffusion structure allow for comfortable airflow that spreads wider to the user's feet and quiet operation

Comfortable ventilation

Functions

• Up and down movement of the flaps Automatic opening and closing of the flaps

• Automatic ventilation speed Automatic modification of the ventilation speed according to the temperature required in the room

• Automatic Restart In the event of a temporary power failure, the air conditioner restarts automatically when the power returns

• 10°C HEAT 10°C is the minimum attenuation temperature that can be set in heating

• Automatic sleep switch-off Night-time comfort is guaranteed by the gradual regulation of the temperature before the programmed shutdown of the air conditioner

• Daily timer Four possible selections within 24 hours ON, OFF, ON OFF or OFF ON

• Maximum Power Function that allows you to activate the air conditioner at maximum power for rapid comfort

• Automatic cold/heat switching By comparing the room temperature and the set temperature, the air conditioner automatically activates heating or cooling

• Energy saving Control system for energy saving

• Silent mode Reduction of external machine noise

• Filter status indicator Allows you to check the cleanliness of the filters

Product Warranty: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.

Scheda Tecnica
  • peso: 50.0 kg
  • classe energetica raffreddamento: A++
  • classe energetica riscaldamento: A+
  • gas: R-32
  • marca: Fujitsu
  • metri quadri : 40-50 m2
  • modello: ASYG14KMCF_1
  • potenza btu: 14000
  • superficie riscaldabile mq: 20
