Fujitsu Inverter Air Conditioner LM-E series 14000 Btu ASYG14LMCE ex ASYG14LMCA R-410 Class A++
Fujitsu Inverter Air Conditioner LM-E series 14000 Btu ASYG14LMCE ex ASYG14LMCA R-410 Class A++ is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
How shipping works
How shipping works
Shipping costs vary depending on the weight and shipping method of the order.
Our shipping services
Standard Shipping: estimated delivery in 2 to 5 working days
Premium Shipping: guaranteed delivery in 24 working hours
Premium Shipping + Flat Delivery: guaranteed delivery in 24 working hours
Please refer to the tables for Standard Shipping prices for Italy and for Minor Islands and Disturbed Areas.
For further details on Premium Shipping, please see the Premium Shipping page.
Customer service
Customer service
Our service department is dedicated to providing support to our customers for any problems or questions they may have before or after purchasing our products.
Use the direct communication channel to speak to one of our operators, or send us an e-mail to one of the addresses listed on the contact us page.
Our customer service team consists of highly qualified professionals who are always ready to help customers solve any problems or answer any questions quickly and efficiently. We strive to ensure maximum customer satisfaction and provide the highest quality after-sales service. So, if you need assistance, please do not hesitate to contact us; we will be happy to help you in any way we can.
Description
Description
Technical features

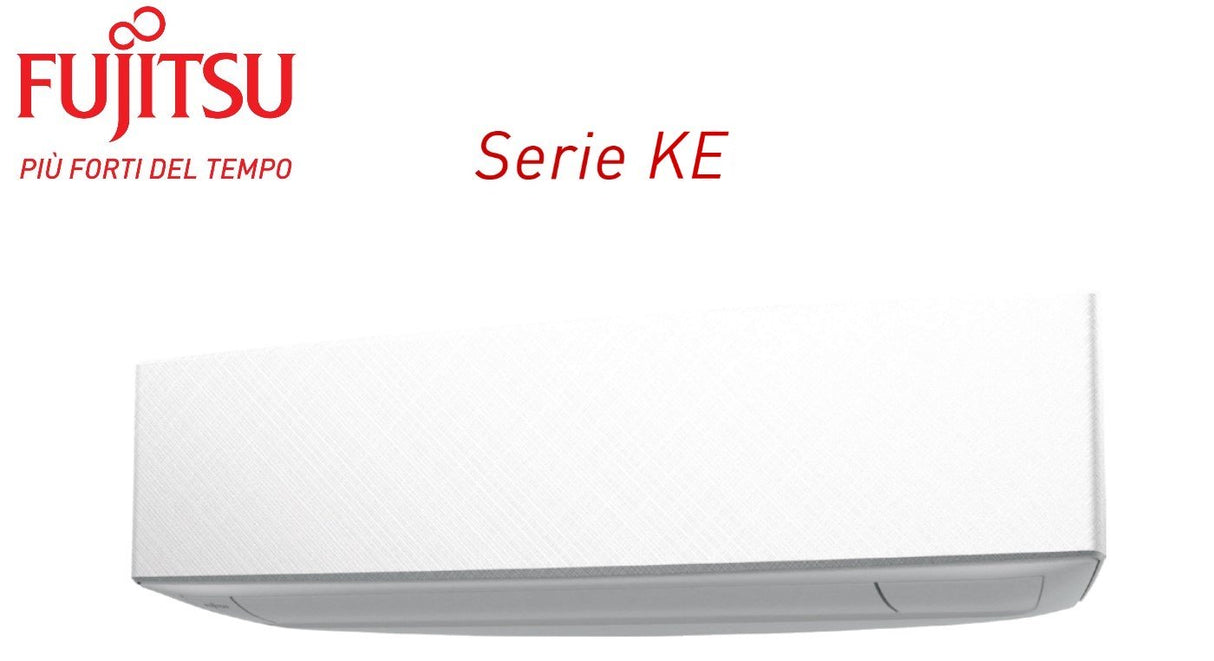

- Indoor unit catalog code: ASYG14LMCE

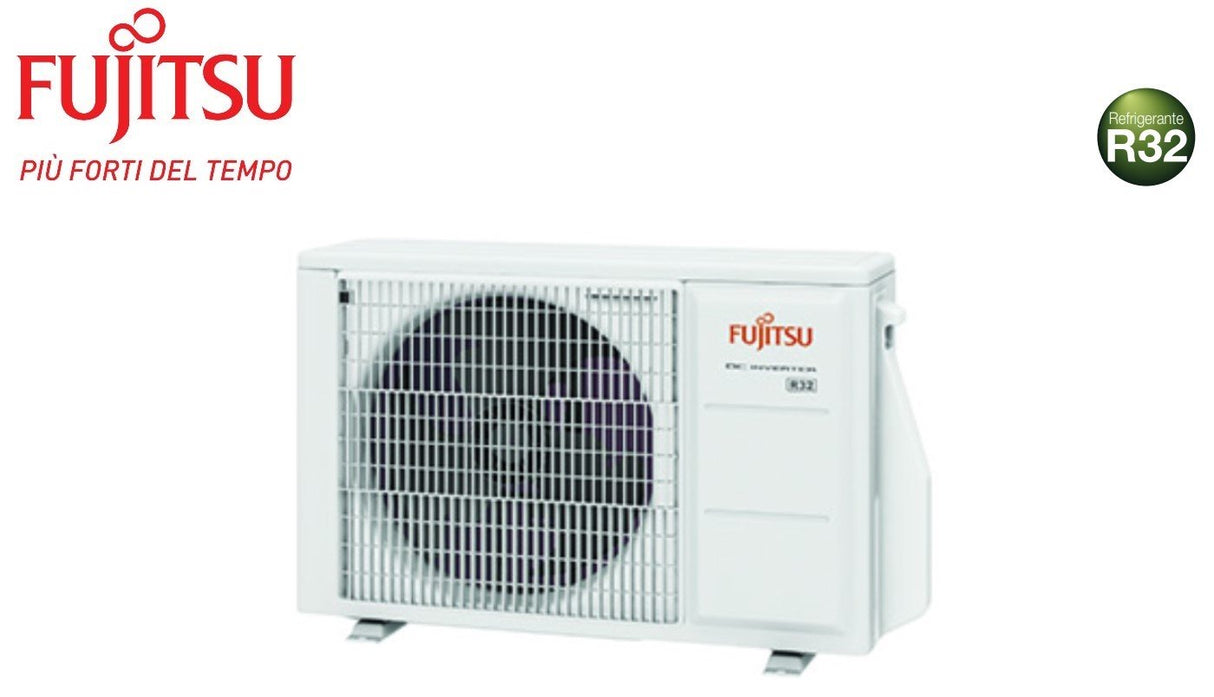

- Outdoor unit catalog code: AOYG14LMCE
- Kit code: 3NGF8775
- Power: 14000 Btu
Energy efficiency
- SEER: 6.90
- SCOP: 4.00
- Cooling Energy Efficiency Class: A++
- Heating Energy Efficiency Class: A+
- Annual Energy Consumption in Cooling: 203 kWh/a
- Annual Energy Consumption in Heating: 1365 kWh/a
- Cooling Capacity: 4.0 kW
- Heating Capacity: 5.0 kW
- Cooling absorption: 1,135 kW
- Heating absorption: 1,365 kW
- Indoor Unit Air Flow Rate: 750 m 3 /h
- Outdoor Unit Air Flow Rate: 18000 m 3 /h
- Internal Unit Sound Power Level: 60 dB(A)
- External Unit Sound Power Level: 65 dB(A)
- Indoor Unit Sound Pressure Level: 25~33~40~44 dB(A)
- External Unit Sound Pressure Level: 50 dB(A)
Electrical Data
- Power supply (V,Hz, Ø): 230/50/1
- Refrigerant gas: R410
- Operating range
- - Cooling: -10° ~ 43°C
- - Heating: -15° ~ 24°C
- Liquid pipe diameter: 6.35 mm (1/4")
- Gas pipe diameter: 12.70 mm (1/2")
- Maximum length of pipes: 20 m
- Maximum height difference Internal Unit / External Unit: 15 m
Dimensions and weight
- Internal Unit Dimensions (HxWxD): 270×870×204 mm
- Internal Unit Weight: 8.5 Kg
- External Unit Dimensions (HxWxD): 540x790x290 mm
- External Unit Weight: 34 Kg
New LM-E Series

High Efficiency Compact Design
Its refined shape was obtained thanks to a particular multi-pass high-density heat exchanger and a powerful ventilation system.

Greater airflow, greater comfort Power diffuser
Pushing hot air towards the floor for greater winter comfort. Pushing fresh air towards the ceiling so as not to disturb the occupants of the room.

Daily Timer
The daily timer and night scheduler are easy to set

Functions
• Up and down movement of the flaps. Automatic opening and closing of the flaps
• Automatic ventilation speed Automatic modification of the ventilation speed according to the temperature required in the room
• Automatic Restart In the event of a temporary power failure, the air conditioner restarts automatically when the power returns
• 10°C HEAT 10°C is the minimum attenuation temperature that can be set in heating
• Maximum Power Function that allows you to activate the air conditioner at maximum power for rapid comfort
• Automatic cold/heat switching By comparing the room temperature and the set temperature, the air conditioner automatically activates heating or cooling
• Energy saving Control system for energy saving
• Silent mode Reduction of external machine noise
• Diffuser Cools horizontally, preventing the air from reaching the occupants of the room directly and heats vertically, creating a pleasant sensation of comfort
• Automatic sleep switch-off Night-time comfort is guaranteed by the gradual regulation of the temperature before the programmed shutdown of the air conditioner
• Daily timer Four possible selections within 24 hours ON, OFF, ON OFF or OFF ON
• Filter status indicator Allows you to check the cleanliness of the filters
• Deodorizing filter The filter is composed of ultrafine ceramic particles that decompose absorbed odors, reducing the oxidizing effects of the ions generated
• Catechin filter The filter exploits the electrostatic effect of the catechin to retain the finest polluting particles
• Washable front
• i-PAM control system
Maximum Operating Power
Only 20 minutes at maximum power: with this function the air conditioner quickly reaches the comfort conditions required inside the rooms
Silent mode for external unit
Activating this function of the remote control reduces the noise of the external machine

Maintenance temperature 10°C
The 10°C temperature maintenance mode prevents the temperature of unoccupied rooms from dropping excessively.
Product Warranty: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.
Specifications
Specifications
- peso: 50.0 kg
- classe energetica raffreddamento: A++
- classe energetica riscaldamento: A+
- costospedizionecad: IT35;AD165;AT106;BE111;BG136;HR123;DK175;EE170;FR144;DE102;LV131;LT123;LU80;NL119;PT114;CZ90;SK101;SI101;ES104;SE212;HU85;CH168;
- gas: R-32
- marca: Fujitsu
- metri quadri : 40-50 mq
- modello: ASYG14LMCE
- potenza btu: 14000
