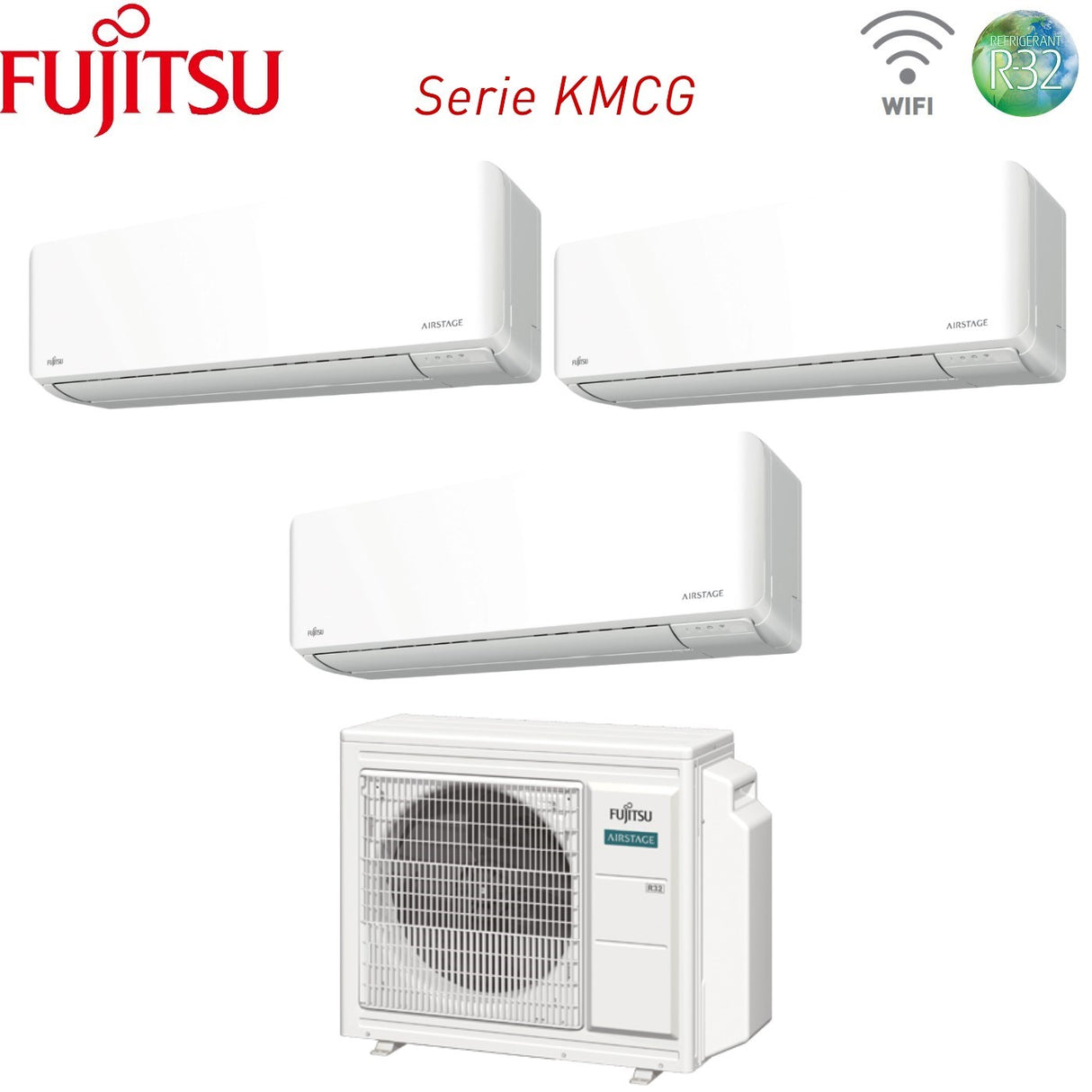

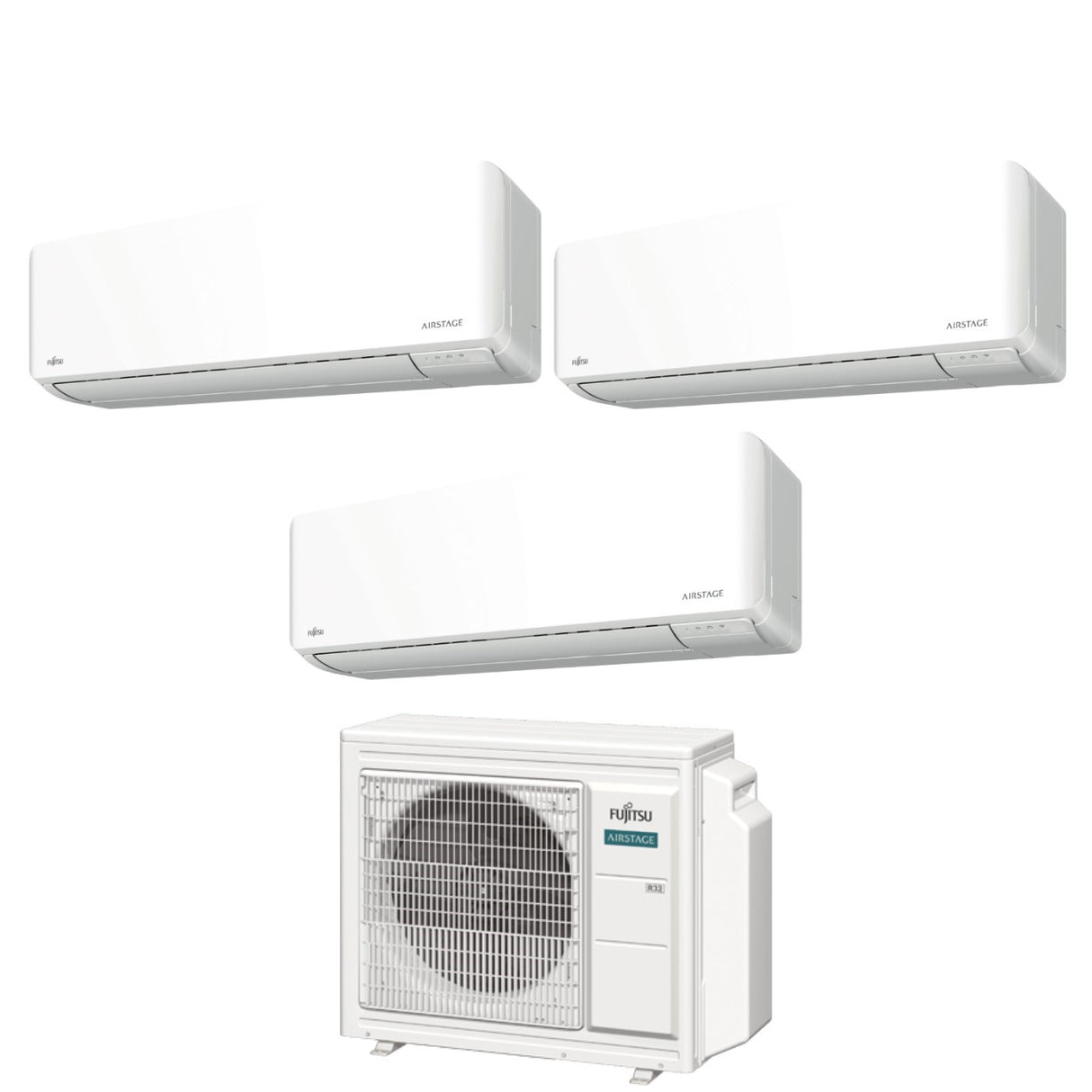

Fujitsu Trial Split Inverter Air Conditioning KM 12+12+12 series with AOYG24KBTA3 R-32 Integrated Wi-Fi 12000+12000+12000

• Outdoor unit catalog code: AOYG24KBTA3
• Outdoor unit code: 3NGF82002
• Number of connectable internal units: Up to 3 internal units

Energy efficiency

• SEER: 8.6
• SCOP: 4.6
• Cooling energy efficiency class: A+++
• Heating energy efficiency class: A++

Performance

• Cooling capacity: 6.8 kW
• Heating capacity: 8.0 kW
• Sound power level: 61~67 dB(A)
• Sound pressure level: 48~53 dB(A)

Electrical data

• Power (V/Hz/Φ): 230/50/1
• Refrigerant gas: R-32
• Guaranteed temperature range:
• - Cooling: -10° ~ 46°C
• - Heating: -15° ~ 24°C

Installation data

• Liquid tube diameter: 6.35 mm (1/4") x3
• Gas pipe diameter: 9.52 mm (3/8") x2 + 12.70 mm (1/2")
• Maximum pipe length: 50 m
• Maximum height difference between internal unit and external unit: 15 m

Dimensions and weight

• External unit dimensions (HxWxD): 716x820x315 mm
• External unit weight: 46.0 kg

High energy saving

High-tech components: DC technology is used for the compressor, indoor/outdoor fan motor and inverter control. High efficiency is guaranteed by a high-efficiency heat exchanger, a large fan and a new refrigerant.

New R32 refrigerant

Its low global warming potential (GWP) of one third compared to the most common refrigerant used for air conditioning represents an advantage for protecting the environment

Fujitsu KM Series

It is possible to control the air conditioners of the entire KM range even remotely via smartphone and tablet: simply download the FGLair application for free, also available in Italian.

The design is characterized by the essentiality of the elegant linear edges: a minimal concept that allowed Fujitsu Climatizzatori to win the "Good Design Award", in which the evaluation for the assignment of the recognition includes criteria such as ease of use, concepts basis of product development, functionality and new technologies used.

Slim and elegant design

The slim and elegant shape is achieved thanks to the multi-pass high-density heat exchanger and high-efficiency fan

Intelligent control device included

The air conditioner can be controlled from anywhere using the built-in wireless LAN interface. The wireless LAN interface is installed in the indoor unit.

Thanks to the AIRSTAGE Mobile App, you can control the air conditioner anytime, anywhere.

Functions

• Up and down movement of the flaps Automatic opening and closing of the flaps
• Automatic ventilation speed Automatic modification of the ventilation speed according to the temperature required in the room
• Automatic Restart In the event of a temporary power failure, the air conditioner restarts automatically when the power returns
• 10°C HEAT 10°C is the minimum attenuation temperature that can be set in heating
• Automatic switch-off Sleep Night-time comfort is guaranteed by the gradual regulation of the temperature before the programmed shutdown of the air conditioner
• Daily timer Four possible selections within 24 hours ON, OFF, ON OFF or OFF ON
• Maximum Power Function that allows you to activate the air conditioner at maximum power for rapid comfort
• Automatic cold/heat switching By comparing the room temperature and the set temperature, the air conditioner automatically activates heating or cooling
• Energy saving Control system for energy saving
• Filter status indicator Allows you to check the cleaning of the filters

Product Warranty: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.
