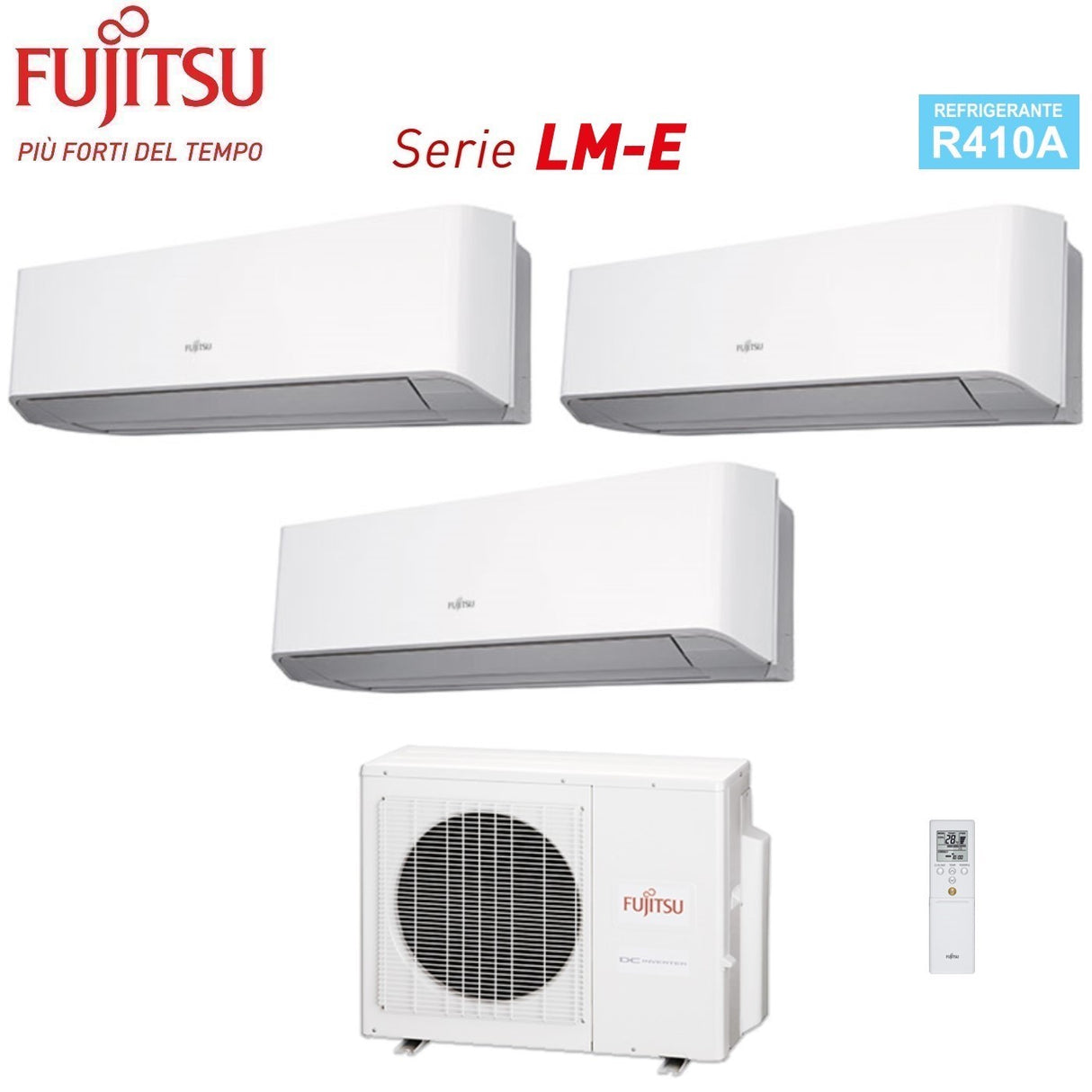

Fujitsu Trial Split Inverter Air Conditioning LM Series 7+9+12 with AOYG24L 7000+9000+12000 R-410

Technical features

Internal units

1) Model

• Indoor Unit Catalog Code: 1x ASYG07LMCE (3NGF8290)
• Power: 7000 btu/h
• Treated air: 500 m ³ /h
• Sound Power Level: 51 dB(A)
• Sound pressure level: 21~36 dB(A)
• Liquid pipe diameter: 6.35 mm (1/4")
• Gas pipe diameter: 9.52 mm (3/8")
• Internal Unit Dimensions (HxWxD): 270x870x204 mm
• Internal Unit Weight: 8.5 Kg

2) Model

• Indoor Unit Catalog Code: 1x ASYG09LMCE (3NGF8291)
• Power: 9000 btu/h
• Treated air: 520 m ³ /h
• Sound Power Level: 52 dB(A)
• Sound pressure level: 21~37 dB(A)
• Liquid pipe diameter: 6.35 mm (1/4")
• Gas pipe diameter: 9.52 mm (3/8")
• Internal Unit Dimensions (HxWxD): 270x870x204 mm
• Internal Unit Weight: 8.5 Kg

External Unit

Model:

• Outdoor Unit catalog code: AOYG24LAT3 (3NGF8280)
• Max indoor units: up to 3 indoor units

Energy efficiency:

• SEER : 6.2 (W/W)
• SCOP : 4.2 (W/W)
• Cooling Energy Efficiency Class: A++
• Heating Energy Efficiency Class: A+

Performance:

• Cooling Capacity: 6.8 kW
• Heating Capacity: 8.0 kW
• Std Cooling absorption: 1.93 kW
• Std Heating absorption: 1.98 kW
• Sound power level: 68 dB(A)
• Sound pressure level: 48 dB(A)

Characteristics:

• Power (V/Hz/Φ): 220~240/50/1
• Refrigerant gas: R-410
• Pipe diameter Liquid: 6.35 mm (1/4") x3
• Gas pipe diameter: 9.52 mm (3/8") x2 + 12.70 mm (1/2")
• Guaranteed temperature range:
• - Cooling: -10° ~ 46° C
• - Heating: -15° ~ 24° C

Dimensions:

• External Unit Dimensions (HxWxD): 700x900x330 mm
• External Unit Weight: 55 Kg

Fujitsu LM-E series

High efficiency compact design

Its refined shape was obtained thanks to a particular multi-pass high density heat exchanger and a powerful ventilation system

Greater airflow, greater comfort

Power diffuser

Pushing hot air towards the floor for greater winter comfort. Pushing fresh air towards the ceiling so as not to disturb the occupants of the room

Daily Timer

The daily timer and night scheduler are easy to set

Functions

• Up and down movement of the flaps Automatic opening and closing of the flaps

• Automatic ventilation speed Automatic modification of the ventilation speed according to the temperature required in the room

• Automatic Restart In the event of a temporary power failure, the air conditioner automatically restarts when the power returns

• 10°C HEAT 10°C is the minimum attenuation temperature that can be set in heating

• Maximum Power Function that allows you to activate the air conditioner at maximum power for rapid comfort

• Automatic cold/heat switching By comparing the room temperature and the set temperature, the air conditioner automatically activates heating or cooling

• Energy saving Control system for energy saving

• Diffuser Cools horizontally, preventing the air from reaching the occupants of the room directly and heats vertically, creating a pleasant sensation of comfort

• Automatic sleep switch-off Night-time comfort is guaranteed by the gradual regulation of the temperature before the programmed shutdown of the air conditioner

• Daily timer Four possible selections within 24 hours ON, OFF, ON OFF or OFF ON

• Filter status indicator Allows you to check the cleanliness of the filters

• Deodorizing filter The filter is composed of ultrafine ceramic particles that decompose absorbed odors, reducing the oxidizing effects of the ions generated

• Catechin filter The filter exploits the electrostatic effect of the catechin to retain the finest polluting particles

• Washable front

• i-PAM control system

Maintenance temperature 10°C

The 10°C temperature maintenance mode prevents the temperature of unoccupied rooms from dropping excessively

SaveSpace installation

Multiple internal units can be connected to a single external unit, with great freedom of placement. With the same internal machines, the external unit of the Multisplit allows you to save much more space in the installation

Wide range of indoor units with various models

Eight types and 25 models for a power range from 2 to 7 kW. They are designed to satisfy multiple needs: from rooms in private homes to large shops and hotels

Product Warranty: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.

• peso: 75.0 kg
• marca: Fujitsu
• modello: LMCE 7+9+12 24
