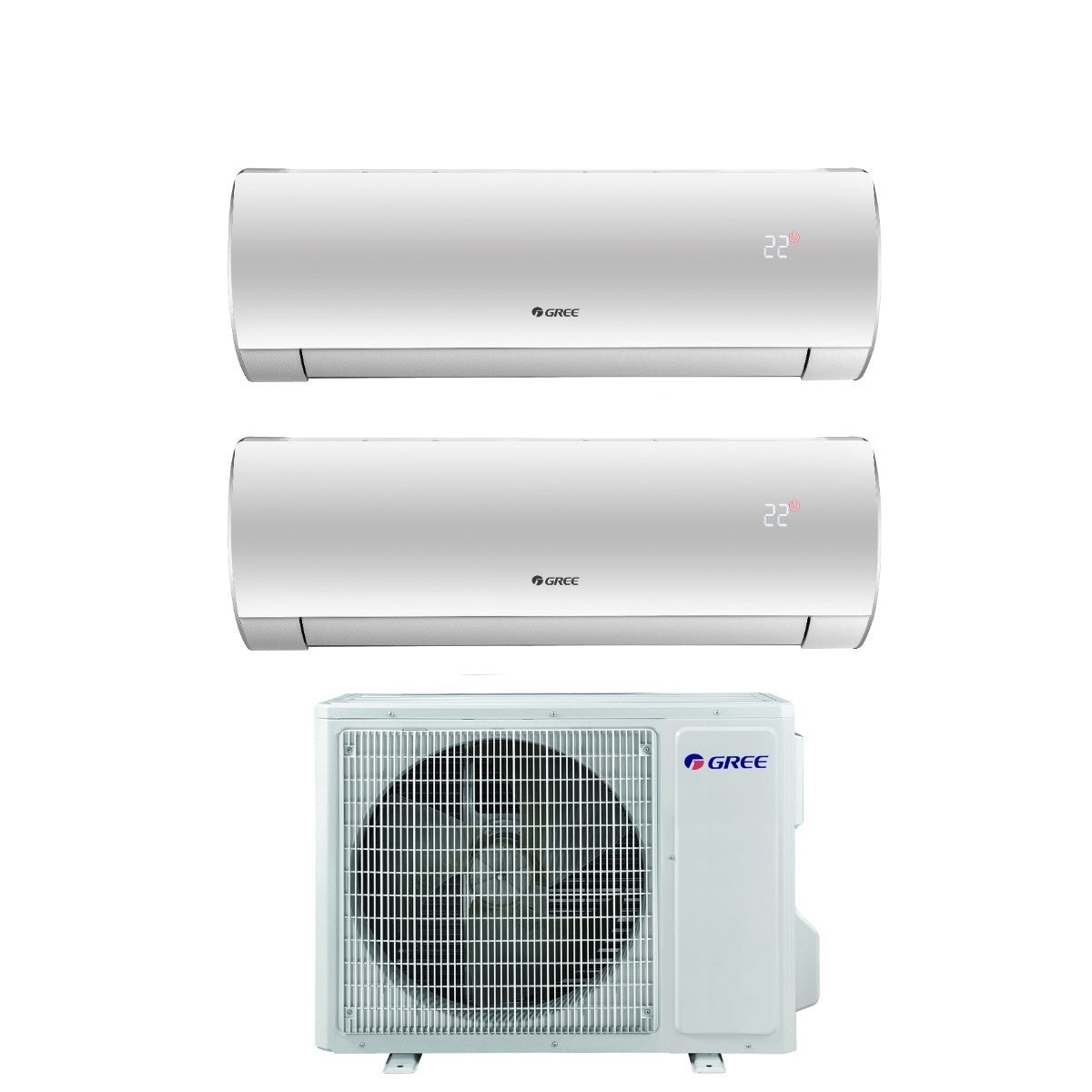

Gree Dual Split Inverter Air Conditioner FAIRY 9+9 series with GWHD(18)NK6OO R-32 Integrated Wi-Fi 9000+9000

Technical features

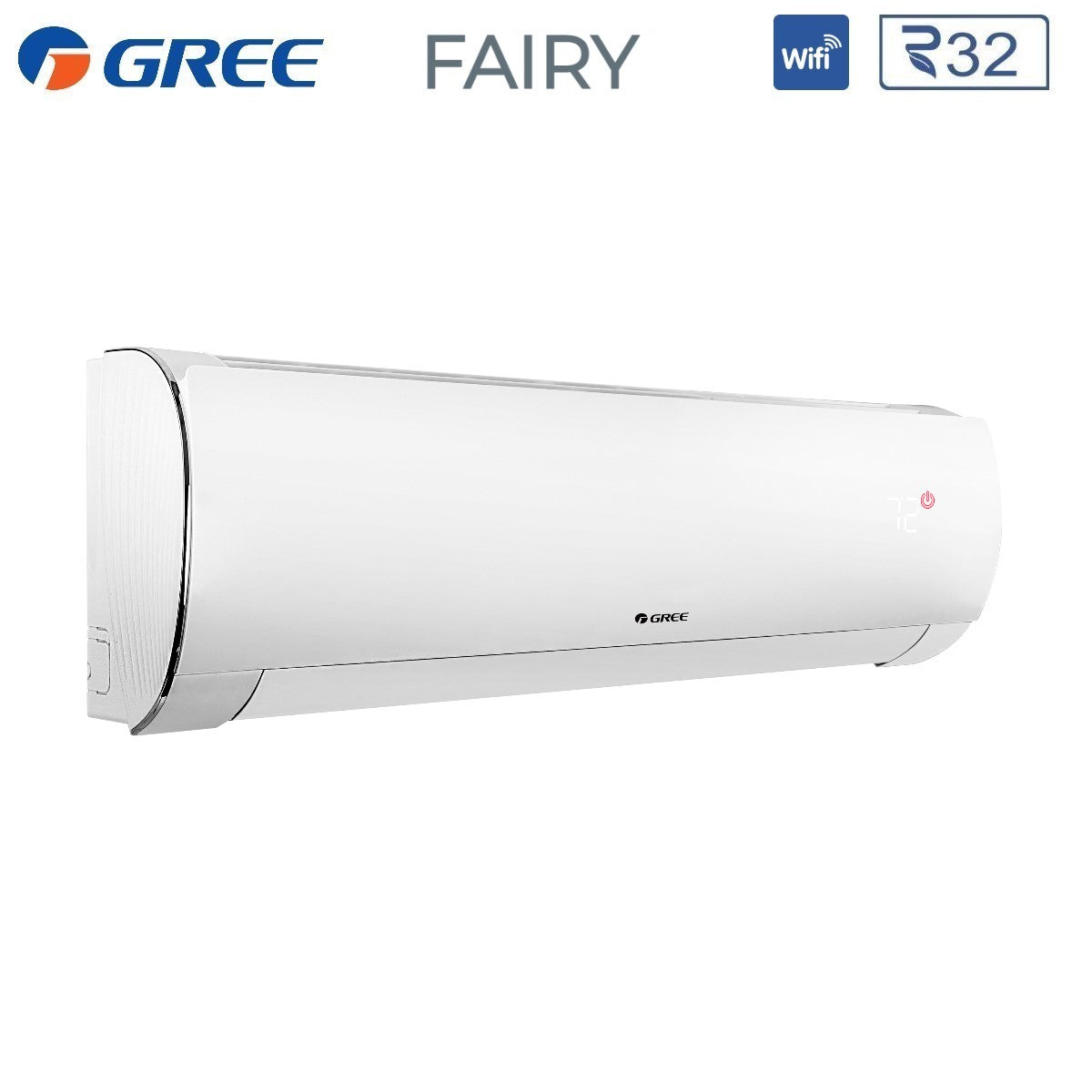

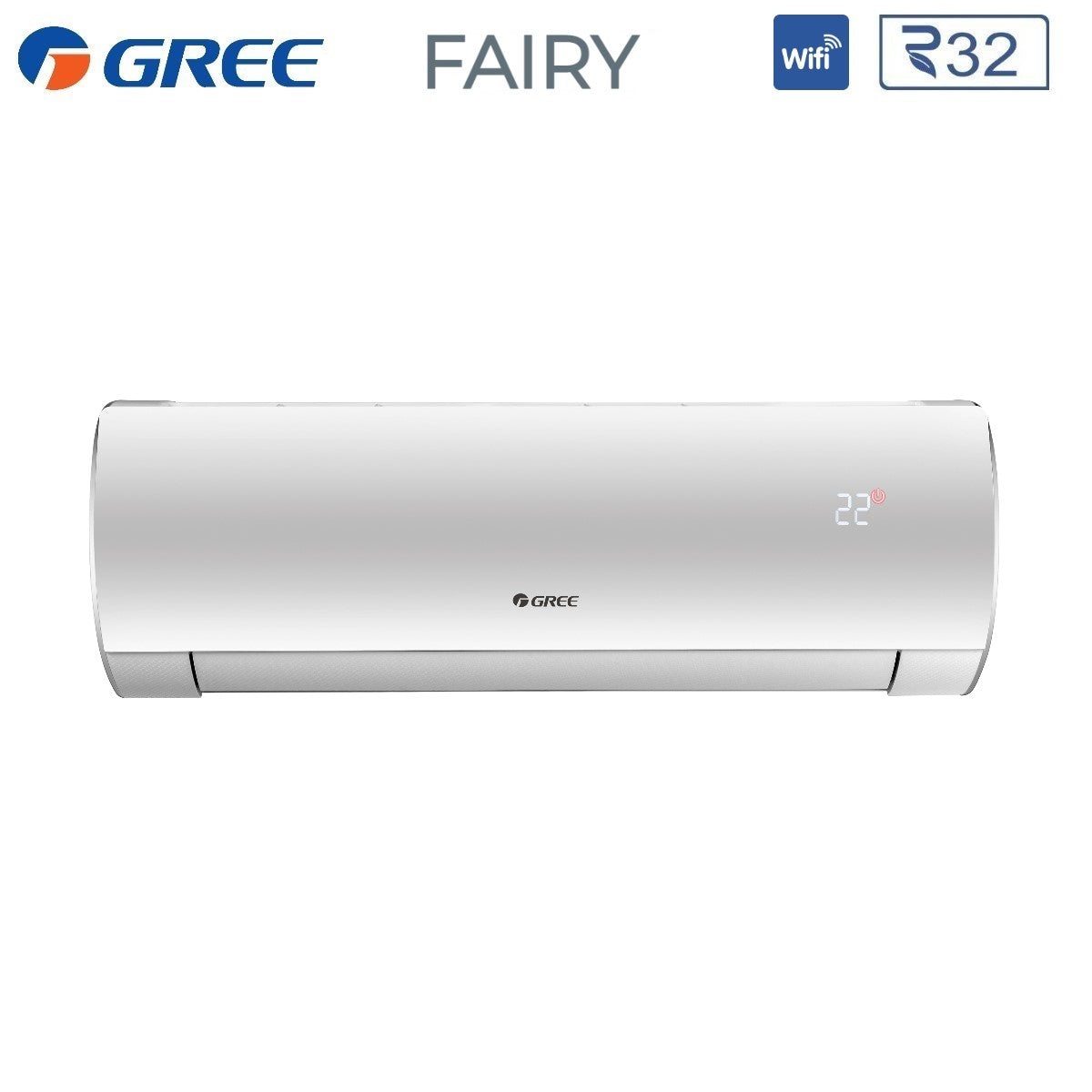

Internal Units

Model:

• Indoor unit catalog code: 2x GWH09ACC-K6DNA1A/I
• Power: 9000 Btu
• Cooling Capacity: 2.7 kW
• Heating Capacity: 3.0 kW
• Indoor Unit Treated Air: 390~610 m ³ /h
• Sound power level: 33~54 dB(A)
• Sound pressure level: 26~40 dB(A)
• Liquid pipe diameter: 6.35 mm (1/4")
• Gas pipe diameter: 9.52 mm (3/8")
• Internal Unit Dimensions (HxWxD): 294x889x212 mm
• Internal Unit Weight: 11 Kg
• Integrated Wi-Fi

Model:

• Outdoor Unit catalog code: GWHD(18)NK6OO
• Max indoor units: up to 2 indoor units

Energy efficiency:

• SEER : 6.6
• SCOP : 4.0
• Cooling Energy Efficiency Class: A++
• Heating Energy Efficiency Class: A+
• Annual energy consumption in Cooling: 281 kWh/a
• Annual energy consumption in Heating: 1505 kWh/a

Performance:

• Cooling Capacity: 5.3 kW
• Heating Capacity: 5.65 kW
• Cooling absorption: 1.48 kW
• Heating absorption: 1.25 kW
• Sound power level: 64 dB(A)
• Sound pressure level: 50~54 dB(A)

Characteristics:

• Power (V/Hz/F): 220~240/50/1
• Refrigerant gas: R-32
• Guaranteed temperature range:
• - Cooling: -15° ~ 43° C
• - Heating: -15° ~ 24° C

• External Unit Dimensions (HxWxD): 550x745x300 mm
• External Unit Weight: 32 Kg

---

Gree Fairy

---

I Feel

The sensor built into the remote control senses the surrounding temperature and transmits the signal to the indoor unit. This way the indoor unit can adjust the volume and temperature of the airflow to ensure maximum comfort exactly where the remote control is placed, not where the unit is located.

---

COLD PLASMA air purification system

It releases ions capable of neutralizing bacteria, fungi, viruses, pollen, mites and pollutants in general present in the air, making the environment healthy and the air pleasant. It guarantees effective air sterilization, eliminating over 90% of bacteria. Removes over 400 types of odors. Improves air quality, enriching it with negative ions.

---

New elegant design, original and attractive finish

The rounded design and the fine finish, embellished with chrome details and the original lateral processing, make the unit elegant and captivating.

---

Door control contact

This function allows you to use the magnetic card of the entrance door (for example of hotel rooms) to control the turning on and off of the air conditioning. By inserting the card the air conditioner is activated, by removing the card the air conditioner stops. In this way, energy waste is avoided. For this application it is necessary to use the wired control.

---

Remote Wi-Fi

Thanks to the integrated WIFI module it is possible to control the operation of the unit remotely via the APP on your smartphone, turn the unit on or off, select the desired mode and temperature, etc., to program your comfort at any time, even when you are away from home

• peso: 55.0 kg
• classe energetica raffreddamento: A++
• classe energetica riscaldamento: A++
• costospedizionecad: IT35;AD165;AT106;BE111;BG136;HR123;DK175;EE170;FR144;DE102;LV131;LT123;LU80;NL119;PT114;CZ90;SK101;SI101;ES104;SE212;HU85;CH168;
• gas: R-32
• marca: Gree
• metri quadri : 25/25
• modello: FAIRY_9+9_18_1
• potenza btu: 9000+9000
• superficie riscaldabile mq: 25/25
