GREE TRIAL SPLIT INVERTER AIR CONDITIONER LOMO 9+9+12 series with GWHD24NK6LO Wi-Fi R-32

Technical features

SEER: 6.1;
SCOP: 4.0;
Cooling Energy Class: A++;
Heating Energy Class: A+;
Power: 9000+9000+12000 BTU;
Covered surface: from 15 to 25 m2 split 9000, from 25 to 40 m2 split 12000;

Cooling performance:
Absorbed power: 2.18 kW;
Annual energy consumption: 407 kWh/a;
Operation range: -15~43 °C;

Heating performance:
Absorbed power: 2.28 kW;
Annual energy consumption: 2450 kWh/a;
Operation range: -15~24 °C;

Noise:
UI sound pressure level (min./max): 26/42 db(A);
Sound power level UI(min./max): 39/57 db(A);
EU sound pressure level: 58 db(A);
EU sound power level: 65 db(A);

Technical data:
Dehumidification: 0.8 l/hr;
Power (V/Hz/Φ): 220-240V/50Hz/1;
Refrigerant gas: R32;
Liquid/gas piping: 6.35 (1/4) / 9.52 (3/8) mm/inch;
Max piping length: 60 m;
Max height difference (Internal U./External U.): 20 m;

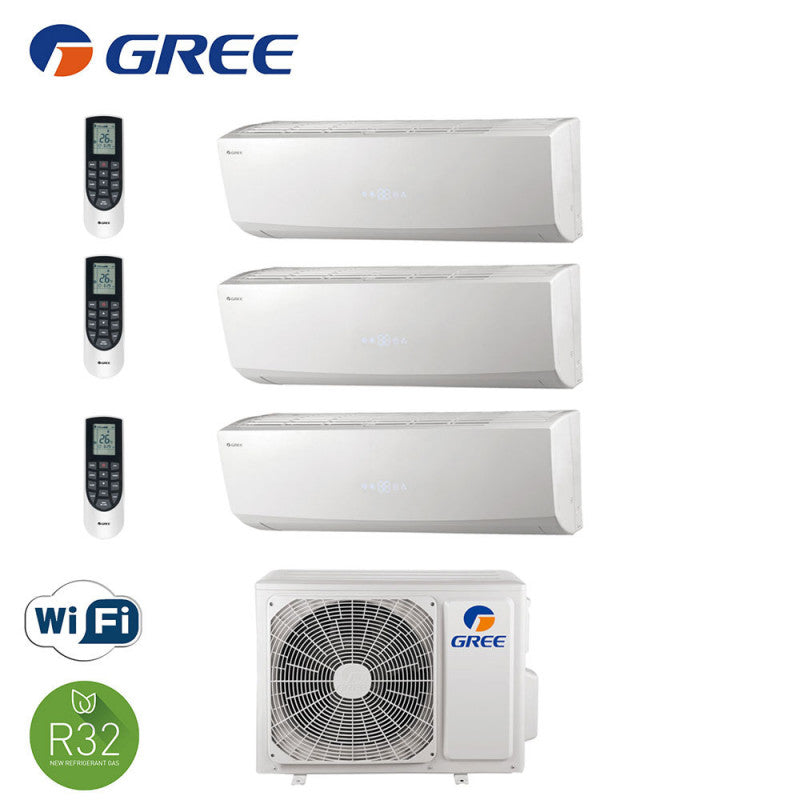

Composed of:
Indoor Unit: 2x GWH09QB + GWH12QB;
External Unit: GWHD(24)NK6LO;

Dimensions

Internal Unit 9000 (WxHxD): 790x275x200 mm; Weight: 9.0kg;
Internal Unit 12000 (WxHxD): 845x289x209 mm; Weight: 10.0kg;
External Unit (HxWxD): 790x980x427 mm; Weight: 68.0 kg;

General characteristics

Gree's Lomo air conditioners are designed to make the most of it and give you maximum comfort with extremely low consumption, reaching very high levels of energy efficiency (A++). Designed with innovative and elegant lines with the utmost attention to detail, to satisfy any need, with a discreet backlit LED display, to display the temperature or functions you desire, and turning it off without sacrificing comfort during hours of rest, it is also managed from a high technology G10 Inverter, which has three strengths, reaches the desired temperature quickly, regulates the power in order to have significant energy savings and keeps the temperature stable for greater comfort.

Your well-being can be programmed even when you are not at home, by connecting the air conditioner through the Gree Cloud Platform Wi-Fi module you can manage the air conditioner easily from your Smartphone or Tablet even when the heat suddenly breaks out and you are not at home, in fact by downloading the specific Gree Smart App allows you to activate the air conditioning, to create the ideal climate to best enjoy moments of relaxation when you return home. Downloadable on all Android or IOS platforms.

Finally, a particular feature of this air conditioner is its extreme silence and the ecological R32 gas, which works at pressures similar to R410 gas, but simplifies recharging operations and the tools used for installing the system are the same as those used for systems with R410A gas (with the exception of checking the compatibility of the pressure gauge, leak detector and recuperator). It also complies with European regulations which will come into force in a few years.

Cold Plasma purification system, releases ions that neutralize bacteria, fungi, viruses, pollen and mites, sanitizing the air making it clean and healthy.

Functions:

Feel: it is the intelligent function that records the temperature where it is via the remote control, and regulates comfort based on the recorded temperature, guaranteeing maximum comfort;

Turbo: it is the function that increases the cooling capacity by 25% by rapidly reducing the ambient temperature, and once the desired temperature is reached it directs the flow upwards;

Smart function (Wi Fi): this is the function that allows you, through the special integrated Wi Fi card, to manage your air conditioner even when you are not at home, conveniently with your smartphone or tablet by downloading the appropriate app;

Auto: it is the special function, which allows it to start automatically once the air conditioner is turned off, eliminates humidity in the internal unit, preventing the proliferation of mould, bacteria and bad smells.;
Dehumidification: this is the function that eliminates the humidity present in the environment, making it comfortable;
Sleep function: this is the function that allows you to sleep peacefully, automatically regulating the temperature without having sudden changes when you wake up.

Auto Mode: it is the function that by pressing the appropriate button, moves the fins to distribute the air flow uniformly and quickly in the desired direction;
Econo: this is the function, ideal for air conditioning a single area, with significant energy and economic savings;
4 fan speeds;
Programmable timer: function that allows you to program the turning on and off of the air conditioner;
Quiet: it is the function that allows you to reduce the noise during hours of rest;
Cold draft prevention: this is the function that prevents excessive overheating when the air conditioner is in heat pump mode, by introducing cold air;
Sleep: this is the function that regulates the temperature at night, based on the temperature;
Autorestart: is the function that, following a blackout or a sudden power failure, returns the air conditioner to the function before it was turned off;
X Fan: this is the function that keeps the internal unit battery clean;
Soft Start: this is the function that keeps consumption low during the start-up phase and protects in the event of interference problems with other electrical appliances;
Self Diagnosis: this is the function that periodically carries out a check-up of the system, in order to intervene quickly if any malfunction is detected;
Optimized air flow for uniform comfort in every corner of the room;

Advantages:
Ecologico uses the new ecological gas R32;
Backlit LED display for quick viewing of both temperature and functions;
Wide frequency control range by adjusting the frequency based on the change in ambient temperature;
Cold Plasma which allows for a healthier and cleaner environment;

• peso: 75.0 kg
• gas: R-32
• marca: Gree
• modello: CLIMAT_1921243
