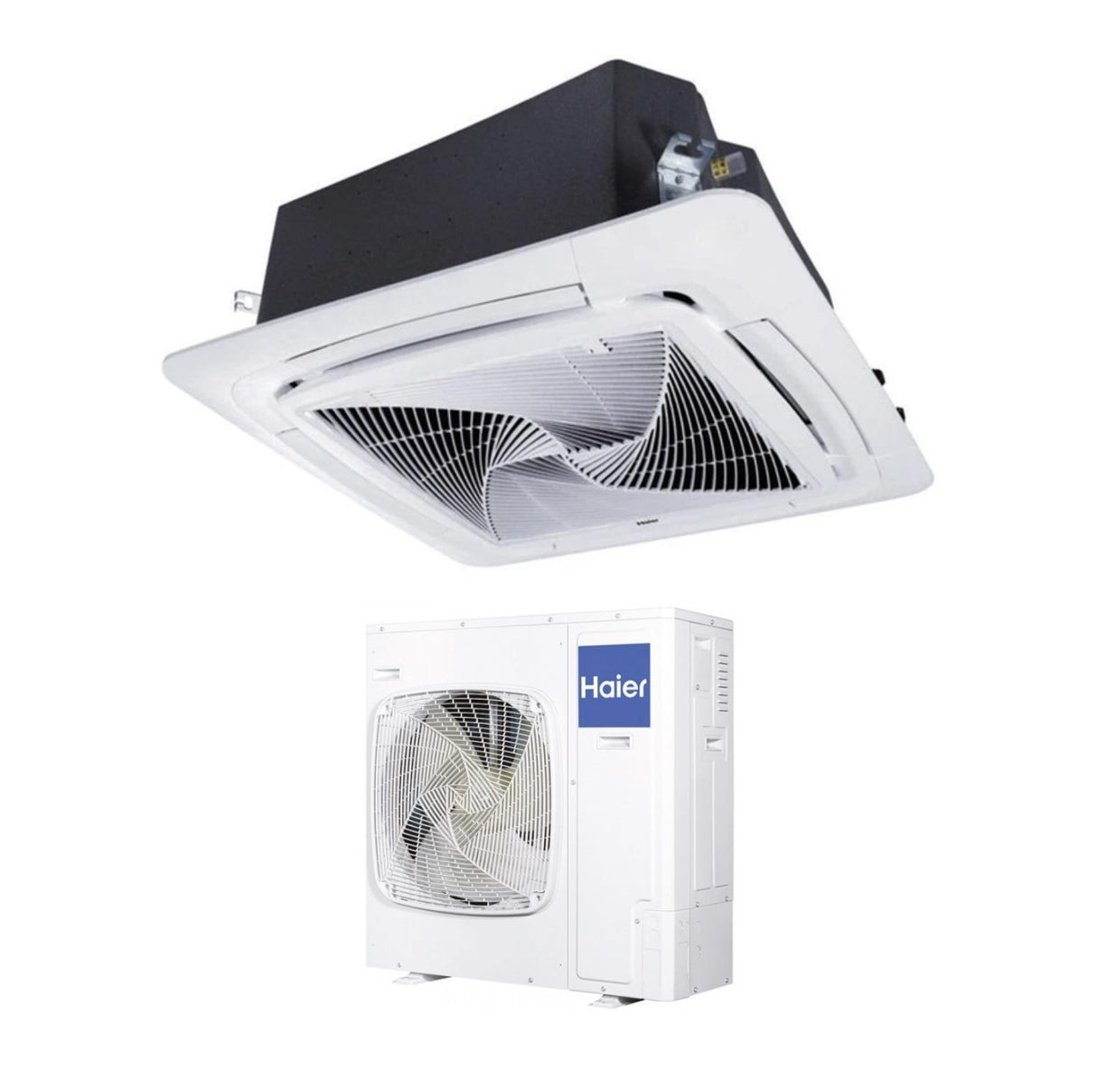

Haier Air Conditioner Cassette 90x90 Round Flow 48000 Btu ABH140K1ERG Single Phase R-32 Wi-Fi Optional with No Sensor Panel Included Haier YR-E16B wired control

Command to be purchased separately!

Model:

• Indoor Unit Code: ABH140K1ERG
  Indoor Unit Commercial Code: 25014A95L
• Outdoor Unit Code: 1U140S2SN1FA
• Outdoor Unit Commercial Code: 2502309H2
• NO SENSOR Panel Code: PB-950KB
• Power: 48000 Btu

Energy efficiency:

• SEER 5.6
• SCOP 3.93
• Energy Class in Cooling: A+
• Heating Energy Class: A
• Annual energy consumption in Cooling: 838 kWh/a
• Annual energy consumption in Heating: 3032 kWh/a

Performance:

• Cooling Capacity: 13.4 kW
• Heating Capacity: 15.0 kW
• Cooling absorption: 5.51 kW
• Heating absorption: 5.77 kW
• Indoor Unit Treated Air: 1200 ~ 1950 m³/h
• Indoor Unit Sound Power Level: 64 dB(A)
• External Unit Sound Power Level: 72 dB(A)
• Indoor Unit Sound Pressure Level: 34 ~ 47 dB(A)
• External Unit Sound Pressure Level: 58 dB(A)

Electrical Data

• Power (V,Hz, Ø): 220~240/50/1
• Refrigerant gas: R32
• Operating range
• - Cooling: -10° ~ 46° C
• - Heating: -15° ~ 24° C

Dimensions and weight:

• Internal Unit Dimensions (WxDxH): 840x840x288 mm
• Internal Unit Weight: 32 Kg
• Panel dimensions (WxDxH): 950x950x50 mm
• Panel weight: 6.5 kg
• External Unit Dimensions (WxDxH): 950x370x965 mm
• External Unit Weight: 84 Kg

Haier Round Flow Cassettes

Silence

The use of DC Inverter fans and the optimization of the design reduce the noise level of the internal units. The optimized air flow guarantees maximum silence of the air conditioner. Does the noise caused by your air conditioner bother you? Haier air conditioners have an advanced noise control system with an optimized design of air ducts and cross-flow fan. With the Silence setting you reach the level of just 28 dB(A).

Fresh Air

the air exchange allows the introduction of clean air into the environment. The "Fresh Air" air inlet arrangement introduces fresh air into the room, up to a maximum of 20% of the nominal air flow of the unit. Furthermore, from the front panel it is possible to easily access the filters for their cleaning and replacement

8-way flow

Thanks to the 8 independent ways it is possible to guarantee a 360° air flow without blind spots. Automatic movement of the deflectors. The dimensions of the cassette drives have been designed to minimize the footprint of the unit

Optional intelligent sensor

The sensor detects the number, position and movement of people to offer optimal temperature control with direct and indirect flows. This technology allows you to reduce energy consumption by approximately 27%, without sacrificing comfort.

Wi-Fi Optional

Allows you to set the air conditioning remotely even during your absence.

Imagine you're rushing home in the middle of summer or lying on the couch, but you can't find the remote control. What you want is to be able to easily control your air conditioner wherever you are and at any time with "Haier Smart Air 2" directly from your phone or tablet

With the Haier "hOn" application you can control all the Haier group appliances in your Smart Home from your smartphone or tablet with a single app. Furthermore, via hOn, you can manage all the basic functions , purification functions and much more. The app allows the use of voice commands because it is compatible with Google Assistant and Alexa and therefore also allows voice control

Product Warranty: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.

• peso: 150.0 kg
• classe energetica raffreddamento: A+
• classe energetica riscaldamento: A
• gas: R-32
• marca: HAIER
• metri quadri : 160 - 180 m2
• modello: ABH140K1ERG
• potenza btu: 48000
• superficie riscaldabile mq: 140
