Haier Inverter Air Conditioning Ducted Medium Prevalence 24000 Btu AD71S2SM3FA R-32 Wi-Fi Optional Haier YR-HRS01 Infrared Remote Control + RE-02 Receiver

Important Notice on Regulations for Fluorinated Gases IN ITALY

In accordance with Regulation (EU) No. 517/2014 and Presidential Decree No. 146/2018, equipment containing fluorinated gases that is not hermetically sealed can only be sold if installed by a certified company.

By law, each sale must be recorded in the Fluorinated Gas Database, including a declaration from the buyer ensuring that the installation complies with the regulations. Therefore, before completing the order, it will be necessary to provide this mandatory declaration.

Command to be purchased separately!

Model:

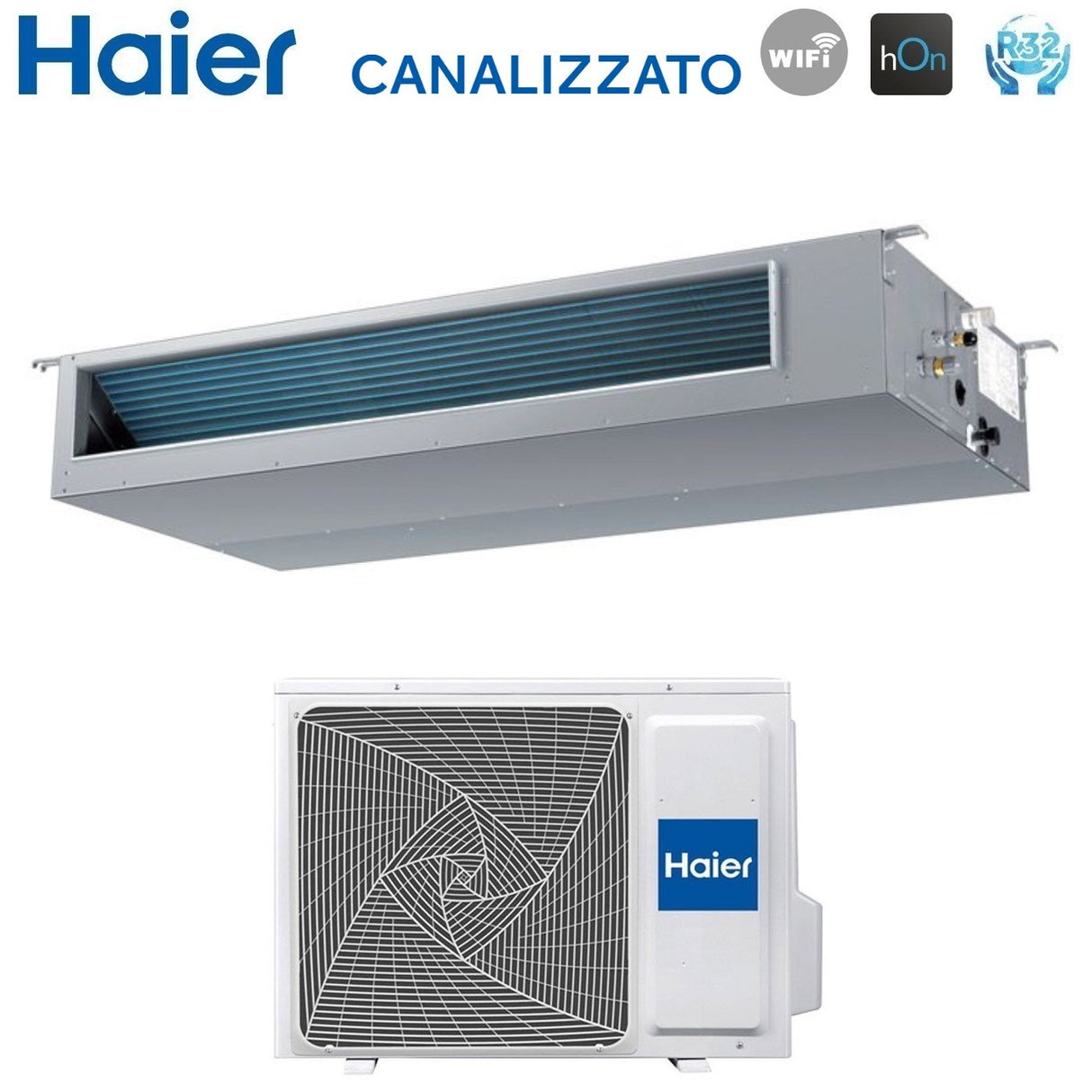

• Internal Unit Code: AD71S2SM3FA
• Internal Unit Commercial Code: 2501656B2
• Outdoor Unit Code: 1U71S2SR2FA
• Outdoor Unit Commercial Code: 2502306T2
• Power: 24000 Btu

Energy efficiency:

• SEER 6.1
• SCOP 3.8
• Cooling Energy Class: A++
• Heating Energy Class: A
• Annual energy consumption in Cooling: 406 kWh/a
• Annual energy consumption in Heating: 1827 kWh/a

Performance:

• Cooling Capacity: 7.1 kW
• Heating capacity: 7.5 kW
• Cooling absorption: 2.20 kW
• Heating absorption: 2.02 kW
• Indoor Unit Treated Air: 900 ~ 1440 m³/h
• Indoor Unit Sound Power Level: 58 dB(A)
• External Unit Sound Power Level: 70 dB(A)
• Indoor Unit Sound Pressure Level: 36 ~ 44 dB(A)
• External Unit Sound Pressure Level: 57 dB(A)

Electrical Data

• Power (V,Hz, Ø): 220~240/50/1
• Refrigerant gas: R32
• Operating range
• - Cooling: -10° ~ 43° C
• - Heating: -15° ~ 24° C

Dimensions and weight:

• Internal Unit Dimensions (WxDxH): 1100x700x248 mm
• Internal Unit Weight: 31 Kg
• External Unit Dimensions (WxDxH): 890x353x697 mm
• External Unit Weight: 57 Kg

---

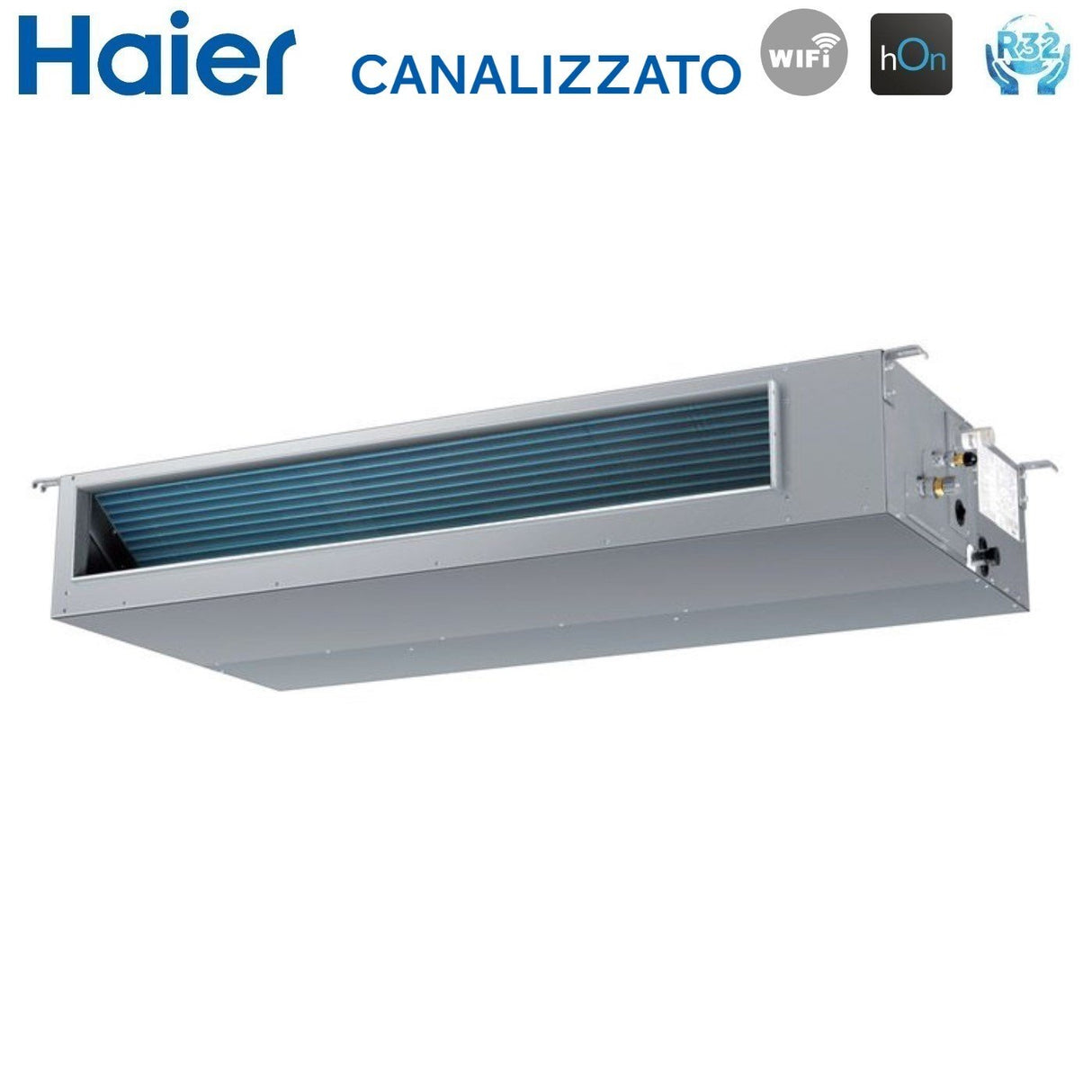

Ducted Medium Pressure Haier Medium pressure ducted air conditioner, suitable for commercial and residential environments. Silent and with a compact design, it is easy to install

Medium pressure ducted air conditioner: the perfect solution for homes, offices and shops

By ducted air conditioner we mean an air conditioning system that uses a ducting system to transport the air and then distribute it in the various rooms, through grills placed in the ceiling or false ceiling.

Perfect for large structures, such as hotels, offices, shops and hospitals , the Haier ducted air conditioner is a solution that is increasingly used also in the residential sector , due to its

• Comfort
• Design
• Easy Installation

---

Comfort and design, these are the advantages of the Haier ducted air conditioner

The ducted air conditioning system guarantees a low noise level and uniform air distribution in all rooms. It also takes advantage of the air intake from the outside to always introduce fresh and clean air into the rooms, for maximum comfort and well-being.

Another advantage is undoubtedly the design: by taking advantage of the grilles built into the ceiling to introduce air, you obtain more space and a much more pleasant aesthetic .

The Haier ducted air conditioner therefore responds perfectly to the needs of

• Silence
• Fresh Air
• Compact and Elegant Design

---

Installing a ducted air conditioner has never been easier

Thanks to its characteristics, the Haier ducted air conditioner also guarantees easy installation .

Each component of the ducted air conditioner is studied and designed to allow maximum installation flexibility and facilitate the installer's work, thus guaranteeing time savings in each intervention:

• Break condensate drain
• Rear and lower air intake
• Adjustable static pressure
• Flexible air distribution
• Intuitive controls and design
• Facilitated electrical cable connection

---

Condensate drain pump

The medium pressure ducted air conditioner units include a condensate drain pump as standard, which guarantees a maximum head of 600mm measured from the base of the machine.
There is the possibility of draining condensate by gravity (reversible on both sides).

Two air intake points

Ducted air conditioning units provide two possibilities for connecting the return duct : it can be rear or lower.
This aspect helps to make installation more flexible , therefore simpler and faster

Adjustable static pressure

In Haier medium pressure ducted air conditioners, the static pressure is adjustable through intuitive control systems .
The default pressure set is 25 Pa , but it is possible to adjust it as desired to 37/50/70/90/100/110/120/130/150 Pa

Flexible air distribution

With circular channels or rectangular channels , the units of the ducted system satisfy multiple installation solutions

Intuitive controls and design

The control systems are very intuitive and can be with centralized controls or wired controls .
Among these, the new HW-BA101ABT stands out for its compact and elegant design and various features, such as intuitive touchscreen , ECO function , built-in IR receiver and ESP adjustment

Easy cable connection

To further facilitate the assembly process of the ducted air conditioner, the connection of the electrical cables is now possible via a single screw .
In this way, the final phase of the installation is even simpler and faster

---

Silence

Thanks to the high-efficiency heat exchanger, the direct current motor and the fan with a larger diameter, the air flow generated by the medium pressure duct is efficient and silent , with a sound level of only 22 dB(A) .

---

Fresh, clean air with Fresh Air

Haier medium pressure ducted air conditioners are designed for the " Fresh Air " air inlet (Ø 100mm), which guarantees continuous air exchange , allowing the introduction of clean and fresh air into the environment up to a maximum of 20% of the nominal air flow of the unit

---

Compact and elegant design

The compact design of the Haier ducted air conditioner adapts perfectly to all types of environments , from the home to the office: recessed into the ceiling , it is the ideal solution for those looking for an air conditioner without splits , which does not take up too much space and which integrates elegantly into rooms.
With 248 mm thickness , it also facilitates installation

---

Energy efficient and Eco-friendly

For the operation of Haier ducted air conditioning units, R32 gas is used, an eco-friendly refrigerant with low GWP (Global Warming Potenital).
In addition to a low environmental impact , this gas also guarantees excellent performance in the field of energy efficiency

---

Wi-Fi Optional

Allows you to set the air conditioning remotely even during your absence.

Imagine you're rushing home in the middle of summer or lying on the couch, but you can't find the remote control. What you want is to be able to easily control your air conditioner wherever you are and at any time with "Haier Smart Air 2" directly from your phone or tablet

With the Haier "hOn" application you can control all the Haier group appliances in your Smart Home from your smartphone or tablet with a single app. Furthermore, via hOn, you can manage all the basic functions , purification functions and much more. The app allows the use of voice commands because it is compatible with Google Assistant and Alexa and therefore also allows voice control

---

Product Warranty: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.

• peso: 80.0 kg
• classe energetica raffreddamento: A++
• classe energetica riscaldamento: A
• gas: R-32
• marca: HAIER
• metri quadri : 60 - 80 m2
• modello: AD71S2SM3FA
• potenza btu: 24000
• superficie riscaldabile mq: 70
