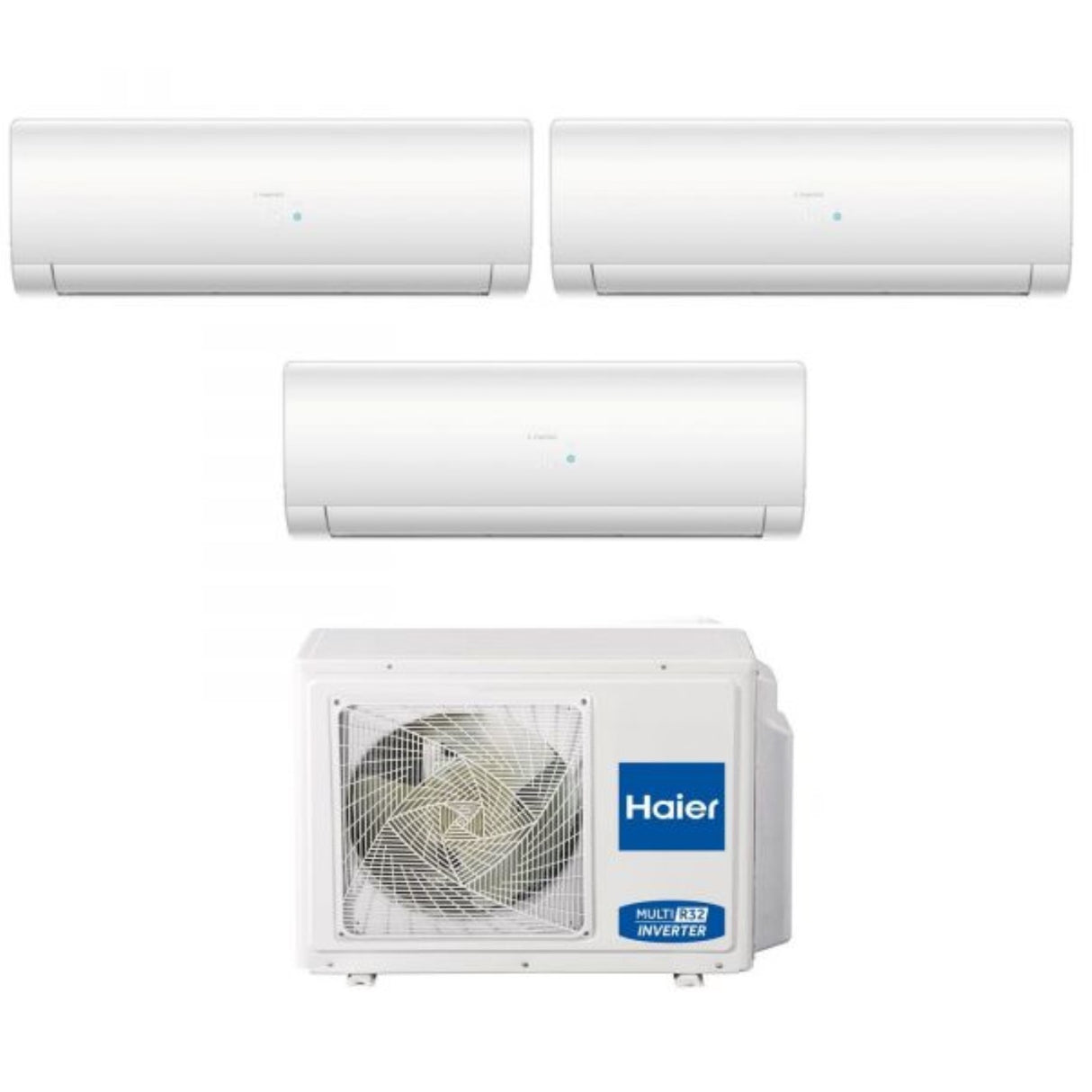

Haier Trial Split Inverter Air Conditioner IES PLUS series 7+12+12 with 3U70S2SR3FA R-32 Integrated Wi-Fi 7000+12000+12000 - New
Haier Trial Split Inverter Air Conditioner IES PLUS series 7+12+12 with 3U70S2SR3FA R-32 Integrated Wi-Fi 7000+12000+12000 - New is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
How shipping works
How shipping works
I costi di spedizione variano a seconda del peso e della modalità di spedizione dell'ordine.
I nostri servizi di spedizione:
- Spedizione standard: consegna stimata dai 2 ai 5 giorni lavorativi
- Spedizione Premium: consegna garantita in 24 ore lavorative
- Spedizione Premium + Consegna al piano: consegna garantita in 24 ore lavorative
Consulta le tabelle per i prezzi della spedizione standard per l'Italia e per le Isole Minori e Zone Disagiate.
Per ulteriori dettagli sulla Spedizione Premium, consulta la pagina di spedizione premium.
Servizio clienti
Servizio clienti
Il nostro servizio di assistenza è dedicato a fornire supporto ai nostri clienti per qualsiasi problema o domanda che possano avere prima o dopo l’acquisto dei nostri prodotti.
Utilizza il canale di comunicazione diretta per parlare con un nostro operatore, oppure inviaci una mail ad uno degli indirizzi elencati nella pagina contattaci.
Il nostro team di assistenza clienti è composto da professionisti altamente qualificati e sempre pronti ad aiutare i clienti a risolvere qualsiasi problema o rispondere a qualsiasi domanda in modo rapido ed efficiente. Ci impegniamo a garantire la massima soddisfazione del cliente e a fornire un servizio di assistenza post-vendita di altissima qualità. Quindi, se hai bisogno di assistenza, non esitare a contattarci; saremo lieti di aiutarti in ogni modo possibile.
Description
Description
Technical features
Internal units
1) Model
- Indoor Unit Catalog Code: 1x AS20S2SF2FA-3
- Indoor Unit Commercial Code: 2501300A2
- Power: 7000 btu/h
- Cooling Capacity: 2.0 kW
- Heating Capacity: 2.5 kW
- Treated air: 600 m 3 /h
- Sound Power Level: 53 dB(A)
- Sound pressure level: 19~38 dB(A)
- Liquid pipe diameter: 6.35 mm (1/4")
- Gas pipe diameter: 9.52 mm (3/8")
- Internal Unit Dimensions (WxDxH): 870x196x301 mm
- Internal Unit Weight: 9.5 Kg
- Integrated Wi-Fi
2) Model
- Indoor Unit Catalog Code: 2x AS35S2SF2FA-3
- Indoor Unit Commercial Code: 2501302A2
- Power: 12000 btu/h
- Cooling Capacity: 3.5 kW
- Heating Capacity: 4.2 kW
- Treated air: 650 m 3 /h
- Sound Power Level: 55 dB(A)
- Sound pressure level: 20~39 dB(A)
- Liquid pipe diameter: 6.35 mm (1/4")
- Gas pipe diameter: 9.52 mm (3/8")
- Internal Unit Dimensions (WxDxH): 870x196x301 mm
- Internal Unit Weight: 9.5 Kg
- Integrated Wi-Fi
External Unit
Model:
- Outdoor Unit catalog code: 3U70S2SR3FA
- Outdoor Unit Commercial Code: 2502325K2
- Max indoor units: up to 3 indoor units
Energy efficiency:
- SEER : 7.5
- SCOP: 4.2
- Cooling Energy Efficiency Class: A++
- Heating Energy Efficiency Class: A+
- Annual energy consumption in Cooling: 332 kWh/a
- Annual energy consumption in Heating: 2012 kWh/a
Performance:
- Cooling Capacity: 7.0 kW
- Heating Capacity: 7.6 kW
- Std Cooling absorption: 1.84 kW
- Std Heating absorption: 1.85 kW
- Sound power level: 66 dB(A)
- Sound pressure level: 53 dB(A)
Characteristics:
- Power (V/Hz/Φ): 220~240/50/1
- Refrigerant gas: R-32
- Guaranteed temperature range:
- - Cooling: -10° ~ 46° C
- - Heating: -15° ~ 24° C
- Pipe diameter Liquid: 6.35 mm (1/4") x3
- Gas pipe diameter: 9.52 mm (3/8") x3
- Maximum length of pipes: 60 m
- Maximum height difference Internal Unit / External Unit: 15 m
Dimensions:
- External Unit Dimensions (WxDxH): 890x340x700 mm
- External Unit Weight: 54.0 Kg
5 years of peace of mind with the Haier Plus 5 Guarantee
Register your new air conditioner and activate the Haier Guarantee in just a few steps
- The serial numbers to register
- Your personal and login details
- The contact details of the technician
Models from years prior to 2019 and the following lines are not covered by the Plus 5 Warranty: Geos +, Hec, Portables, Water heaters, Air barriers, MRV, Chillers, heat recuperators
R-32 Multisplit Haier
The earth, everyone's home. Let's protect it!
Compared to 100 years ago, global temperature has increased by almost 0.5°C (from 1981 to 1990 +0.48°C). Global warming has attracted the attention of all countries, the main cause of the increase in temperature is the release of greenhouse gases into the atmosphere. To remedy the situation, the Montreal Protocol was signed in 1987 and the Kyoto Protocol in 1997. In 2009 the European Union introduced the F-Gas regulation and approved in December 2013. The new rules came into force in May 2014 and January 2015. Without the rules indicated by the F-Gas regulation, we would produce 150 thousand tons of CO2 per year.
Refrigerant with very low environmental impact
Haier offers products that comply with the requirements of European Union regulations for environmental protection. To avoid dangerous damage to the environment, Europe is working to reduce greenhouse gas emissions and improve energy efficiency. Units with R32 refrigerant contain less gas and, having a lower GWP than R410A units, have a lower impact on global warming.
GWP = Global Warming Potential
The global warming potential (GWP, in Italian global warming potential) is the measurement of how much a molecule of a certain greenhouse gas impacts the greenhouse effect; the index is based on a relative scale that compares each gas with carbon dioxide, whose GWP by definition has the value 1. Each GWP value is calculated for a specific time interval.
In terms of comparison, the GWP of the R32 refrigerant corresponds to a value of 675, while the GWP of the R410A refrigerant corresponds to a value of 2088.

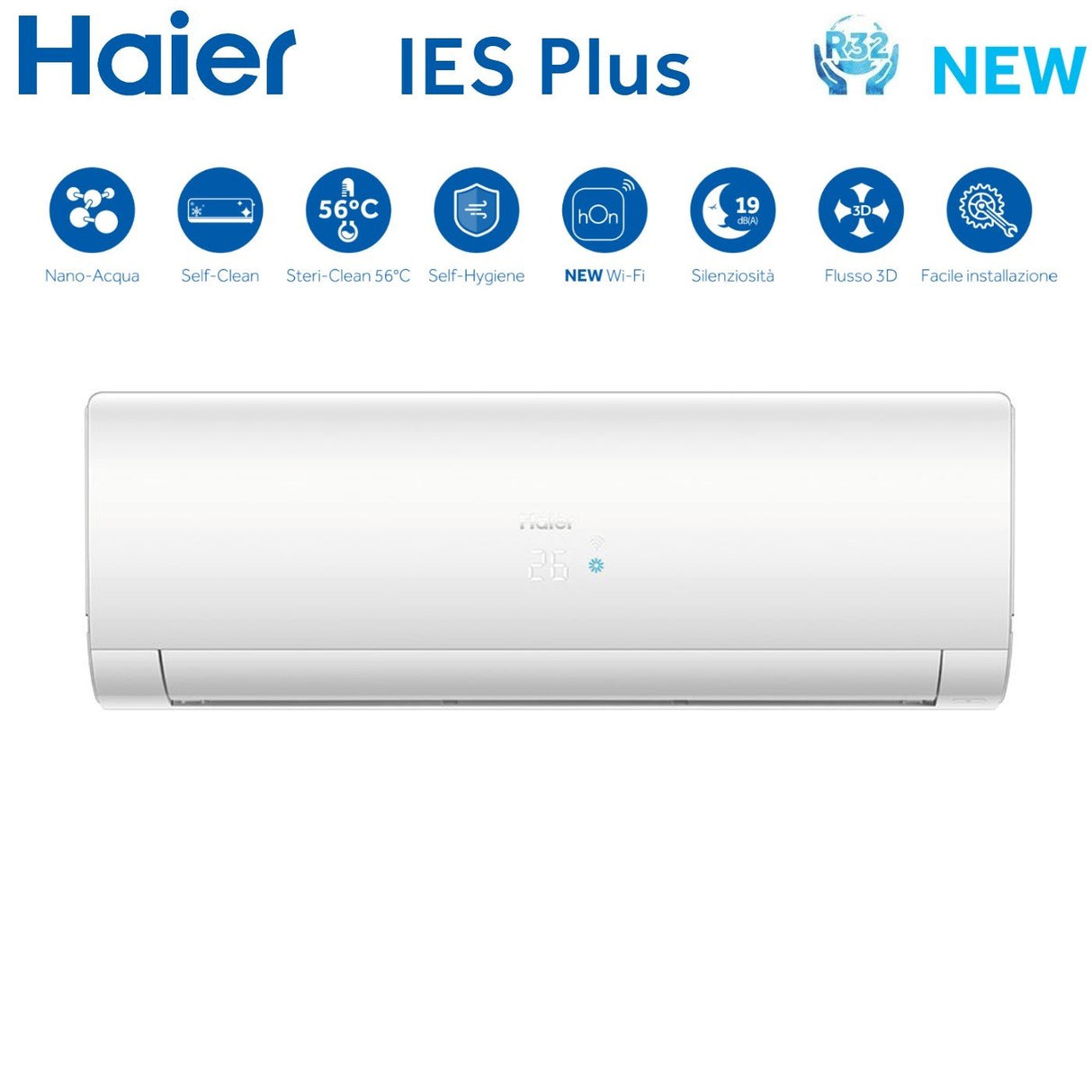

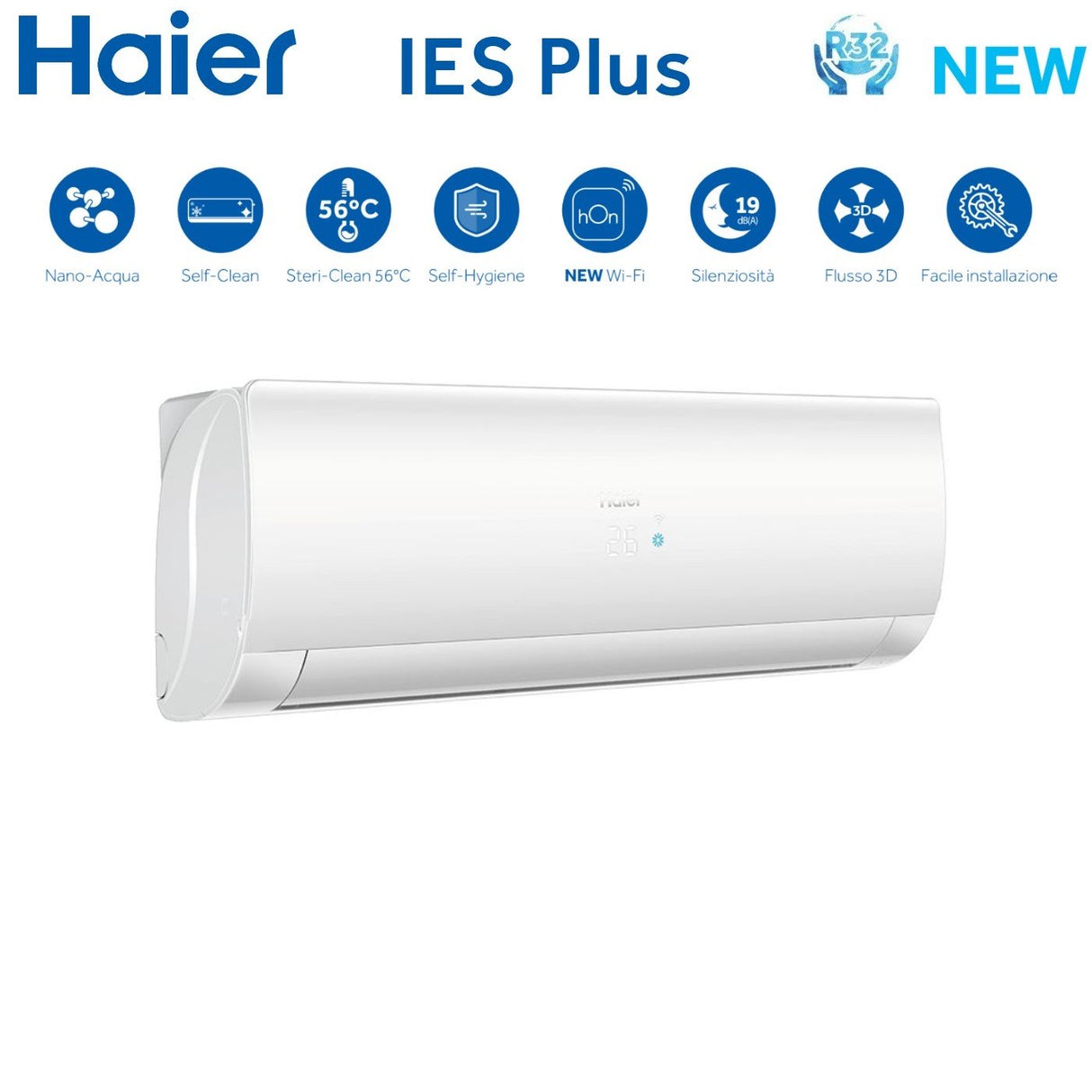

Haier IES PLUS
Smart
With the Haier "hOn" application you can control all the Haier group appliances in your Smart Home from your smartphone or tablet with a single app. Furthermore, via hOn, you can manage all the basic functions , purification functions and much more. The app allows the use of voice commands because it is compatible with Google Assistant and Alexa and therefore also allows voice control
Purification
The Nano-Water sterilization system allows you to improve air quality by providing a refreshing and well-being sensation , like the one you can experience in a forest, while staying comfortably at home.
The IES Plus air conditioner offers additional purification thanks to Steri-Clean 56°C, Self-Hygiene and Self-Clean technologies
Comfort
Low sound level: 19 dB(A) A low noise level ensures maximum peace of mind thanks to the optimized design of the fan, air ducts and motor.
3D airflow Continuous movement of vertical and horizontal louvres directs airflow anywhere in the room
Plus Product
• Nano-Water
• Self-Clean
• Steri-Clean 56°C
• Self-Hygiene
• Wi-Fi control with hOn App to remotely control the air conditioner
• Low sound level
• 3D airflow: continuous movement of the horizontal and vertical flaps
• Easy installation
Product Warranty: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.
Scheda Tecnica
Scheda Tecnica
- peso: 75.0 kg
- classe energetica raffreddamento: A++
- classe energetica riscaldamento: A+
- gas: R-32
- marca: HAIER
- modello: IES PLUS 7+12+12 70
- potenza btu: 7000+12000+12000
- superficie riscaldabile mq: 20/35/35
