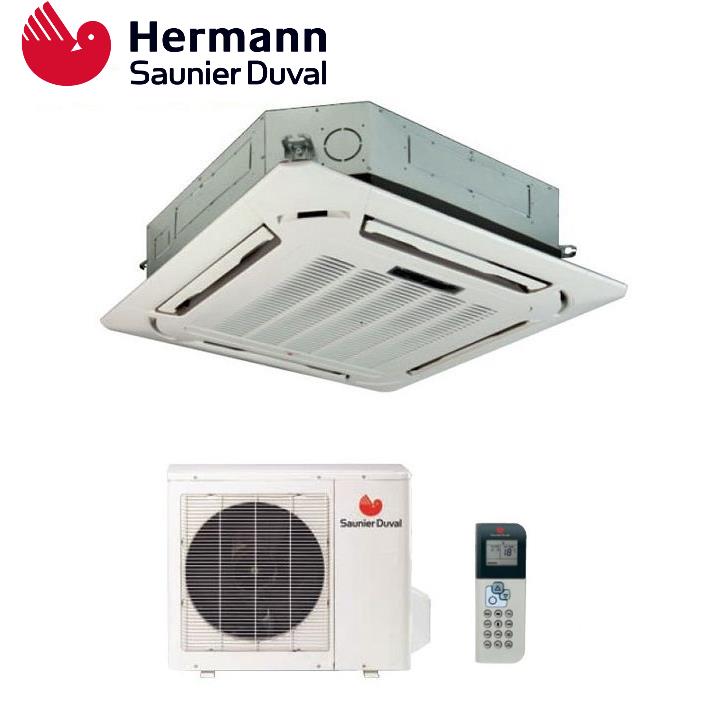

Hermann Saunier Duval Air Conditioner 4-Way Cassette Inverter 34000 BTU SDH17-105NK R-410

Technical features

Model:

• Indoor Unit catalog code: SDH17-105NKI
• Outdoor Unit catalog code: SDH17-105NKDO
• Power: 34000 btu/h

Energy efficiency:

• SEER (W/W): 5.1
• SCOP (W/W): 3.8
• Energy Efficiency Class (Cooling): A
• Energy Efficiency Class (Heating): A
• Annual cooling/heating energy consumption kWh/a: 387/3832

Performance:

• Power absorbed Cooling (KW): 3.20
• Power absorbed Heating (KW): 3.50
• Sound power Indoor unit dBA 43/46/49
• Int. Unit Sound Pressure dBA 63
• Sound Power External Unit Max(dB(A)): 70
• Sound Pressure External Unit Max(dB(A)): 63

Characteristics:

• Refrigerant gas: R410A
• Inverter: YES
• Liquid-gas pipe diameter: 3/8 - 5/8
• Max length of pipes 30 m

Dimensions:

• Internal Unit HxWxD (mm): 320 x 840 x 840; 31kg
• Panel HxWxD (mm): 60 x 950 x 950; 7kg
• External Unit HxWxD (mm): 1100 x 1107 x 440; 92kg

---

General characteristics

Saunier Duval cassettes

Monosplit DC inverter heat pump . Concealed installation, high performance, maximum efficiency and silence.

Compact and elegant, designed for installation in false ceilings and therefore completely hidden, these models are particularly suitable for installations in commercial environments (hotels, restaurants, gyms and shops).

High performance and maximum comfort

The use of latest generation compressors guarantees high energy performance. The moving fins of the cassettes, each equipped with a motor, allow accurate and uniform distribution of the conditioned air in the four dimensions.
Once the set temperature is reached, the fan continues to operate at minimum, pushing the air towards the ceiling. In this way, maximum comfort in the environment is always guaranteed with minimum consumption. The internal units also have air vents that allow air exchange (Fresh Air function).

The outdoor unit with DC Inverter compressor is equipped with an electronic expansion valve to increase the efficiency of the air conditioner and is universal for both cassette and ducted indoor units. In addition to the DC Inverter compressor, the external and internal motors are also DC motors. This combination ensures greater efficiency, better comfort and lower noise. All units are equipped with R410A gas. All cassettes are also equipped with a functional infrared remote control as standard . Only from ClimaConvenienza .it

Characteristics

• The cassettes are equipped with movable fins that allow uniform distribution of the air in the four directions at 360°.
• The use of 3D DC Inverter technology on internal compressors and motors guarantees high energy performance and low noise levels.
• A simple infrared remote control allows you to regulate the operation of the internal units.
• The Autorestart function allows you to keep the set parameters in memory even in the event of a power failure.

---

Product Warranty: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.
