With a height of 190 mm, it can be easily installed in residential false ceilings.
Built-in rear drainage tray
Garanzia Italiana
24 mesi
SKU:
AUD175UX4RHH5

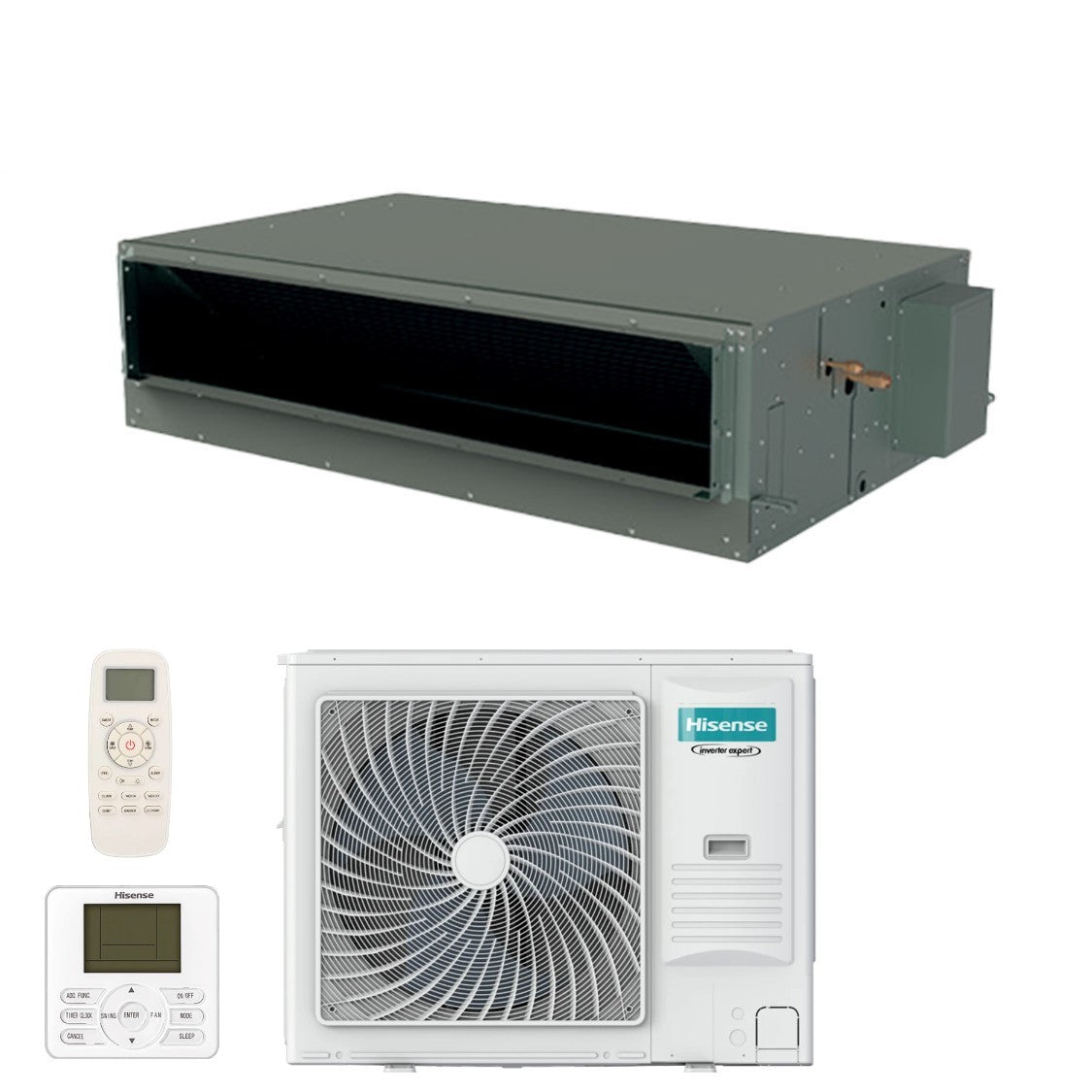

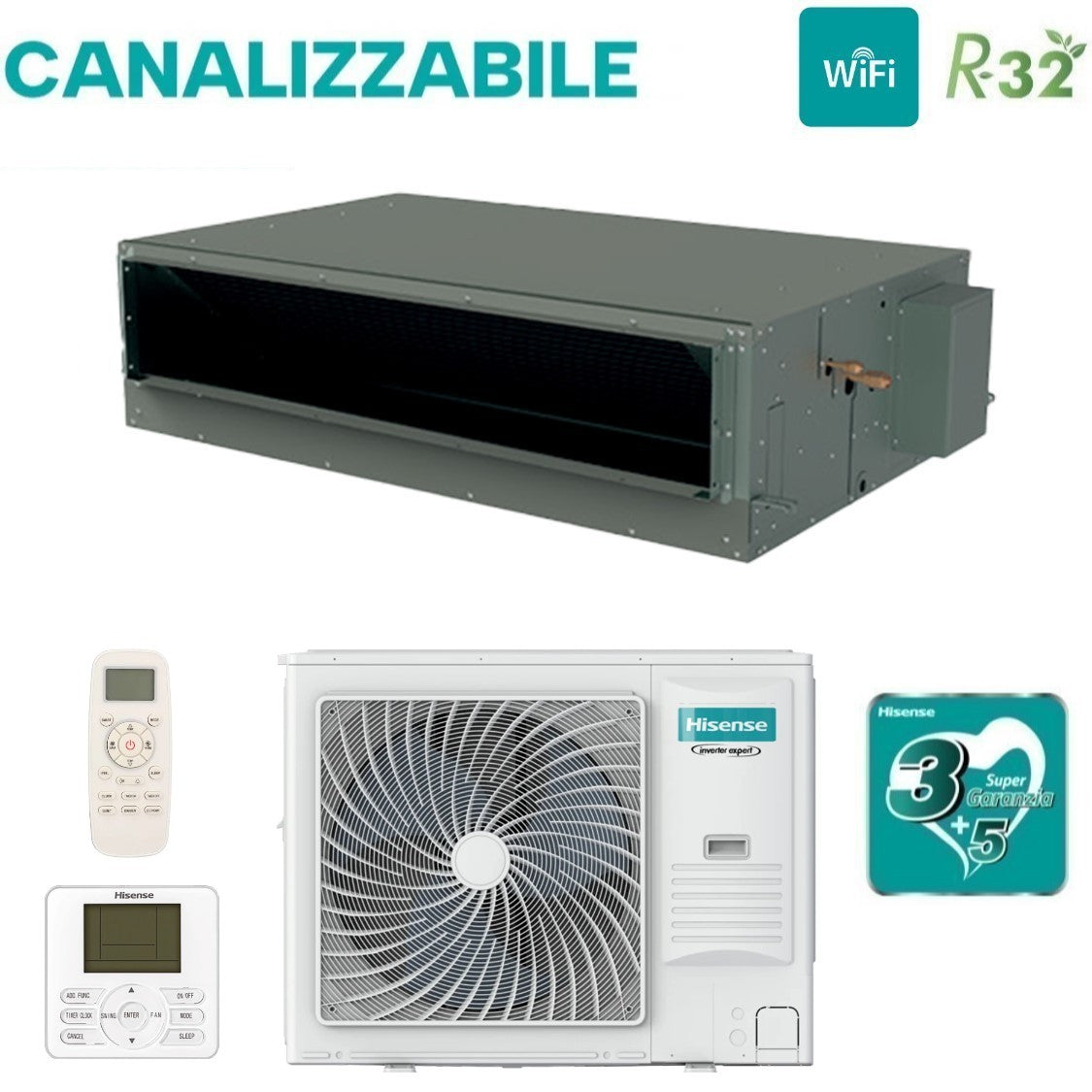

Hisense Ducted Inverter Air Conditioning 60000 Btu AUD175UX4RHH5 Three-Phase R-32 Wi-Fi Optional with Standard and Wired Remote Control - New
Sold out
12% off
€2.450,00
€2.776,00
VAT included
Unit price
/
Unavailable
Tax included
Shipping calculated at checkout.
Hisense Ducted Inverter Air Conditioning 60000 Btu AUD175UX4RHH5 Three-Phase R-32 Wi-Fi Optional with Standard and Wired Remote Control - New is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
How shipping works
How shipping works
Shipping costs vary depending on the weight and shipping method of the order.
Our shipping services
Standard Shipping: estimated delivery in 2 to 5 working days
Premium Shipping: guaranteed delivery in 24 working hours
Premium Shipping + Flat Delivery: guaranteed delivery in 24 working hours
Please refer to the tables for Standard Shipping prices for Italy and for Minor Islands and Disturbed Areas.
For further details on Premium Shipping, please see the Premium Shipping page.
Customer service
Customer service
Our service department is dedicated to providing support to our customers for any problems or questions they may have before or after purchasing our products.
Use the direct communication channel to speak to one of our operators, or send us an e-mail to one of the addresses listed on the contact us page.
Our customer service team consists of highly qualified professionals who are always ready to help customers solve any problems or answer any questions quickly and efficiently. We strive to ensure maximum customer satisfaction and provide the highest quality after-sales service. So, if you need assistance, please do not hesitate to contact us; we will be happy to help you in any way we can.
Description
Description
ATTENTION! The ducted models are supplied with standard and wired remote control
Technical features
- Indoor unit catalog code: AUD175UX4RHH5
- Outdoor unit catalog code: AUW175U6RP4
- Power: 60000 Btu
- Optional Wi-Fi card (Code AEH-W4GX )
Energy efficiency
- SEER: 233.0%
- SCOP: 141.0%
- Energy Efficiency Class in Cooling: -
- Heating Energy Efficiency Class: -
- Annual Energy Consumption in Cooling: 943 kWh/a
- Annual Energy Consumption in Heating: 4205 kWh/a
Performance
- Cooling Capacity: 17.5 kW
- Heating Capacity: 18.5 kW
- Cooling absorption: 6.6 kW
- Heating absorption: 6.1 kW
- Internal Unit Treated Air: 40 m 3 /min
- Internal Unit Sound Power Level: 73 dB(A)
- External Unit Sound Power Level: 77 dB(A)
- Indoor Unit Sound Pressure Level: 42~49 dB(A)
- External Unit Sound Pressure Level: 63 dB(A)
Electrical Data
- Power (V,Hz, Ø): 380~415/50/3
- Refrigerant gas: R32
- Operating range
- - Cooling: -15° ~ 48°C
- - Heating: -15° ~ 24°C
Installation Data
- Liquid pipe diameter: 9.52 mm (3/8")
- Gas pipe diameter: 15.88 mm (5/8")
- Maximum length of pipes: 50 m
- Maximum height difference Internal Unit / External Unit: 30 m
- Maximum current absorbed: 14.8 A
Dimensions and weight
- Internal Unit Dimensions (WxHxD): 1300x350x800 mm
- Internal Unit Weight: 51 Kg
- External Unit Dimensions (WxHxD): 950x1386x340 mm
- External Unit Weight: 109 Kg
3 year warranty (5 on the compressor)
The Hisense Italia warranty can be activated within 1 month from the date of purchase at http://www.hisenseitalia.it/clima/supporto
Ductable Hisense R-32
Variable static pressure
On the entire range of ducted models it is possible to set the static pressure to guarantee greater installation flexibility.
Dual air inlet modes
Advantages: If the distance between the unit and the wall is limited, then you can choose the lower air inlet by removing the lower panel of the unit, it will be much easier and more flexible. The noise level produced by a lower air inlet can increase by up to 5dB compared to using a rear air inlet. We therefore recommend opting for the latter solution.
ON/OFF contact for hotel room control , ON/OFF contact for fire control
Slim design
Disadvantage of an external drain pan: It easily attracts dust and bacteria which will cause long-term malfunctions.
Float and integrated condensate drain pump
If the level of condensation water inside the drainage tray increases due to a malfunction of the drain pump, the unit will automatically turn off and display the alarm to avoid damage.
Safety protection
Make sure the compressor is operating in safety mode to avoid damage caused by refrigerant leaks.
Characteristics
External Unit
Hi-Smart inverter
Hisense has developed a new adaptive algorithm that controls the modulation of the compressor to improve its performance and extend its life cycle.
Smart defrost
Based on the historical data, the system adapts the conditions for activating defrost to guarantee maximum comfort in heating mode.
New corrugated fin
Newly developed corrugated fin that improves heat exchange capacity
Checking the refrigerant charge level
If the refrigerant charge level drops below a certain level, the air conditioner will go into alarm and stop working to ensure the safety of users and the machine itself.
Product Warranty: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.
Specifications
Specifications
- peso: 150.0 kg
- costospedizionecad: IT79;AD257;AT136;BE147;BG196;HR184;DK273;EE268;FR202;DE145;LV202;LT189;LU120;NL155;PT153;CZ132;SK148;SI149;ES141;SE319;HU122;CH216;
- gas: R-32
- marca: Hisense
- metri quadri : 180 - 200 mq
- modello: AUD175UX4RHH5
- potenza btu: 60000
