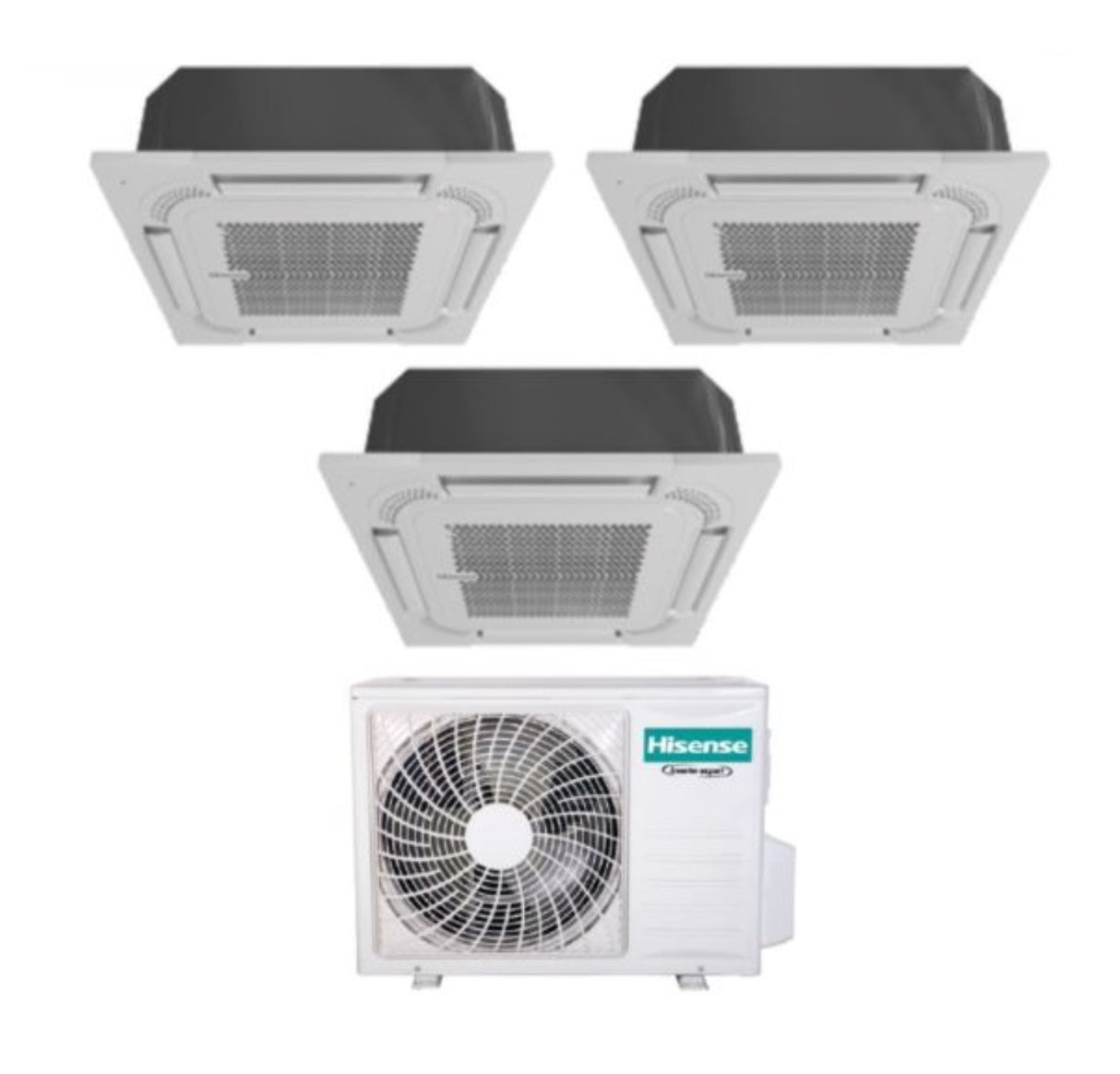

Hisense Trial Split Cassette Air Conditioner 9+9+9 with 3AMW72U4RFA R-32 Optional Wi-Fi 9000+9000+9000 with Remote Control and Panel Included - New

Name: Hisense Trial Split Cassette Air Conditioner 9+9+9 with 3AMW72U4RFA R-32 Optional Wi-Fi 9000+9000+9000 with Remote Control and Panel Included - New
Brand: Hisense
SKU: ACT 9+9+9 72
Price: 2070.0 EUR
Availability: InStock

€2.070,00 VAT included

Tax included Shipping calculated at checkout.

Costi di spedizione calcolati in fase di checkout

How shipping works

I costi di spedizione variano a seconda del peso e della modalità di spedizione dell'ordine.

I nostri servizi di spedizione:

Spedizione standard: consegna stimata dai 2 ai 5 giorni lavorativi
Spedizione Premium: consegna garantita in 24 ore lavorative
Spedizione Premium + Consegna al piano: consegna garantita in 24 ore lavorative

Consulta le tabelle per i prezzi della spedizione standard per l'Italia e per le Isole Minori e Zone Disagiate.

Per ulteriori dettagli sulla Spedizione Premium, consulta la pagina di spedizione premium.

Servizio clienti

Il nostro servizio di assistenza è dedicato a fornire supporto ai nostri clienti per qualsiasi problema o domanda che possano avere prima o dopo l’acquisto dei nostri prodotti.

Utilizza il canale di comunicazione diretta per parlare con un nostro operatore, oppure inviaci una mail ad uno degli indirizzi elencati nella pagina contattaci.

Il nostro team di assistenza clienti è composto da professionisti altamente qualificati e sempre pronti ad aiutare i clienti a risolvere qualsiasi problema o rispondere a qualsiasi domanda in modo rapido ed efficiente. Ci impegniamo a garantire la massima soddisfazione del cliente e a fornire un servizio di assistenza post-vendita di altissima qualità. Quindi, se hai bisogno di assistenza, non esitare a contattarci; saremo lieti di aiutarti in ogni modo possibile.

Description

Important Notice on Regulations for Fluorinated Gases IN ITALY

In accordance with Regulation (EU) No. 517/2014 and Presidential Decree No. 146/2018, equipment containing fluorinated gases that is not hermetically sealed can only be sold if installed by a certified company.

By law, each sale must be recorded in the Fluorinated Gas Database, including a declaration from the buyer ensuring that the installation complies with the regulations. Therefore, before completing the order, it will be necessary to provide this mandatory declaration.

Technical features

Internal units

Internal Unit Catalog Code: 3x ACT26UR4RCA4
Panel Code: PE-EA-B29
Power: 9000 btu/h
Cooling Capacity: 2.6 kW
Heating Capacity: 3 kW
Power consumption: 20 W
Rated Current: 0.2 A
Treated air: 8.33 m ³ /min
Sound pressure level: 27~33 dB(A)
Liquid pipe diameter: 6.35 mm (1/4")
Gas pipe diameter: 9.52 mm (3/8")
Internal Unit Dimensions (WxHxD): 570x570x215 mm
Internal Unit Weight: 15 Kg
Panel dimensions (WxHxD): 620x620x37 mm
Optional Wi-Fi card (Code AEH-W4E1 )
Optional wired control (Code YXE-C01U )

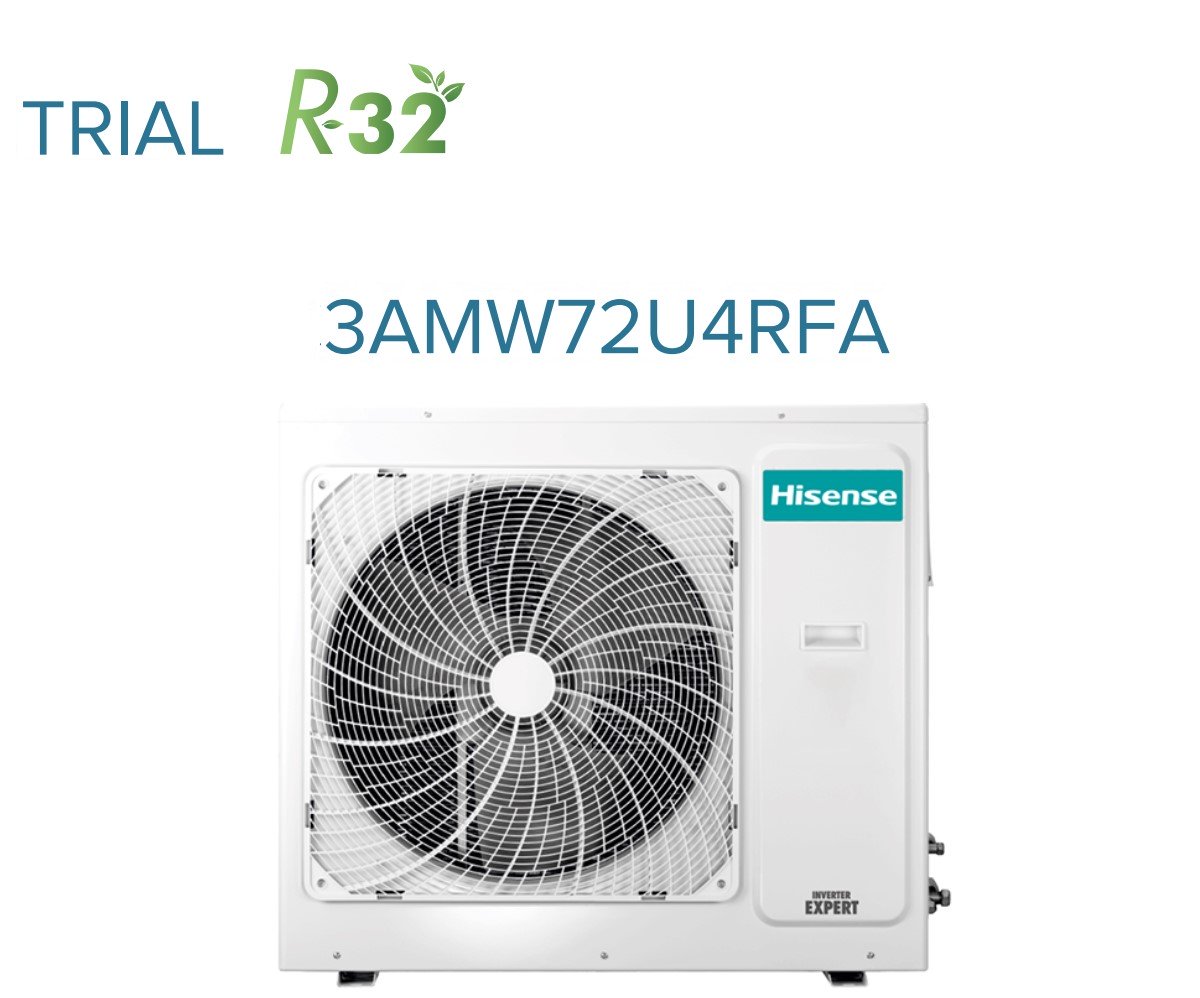

External Unit

Model:

Outdoor Unit catalog code: 3AMW72U4RFA
Max indoor units: up to 3 indoor units

Energy efficiency:

SEER : 6.8 (W/W)
SCOP : 4.01 (W/W)
Cooling Energy Efficiency Class: A++
Heating Energy Efficiency Class: A+
Annual energy consumption in Cooling: 371 kWh/a
Annual energy consumption in Heating: 1920 kWh/a

Performance:

Cooling Capacity: 7.2 kW
Heating Capacity: 7.9 kW
Std Cooling absorption: 1.87 kW
Std Heating absorption: 2.03 kW
Sound power level: 68 dB(A)
Sound pressure level: 49~55 dB(A)

Characteristics:

Power (V/Hz/Φ): 220~240/50/1
Refrigerant gas: R-32
Pipe diameter Liquid: 6.35 mm (1/4") x3
Gas pipe diameter: 9.52 mm (3/8") x3
Guaranteed temperature range:
- Cooling: -15° ~ 48° C
- Heating: -15° ~ 24° C

Dimensions:

External Unit Dimensions (WxHxD): 860×670×310 mm
External Unit Weight: 49 Kg

3 year warranty (5 on the compressor)

The Hisense Italia warranty can be activated within 1 month from the date of purchase athttp://www.hisenseitalia.it/clima/supporto

Multisplit Outdoor Unit Technologies

High Efficiency DC Twin Rotary Inverter Compressor

The design of the new double rotor BLDC Inverter compressor guarantees better balancing and reduced vibrations. This translates into the maximum level of silence and excellent performance in terms of efficiency and energy saving.

DC drive technology with 180° sine wave

The system constantly monitors the compressor frequency and creates the most efficient waveform to determine effective consumption savings.

Curve control

Compressor with rubidium magnet

Thanks to the greater compression of the gas molecules, the compressor with rubidium magnet guarantees greater efficiency and lower absorption

Electronic expansion valve

The outdoor unit uses an electronic expansion valve that regulates and optimizes the amount of refrigerant of all operating indoor units .

Wide voltage range operation

The outdoor unit can operate with a voltage of 176V to 264V. In the new models, the use of an automatic voltage regulation technique guarantees that the protection value adjusts according to it, maintaining the operating frequency at an optimal value.

Exchanger design: designed to improve its efficiency

The design of the external exchanger has been designed to increase heat transfer in such a way as to make the refrigeration circuit more efficient and avoid the creation of ice blocks. A further advantage is that it can support long-distance connections between the external unit and internal units without reducing the cooling capacity.

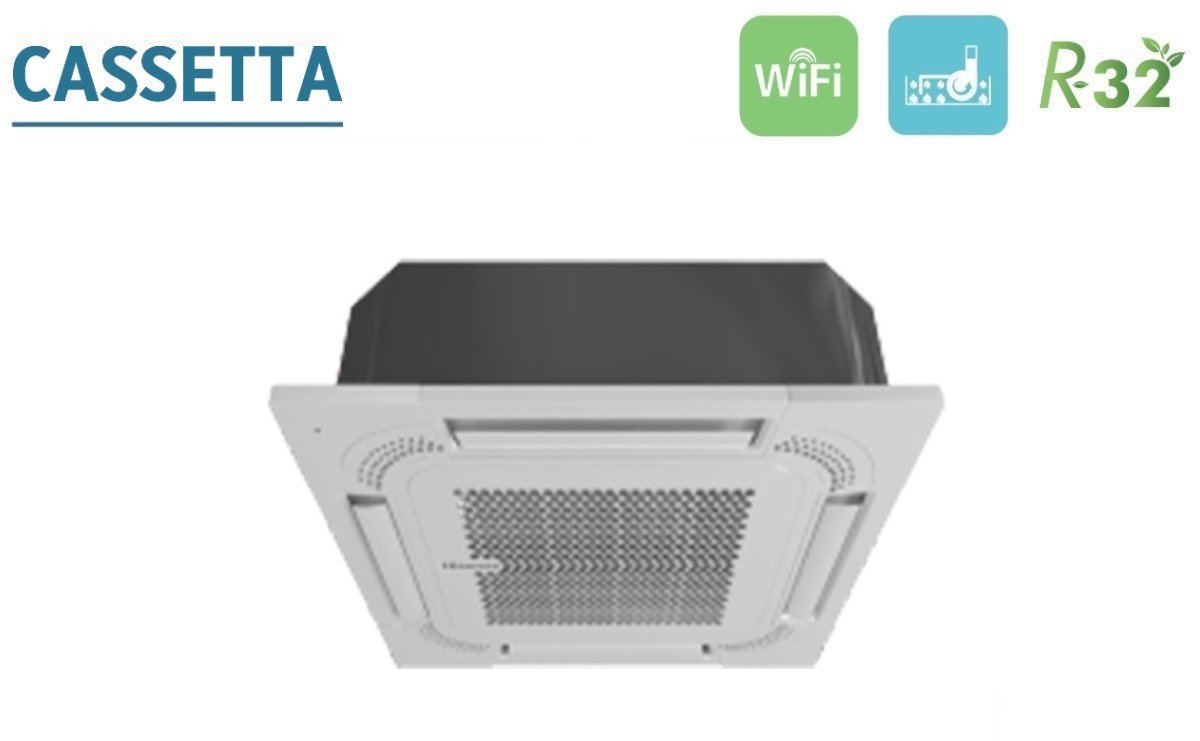

Hisense cassette

New Panel

New panel designed to ensure optimal distribution of the air flow and consequently environmental comfort. The new panel is equipped with micro holes and adjustable fins to avoid direct air flow on people

Temperature control

Hisense Inverter cassette air conditioners, using the DIP SWITCH control system, have the possibility, during winter operation, to regulate (increasing it) the air flow volume, in order to avoid stratification and reach every point of the environment to be air conditioning.
