Free Match products are ideal where an indoor unit is required for each room, for example a living room and 3 bedrooms. The system allows you to combine up to 5 internal units with a single external unit. Indoor units can be of different types, including ducted, wall-mounted, cassette, and ceiling/floor.
Garanzia Italiana
24 mesi
SKU:
Adt 9+9+12 72

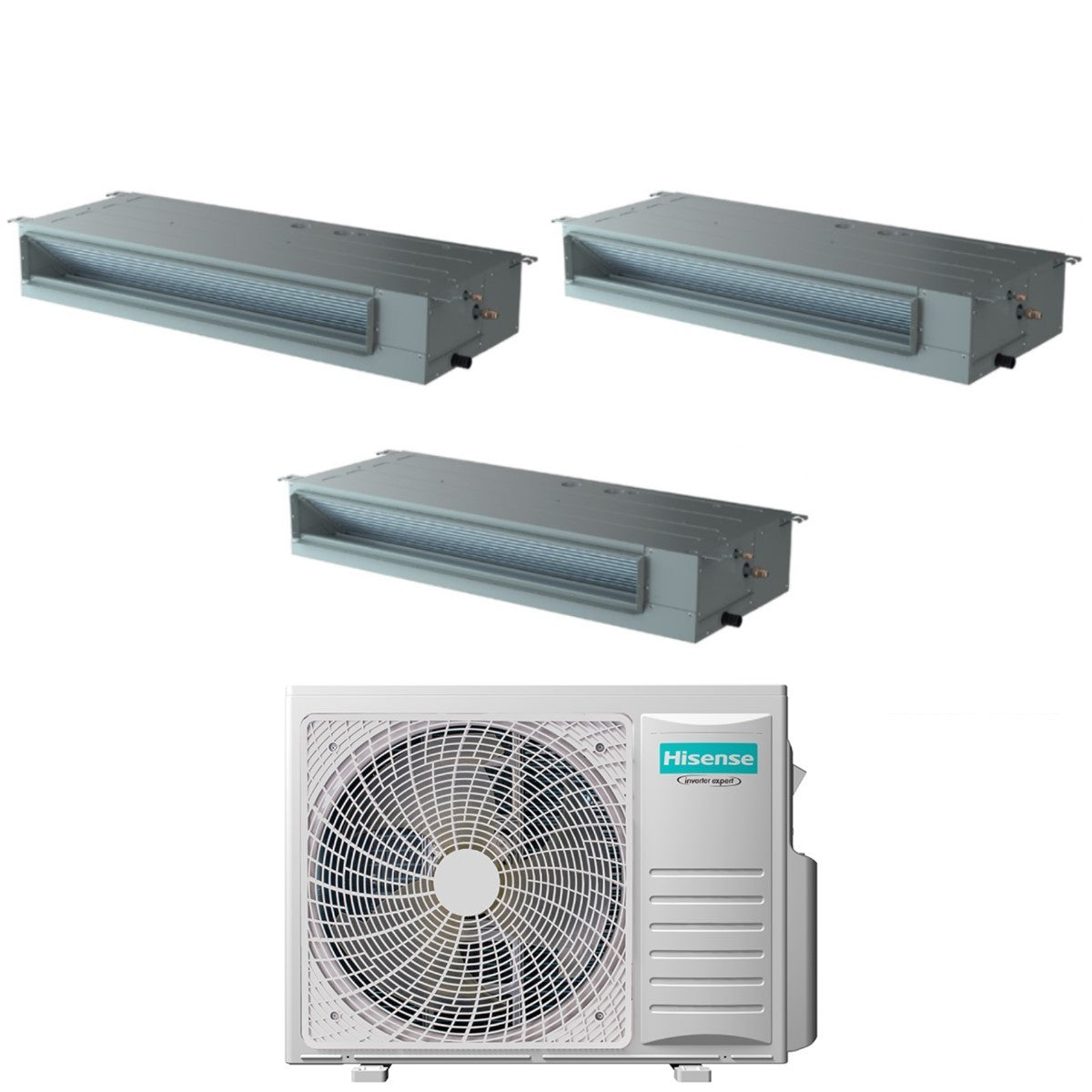

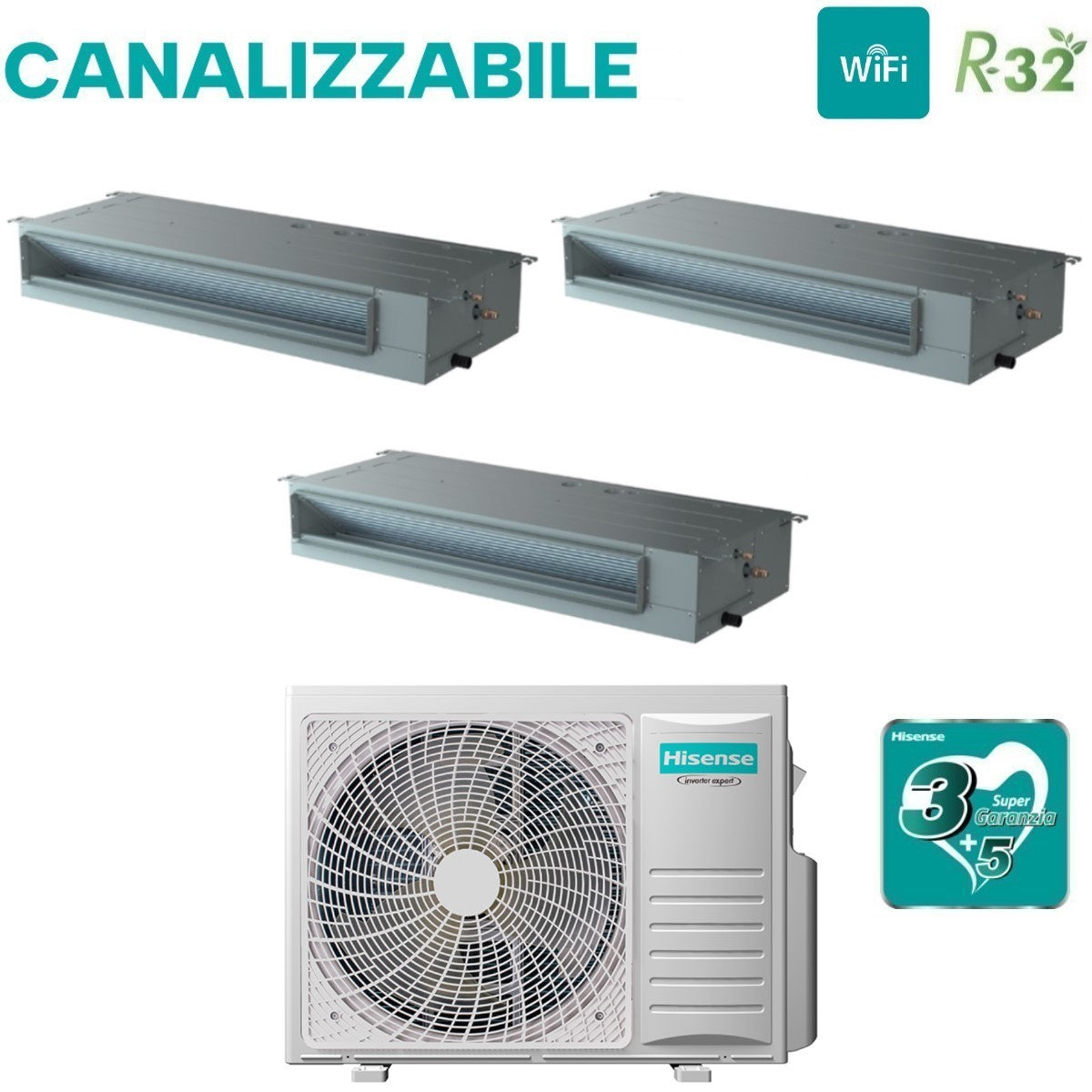

Hisense Trial Split Ducted Air Conditioner 9+9+12 with 3AMW72U4RFA R-32 9000+9000+12000 with Standard and Wired Remote Control
€1.908,00
Unit price
/
Unavailable
Tax included
Shipping calculated at checkout.
Costi di spedizione calcolati in fase di checkout
Hisense Trial Split Ducted Air Conditioner 9+9+12 with 3AMW72U4RFA R-32 9000+9000+12000 with Standard and Wired Remote Control is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
How shipping works
How shipping works
I costi di spedizione variano a seconda del peso e della modalità di spedizione dell'ordine.
I nostri servizi di spedizione:
- Spedizione standard: consegna stimata dai 2 ai 5 giorni lavorativi
- Spedizione Premium: consegna garantita in 24 ore lavorative
- Spedizione Premium + Consegna al piano: consegna garantita in 24 ore lavorative
Consulta le tabelle per i prezzi della spedizione standard per l'Italia e per le Isole Minori e Zone Disagiate.
Per ulteriori dettagli sulla Spedizione Premium, consulta la pagina di spedizione premium.
Servizio clienti
Servizio clienti
Il nostro servizio di assistenza è dedicato a fornire supporto ai nostri clienti per qualsiasi problema o domanda che possano avere prima o dopo l’acquisto dei nostri prodotti.
Utilizza il canale di comunicazione diretta per parlare con un nostro operatore, oppure inviaci una mail ad uno degli indirizzi elencati nella pagina contattaci.
Il nostro team di assistenza clienti è composto da professionisti altamente qualificati e sempre pronti ad aiutare i clienti a risolvere qualsiasi problema o rispondere a qualsiasi domanda in modo rapido ed efficiente. Ci impegniamo a garantire la massima soddisfazione del cliente e a fornire un servizio di assistenza post-vendita di altissima qualità. Quindi, se hai bisogno di assistenza, non esitare a contattarci; saremo lieti di aiutarti in ogni modo possibile.
Description
Description
Important Notice on Regulations for Fluorinated Gases IN ITALY
In accordance with Regulation (EU) No. 517/2014 and Presidential Decree No. 146/2018, equipment containing fluorinated gases that is not hermetically sealed can only be sold if installed by a certified company.
By law, each sale must be recorded in the Fluorinated Gas Database, including a declaration from the buyer ensuring that the installation complies with the regulations. Therefore, before completing the order, it will be necessary to provide this mandatory declaration.
Technical features
Internal Units
1) Model:
- Internal Unit Code: 2 x ADT26UX4RBL4
- Cooling Capacity: 2.9 kW
- Heating Capacity: 3.1 kW
- Treated air: 8.66 m 3
- Sound pressure level (min - max): 26-32 dB(A)
- Dimensions (WxHxD): 910×190×447 mm
- Weight: 18.0 kg
- Liquid pipe diameter: 6.35 (1/4) mm
- Gas pipe diameter: 9.52 (3/8) mm
2) Model:
- Internal Unit Code: 1 x ADT35UX4RBL4
- Cooling Capacity: 3.52 kW
- Heating Capacity: 3.8 kW
- Treated air: 10.0 m3
- Sound pressure level (min - max): 30-36 dB(A)
- Dimensions (WxHxD): 910×190×447 mm
- Weight: 18.0 kg
- Liquid pipe diameter: 6.35 (1/4) mm
- Gas pipe diameter: 9.52 (3/8) mm
External Unit
Model:
- Indoor Unit catalog code: 3AMW72U4RFA
- Max indoor units: up to 3 indoor units
Cooling down
- SEER: 6.11
- Cooling energy class: A++
- Annual energy consumption: 401 kW/a
Heating
- SCOP 4.01
- Heating energy class A+
- Annual energy consumption 2618 kWa
Performance
- Sound power: 68 dB(A)
- Sound pressure: 53/59 dB(A)
- Liquid/gas pipes: 6.35 / 9.52 mm
Dimensions:
- External Unit Dimensions (WxHxD): 860x670x310 mm
- External Unit Weight: 49 Kg
The ducted models are supplied with standard and wired remote control
3 year warranty (5 on the compressor)
The Hisense Italia warranty can be activated within 1 month from the date of purchase athttp://www.hisenseitalia.it/clima/supporto
Multisplit line - Free Match
DC drive technology with 180° sine wave
The system constantly monitors the compressor frequency and creates the most efficient waveform to determine effective fuel savings.
Compressor with rubidium magnet
Thanks to the greater compression of the gas molecules, the compressor with rubidium magnet guarantees greater efficiency and lower absorption.
Electronic expansion valve
The outdoor unit uses an electronic expansion valve which adjusts to optimize the amount of refrigerant for all operating indoor units.
Wide voltage range operation
The outdoor unit can operate with a voltage of 176V to 264V. In the new models, the use of an automatic voltage regulation technique guarantees that the protection value adjusts according to it, maintaining the operating frequency at an optimal value.
Exchanger design: designed to improve its efficiency
The design of the external exchanger was designed to increase heat transfer in such a way as to make the refrigeration circuit more efficient and avoid the creation of ice blocks. A further advantage is that it can support long-distance connections between the external unit and internal units without reducing the cooling capacity.

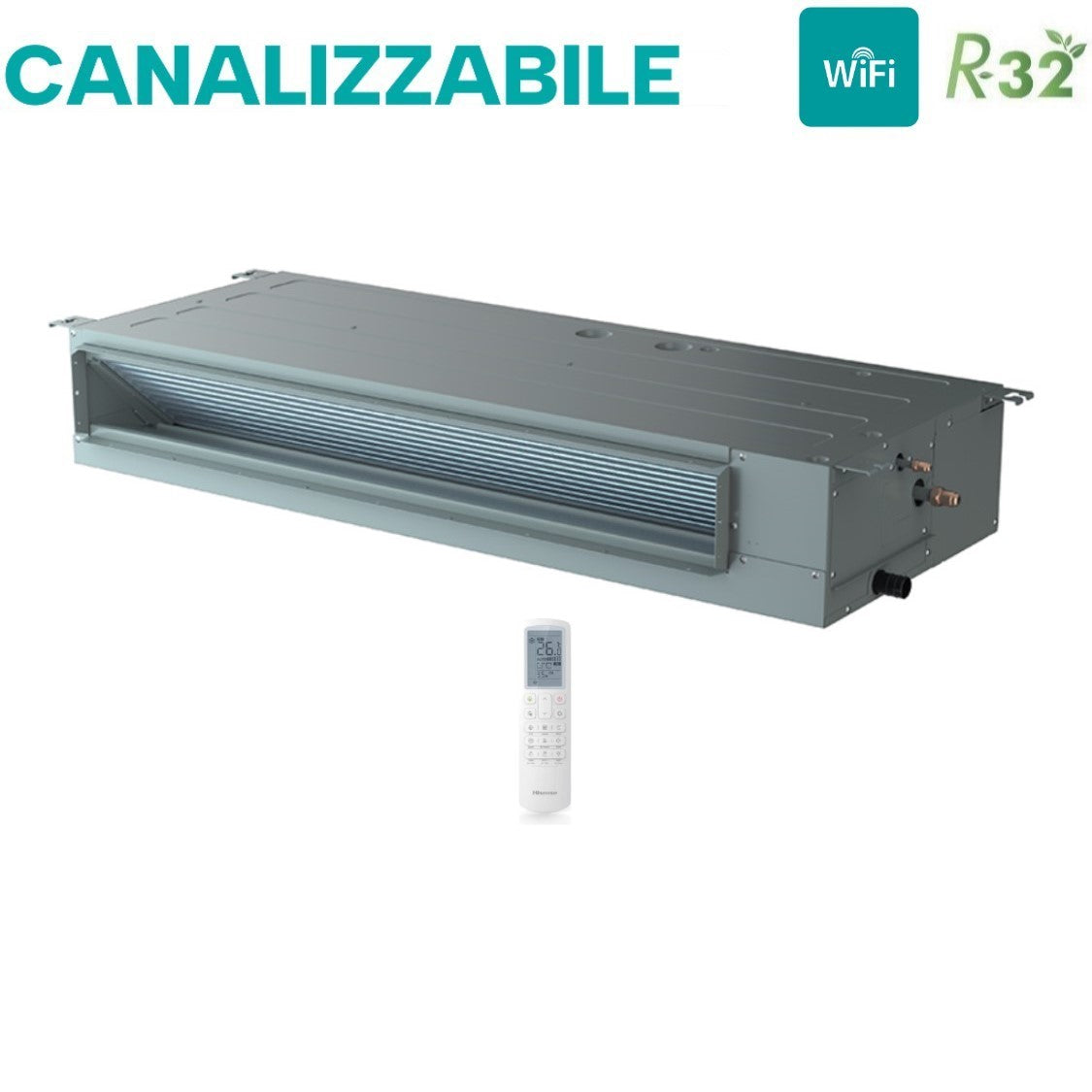

Hisense channeled
Variable static pressure
On the entire range of ducted models it is possible to set the static pressure to guarantee greater installation flexibility
Dual air inlet modes
Advantages: If the distance between the unit and the wall is limited, then you can choose the bottom air inlet by removing the bottom panel of the unit, it will be much easier and more flexible.
The noise level produced by a lower air inlet can increase by up to 5dB compared to using a rear air inlet. We therefore recommend opting for the latter solution
Slim design
With a height of 190 mm, it can be easily installed in residential false ceilings
Built-in rear drainage pan (Optional)
Disadvantage of an external drain pan: It easily attracts dust and bacteria which will cause long-term malfunctions.
Float and condensate drain pump (Optional)
If the level of condensation water inside the drainage tray increases due to a malfunction of the drain pump, the unit will automatically turn off displaying the alarm to avoid damage
Safety protection
Make sure the compressor is operating in safety mode to avoid damage caused by refrigerant leaks
Product Warranty: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.
Scheda Tecnica
Scheda Tecnica
- peso: 75.0 kg
- classe energetica raffreddamento: A++
- classe energetica riscaldamento: A+
- gas: R-32
- marca: Hisense
- modello: Adt 9+9+12 72
- potenza btu: 9000+9000+12000
- superficie riscaldabile mq: 25/25/35
