Hisense
Garanzia Italiana 24 mesi
SKU: CF_9+9+12_62

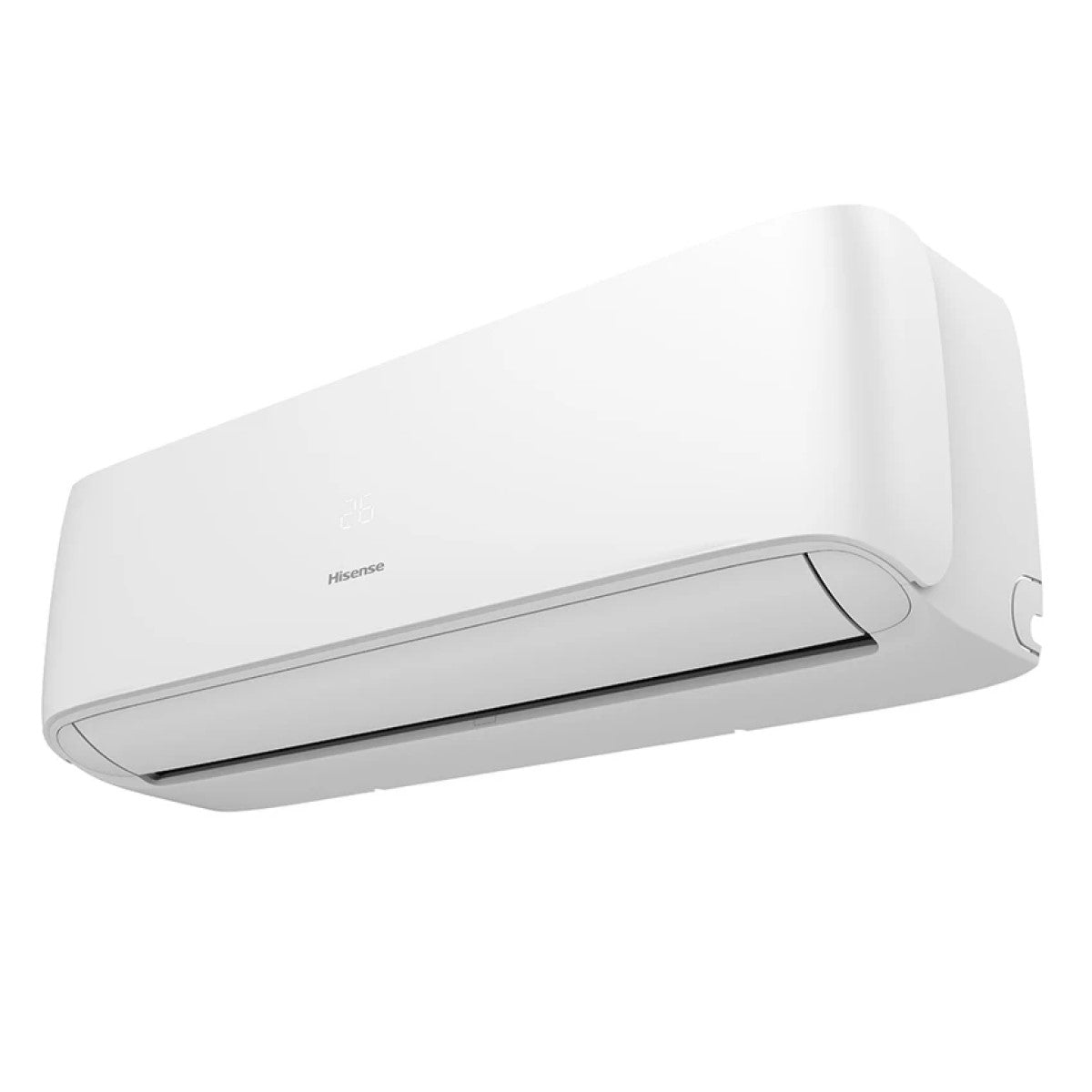

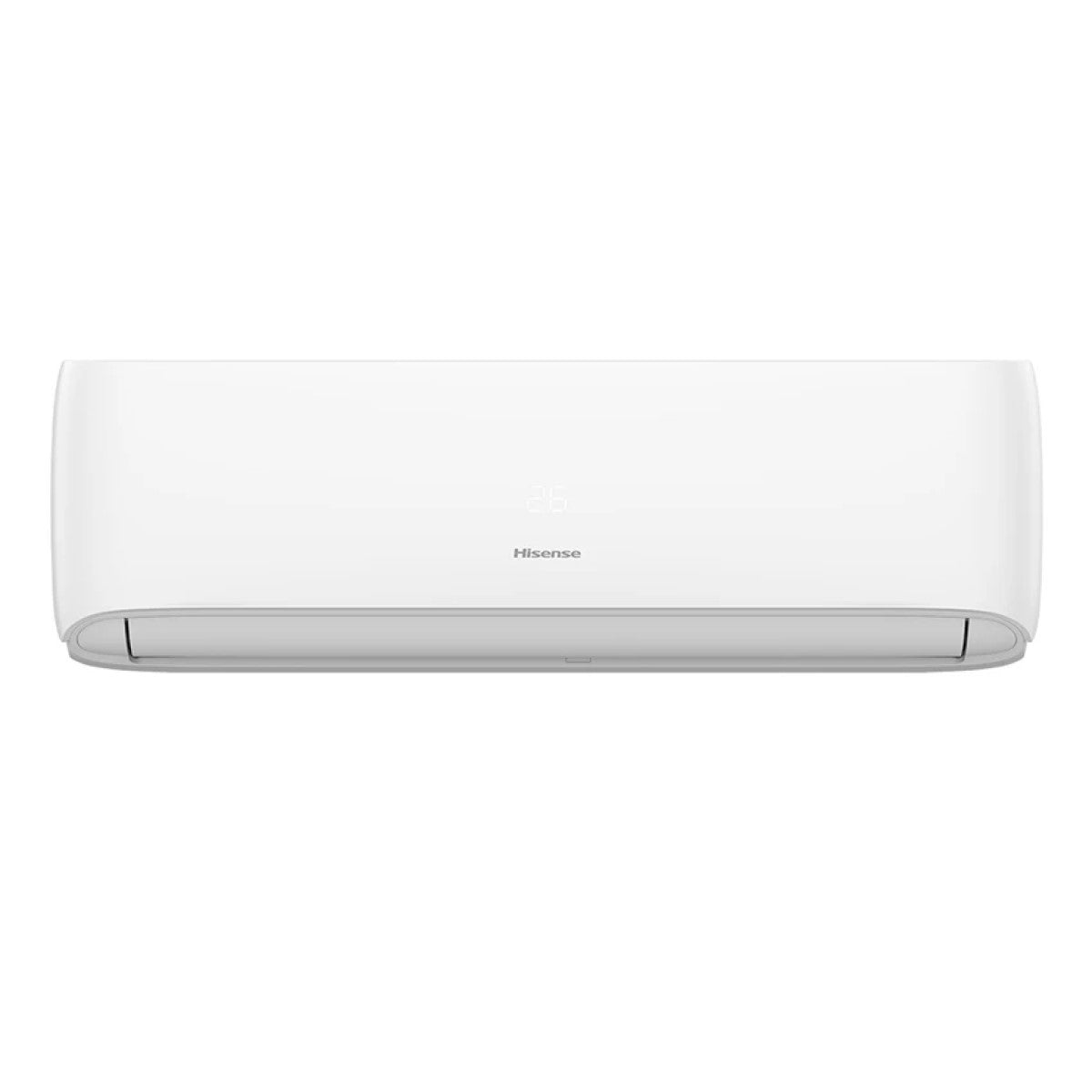

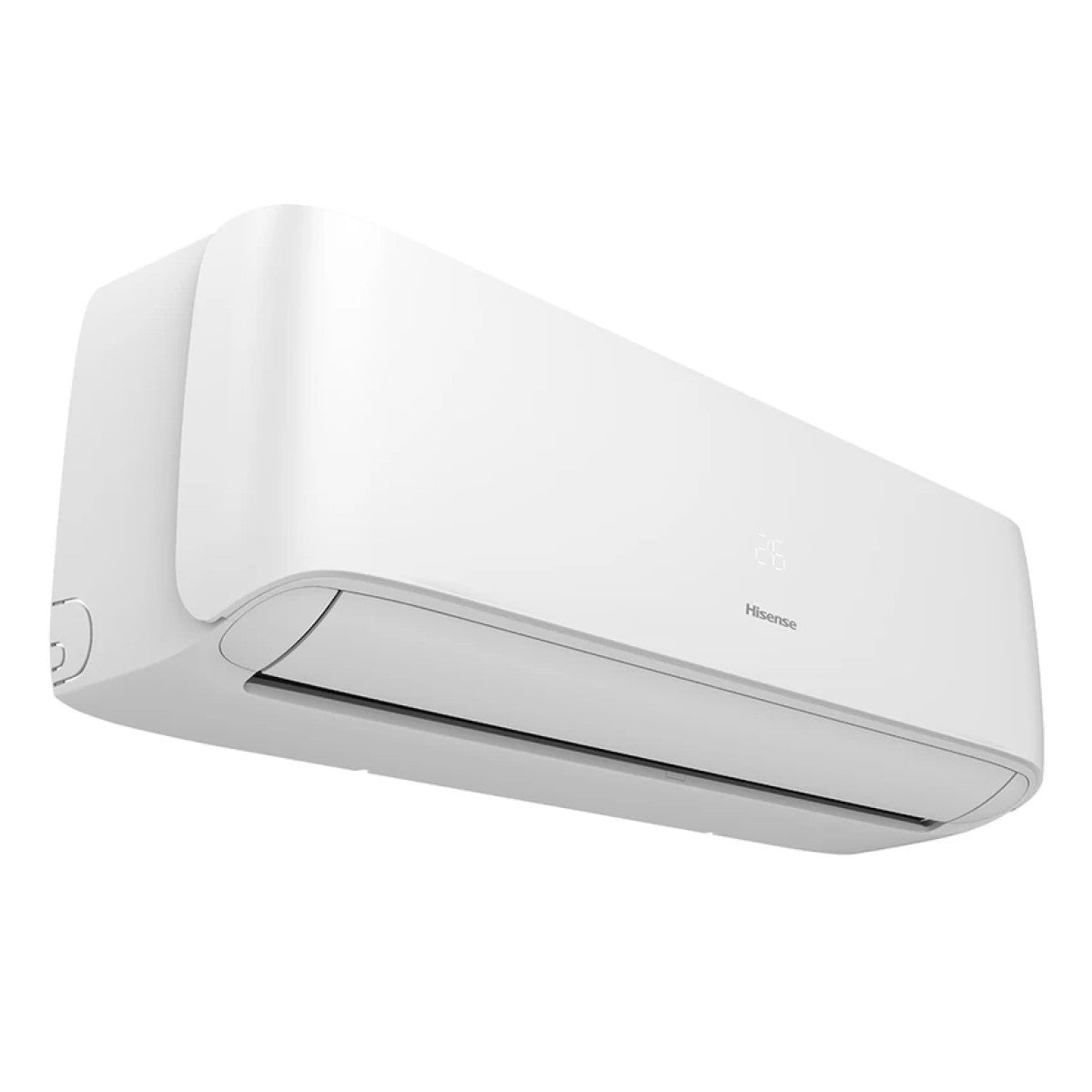

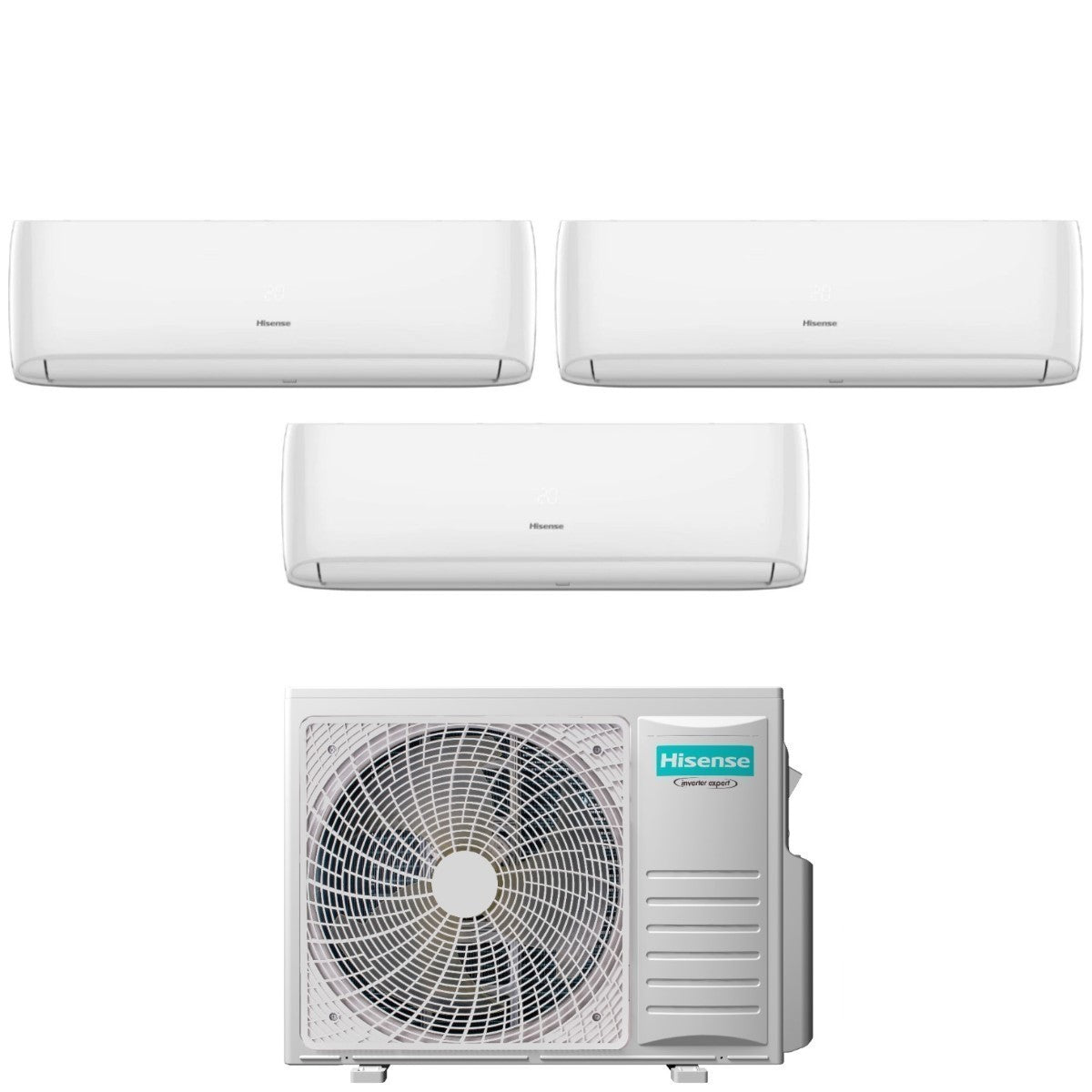

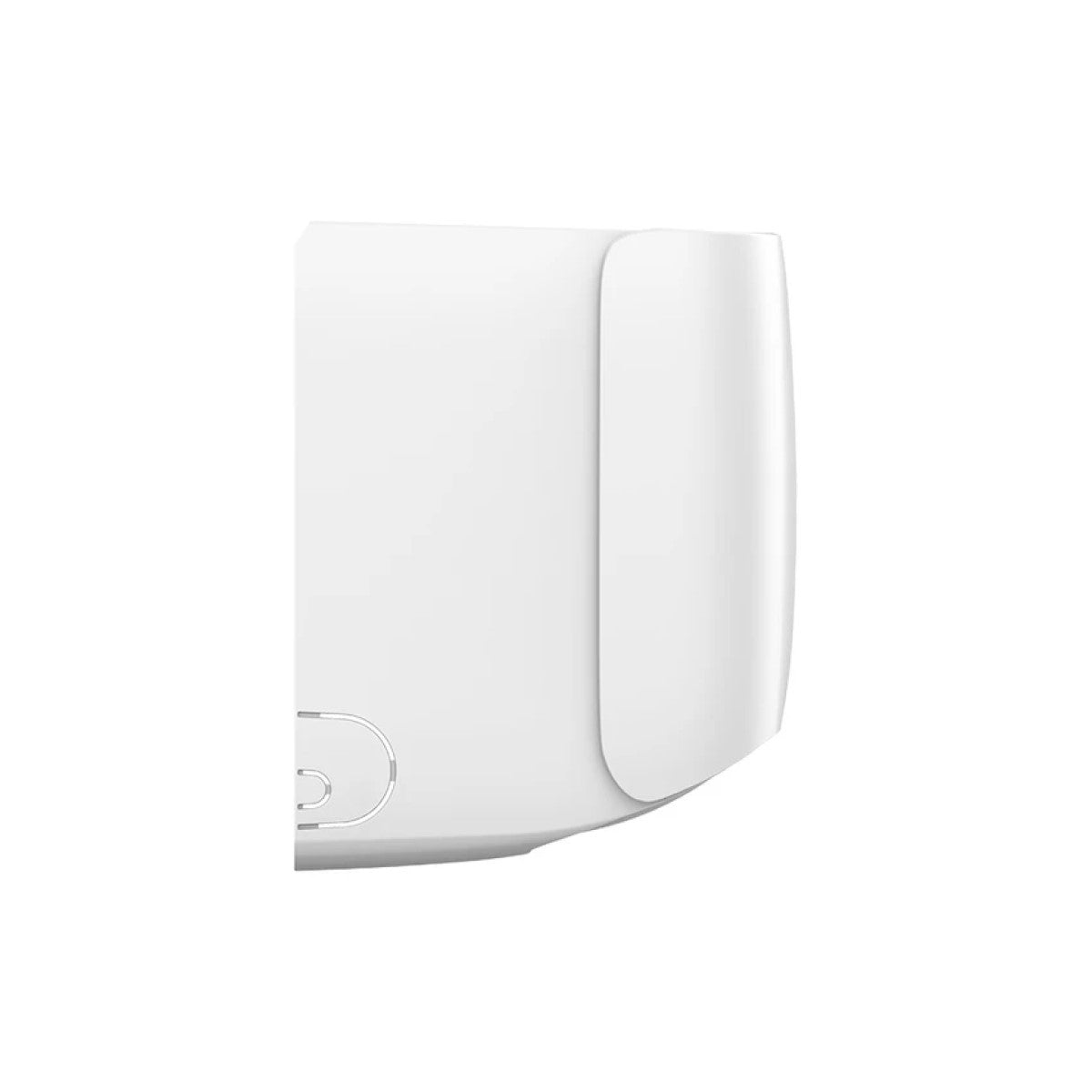

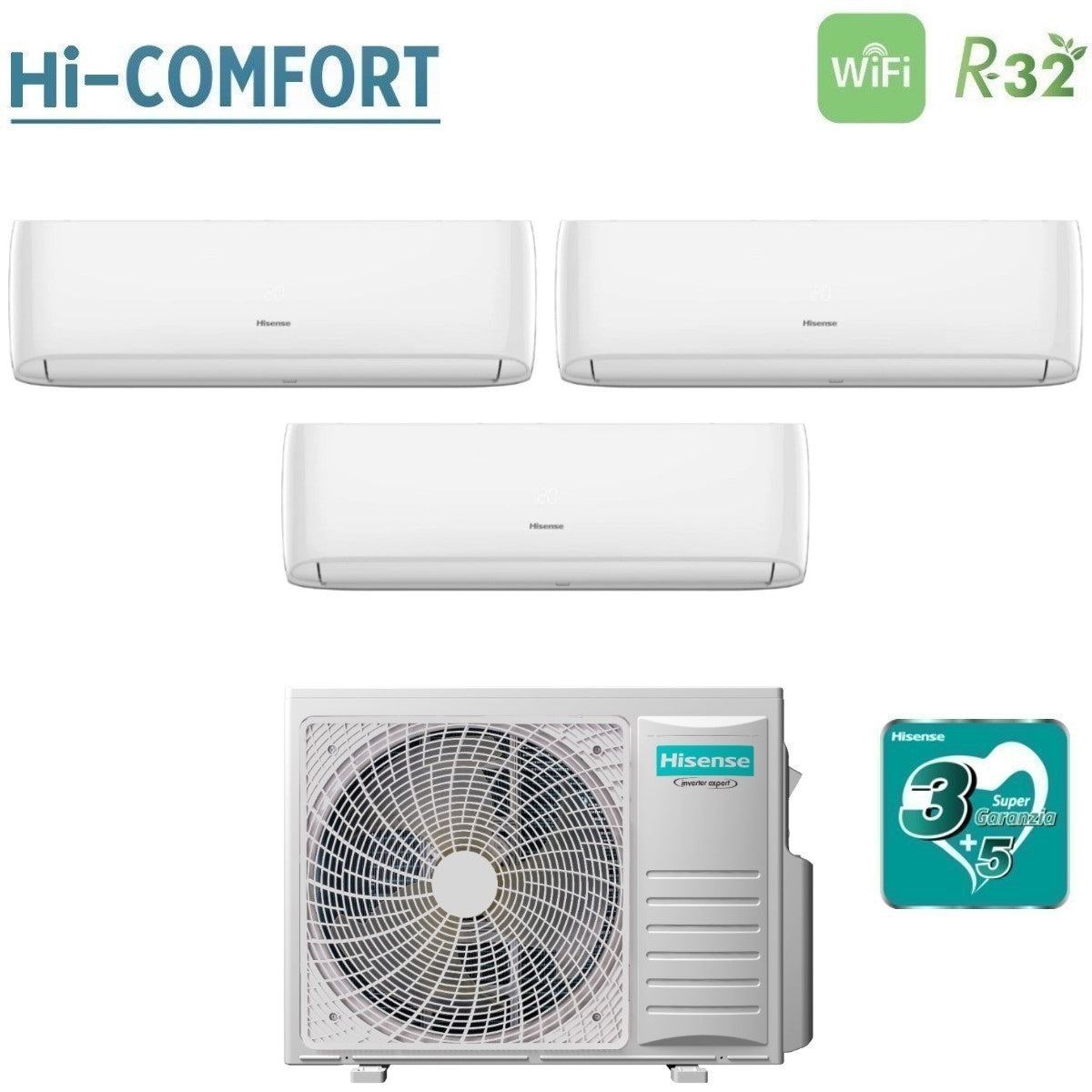

Hisense Trial Split Inverter Air Conditioner HI-COMFORT 9+9+12 series with 3AMW62U4RFA R-32 Integrated Wi-Fi 9000+9000+12000 – New

€1.030,00 VAT included
Tax included Shipping calculated at checkout.
Costi di spedizione calcolati in fase di checkout

How shipping works

I costi di spedizione variano a seconda del peso e della modalità di spedizione dell'ordine.

I nostri servizi di spedizione:

  • Spedizione standard: consegna stimata dai 2 ai 5 giorni lavorativi
  • Spedizione Premium: consegna garantita in 24 ore lavorative
  • Spedizione Premium + Consegna al piano: consegna garantita in 24 ore lavorative

Consulta le tabelle per i prezzi della spedizione standard per l'Italia e per le Isole Minori e Zone Disagiate.

Per ulteriori dettagli sulla Spedizione Premium, consulta la pagina di spedizione premium.

Servizio clienti

Il nostro servizio di assistenza è dedicato a fornire supporto ai nostri clienti per qualsiasi problema o domanda che possano avere prima o dopo l’acquisto dei nostri prodotti.

Utilizza il canale di comunicazione diretta per parlare con un nostro operatore, oppure inviaci una mail ad uno degli indirizzi elencati nella pagina contattaci.

Il nostro team di assistenza clienti è composto da professionisti altamente qualificati e sempre pronti ad aiutare i clienti a risolvere qualsiasi problema o rispondere a qualsiasi domanda in modo rapido ed efficiente. Ci impegniamo a garantire la massima soddisfazione del cliente e a fornire un servizio di assistenza post-vendita di altissima qualità. Quindi, se hai bisogno di assistenza, non esitare a contattarci; saremo lieti di aiutarti in ogni modo possibile.

Description

Important Notice on Regulations for Fluorinated Gases IN ITALY

In accordance with Regulation (EU) No. 517/2014 and Presidential Decree No. 146/2018, equipment containing fluorinated gases that is not hermetically sealed can only be sold if installed by a certified company.

By law, each sale must be recorded in the Fluorinated Gas Database, including a declaration from the buyer ensuring that the installation complies with the regulations. Therefore, before completing the order, it will be necessary to provide this mandatory declaration.

Technical features

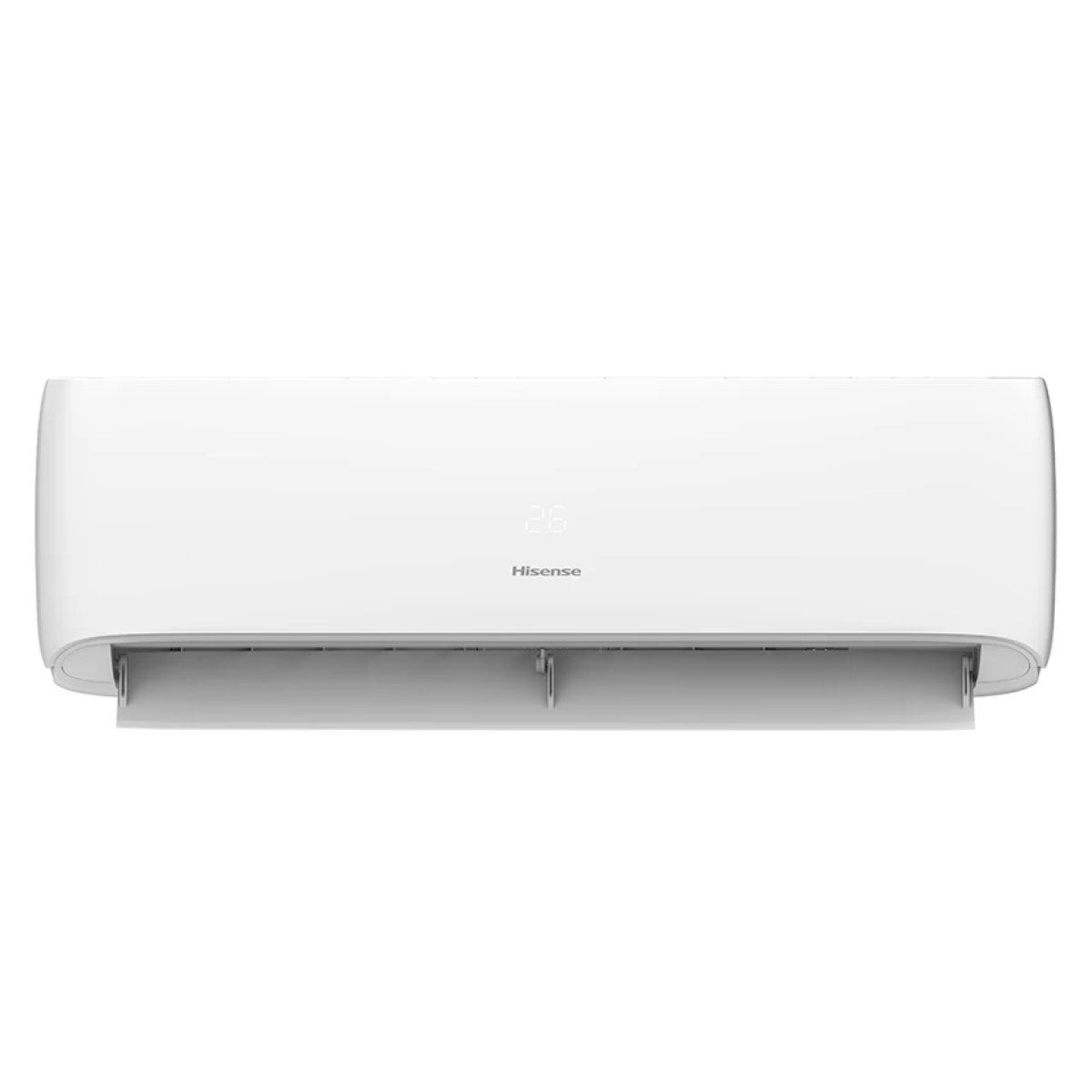

Internal units

1) Model

  • Indoor Unit Catalog Code: 2x CF25YR04G
  • Power: 9000 btu/h
  • Cooling Capacity: 2.6 kW
  • Heating Capacity: 2.7 kW
  • Treated air: 9.16 m 3 /min
  • Sound Power Level: 57 dB(A)
  • Sound pressure level: 19~39 dB(A)
  • Liquid pipe diameter: 6.35 mm (1/4")
  • Gas pipe diameter: 9.52 mm (3/8")
  • Internal Unit Dimensions (WxHxD): 795x256x197 mm
  • Internal Unit Weight: 8.6 Kg
  • Integrated Wi-Fi

2) Model

  • Indoor Unit Catalog Code: 1x CF35MR04G
  • Power: 12000 btu/h
  • Cooling Capacity: 3.2 kW
  • Heating capacity: 3.3 kW
  • Treated air: 9.16 m 3 /min
  • Sound Power Level: 57 dB(A)
  • Sound pressure level: 19~39 dB(A)
  • Liquid pipe diameter: 6.35 mm (1/4")
  • Gas pipe diameter: 9.52 mm (3/8")
  • Internal Unit Dimensions (WxHxD): 795x256x197 mm
  • Internal Unit Weight: 8.6 Kg
  • Integrated Wi-Fi

External Unit

Model:

  • Outdoor Unit catalog code: 3AMW62U4RFA
  • Max indoor units: up to 3 indoor units

Energy efficiency:

  • SEER : 6.9
  • SCOP: 4.01
  • Cooling Energy Efficiency Class: A++
  • Heating Energy Efficiency Class: A+
  • Annual energy consumption Cooling: 320 kWh/a
  • Annual energy consumption Heating: 1920 kWh/a

Performance:

  • Cooling Capacity: 6.3 kW
  • Heating Capacity: 7.2 kW
  • Std Cooling absorption: 1.47 kW
  • Std Heating absorption: 1.78 kW
  • Sound power level: 68 dB(A)
  • Sound pressure level: 49~55 dB(A)

Characteristics:

  • Power (V/Hz/Φ): 220~240/50/1
  • Refrigerant gas: R-32
  • Guaranteed temperature range:
  • - Cooling: -15° ~ 48° C
  • - Heating: -15° ~ 24° C
Installation Data:
  • Pipe diameter Liquid: 6.35 mm (1/4") x3
  • Gas pipe diameter: 9.52 mm (3/8") x3
  • Maximum length of pipes: 45 m
  • Maximum height difference Internal Unit / External Unit: 15 m

Dimensions:

  • External Unit Dimensions (WxHxD): 860×670×310 mm
  • External Unit Weight: 49 Kg

3 year warranty (5 on the compressor)

Warranty

The Hisense Italia warranty can be activated within 1 month from the date of purchase athttp://www.hisenseitalia.it/clima/supporto


Multisplit Outdoor Unit Technologies

High Efficiency DC Twin Rotary Inverter Compressor

The design of the new double rotor BLDC Inverter compressor guarantees better balancing and reduced vibrations. This translates into the maximum level of silence and excellent performance in terms of efficiency and energy saving.


DC drive technology with 180° sine wave

The system constantly monitors the compressor frequency and creates the most efficient waveform to determine effective consumption savings.

Curve control

Driver della curva Hisense


Compressor with rubidium magnet

Thanks to the greater compression of the gas molecules, the compressor with rubidium magnet guarantees greater efficiency and lower absorption

Compressore


Electronic expansion valve

The outdoor unit uses an electronic expansion valve that regulates and optimizes the amount of refrigerant of all operating indoor units .

Wide voltage range operation

The outdoor unit can operate with a voltage of 176V to 264V. In the new models, the use of an automatic voltage regulation technique guarantees that the protection value adjusts according to it, maintaining the operating frequency at an optimal value.

Exchanger design: designed to improve its efficiency

The design of the external exchanger has been designed to increase heat transfer in such a way as to make the refrigeration circuit more efficient and avoid the creation of ice blocks. A further advantage is that it can support long-distance connections between the external unit and internal units without reducing the cooling capacity.


Hisense Hi-Comfort

Hi-Comfort


Easy Installation

Hi-Comfort models are easy to install thanks to the new design of the indoor unit and mounting plate.

1 . The mounting plate is equipped with two fins that allow you to distance the indoor unit from the wall to have more useful space while connecting the pipes

Easy-installation-2


2. The panel located at the bottom of the indoor unit is easily removed to ensure convenient access to the pipes

Easy installation


3. You can choose the side to connect the condensate drain pump according to your installation needs

Easy-installation-3


Wi-Fi control

Hisense air conditioners can be conveniently managed inside and outside the home with a mobile device and a Wi-Fi connection. HiSmart Life is the simple to use app with an intuitive interface that allows you to control the air conditioner wherever you are. The app is available for iOS and Android.

After downloading the app and pairing the air conditioner, the app allows you to manage operating modes, temperature, ventilation speed and air flow. From the «Smart function» section you can also set daily or weekly timers.

Controllo Wi-Fi intelligente


Smart Voice Control

The new HiSmart Life app is compatible with Alexa and Google Assistant: thanks to voice interaction, it is possible to turn it on, off, adjust the temperature and set the desired operating mode (cooling or heating).

You can find HiSmart Life in the Alexa Skills and in the Google Assistant catalogue.

Smart Voice

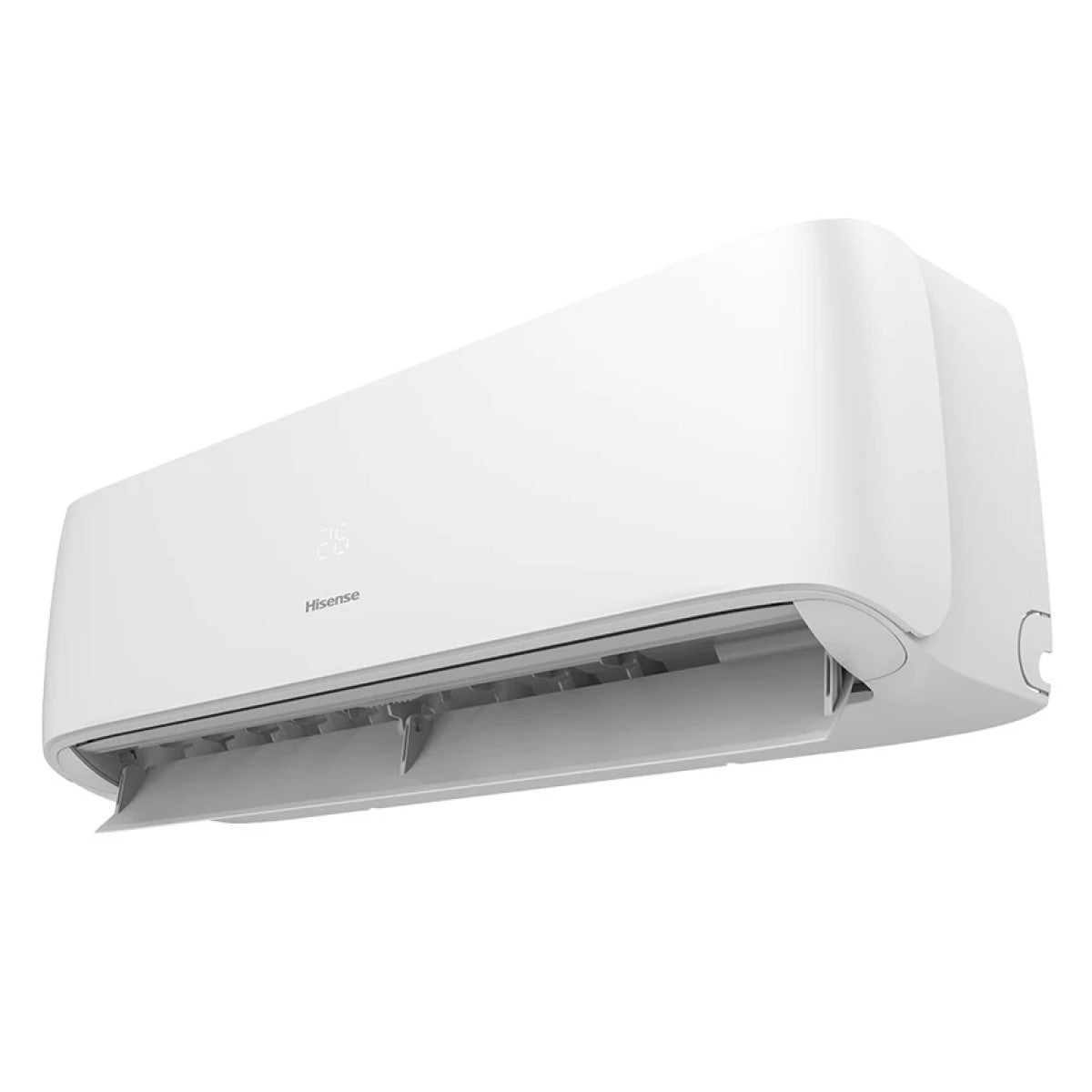

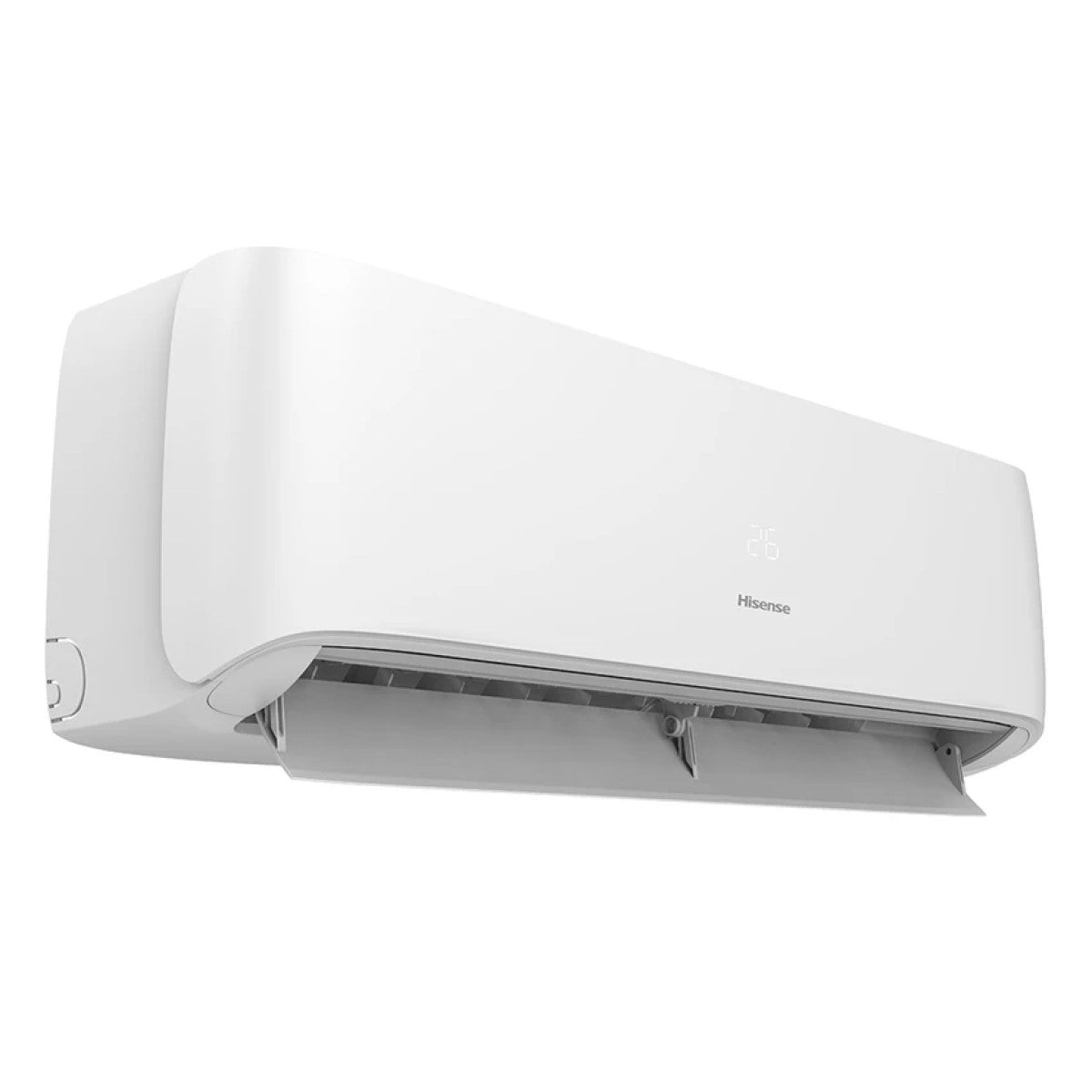

Optimal airflow

The new Hisense air conditioners guarantee an ideal air flow based on the operating mode or based on the type of activity carried out by people in the environment.

You can select the airflow direction directly from the remote control


Universal unit for single and multi systems

The universal internal units can be connected to Monosplit and Multisplit external units to ensure maximum installation versatility

Sistemi


Self-Clean: Antibacterial Treatment

The evaporator and condenser of Hisense air conditioners have a hydrophilic coating that allows the removal of microorganisms and dust. By activating the Self-Clean function directly from the remote control, the air conditioner starts the self-cleaning process through the frosting, defrosting and battery drying phases. Thanks to the Self-Clean function, the air released into the room is always clean and the performance of the air conditioner remains optimal

Self-Clean

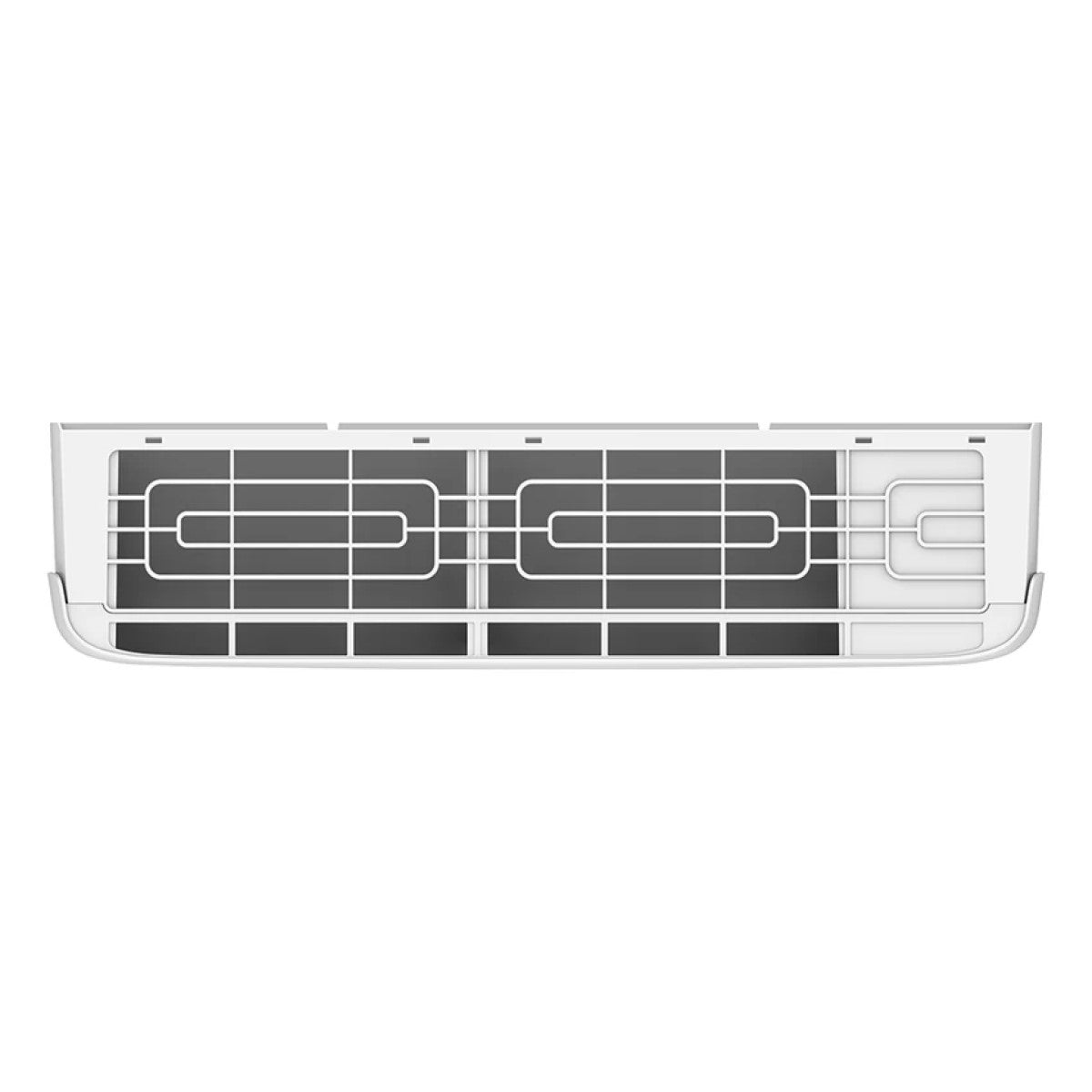

Total Protection: 4 Filters in 1

4 Filtri

Catechin filter: removes odors and dust

HEPA filter: removes pollen and dust

Silver Ion Filter: sterilizes bacteria by acting on their composition

Aroma Filter: releases a pleasant scent into the room


Characteristics

Caratteristiche


Product Warranty: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.

Scheda Tecnica

  • peso: 75.0 kg
  • classe energetica raffreddamento: A++
  • classe energetica riscaldamento: A+
  • gas: R-32
  • marca: Hisense
  • modello: CF_9+9+12_62_1
  • potenza btu: 9000+9000+12000
  • superficie riscaldabile mq: 25/25/35
