Hisense
Garanzia Italiana 24 mesi
SKU: DJ 9+9+18 105

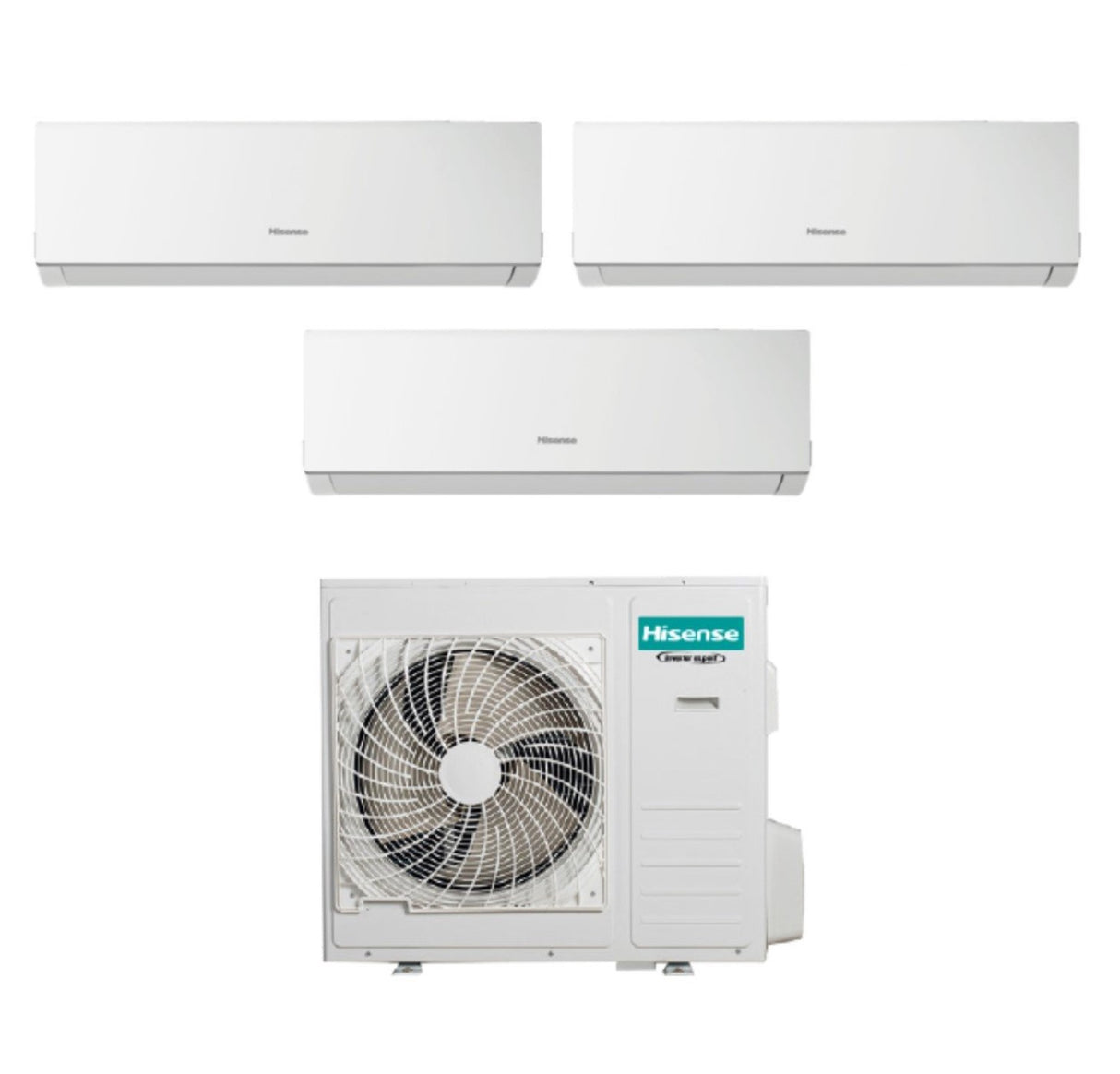

Hisense Trial Split Inverter air conditioning NEW COMFORT 9+9+18 series with 4AMW105U4RAA R-32 Wi-Fi Optional 9000+9000+18000

€1.950,00 VAT included
Tax included Shipping calculated at checkout.

How shipping works

I costi di spedizione variano a seconda del peso e della modalità di spedizione dell'ordine.

I nostri servizi di spedizione:

  • Spedizione standard: consegna stimata dai 2 ai 5 giorni lavorativi
  • Spedizione Premium: consegna garantita in 24 ore lavorative
  • Spedizione Premium + Consegna al piano: consegna garantita in 24 ore lavorative

Consulta le tabelle per i prezzi della spedizione standard per l'Italia e per le Isole Minori e Zone Disagiate.

Per ulteriori dettagli sulla Spedizione Premium, consulta la pagina di spedizione premium.

Servizio clienti

Il nostro servizio di assistenza è dedicato a fornire supporto ai nostri clienti per qualsiasi problema o domanda che possano avere prima o dopo l’acquisto dei nostri prodotti.

Utilizza il canale di comunicazione diretta per parlare con un nostro operatore, oppure inviaci una mail ad uno degli indirizzi elencati nella pagina contattaci.

Il nostro team di assistenza clienti è composto da professionisti altamente qualificati e sempre pronti ad aiutare i clienti a risolvere qualsiasi problema o rispondere a qualsiasi domanda in modo rapido ed efficiente. Ci impegniamo a garantire la massima soddisfazione del cliente e a fornire un servizio di assistenza post-vendita di altissima qualità. Quindi, se hai bisogno di assistenza, non esitare a contattarci; saremo lieti di aiutarti in ogni modo possibile.

Description

Technical features

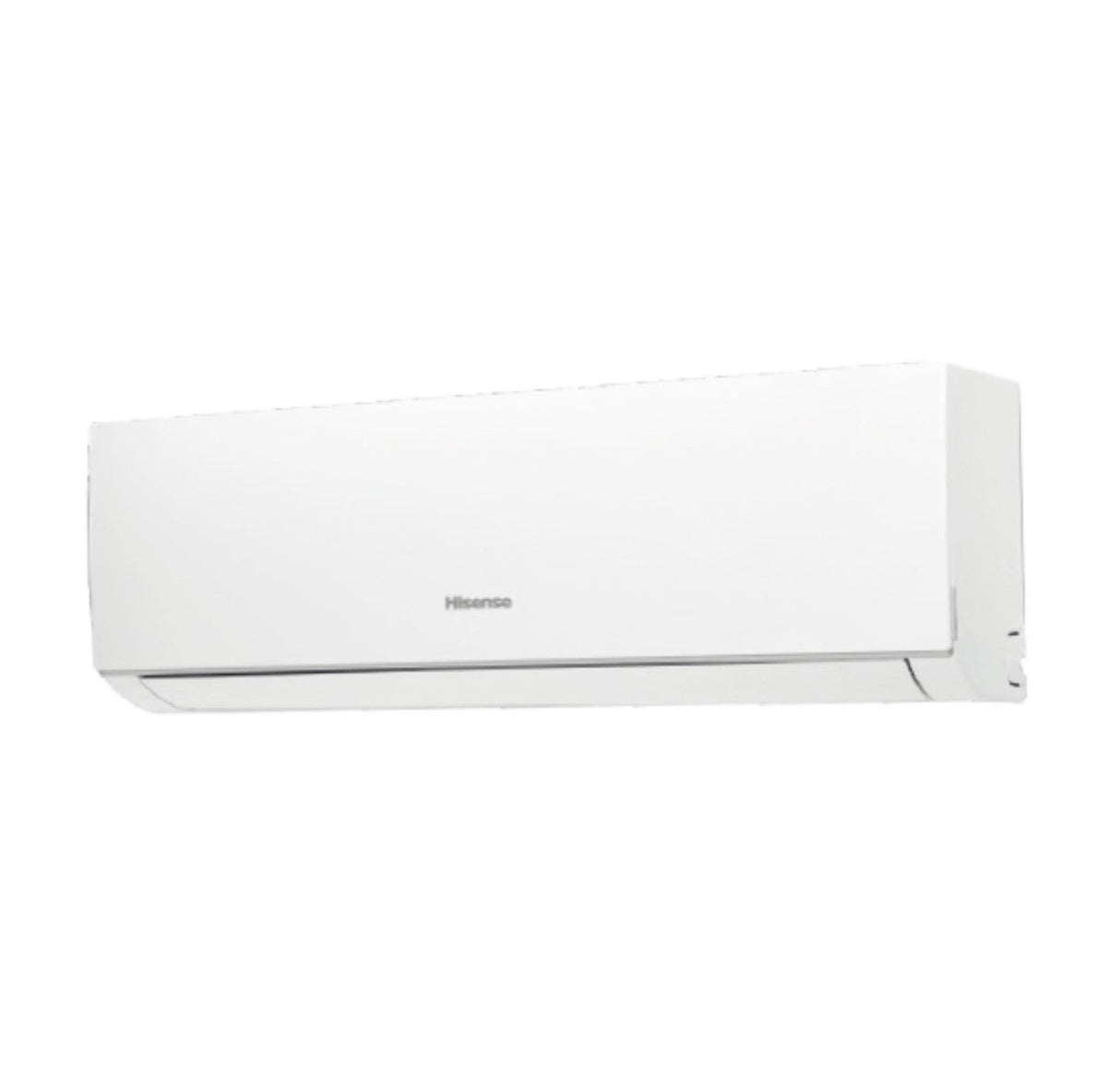

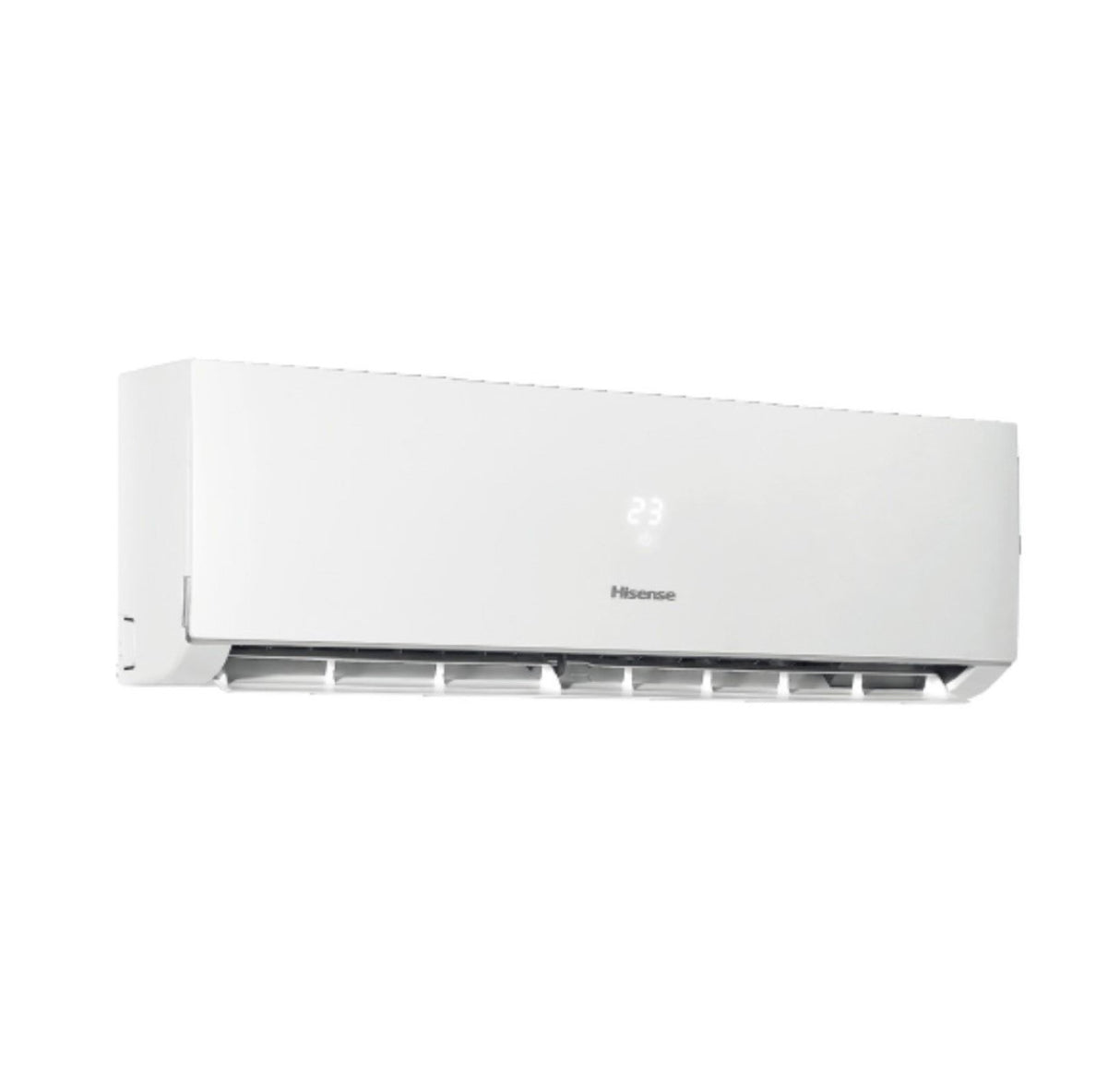

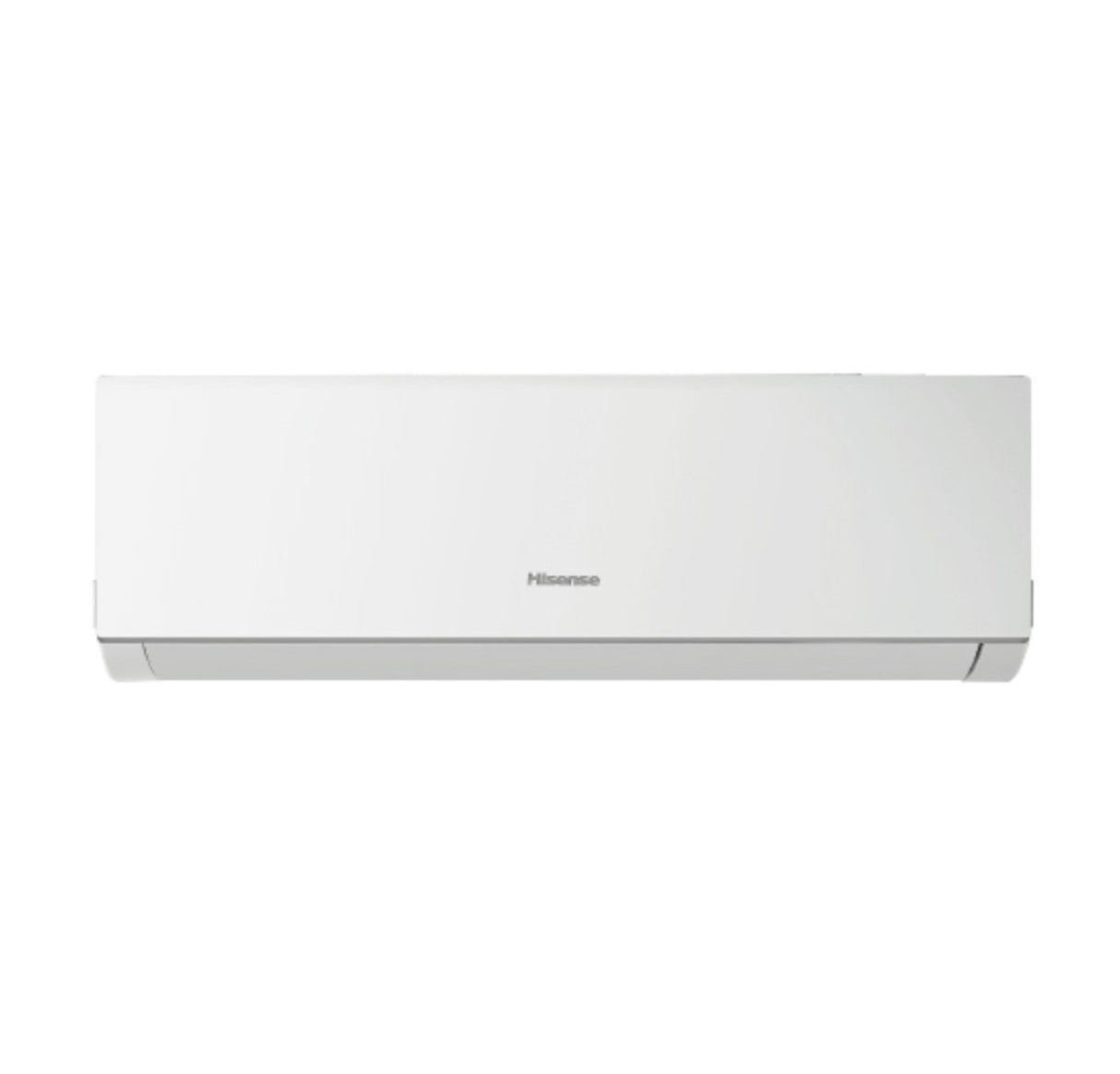

Internal Units

1) Model

  • Indoor Unit Catalog Code: 2x DJ25VE0AG
  • Power: 9000 btu/h
  • Cooling Capacity: 2.6 kW
  • Heating Capacity: 2.8 kW
  • Power consumption: 45 W
  • Rated Current: 0.2 A
  • Treated air: 9.2 m 3 /min
  • Sound pressure level: 19~39 dB(A)
  • Liquid pipe diameter: 6.35 mm (1/4")
  • Gas pipe diameter: 9.52 mm (3/8")
  • Internal Unit Dimensions (WxHxD): 815×275×210 mm
  • Internal Unit Weight: 8.5 Kg
  • Optional Wi-Fi card (Code AEH-W4E1 )
  • Optional wired control (Code YXE-C01U )

2) Model

  • Indoor Unit Catalog Code: 1x DJ50XA0AG
  • Power: 18000 btu/h
  • Cooling Capacity: 5.0 kW
  • Heating Capacity: 5.6 kW
  • Power consumption: 70 W
  • Rated Current: 0.3 A
  • Treated air: 16.7 m 3 /min
  • Sound pressure level: 21~46 dB(A)
  • Liquid pipe diameter: 6.35 mm (1/4")
  • Gas pipe diameter: 12.70 mm (1/2")
  • Internal Unit Dimensions (WxHxD): 914x315x228 mm
  • Internal Unit Weight: 12.0 Kg
  • Optional Wi-Fi card (Code AEH-W4E1 )
  • Optional wired control (Code YXE-C01U )

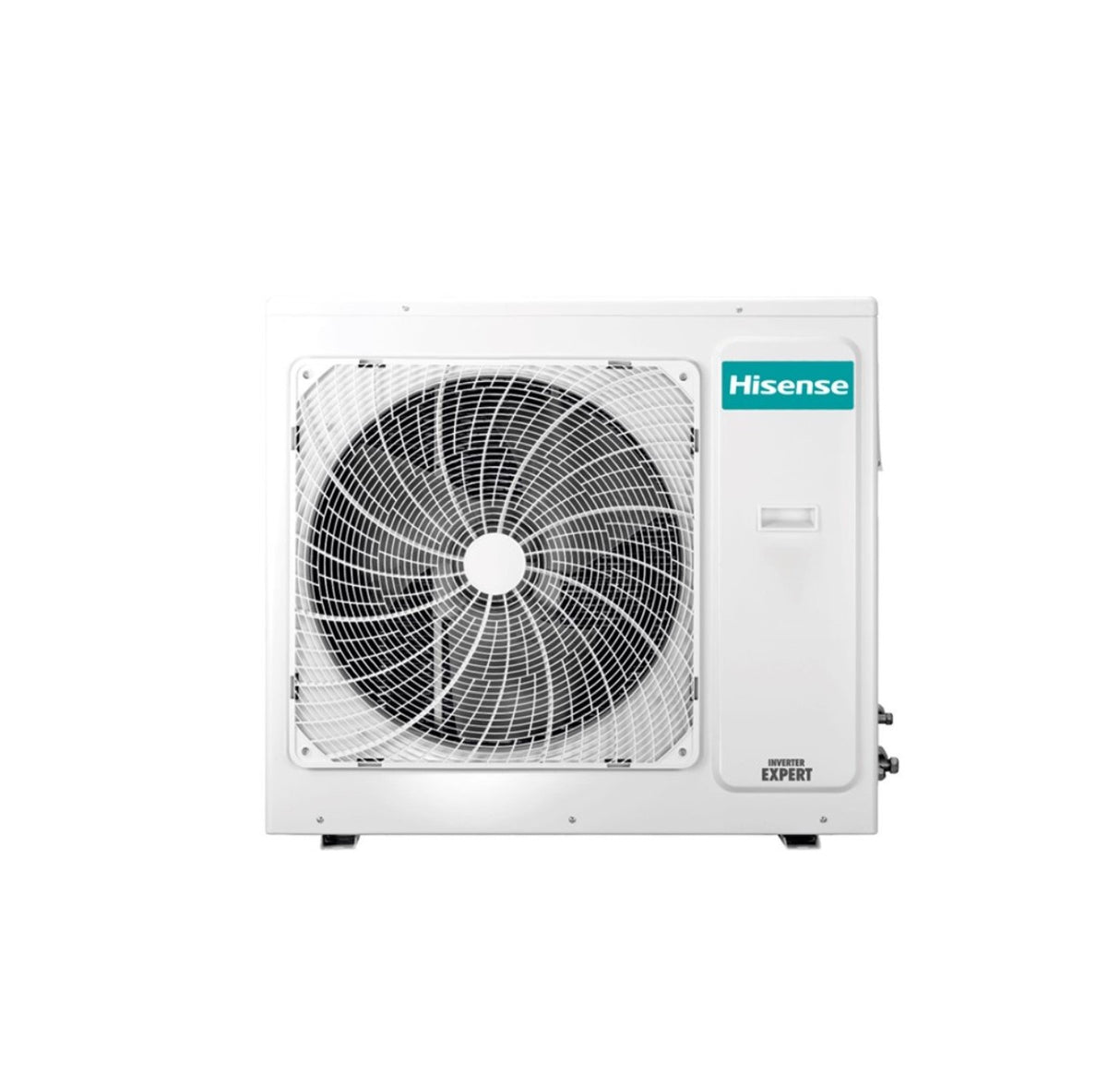

External Unit

Model:

  • Outdoor Unit catalog code: 4AMW105U4RAA
  • Max indoor units: up to 4 indoor units

Energy efficiency:

  • SEER: 6.50
  • SCOP: 4.01
  • Cooling Energy Efficiency Class: A++
  • Heating Energy Efficiency Class: A+
  • Annual energy consumption Cooling/Heating: 538/2793 kWh/a

Performance:

  • Cooling Capacity: 10 kW
  • Heating Capacity: 11 kW
  • Std Cooling absorption: 3.1 kW
  • Std Heating absorption: 2.8 kW
  • Sound power level: 68 dB(A)
  • Sound pressure level: 54~60 dB(A)

Characteristics:

  • Power (V/Hz/Φ): 220~240/50/1
  • Refrigerant gas: R-32
  • Liquid tube diameter: 6.35 mm (1/4") x4
  • Gas pipe diameter: 9.52 mm (3/8") x4
  • Guaranteed temperature range:
  • - Cooling: -15° ~ 48°C
  • - Heating: -15° ~ 24°C

Dimensions:

  • External Unit Dimensions (WxHxD): 950×840×340 mm
  • External Unit Weight: 73 Kg

3 year warranty (5 on the compressor)

Warranty

The Hisense Italia warranty can be activated within 1 month from the date of purchase athttp://www.hisenseitalia.it/clima/supporto


Multisplit Outdoor Unit Technologies

High Efficiency DC Twin Rotary Inverter Compressor

The design of the new double rotor BLDC Inverter compressor guarantees better balancing and reduced vibrations. This translates into the maximum level of silence and excellent performance in terms of efficiency and energy saving.


DC drive technology with 180° sine wave

The system constantly monitors the compressor frequency and creates the most efficient waveform to determine effective consumption savings.

Curve control

Driver della curva Hisense


Compressor with rubidium magnet

Thanks to the greater compression of the gas molecules, the compressor with rubidium magnet guarantees greater efficiency and lower absorption

Compressore


Electronic expansion valve

The outdoor unit uses an electronic expansion valve that regulates and optimizes the amount of refrigerant of all operating indoor units .

Wide voltage range operation

The outdoor unit can operate with a voltage of 176V to 264V. In the new models, the use of an automatic voltage regulation technique guarantees that the protection value adjusts according to it, maintaining the operating frequency at an optimal value.

Exchanger design: designed to improve its efficiency

The design of the external exchanger has been designed to increase heat transfer in such a way as to make the refrigeration circuit more efficient and avoid the creation of ice blocks. A further advantage is that it can support long-distance connections between the external unit and internal units without reducing the cooling capacity.


Hisense NEW COMFORT

Hisense Italia offers the New Comfort air conditioner with high performance, excellent comfort and elegant design.

5 fan speed levels

comfort-06-speed

The possibility of setting the fan speed at 5 different levels allows for more precise control of the volume of air introduced and the noise level.

Universal unit for single and multi systems

comfort-07-universal

The universal internal units can be connected to Monosplit and Multisplit external units to ensure maximum installation versatility.

Easy Installation

The New Comfort models are easy to install thanks to the new design of the indoor unit and the mounting plate.

Easy-installation-2
1. The mounting plate has two tabs that allow you to space the indoor unit from the wall to have more useful space while connecting the pipes
Easy installation
2. The panel located at the bottom of the indoor unit is easily removed to ensure convenient access to the pipes
Easy-installation-3
3. You can choose the side to connect the condensate drain pump according to your installation needs.

I Feel

The internal sensor of the remote control is able to detect the surrounding temperature and transmit this information to the internal unit , which will adapt its operation based on it to ensure maximum comfort.

4 Filters in 1

  • Vitamin C filter - The vitamin C filter releases vitamin C into the air. Vitamin C penetrates your skin, providing protection from ultraviolet rays, retaining active oxygen and promoting collagen production.
  • Silver Ion Filter - The silver ion filter eliminates bacteria in the air and controls the growth of microbes such as bacteria, viruses, fungi and spores by destroying their internal configuration and absorbing their cellular elements.
  • Photocatalyst filter - The photocatalyst filter eliminates lice and other germs. Furthermore, this filter eliminates odors thanks to its deodorizing properties equal to those of 500 activated carbon deodorants.
  • Catechin Filter - The catechin filter removes odors and eliminates dirt and particles in the air and room.
  • HEPA filter - The HEPA filter effectively eliminates pollen, grinding dust, pneumococcus, guaranteeing you fresh and healthy air.
  • Aroma Filter - This air conditioner filter will make your room smell heavenly when you add your favorite scent to the aroma filter.

Characteristics

Caratteristiche


Product Warranty: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.

Scheda Tecnica

  • peso: 75.0 kg
  • classe energetica raffreddamento: A++
  • classe energetica riscaldamento: A+
  • gas: R-32
  • marca: Hisense
  • modello: DJ 9+9+18 105
  • potenza btu: 9000+9000+18000
  • superficie riscaldabile mq: 25/25/50
