Hisense
Garanzia Italiana 24 mesi
SKU: KC 9+12+12 72

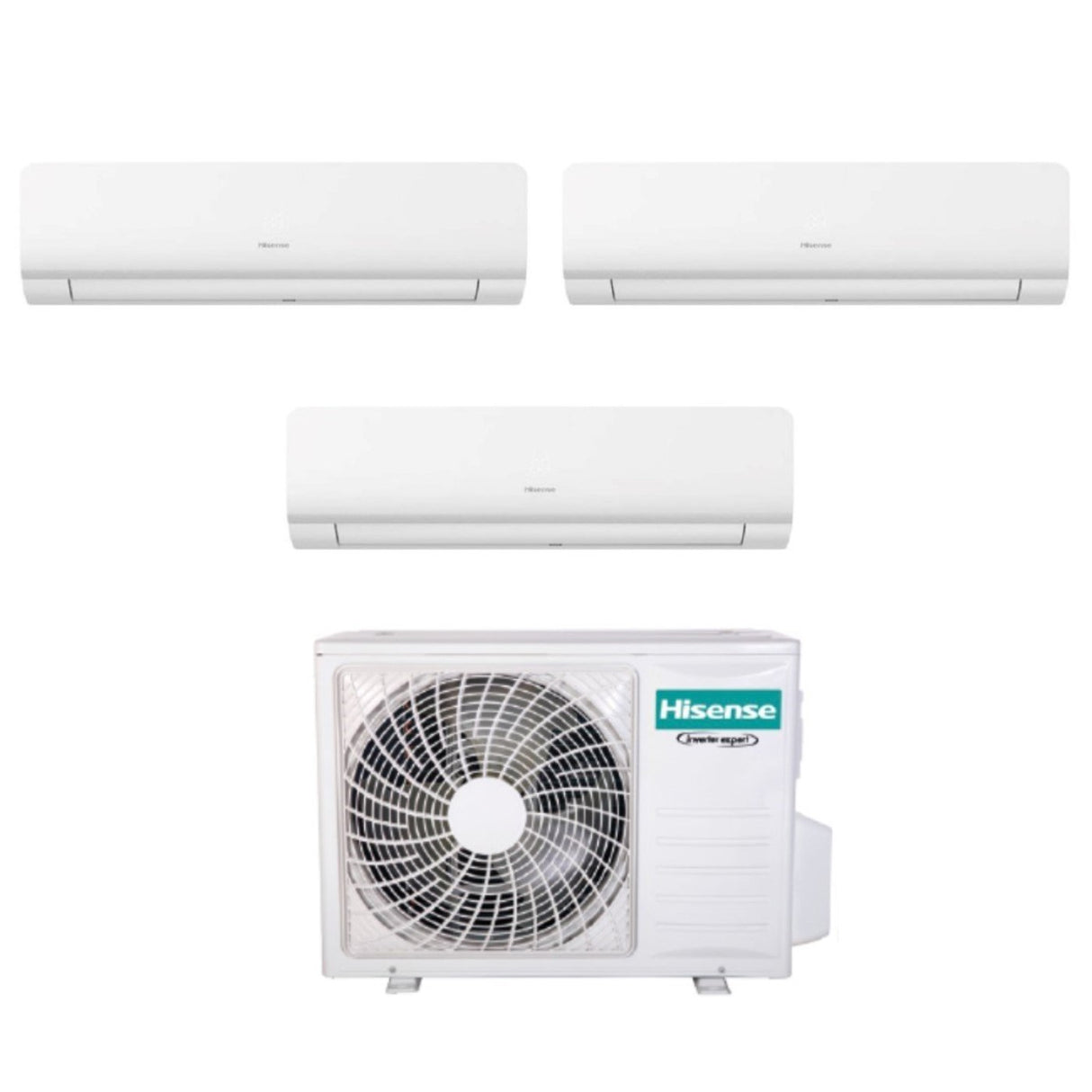

Hisense Trial Split Inverter Air Conditioning NEW ENERGY 9+12+12 series with 3AMW72U4RFA R-32 Integrated Wi-Fi 9000+12000+12000 - New

€1.770,00 VAT included
Tax included Shipping calculated at checkout.

How shipping works

I costi di spedizione variano a seconda del peso e della modalità di spedizione dell'ordine.

I nostri servizi di spedizione:

  • Spedizione standard: consegna stimata dai 2 ai 5 giorni lavorativi
  • Spedizione Premium: consegna garantita in 24 ore lavorative
  • Spedizione Premium + Consegna al piano: consegna garantita in 24 ore lavorative

Consulta le tabelle per i prezzi della spedizione standard per l'Italia e per le Isole Minori e Zone Disagiate.

Per ulteriori dettagli sulla Spedizione Premium, consulta la pagina di spedizione premium.

Servizio clienti

Il nostro servizio di assistenza è dedicato a fornire supporto ai nostri clienti per qualsiasi problema o domanda che possano avere prima o dopo l’acquisto dei nostri prodotti.

Utilizza il canale di comunicazione diretta per parlare con un nostro operatore, oppure inviaci una mail ad uno degli indirizzi elencati nella pagina contattaci.

Il nostro team di assistenza clienti è composto da professionisti altamente qualificati e sempre pronti ad aiutare i clienti a risolvere qualsiasi problema o rispondere a qualsiasi domanda in modo rapido ed efficiente. Ci impegniamo a garantire la massima soddisfazione del cliente e a fornire un servizio di assistenza post-vendita di altissima qualità. Quindi, se hai bisogno di assistenza, non esitare a contattarci; saremo lieti di aiutarti in ogni modo possibile.

Description

Technical features

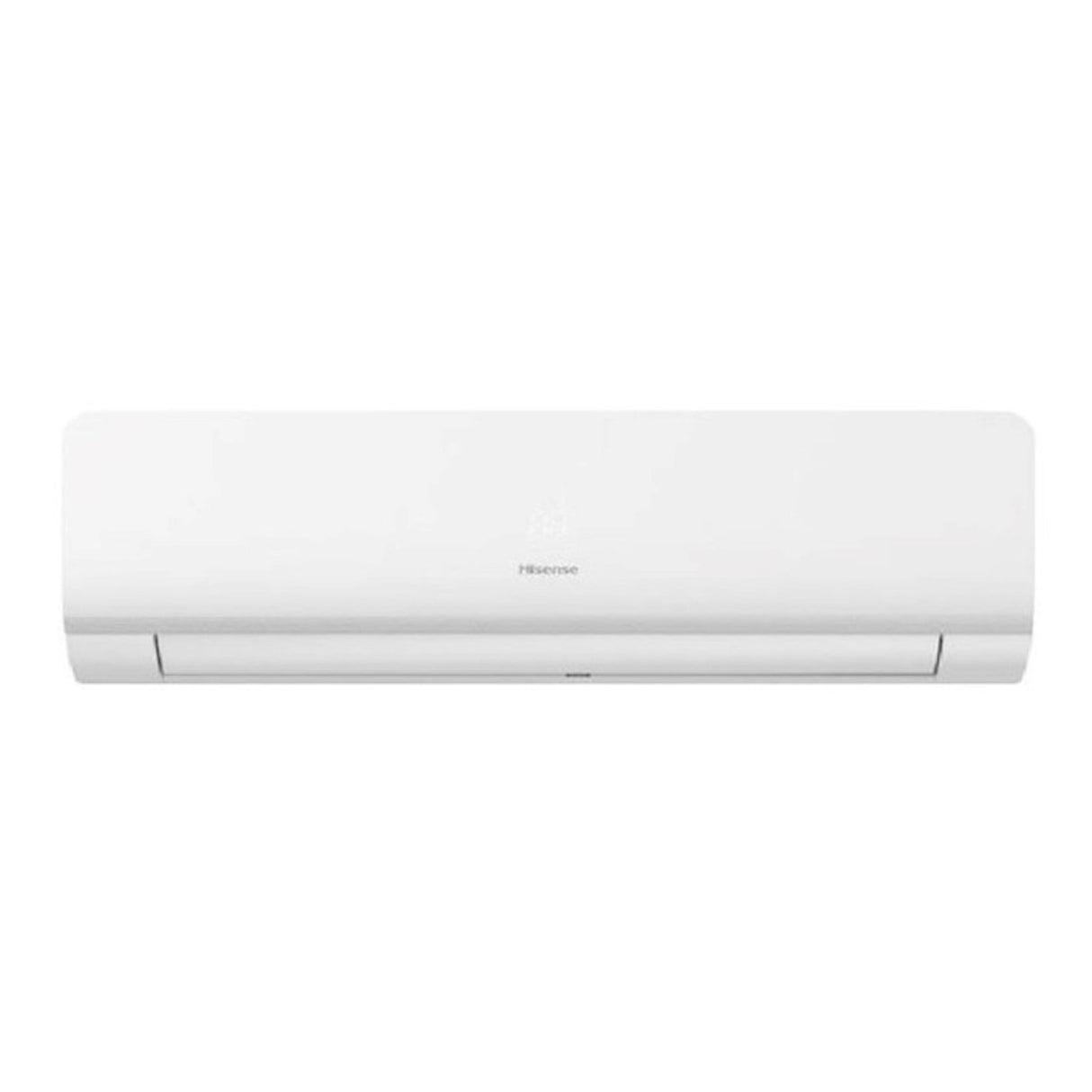

Internal Units

1) Model

  • Indoor Unit Catalog Code: 1x KC25MR00G
  • Power: 9000 btu/h
  • Cooling Capacity: 2.6 kW
  • Heating Capacity: 2.7 kW
  • Liquid pipe diameter: 6.35 mm (1/4")
  • Gas pipe diameter: 9.52 mm (3/8")
  • Internal Unit Dimensions (WxHxD): 822×258×203 mm
  • Integrated Wi-Fi
  • Optional wired control (Code YXE-C01U )
  • Voice command with Alexa and Google Home

2) Model

  • Indoor Unit Catalog Code: 2x KC35XR00G
  • Power: 12000 btu/h
  • Cooling Capacity: 3.5 kW
  • Heating Capacity: 3.8 kW
  • Liquid pipe diameter: 6.35 mm (1/4")
  • Gas pipe diameter: 9.52 mm (3/8")
  • Internal Unit Dimensions (WxHxD): 822×258×203 mm
  • Integrated Wi-Fi
  • Optional wired control (Code YXE-C01U )
  • Voice command with Alexa and Google Home

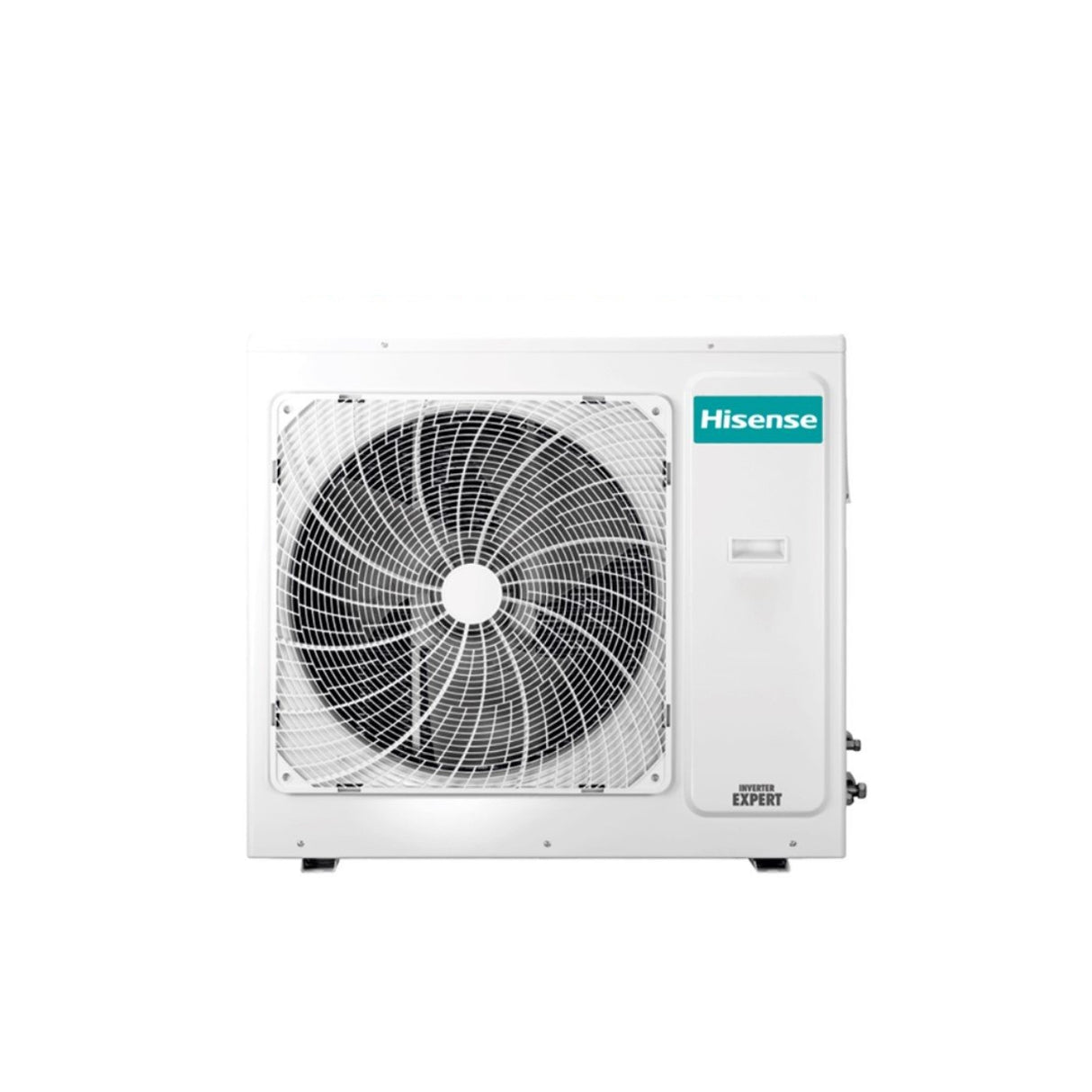

External Unit

Model:

  • Outdoor Unit catalog code: 3AMW72U4RFA
  • Max indoor units: up to 3 indoor units

Energy efficiency:

  • SEER : 6.9 (W/W)
  • SCOP : 4.01 (W/W)
  • Cooling Energy Efficiency Class: A++
  • Heating Energy Efficiency Class: A+
  • Annual energy consumption Cooling: 371 kWh/a
  • Annual energy consumption Heating: 1920 kWh/a

Performance:

  • Cooling Capacity: 7.2 kW
  • Heating Capacity: 7.9 kW
  • Std Cooling absorption: 1.87 kW
  • Std Heating absorption: 2.03 kW
  • Sound power level: 68 dB(A)
  • Sound pressure level: 49~55 dB(A)

Characteristics:

  • Power (V/Hz/Φ): 220~240/50/1
  • Refrigerant gas: R-32
  • Guaranteed temperature range:
  • - Cooling: -15° ~ 48° C
  • - Heating: -15° ~ 24° C
Installation Data:
  • Pipe diameter Liquid: 6.35 mm (1/4") x3
  • Gas pipe diameter: 9.52 mm (3/8") x3
  • Maximum length of pipes: 45 m
  • Maximum height difference Internal Unit / External Unit: 15 m

Dimensions:

  • External Unit Dimensions (WxHxD): 860×670×310 mm
  • External Unit Weight: 49 Kg

3 year warranty (5 on the compressor)

Warranty

The Hisense Italia warranty can be activated within 1 month from the date of purchase athttp://www.hisenseitalia.it/clima/supporto


Multisplit Outdoor Unit Technologies

High Efficiency DC Twin Rotary Inverter Compressor

The design of the new double rotor BLDC Inverter compressor guarantees better balancing and reduced vibrations. This translates into the maximum level of silence and excellent performance in terms of efficiency and energy saving.


DC drive technology with 180° sine wave

The system constantly monitors the compressor frequency and creates the most efficient waveform to determine effective consumption savings.

Curve control

Driver della curva Hisense


Compressor with rubidium magnet

Thanks to the greater compression of the gas molecules, the compressor with rubidium magnet guarantees greater efficiency and lower absorption

Compressore


Electronic expansion valve

The outdoor unit uses an electronic expansion valve that regulates and optimizes the amount of refrigerant of all operating indoor units .

Wide voltage range operation

The outdoor unit can operate with a voltage of 176V to 264V. In the new models, the use of an automatic voltage regulation technique guarantees that the protection value adjusts according to it, maintaining the operating frequency at an optimal value.

Exchanger design: designed to improve its efficiency

The design of the external exchanger has been designed to increase heat transfer in such a way as to make the refrigeration circuit more efficient and avoid the creation of ice blocks. A further advantage is that it can support long-distance connections between the external unit and internal units without reducing the cooling capacity.


Hisense New Energy

New Energy


Cutting-edge technologies, elegant design, advanced features and integrated Wi-Fi

Hisense air conditioners can be conveniently managed inside and outside the home with a mobile device and a Wi-Fi connection. HiSmart Life is the simple to use app with an intuitive interface that allows you to control the air conditioner wherever you are. The app is available for iOS and Android

Fresh Master


Hisense has also thought of the most "technological"

The HiSmart Life air conditioner is one of the gems of the 2021 catalogue. It supports Amazon, Google APP and "speaks" 5 languages: English, French, German, Italian and Spanish.

Google


Wi-Fi control

Hisense air conditioners can be conveniently managed inside and outside the home with a mobile device and a Wi-Fi connection. HiSmart Life is the simple to use app with an intuitive interface that allows you to control the air conditioner wherever you are. The app is available for iOS and Android. After downloading the app and pairing the air conditioner, the app allows you to manage operating modes, temperature, ventilation speed and air flow. From the «Smart function» section you can also set daily or weekly timers.

Smart Voice Control

The new HiSmart Life app is compatible with Alexa and Google assistant, thanks to voice interaction, it is possible to turn it on, off, adjust the temperature and set the operating mode (cooling or heating). You can find HiSmart Life in the Alexa Skills and in the Google Assistant catalogue.


Three-dimensional Air Flow

The room temperature remains constant thanks to the combination of automatic vertical and horizontal oscillations of the louvers. The air is distributed evenly throughout the room, reaching every corner, even in the largest rooms


Universal unit for single and multi systems

The universal internal units can be connected to Monosplit and Multisplit external units to ensure maximum installation versatility


Product Warranty: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.

Scheda Tecnica

  • peso: 75.0 kg
  • classe energetica raffreddamento: A++
  • classe energetica riscaldamento: A+
  • gas: R-32
  • marca: Hisense
  • modello: KC 9+12+12 72
  • potenza btu: 9000+12000+12000
  • superficie riscaldabile mq: 25/35/35
