Free Match products are ideal where an indoor unit is required for each room, for example a living room and 3 bedrooms. The system allows you to combine up to 5 internal units with a single external unit. Indoor units can be of different types, including ducted, wall-mounted, cassette, and ceiling/floor.
Garanzia Italiana
24 mesi
SKU:
DJ + AKT 9+9+12 62

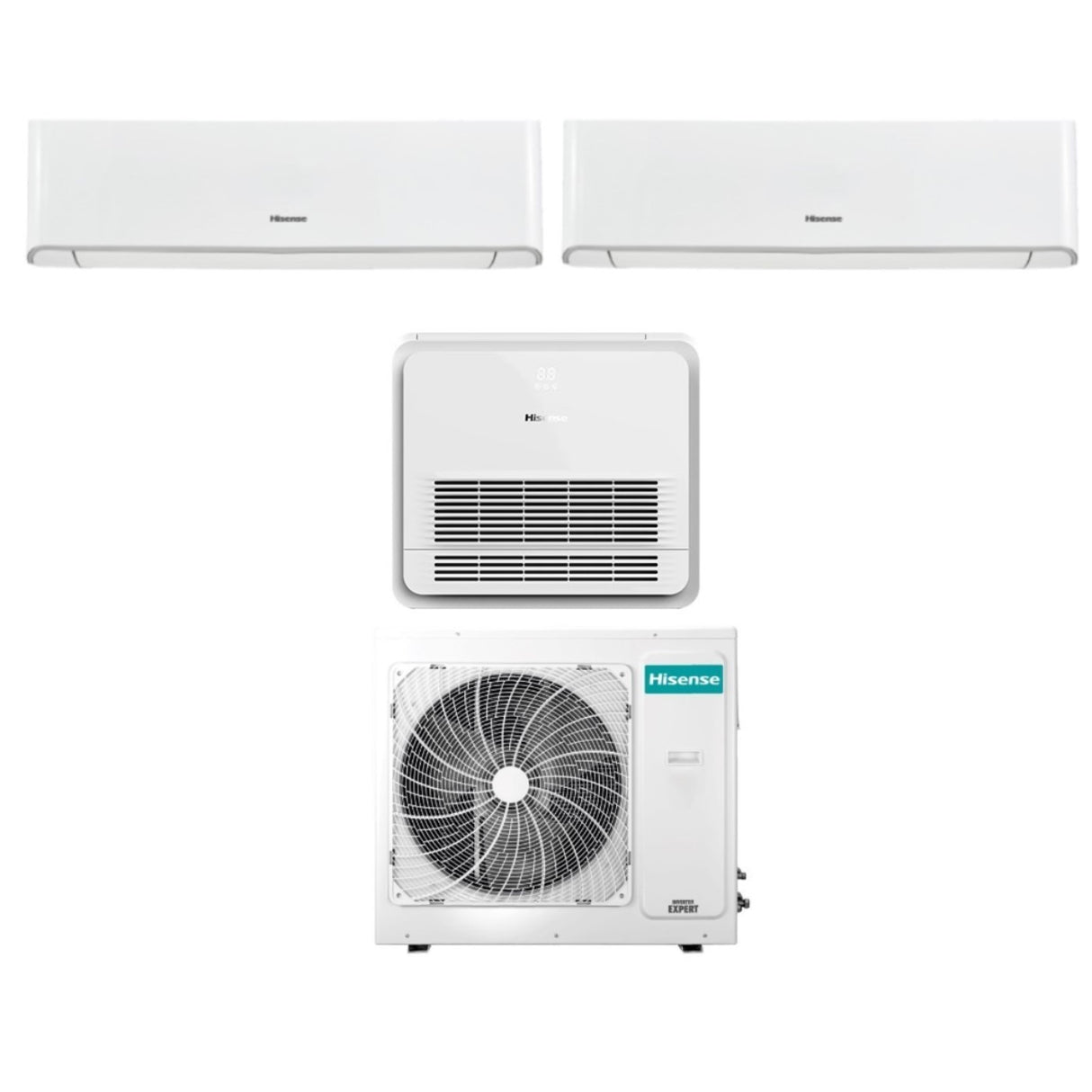

Hisense Trial Split New Comfort 9000+12000 Air Conditioner + AKT 9000 Console with 3AMW62U4RFA R-32 Wi-Fi Optional 9+9+12
Sold out
€1.136,00
Unit price
/
Unavailable
Tax included
Shipping calculated at checkout.
Hisense Trial Split New Comfort 9000+12000 Air Conditioner + AKT 9000 Console with 3AMW62U4RFA R-32 Wi-Fi Optional 9+9+12 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
How shipping works
How shipping works
I costi di spedizione variano a seconda del peso e della modalità di spedizione dell'ordine.
I nostri servizi di spedizione:
- Spedizione standard: consegna stimata dai 2 ai 5 giorni lavorativi
- Spedizione Premium: consegna garantita in 24 ore lavorative
- Spedizione Premium + Consegna al piano: consegna garantita in 24 ore lavorative
Consulta le tabelle per i prezzi della spedizione standard per l'Italia e per le Isole Minori e Zone Disagiate.
Per ulteriori dettagli sulla Spedizione Premium, consulta la pagina di spedizione premium.
Servizio clienti
Servizio clienti
Il nostro servizio di assistenza è dedicato a fornire supporto ai nostri clienti per qualsiasi problema o domanda che possano avere prima o dopo l’acquisto dei nostri prodotti.
Utilizza il canale di comunicazione diretta per parlare con un nostro operatore, oppure inviaci una mail ad uno degli indirizzi elencati nella pagina contattaci.
Il nostro team di assistenza clienti è composto da professionisti altamente qualificati e sempre pronti ad aiutare i clienti a risolvere qualsiasi problema o rispondere a qualsiasi domanda in modo rapido ed efficiente. Ci impegniamo a garantire la massima soddisfazione del cliente e a fornire un servizio di assistenza post-vendita di altissima qualità. Quindi, se hai bisogno di assistenza, non esitare a contattarci; saremo lieti di aiutarti in ogni modo possibile.
Description
Description
Technical features
Internal units
1) Model:
- Indoor Unit Catalog Code: 1x DJ25VE0AG
- Series: New Comfort
- Power: 9000 btu/h
- Cooling/Heating Capacity: 2.6/2.8 kW
- Air flow: 550 m 3 /h
- Sound pressure level (min-max): 19-39 dB(A)
- Liquid Pipe Diameter: 6.35 (1/4")
- Gas Pipe Diameter: 9.52 (3/8")
- Internal Unit Dimensions (WxHxD): 815×270×209 mm
- Internal Unit Weight: 8.5 Kg
- Optional Wi-Fi (code AEH-W4A1 / AEH-W4AB1 )
- Optional wired control (Code YXE-C01U )
2) Model:
- Indoor Unit Catalog Code: 1x DJ35VE0AG
- Series: New Comfort
- Power: 12000 btu/h
- Cooling/Heating Capacity: 3.5/4.0 kW
- Air flow: 600 m 3 /h
- Sound pressure level (min-max): 19-49 dB(A)
- Liquid Pipe Diameter: 6.35 (1/4")
- Gas Pipe Diameter: 9.52 (3/8")
- Internal Unit Dimensions (WxHxD): 815×270×209 mm
- Internal Unit Weight: 8.5 Kg
- Optional Wi-Fi (code AEH-W4A1 / AEH-W4AB1 )
- Optional wired control (Code YXE-C01U )
3) Model:
- Indoor Unit Catalog Code: 1 x AKT26UR4RK4
- Type: Console
- Power: 9000 btu/h
- Cooling/Heating Capacity: 2.8/3 kW
- Air flow rate: 9.2 m 3 /min
- Sound pressure level (min-max): 28-39 dB(A)
- Liquid Pipe Diameter: 6.35 (1/4")
- Gas Pipe Diameter: 9.52 (3/8")
- Internal Unit Dimensions (WxHxD): 700x630x220 mm
- Internal Unit Weight: 15.0 Kg
- Standard remote control*
External Unit
Model:
- Indoor Unit catalog code: 3AMW62U4RFA
- Max indoor units: up to 3 indoor units
Energy efficiency:
- SEER : 6.9 (W/W)
- SCOP : 4.01 (W/W)
- Energy Efficiency Class (Cooling): A++
- Energy Efficiency Class (Heating): A+
- Annual energy consumption Cooling/Heating: 320/1920 kWh/a
Performance:
- Cooling Capacity: 6.3 kW
- Heating Capacity: 7.2 kW
- Std Cooling absorption: 1.47 kW
- Std Heating absorption: 1.78 kW
- Sound power level: 68 dB(A)
- Sound pressure level: 49-55 dB(A)
Characteristics:
- Power (V/Hz/Φ): 220~240/50/1
- Refrigerant gas: R-32
- Pipe diameter Liquid: 6.35 mm (1/4") x3
- Gas pipe diameter: 9.52 mm (3/8") x3
- Guaranteed temperature range:
- - Cooling: -15°~48°C
- - Heating: -15°~24°C
Dimensions:
- External Unit Dimensions (WxHxD): 860×670×310 mm
- External Unit Weight: 49 Kg
3 year warranty (5 on the compressor)
The Hisense Italia warranty can be activated within 1 month from the date of purchase athttp://www.hisenseitalia.it/clima/supporto
Multisplit line - Free Match
DC drive technology with 180° sine wave
The system constantly monitors the compressor frequency and creates the most efficient waveform to determine effective fuel savings.
Compressor with rubidium magnet
Thanks to the greater compression of the gas molecules, the compressor with rubidium magnet guarantees greater efficiency and lower absorption.
Electronic expansion valve
The outdoor unit uses an electronic expansion valve which adjusts to optimize the amount of refrigerant for all operating indoor units.
Wide voltage range operation
The outdoor unit can operate with a voltage of 176V to 264V. In the new models, the use of an automatic voltage regulation technique guarantees that the protection value adjusts according to it, maintaining the operating frequency at an optimal value.
Exchanger design: designed to improve its efficiency
The design of the external exchanger was designed to increase heat transfer in such a way as to make the refrigeration circuit more efficient and avoid the creation of ice blocks. A further advantage is that it can support long-distance connections between the external unit and internal units without reducing the cooling capacity.
Hisense New Comfort
5 fan speed levels
The possibility of setting the fan speed at 5 different levels allows for more precise control of the volume of air introduced and the noise level
Universal unit for single and multi systems
The universal internal units can be connected to Monosplit and Multisplit external units to ensure maximum installation versatility
Easy Installation
New Comfort models are easy to install thanks to the new design of the indoor unit and mounting plate.
1 . The mounting plate is equipped with two fins that allow you to distance the indoor unit from the wall to have more useful space while connecting the pipes
2. The panel located at the bottom of the indoor unit is easily removed to ensure convenient access to the pipes
3. You can choose the side to connect the condensate drain pump according to your installation needs
Hisense Console
Cooling down
The upper and lower air outlets open simultaneously for fast and comfortable cooling.
Heating
The lower air supply ensures uniform heating throughout the room.
Characteristics :
- Air renewal
- Upper and lower air supply
- Installation flexibility
- Twin, Triple and Quad applications
- Automatic restart
- ON/OFF contact
- LED display
Product Warranty: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.
Scheda Tecnica
Scheda Tecnica
- peso: 75.0 kg
- classe energetica raffreddamento: A++
- classe energetica riscaldamento: A+
- gas: R-32
- marca: Hisense
- modello: DJ + AKT 9+9+12 62
- potenza btu: 9000+12000+9000
- superficie riscaldabile mq: 25/35/25
