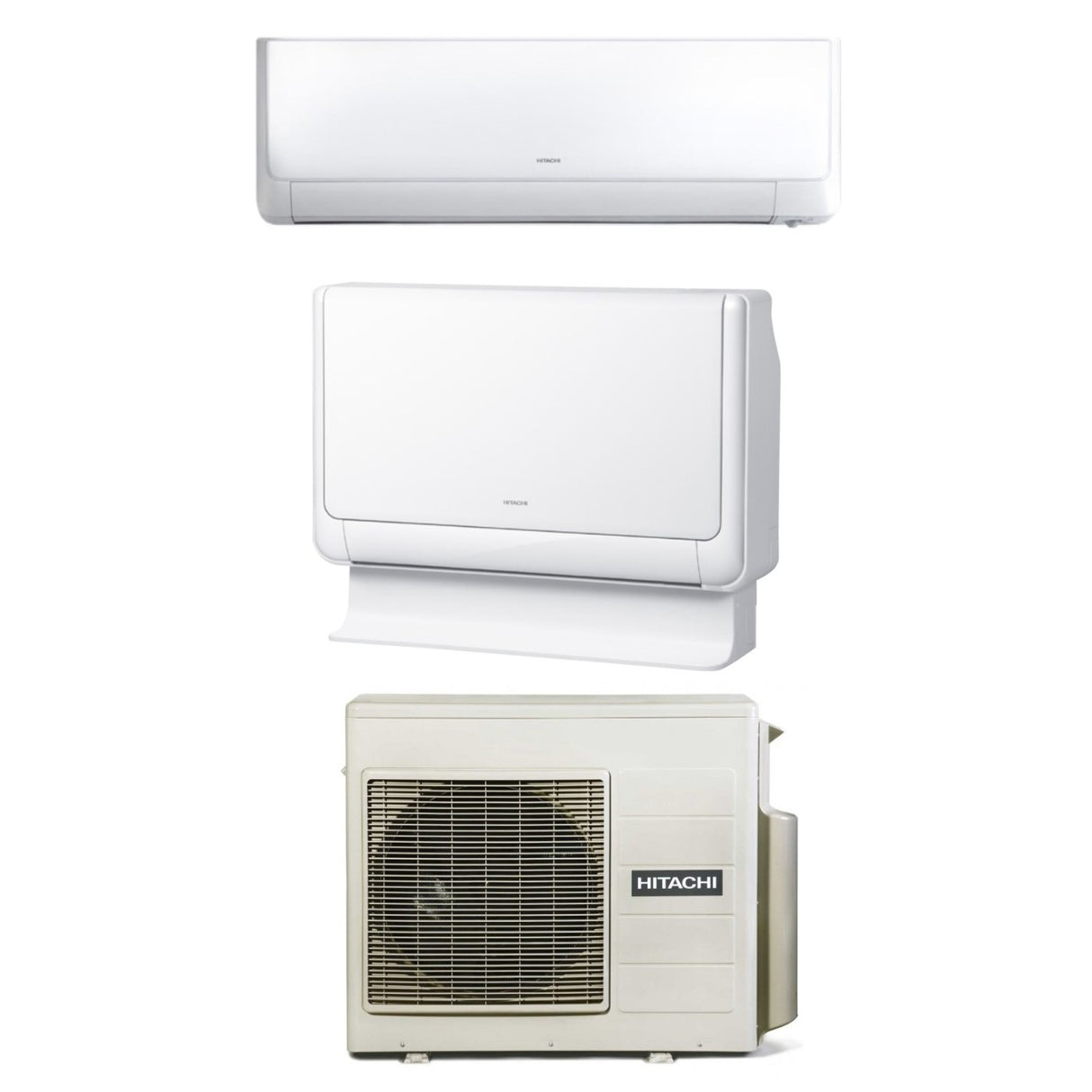

Hitachi Dual Split Inverter Air Conditioner Performance Series 9000 + Floor 18000 with RAM-68NP3E R-32 Wi-Fi Optional 9+18 – New

Technical features

Internal Units

1) Model:

External Unit

Model:

• Outdoor Unit catalog code: RAM-68NP3E
• Maximum number of internal units that can be connected: 3

Energy efficiency:

• SEER: 8.10
• SCOP: 4.60
• Cooling Energy Efficiency Class: A++
• Heating Energy Efficiency Class: A++

Performance:

• Cooling Capacity: 6.8 kW
• Heating Capacity: 8.5 kW
• Std Cooling absorption: 1.89 kW
• Std Heating absorption: 2.02 kW
• Sound power level: 63 dB(A)
• Sound pressure level: 50~53 dB(A)

Characteristics:

• Power (V/Hz/Φ): 220~240/50/1
• Refrigerant gas: R-32
• Pipe diameter Liquid: 6.35 mm (1/4") x3
• Gas pipe diameter: 9.52 mm (3/8") x3
• Guaranteed temperature range:
• - Cooling: -10° ~ 46° C
• - Heating: -15° ~ 24° C

Dimensions:

• External Unit Dimensions (HxWxD): 800x850x298 mm
• External Unit Weight: 58 Kg

Warranty

The residential and light commercial series of Hitachi air conditioners are covered by a 2-year warranty from the date of purchase and a further 5-year warranty on the electronic boards of the outdoor units and indoor units as well as on the compressors. This warranty includes parts and labor.

Multizone Premium Series E Extended Range

There are now 8 models of external units available with capacities from 3.3 kW to 10kW in cooling, to which it is possible to combine 6 different types of internal units with powers from 1.5 kW to 6.0 kW in cooling.

Low consumption and high yield

The entire range of Multizone Premium E Series outdoor units can boast very high efficiency with a minimum modulation absorption of just 200 W (depending on the model). All models therefore comply with the requirements necessary for obtaining tax bonuses and deductions. Furthermore, the exclusive "HIBERNATE" function with which the systems are equipped is programmed to turn off the sub-circuits of the inactive components and all the LEDs not necessary for operation, so as to allow for a reduction in consumption during the start-up phase. 70% standby

Building automation and complete integration

With the new Multizone Premium E Series systems, integration with home automation networks or advanced centralized control systems is now easier by connecting a single SPX-RAMHLK interface directly to the external unit. Thanks to this device it is possible to control and monitor Multizone systems via MODBUS, LONWORKS, KONNEX and BACNET home automation interfaces or via traditional HITACHI centralized controls

Hitachi Performance

High performance in Class A+++, compact dimensions, Frost Wash and presence sensor

Silent and Compact Air Conditioner

Don't know where to install your air conditioner? Performance FrostWash is perfect for a smart installation! With only 780 mm in length it is ideal to be inserted even above a door. The performance of this air conditioner is truly special, like its silence which reaches up to 19 dB(A).

All the Performance you want

Air conditioner with heat pump function for heating the air, high energy efficiency in class A+++, presence sensor and 4-way swing mode which allows optimal air distribution. Performance FrostWash really has everything you could want for your well-being, just choose it! And if that wasn't enough you can also use Hi-Kumo, the App available for iOS and Android dedicated to controlling Hitachi Cooling & Heating systems.

Frost Wash For a clean air conditioner and a healthy environment

The result of research and development in the laboratories of the exclusive Japanese company Hitachi, the Frost Wash function captures, freezes and washes away dust, mold and impurities ensuring perfect hygiene of the air conditioner and a healthy environment. The function is programmed automatically and can also be activated by remote control.

Always clean air conditioning thanks also to the internal components made of stainless steel, a material that reduces the percentage of bacteria by over 99% and dust by 62%. And, with the self-cleaning robot that activates periodically and does not require opening the air conditioner to clean the filters, classic maintenance is not necessary.

Greater comfort with the 4-Way-Swing

Thanks to the 4-Way-Swing you can direct the air flow in the most comfortable mode

Presence sensor

The sensor activates operation when it identifies the human presence in the environment and progressively reduces operation when it does not detect the presence of people

Compatible with the Hi-Kumo Wi-Fi system

Thanks to the Hi-Kumo APP you can turn it on, off, change the temperature or make programming wherever you are in the world. The system can be controlled via a smartphone with internet connection to the Wi-Fi device (optional)

Small dimensions

Thanks to the width of only 780 mm you can also install it above a door.

Silent operation

The Performance series features a sound level reaching 19dB(A)

Minimum absorption and maximum energy efficiency

Thanks to a very low absorption of just 250 W of the compressor in minimum modulation, the system offers class A+++ efficiency

Akebono Pavimento All the comfort you want with hot and cold air conditioning

The Design for the Perfect Warmth

Akebono is the ideal indoor floor unit to have not only the cold, but also all the heat you want from your Hitachi Cooling & Heating air conditioning system. The floor-level installation allows natural convection and stratification of the air for a unique feeling of comfort, even with heat pump operation!

Rise to the Situation

The installation height of the Akebono floor unit is customizable: you can fix it to the wall or with a floor stand, according to your needs. The "extended throw" allows the air to reach every corner of the air-conditioned environment

Efficiency Control

Hitachi Cooling & Heating ensures energy efficiency and control on all its products. With the Hi-Kumo app you can control Akebono flooring at any time and wherever you are, from your smartphone and tablet with a simple click to feel good and save in every season

Product Warranty: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.

• peso: 55.0 kg
• classe energetica raffreddamento: A+++
• classe energetica riscaldamento: A++
• gas: R-32
• marca: Hitachi
• metri quadri : 25/50
• modello: PERFORMANCE_9_PAVIMENTO_18_68_1
• potenza btu: 9000+18000
• superficie riscaldabile mq: 25/50
