Technical features

Model:

• Internal unit catalog code: CS-Z60UB4EAW
• External unit catalog code: CU-Z60UBEA
• Power (BTU): 21000

Energy efficiency:

• SEER/SCOP (W/W): 6.20/4.20
• Energy Efficiency Class (Cooled): A++
• Energy Efficiency Class (Heating): A+
• Average annual cooling consumption kWh/a: 339
• Average annual consumption in heating. kWh/a: 1333

Performance:

• Nominal cooling capacity (kW): 6.00
• Nominal heating capacity (kW): 4.00
• Indoor unit sound pressure (dB-A): 43/32/29
• External unit sound pressure (dB-A): 58/59
• External unit sound power (dB-A): 64/65
• External unit sound pressure (dB-A):49/50

Electrical data:

• Power (V/Hz/?): 230

Characteristics:

• Refrigerant gas: R32

Functional field guaranteed:

• - CoolingøC: -10 ~ +43
• - HeatingøC: -15 ~ +24

Dimensions:

• Internal Unit HxWxD (mm): 260 x 575 x 575; 18kg
• External Unit HxWxD (mm):695x875x320; 43kg

General characteristics

* THIS PRODUCT IS COMPLETE WITH GRILL.

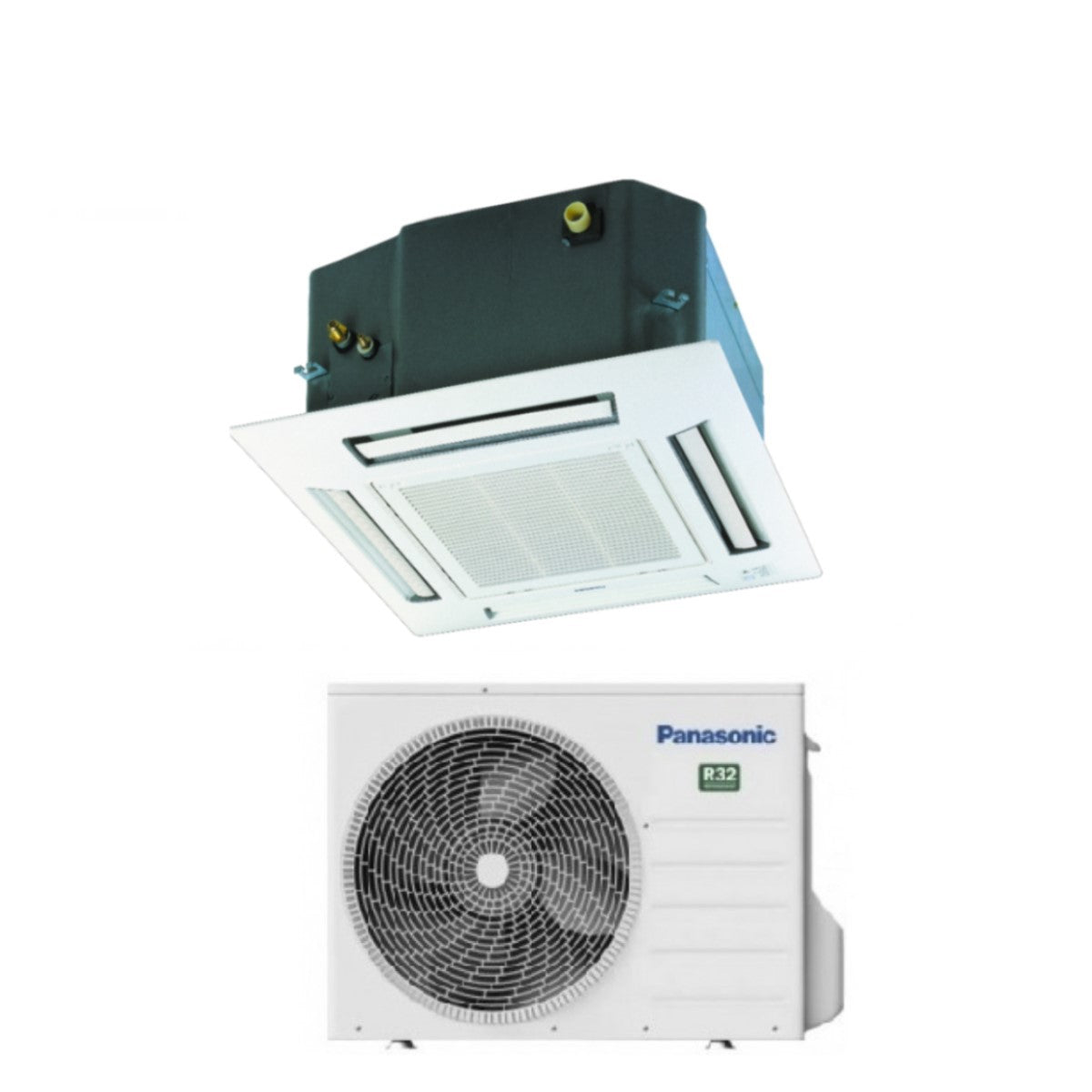

4-way Inverter cassette • R32

Specially designed for offices, shops and restaurants.
Perfectly suited to false ceilings with a 60x60 or 70x70 opening.
Compact cassette with high efficiency even at low temperatures. The cassette can be connected with KNX, Modbus, EnOcean interfaces and then easily integrated with BMS systems. The interfaces operate with dry contacts (ON/OFF, error signal) to facilitate integration. Install the most suitable Panasonic cassette model for your business and start saving all year round!

Characteristics

• R32 refrigerant. New heat pumps using R32 refrigerant show a drastic reduction in Global Warming Potential (GWP) values. An important step to reduce greenhouse gases. R32 is also an easier refrigerant to recycle.

• High efficiency: A++ SEER and A+ SCOP class: High Seasonal efficiency in cooling and heating is based on the new ErP regulation system.

• Inverter Plus control system. This classification identifies the highest performing Panasonic systems.

• Panasonic R2 Rotary Compressor. Designed to face the most extreme conditions, they ensure efficient operation all year round.

• Super Quie t. Thanks to Super Quiet technology, our air conditioners ensure extremely quiet operation.

• Down to -10°C in cooling mode . The air conditioner operates in cooling mode even with an external temperature of -10°C.

• Down to -15°C in heating mode. The air conditioner operates in heat pump mode even with an external temperature of -15°C.

• R410A/R22 Renewal . Panasonic's renewal system allows you to reuse existing R22 or R410A pipes in good condition for the installation of a new high efficiency R32 system.

• P-Line integration. Interface for visualization from VRF and PACi centralized control via P-Link (badge input and window available)

• Internet Control Optional. This new generation system provides the possibility of remote control of the air conditioner or heat pump unit via the internet from anywhere, using a smartphone equipped with an Android or iOS operating system, a tablet or a PC.

• Easy control via BMS . The communication port is integrated into the indoor unit, and allows connectivity and management via a building management system.

R-32 refrigerant: more efficient and eco-friendly

Panasonic air conditioners are designed to guarantee a comfortable climate inside their customers' homes. The entire residential range is efficient and eco-sustainable, thanks to the R32 refrigerant. Living according to your sustainable lifestyle is now easier than ever.

Panasonic Comfort Cloud (optional)

Among the additional functions it is possible to manage via App:

• Simultaneous on/off function. In the case of multiple indoor units at a site, the user can turn them on or off with just one click.
• Weekly timer setting. Set up to 6 events per day, 42 in a week, easy, intuitive and fast.
• Preheating or cooling. Check the comfort of your home or office before arriving!
• Error code notification. If there is a problem, the error notification or service code is displayed.

• peso: 120.0 kg
• classe energetica raffreddamento: A++
• classe energetica riscaldamento: A+
• costospedizionecad: IT64;AD257;AT136;BE147;BG196;HR184;DK273;EE268;FR202;DE145;LV202;LT189;LU120;NL155;PT153;CZ132;SK148;SI149;ES141;SE319;HU122;CH216;
• gas: R-32
• marca: Panasonic
• metri quadri : 60 - 80 m2
• modello: CS-Z60UB4EAW
• potenza btu: 21000
