Panasonic Inverter Air Conditioner TE Series 9000 btu CS-TE25TKE R410A Wi-Fi Optional A++

Panasonic Inverter Air Conditioner TE Series 9000 btu CS-TE25TKE R410A

Technical details

• Type: Indoor unit air conditioner
• Multisplit: No
• Product color: White
• Air conditioner functions: Cooling, Heating
• Inverter Technology: Yes
• Ionizer: No
• Seasonal efficiency rating (cooling) (SEER): 6.1
• Seasonal efficiency rating (heating) (SCOP): 4.1
• Cooling capacity in watts (nominal): 2500W
• Heating capacity in watts (nominal) (average heating season): 3300 W
• Cooling capacity in watts (min): 850W
• Cooling capacity in watts (max): 3000W
• Heating capacity in watts (min): 800W
• Heating capacity in watts (max): 4100W
• Timer: Yes
• Maximum timer duration: 24 hours
• Remotely controlled: Yes
• Autofan: Yes
• Airflow: 10.9 m³/min
• Automatic shutdown: Yes
• Air filter: Yes

Energy management

• Energy efficiency class (cooling): A++
• Energy efficiency class (heating) (average heating season): A+
• Annual energy consumption (cooling): 143 kWh
• Annual energy consumption (heating) (average heating season): 820 kWh
• Design load (cooling): 2.5 kW
• Design load (heating) (Average heating season): 2.4 kW
• AC input voltage: 230V

Indoor unit

• Noise level (indoor unit): 40 dB
• Installation: Wall mountable
• Cooling air flow (indoor unit): 654 m³/h
• Heating air flow (indoor unit): 696 m³/h
• Number of internal installations: 1
• Dimensions (HxWxD): 290 x 799 x 197 mm
• Indoor unit weight: 8 kg

External unit

• Max sound pressure level (Cooling): 47 dB(A)
• Max sound pressure level (Heating): 48 dB(A)
• Dimensions (HxWxD): 542 x 780 x 289 mm
• Weight: 26 kg

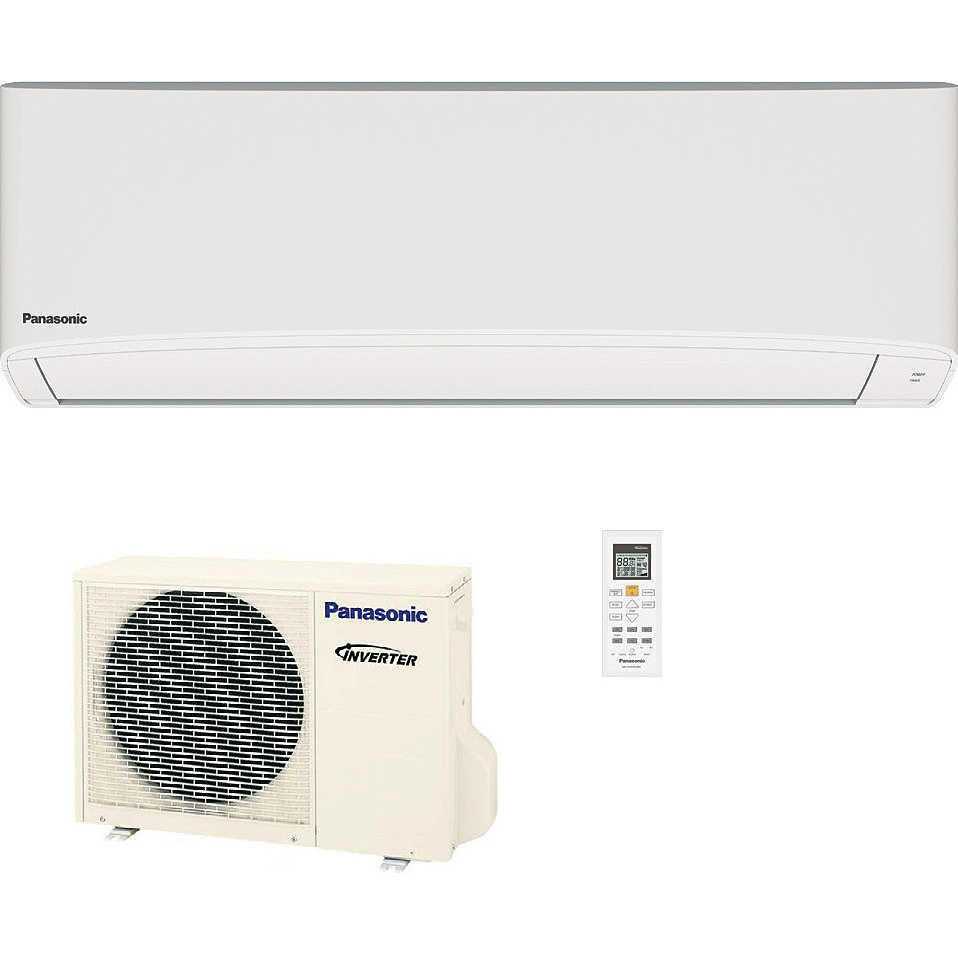

• The Panasonic TE25TKE kit consists of a split (CS-TE25TKEW) and a motor (CU-TE25TKE), both white.
• The energy efficiency class is A++ in cooling and A+ in heating. The new TE inverter models are powerful and efficient.
• The kit has a cooling power of 9000 btu and is equipped with heat pump inverter technology.
• The Inverter automatically adjusts the operating power, allowing the desired temperature to be reached more quickly and more precisely.
• TE indoor units have a new dimension. At 799mm wide, you can place the air conditioner on top of the door.
• Thanks to Super Quiet technology, the air conditioners of this series ensure great silence
• operation. The sound pressure level of the indoor unit is only 20 dB(A).
• More comfort with Aerowings. Large ventilation flow. Two fins improve direction
• of the air flow.
• Panasonic's renewal system allows you to reuse existing R22 pipes in good condition
• the installation of a new high efficiency R410A system.

Connectivity

• The communication port is integrated into the indoor unit, and allows connectivity and management
• via a building management system.
• Optional internet remote control of the air conditioner from anywhere,
• using a smartphone with an Android or iOS operating system, a tablet or a PC.

• peso: 35.0 kg
• classe energetica raffreddamento: A++
• classe energetica riscaldamento: A+
• costospedizionecad: IT25;AD113;AT73;BE75;BG88;HR89;DK125;EE122;FR94;DE63;LV94;LT88;LU59;NL68;PT82;CZ66;SK73;SI74;ES75;SE131;HU56;CH135;
• gas: R-32
• marca: Panasonic
• metri quadri : 15-25 m2
• modello: CS-TE25TKE
• potenza btu: 9000
• superficie riscaldabile mq: 25
