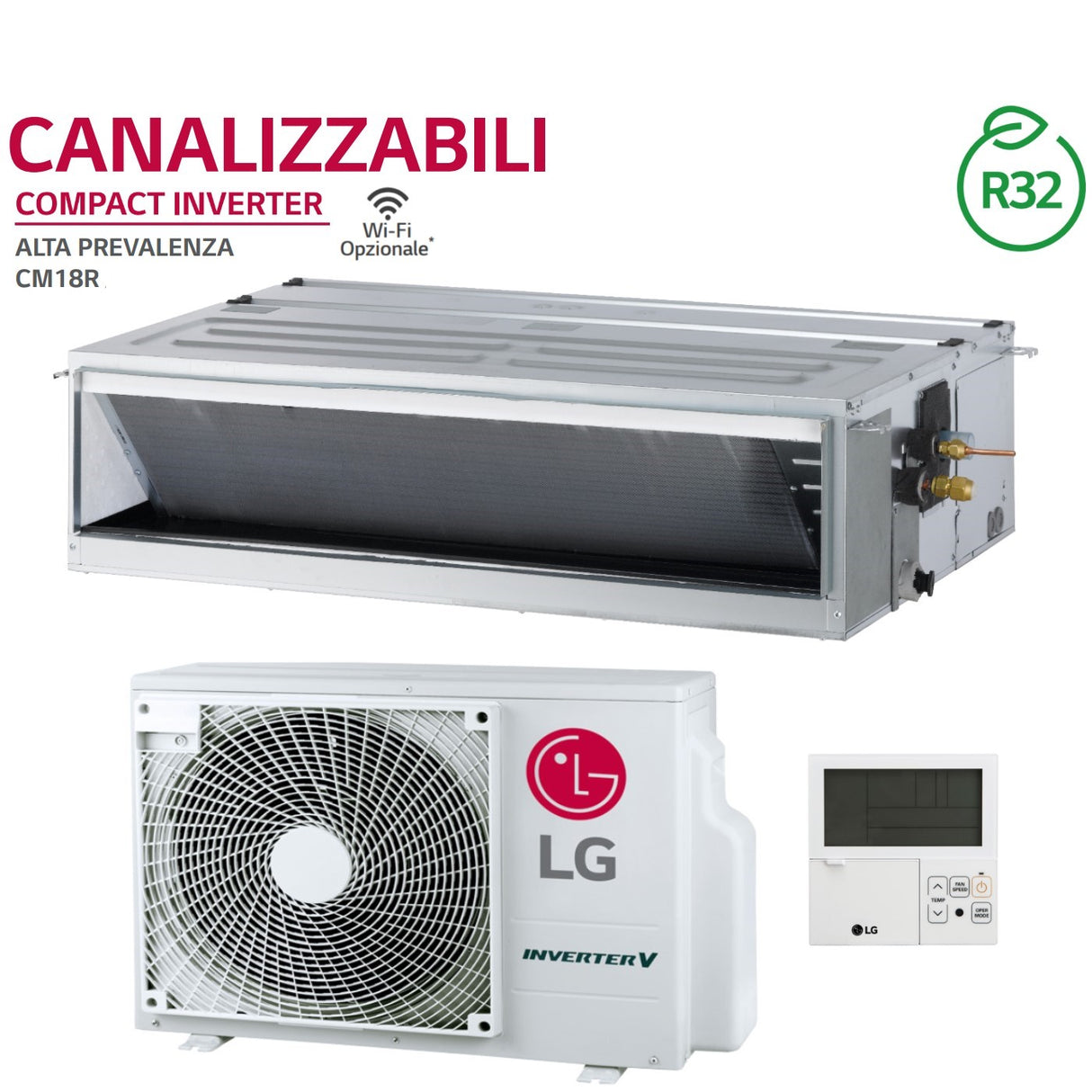

LG Ductable Compact Air Conditioner 18000 Btu CM18R.N10 R-32 A++/A+ Wi-Fi Optional Wired Control Included

Important Notice on Regulations for Fluorinated Gases IN ITALY

In accordance with Regulation (EU) No. 517/2014 and Presidential Decree No. 146/2018, equipment containing fluorinated gases that is not hermetically sealed can only be sold if installed by a certified company.

By law, each sale must be recorded in the Fluorinated Gas Database, including a declaration from the buyer ensuring that the installation complies with the regulations. Therefore, before completing the order, it will be necessary to provide this mandatory declaration.

NB: PRODUCT COMPLETE WITH WIRE CONTROL

Technical features

Model:

• Indoor unit model: CM18R.N10
• Outdoor unit model: UU18WCR.UL0
• Power: 18000 btu

Energy efficiency:

• SEER: 5.60
• SCOP: 3.80
• Energy Efficiency Class (Cooled): A+
• Energy Efficiency Class (Heating): A
• Std Cooling Capacity: 1.80 / 5.00 / 5.30
• Cooling absorbed power (Min/Nom/Max) kw: 1.67
• Std Capacity In Heating: 1.70 / 5.20 / 6.00
• Heating power consumption (Min/Nom/Max) kw: 1.58

Performance:

• Current consumption (Cool/Heat): 7.4 / 7.0
• Sound Power Level UI dB(A): 59
• Sound Pressure Level UI dB(A): 34 / 32 / 30 (Min-Average-Max)
• Ventilation capacity: 16.5 / 14.5 / 13.0 m3/min
• Power: 1/220-240/50
• EU Sound Pressure Level dB(A): 49/52

Characteristics:

• Refrigerant gas: R-32
• Liquid / gas pipe diameter mm: Diameter 6.35 (1/4) / Diameter 12.7 (1/2)
• Max height difference IU / EU: 30m

Dimensions and weight:

• Internal Unit WxHxD (mm): 900 x 270 x 700; 26.5kg
• Outdoor Unit WxHxD (mm): 770 x 545 x 288 34.5 kg
• Complete with wired control

---

General characteristics

LG DUCTED

Reduced height

The new high head ducted units represent the ideal solution for installations in small spaces




Linear regulation of the fan prevalence (ESP)

The prevalence of the unit's fans can be modified in a linear way, through a simple selection procedure, manageable via the wired control. Through this adjustment, it is possible to modify the rotation speed of the internal unit fan and associate the machine with ducts of various sizes.

Easy maintenance and assistance

It is not necessary to open the entire panel for maintenance or repair activities, as this panel is divided into a heat exchanger panel and a motor/fan panel. The filter is easily removable and, similarly, repositionable even in limited spaces.


Condensate drain pump

It is used for the automatic drainage of condensate, when the latter cannot occur by gravity. The possibility of raising the condensate by as much as 700mm guarantees the solution to any problem.

Dual thermistor control


If the wired control is used, the ambient temperature present in the rooms can be detected in 3 different modes:

- from the sensor located in the wired control.
- from the sensor on the unit
-from both sensors, using the smaller of the two detected as the reference value.

The dual thermistor combined control can optimize the indoor air temperature, for a more comfortable environment.




Possibility of air conditioning multiple rooms at the same time.

Through appropriate spiral ducts (recessed or flexible) and a flow chamber, it is possible to operate in cooling/heating mode for multiple rooms at the same time using a single internal unit. Characteristics of zone control: • Control of multiple areas (more than 4) with external thermostat • Maintaining a constant volume of clean air in each area • Self-regulation of ventilation speed and on/off operations.

---

Product Warranty: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.

• peso: 80.0 kg
• classe energetica raffreddamento: A++
• classe energetica riscaldamento: A+
• gas: R-32
• marca: LG
• metri quadri : 50-60 m2
• modello: CM18R.N10_UU18WCR.UL0
• potenza btu: 18000
• superficie riscaldabile mq: 50
