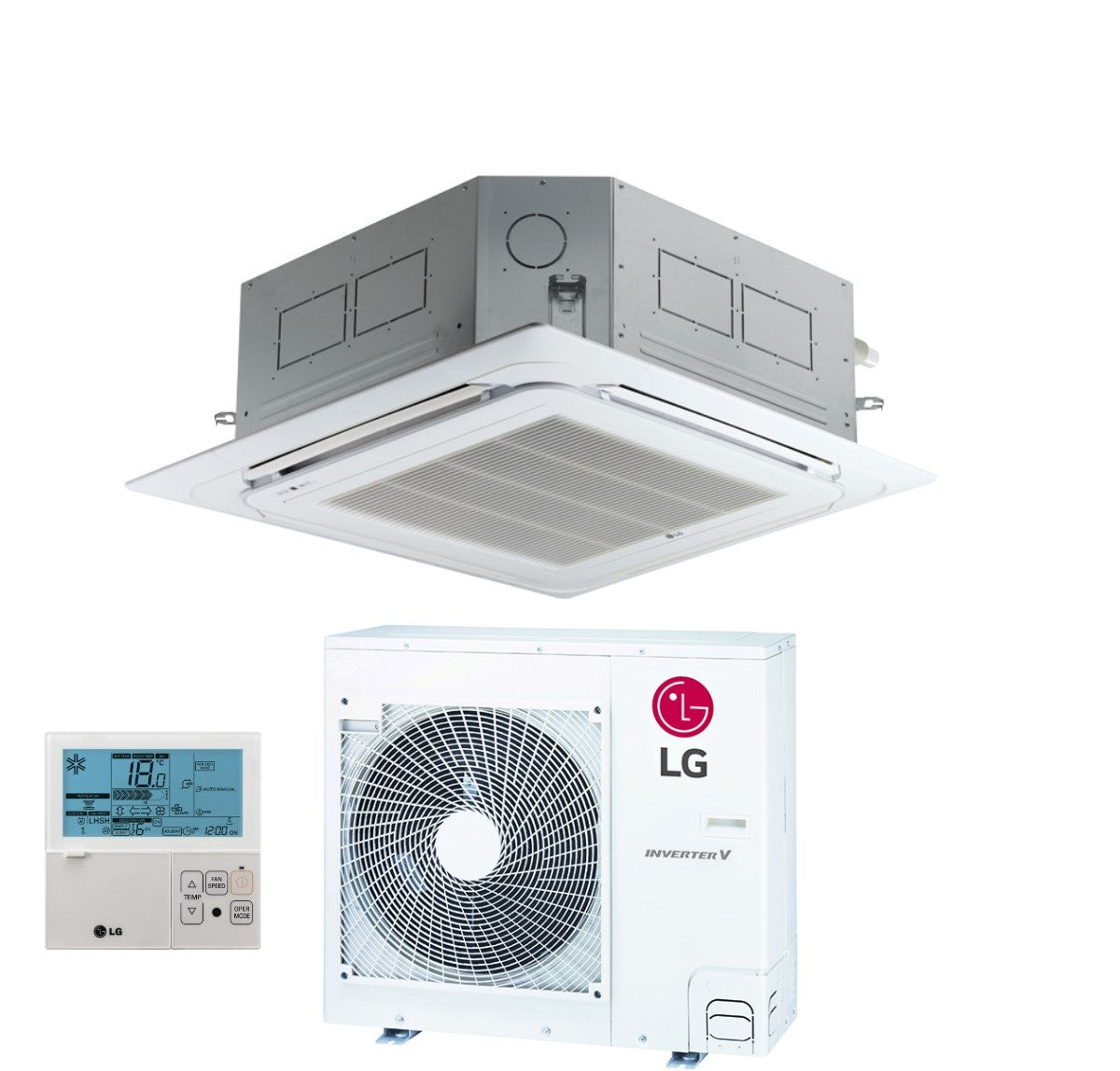

LG Cassette Air Conditioner 4-Way Inverter 30000 Btu UT30F R-32 Wi-Fi Optional with Wired Control and Panel Included - New
LG Cassette Air Conditioner 4-Way Inverter 30000 Btu UT30F R-32 Wi-Fi Optional with Wired Control and Panel Included - New is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
How shipping works
How shipping works
I costi di spedizione variano a seconda del peso e della modalità di spedizione dell'ordine.
I nostri servizi di spedizione:
- Spedizione standard: consegna stimata dai 2 ai 5 giorni lavorativi
- Spedizione Premium: consegna garantita in 24 ore lavorative
- Spedizione Premium + Consegna al piano: consegna garantita in 24 ore lavorative
Consulta le tabelle per i prezzi della spedizione standard per l'Italia e per le Isole Minori e Zone Disagiate.
Per ulteriori dettagli sulla Spedizione Premium, consulta la pagina di spedizione premium.
Servizio clienti
Servizio clienti
Il nostro servizio di assistenza è dedicato a fornire supporto ai nostri clienti per qualsiasi problema o domanda che possano avere prima o dopo l’acquisto dei nostri prodotti.
Utilizza il canale di comunicazione diretta per parlare con un nostro operatore, oppure inviaci una mail ad uno degli indirizzi elencati nella pagina contattaci.
Il nostro team di assistenza clienti è composto da professionisti altamente qualificati e sempre pronti ad aiutare i clienti a risolvere qualsiasi problema o rispondere a qualsiasi domanda in modo rapido ed efficiente. Ci impegniamo a garantire la massima soddisfazione del cliente e a fornire un servizio di assistenza post-vendita di altissima qualità. Quindi, se hai bisogno di assistenza, non esitare a contattarci; saremo lieti di aiutarti in ogni modo possibile.
Description
Description
- Indoor unit catalog code: UT30F.NB0
- Outdoor unit catalog code: UUC1.U40
- Grid Code: PT-AAGW0
- Power: 30000 btu
- Wired control included: (Code PREMTB001 )
- Optional Wi-Fi card: (Code PWFMDD200 )
- Optional Infrared Control: (Code PQWRHQ0FDB )
- Optional Remote Sensor: (Code PQRSTA0)
- SEER : 7.1
- SCOP: 4.3
- Cooling Energy Efficiency Class: A++
- Heating Energy Efficiency Class: A+
- Annual Energy Consumption in Cooling: 394 kWh/a
- Annual Energy Consumption in Heating: 1823 kWh/a
- Cooling Capacity: 8 kW
- Heating Capacity: 8.9 kW
- Cooling absorption: 2.45 kW
- Heating absorption: 2.62 kW
- Indoor Unit Treated Air: 15.5~19 m 3 /min
- Internal Unit Sound Power Level: 57 dB(A)
- External Unit Sound Power Level: 68 dB(A)
- Indoor Unit Sound Pressure Level: 35~40 dB(A)
- External Unit Sound Pressure Level: 50~52 dB(A)
Electrical Data
- Power (V,Hz, Ø): 220~240/50/1
- Refrigerant gas: R32
- Operating range
- - Cooling: -20° ~ 50° C
- - Heating: -20° ~ 18° C
- Liquid pipe diameter: 9.52 mm (3/8")
- Gas pipe diameter: 15.88 mm (5/8")
- Maximum length of pipes: 50 m
- Maximum height difference Internal Unit / External Unit: 30 m
Dimensions and weight
- Internal Unit Dimensions (WxHxD): 840x204x840 mm
- Internal Unit Weight: 21.1 Kg
- Panel dimensions: 950x35x950 mm
- Panel weight: 7.1 kg
- External Unit Dimensions (WxHxD): 950x834x330 mm
- External Unit Weight: 57.7 Kg
LG 4-Way Cassette
Dual Temperature Control
The room temperature can be detected in 3 different modes:
• From the sensor located in the wired control
• From the sensor located on the unit
ESP Fan Head Adjustment
The prevalence of the fans can be adjusted by the wired control supplied. Through this adjustment, it is possible to modify the rotation speed of the internal unit fan and associate the machine with installation heights higher than three meters up to a maximum of 4, 2 meters
Independent Orientation
Each deflector can be oriented independently to better manage the flow in relation to the geometry of the spaces (function available only with the wired control)
ONE TOUCH corners
Each corner of the front panel can be removed to facilitate access to the internal unit
Temperature Control After Thermistor
Possibility of Wi-Fi connection with PWFMDD200 accessory
Voice Control
If the Wi-Fi module is installed, the internal unit becomes compatible with the Google Home and Alexa voice assistants.
Available Functions
• Power on
• Shutdown
• Temperature regulation
• Setting operating modes
• Ventilation adjustment
• Monitoring
External Unit
• Self-supporting structure in galvanized sheet steel panels painted in warm gray color with surface treatment and Cataphoresis process, a surface treatment capable of providing considerable resistance to corrosion in order to protect the outdoor unit from atmospheric agents
• Removable front right panel for connection operations with the refrigerant circuit with integrated handle to facilitate transport and positioning of the unit
• Removable upper cover to access the control components with integrated handle on the right side to facilitate transport and positioning of the unit
• Protection grill on the air expulsion
Heat exchanger
External Wide Louver Fin heat exchanger which gives an improvement in exchange efficiency compared to a traditional exchanger, in corrugated copper tube with aluminum fins, coated with a Black Fin galvanic bath anti-corrosion treatment to give better resistance to acid rain and saltiness in sea areas. .Air intakes protected by square mesh in the same color as the outdoor unit. Protection of the air detection probe in a dedicated housing
Compressor
Capacity supply system consisting of 1 hermetic Twin Rotary DC inverter compressor with direct start. linear capacity control with an action range between a minimum of 10% up to a maximum of 130%
Product Warranty: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.
Scheda Tecnica
Scheda Tecnica
- peso: 120.0 kg
- classe energetica raffreddamento: A++
- classe energetica riscaldamento: A+
- gas: R-32
- marca: LG
- metri quadri : 80 - 100 m2
- modello: UT30F
- potenza btu: 30000
