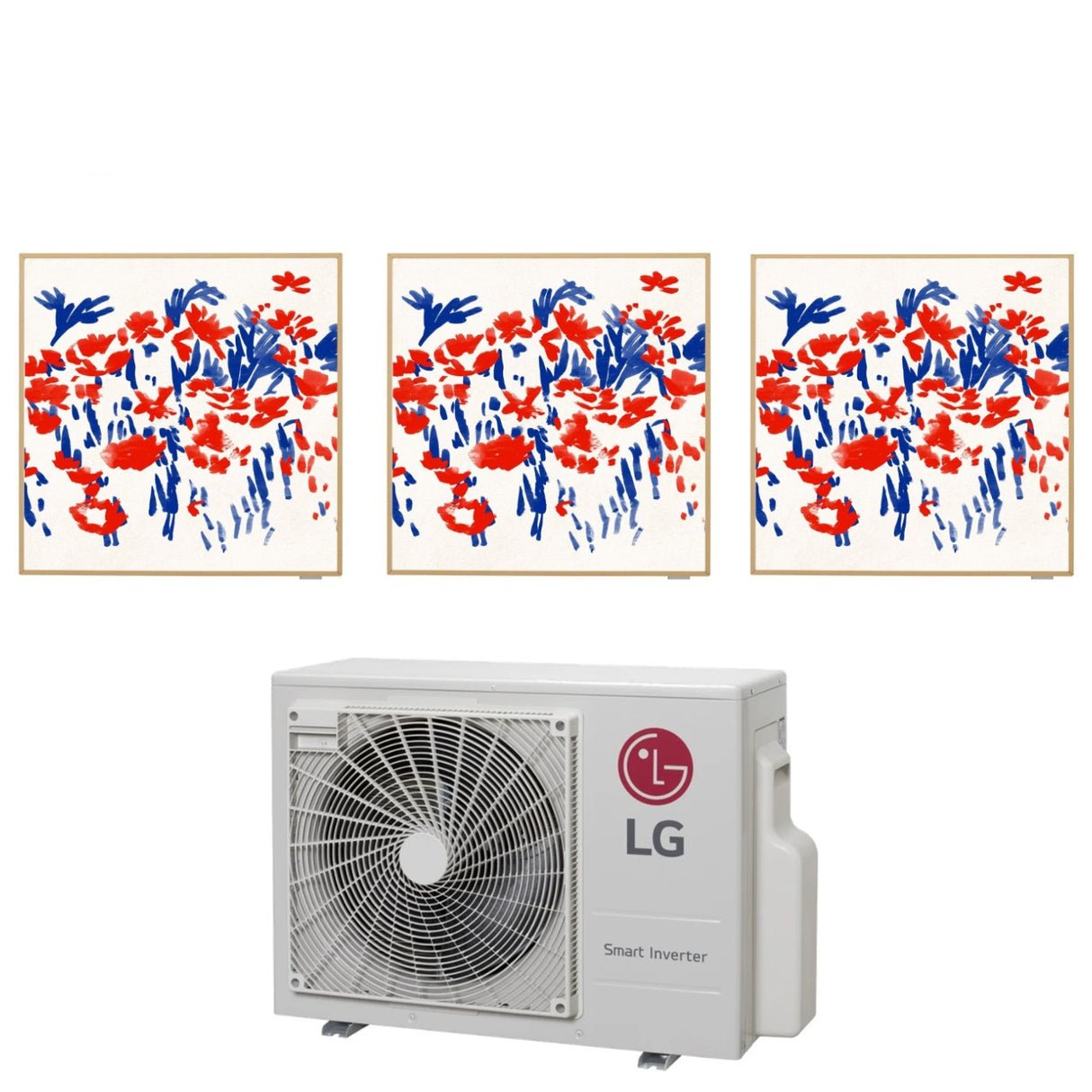

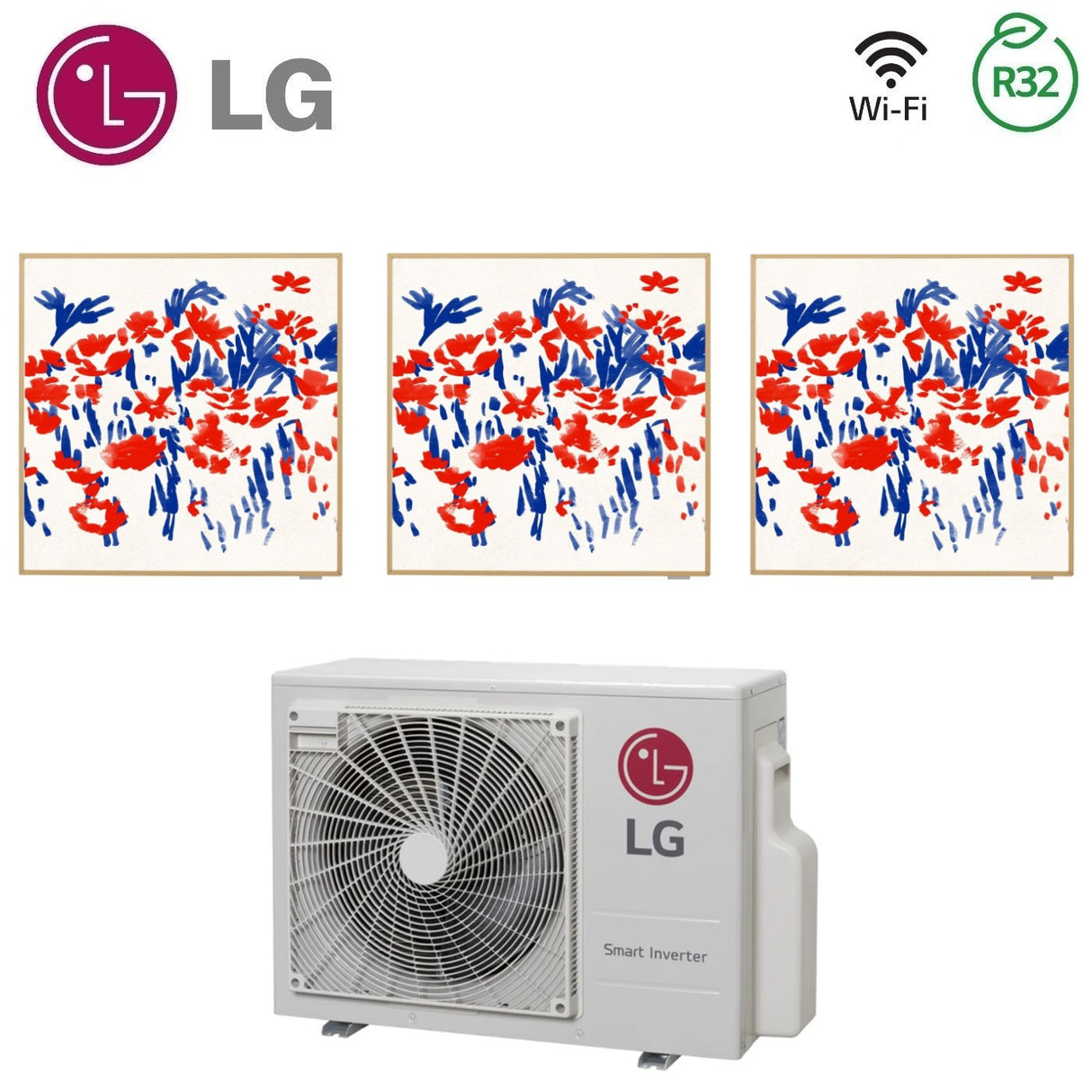

LG Trial Split Inverter Air Conditioner ARTCOOL GALLERY 9+9+12 series with MU3R19 R-32 Wi-Fi Optional 9000+9000+12000

Name: LG Trial Split Inverter Air Conditioner ARTCOOL GALLERY 9+9+12 series with MU3R19 R-32 Wi-Fi Optional 9000+9000+12000
Brand: LG
SKU: Gallery 9+9+12 19
Price: 2421.0 EUR
Availability: InStock

€2.421,00 VAT included

Tax included Shipping calculated at checkout.

Costi di spedizione calcolati in fase di checkout

How shipping works

I costi di spedizione variano a seconda del peso e della modalità di spedizione dell'ordine.

I nostri servizi di spedizione:

Spedizione standard: consegna stimata dai 2 ai 5 giorni lavorativi
Spedizione Premium: consegna garantita in 24 ore lavorative
Spedizione Premium + Consegna al piano: consegna garantita in 24 ore lavorative

Consulta le tabelle per i prezzi della spedizione standard per l'Italia e per le Isole Minori e Zone Disagiate.

Per ulteriori dettagli sulla Spedizione Premium, consulta la pagina di spedizione premium.

Servizio clienti

Il nostro servizio di assistenza è dedicato a fornire supporto ai nostri clienti per qualsiasi problema o domanda che possano avere prima o dopo l’acquisto dei nostri prodotti.

Utilizza il canale di comunicazione diretta per parlare con un nostro operatore, oppure inviaci una mail ad uno degli indirizzi elencati nella pagina contattaci.

Il nostro team di assistenza clienti è composto da professionisti altamente qualificati e sempre pronti ad aiutare i clienti a risolvere qualsiasi problema o rispondere a qualsiasi domanda in modo rapido ed efficiente. Ci impegniamo a garantire la massima soddisfazione del cliente e a fornire un servizio di assistenza post-vendita di altissima qualità. Quindi, se hai bisogno di assistenza, non esitare a contattarci; saremo lieti di aiutarti in ogni modo possibile.

Description

Technical features

Internal Units

1) Model

Indoor Unit Catalog Code: 2x MA09R NF1
Power: 9000 Btu
Cooling Capacity: 2.6 kW
Heating capacity:: 2.9 kW
Sound pressure level: 27 ~32 ~ 38 dB(A)
Sound power level: 52 dB(A)
Liquid pipe diameter: 6.35 mm (1/4")
Gas pipe diameter: 9.52 mm (3/8")
Internal Unit Dimensions (WxHxD): 600x600x145 mm
Internal Unit Weight: 15.0 Kg

2) Model

Indoor Unit Catalog Code: 1x MA12R NF1
Power: 12000 Btu
Cooling Capacity: 3.5 kW
Heating capacity:: 3.9 kW
Sound pressure level: 32~38~44 dB(A)
Sound power level: 54 dB(A)
Liquid pipe diameter: 6.35 mm (1/4")
Gas pipe diameter: 9.52 mm (3/8")
Internal Unit Dimensions (WxHxD): 600x600x145 mm
Internal Unit Weight: 15.0 Kg

External Unit

Indoor Unit catalog code: MU3R19 UL0
Max indoor units: up to 3 indoor units

Energy efficiency:

SEER: 8.50 (W/W)
SCOP : 4.21 (W/W)
Energy Efficiency Class (Cooling): A+++
Energy Efficiency Class (Heating): A+
Annual energy consumption Cooling/Heating: 217/1629 kWh/a

Performance:

Cooling Capacity: 5.28 kW
Heating Capacity: 6.33 kW
Std Cooling absorption: 1.17 kW
Std Heating absorption: 1.37 kW
Sound power level: 63 dB(A)
Sound pressure level: 49 dB(A)

Characteristics:

Power (V/Hz/Φ): 220~240/50/1
Refrigerant gas: R-32
Pipe diameter Liquid: 6.35 mm (1/4") x2
Gas pipe diameter: 9.52 mm (3/8") x2
Guaranteed temperature range:
- Cooling: -10°~48°C
- Heating: -18°~18°C

Dimensions:

External Unit Dimensions (WxHxD): 870x655x320 mm
External Unit Weight: 43.8 Kg

LG Multisplit Systems

LG is among the most important companies in the world for the production of air conditioners.
The range of MULTISPLIT products is characterized by high flexibility, very high energy efficiency and low noise levels.
Multisplit solutions allow you to address both the needs of small residential systems and the needs of commercial spaces.

Quality and Safety Guarantee

LG is extremely attentive to the quality of its products and environmental issues. LG offers on its air conditioners, in addition to the 24-month legal guarantee, an additional 3-year guarantee on compressors, an exclusive formula to let you choose fully
safety. All LG air conditioners have obtained the most important international quality and safety certifications.
All LG air conditioners are made with environmentally friendly technologies and use R-410A refrigerant which does not produce deleterious effects on the ozone layer. The high energy efficiency that characterizes them helps to reduce CO2 emissions.
LG adheres to collective collection systems that guarantee a completely safe disposal service for end-of-life products.

Seasonal energy efficiency

The outdoor units of the new multi-pipe Multi range are characterized by seasonal energy efficiency levels already in line with the European standards in force starting from 2014. The SEER level is higher than 6.10 and will allow these products to obtain the A++ classification for their seasonal cooling energy efficiency. The new Multi range with multiple pipes allows you to reduce energy consumption by 37% (average) compared to the previous series. Multi outdoor units are characterized by extremely high levels of energy efficiency. Thanks to this assumption they contribute very significantly to the reduction of carbon dioxide emissions.

Wide Louver heat exchanger

Thanks to this assumption they contribute very significantly to the reduction of carbon dioxide emissions

The heat exchanger with Wide Louver fins is applied to the external units. The particular processing of the fins allows the exchange capacity of the radiator to be improved by 28% with the same surface area compared to a traditional exchanger.

Wide operating range

The outdoor units in the Multi Pipe range can operate in cooling and heating modes in the most extreme conditions. The presence of the condensation control for the cooling mode as standard equipment makes them compatible with all applications where it is necessary to refresh the air even at low external temperatures (e.g. restaurants, gyms, server rooms).

Pressure controlled operation

The new units in the Multi multiple pipe range operate with a control based on the pressures of the refrigerant in the circuit: this type of control ensures better management of the peripherals contained in the units compared to traditional temperature controls. This control mechanism is more precise and refined, without being negatively affected by external temperature variations. The new technology applied to these products allows the desired results to be obtained in shorter times, to better manage the operation of the compressor at partial load conditions, and to achieve important reductions in

electrical current absorbed.

Wiring error checking function

Thanks to this function, at the end of the installation work it is possible to verify that the electrical and piping connections are correctly associated. Through this control function, which can be activated from the external unit's electronic board, it is possible to achieve a correct and perfectly functioning installation quickly and easily.

Reduced electricity consumption in Stand-by

An innovative function allows the electrical power supply to the system components to be removed during the stand-by phase of the system. In this way, the stand-by electricity consumption of the new multi-pipe Multi outdoor units is 90% lower than the previous versions.

Reduced sound level

The adoption of a new fan protection grille and the use of fans with details specifically designed for aerodynamic optimization have allowed a reduction in the noise level of the external units in the order of approximately 2 dB(A) at nominal conditions of detection.

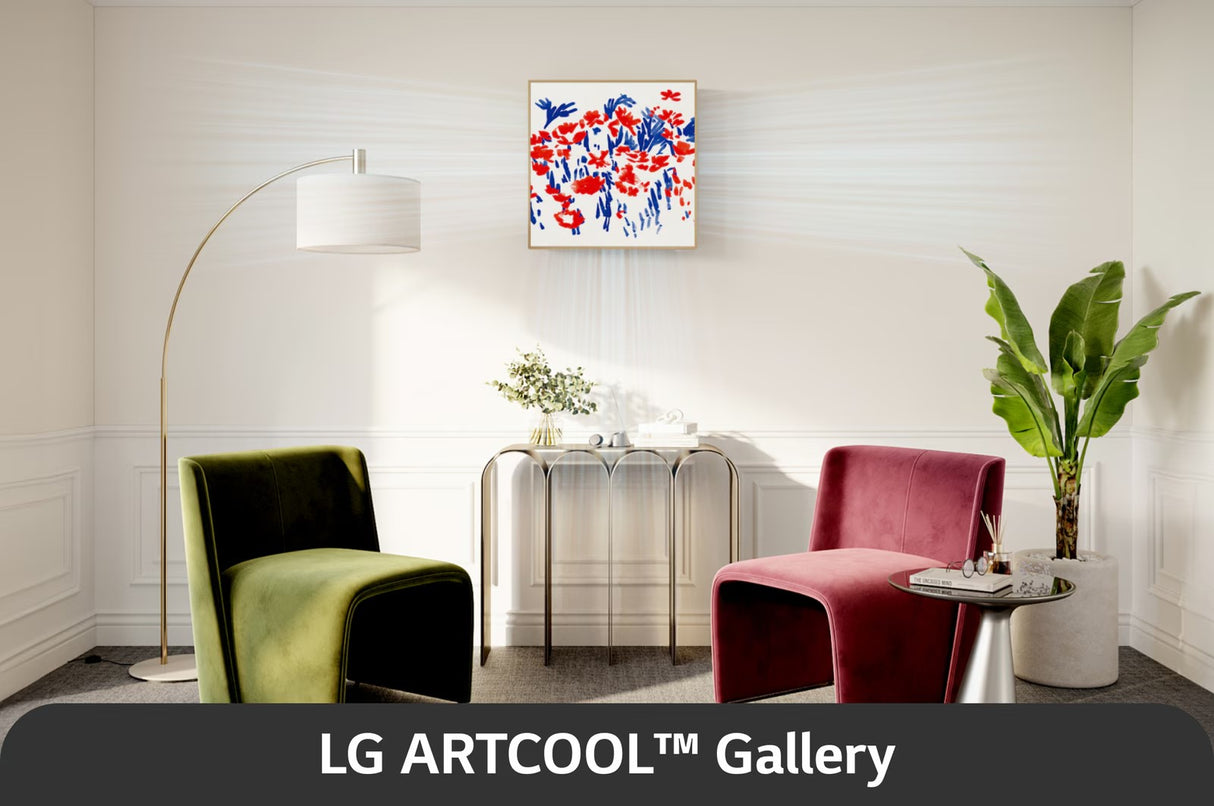

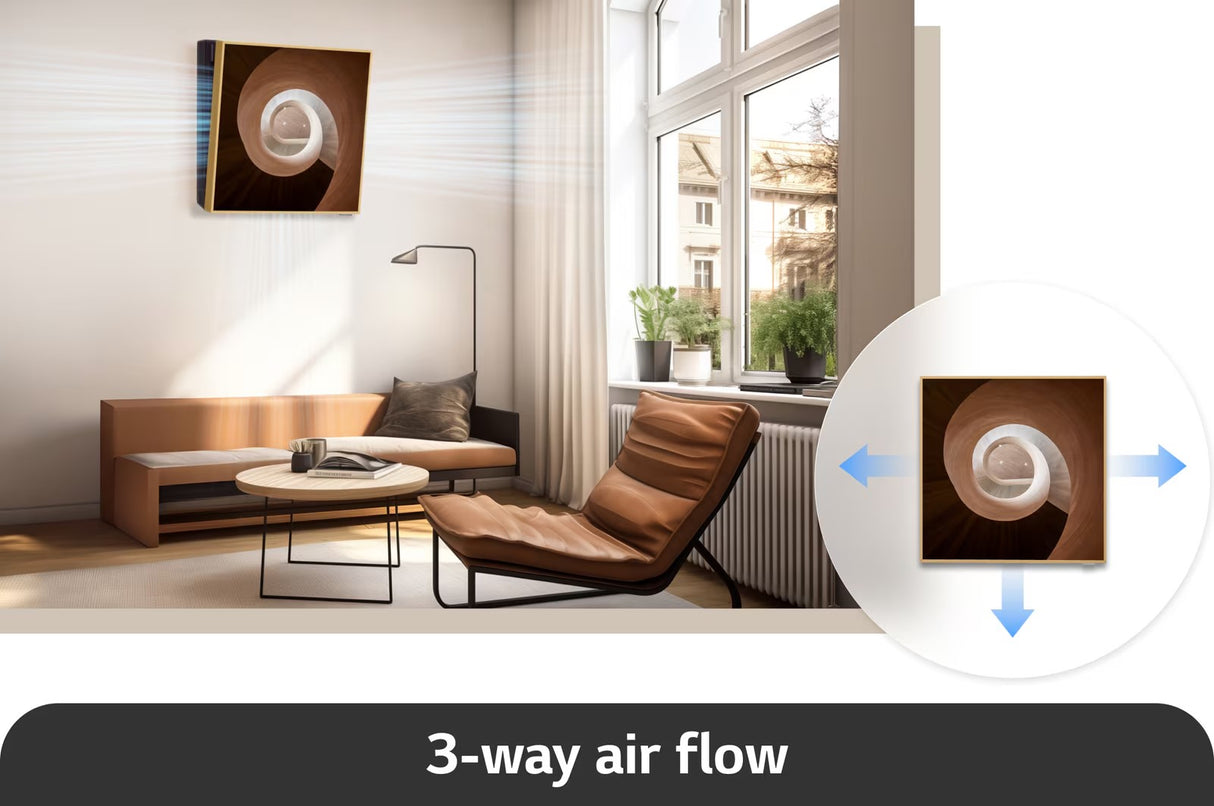

A Unique Design

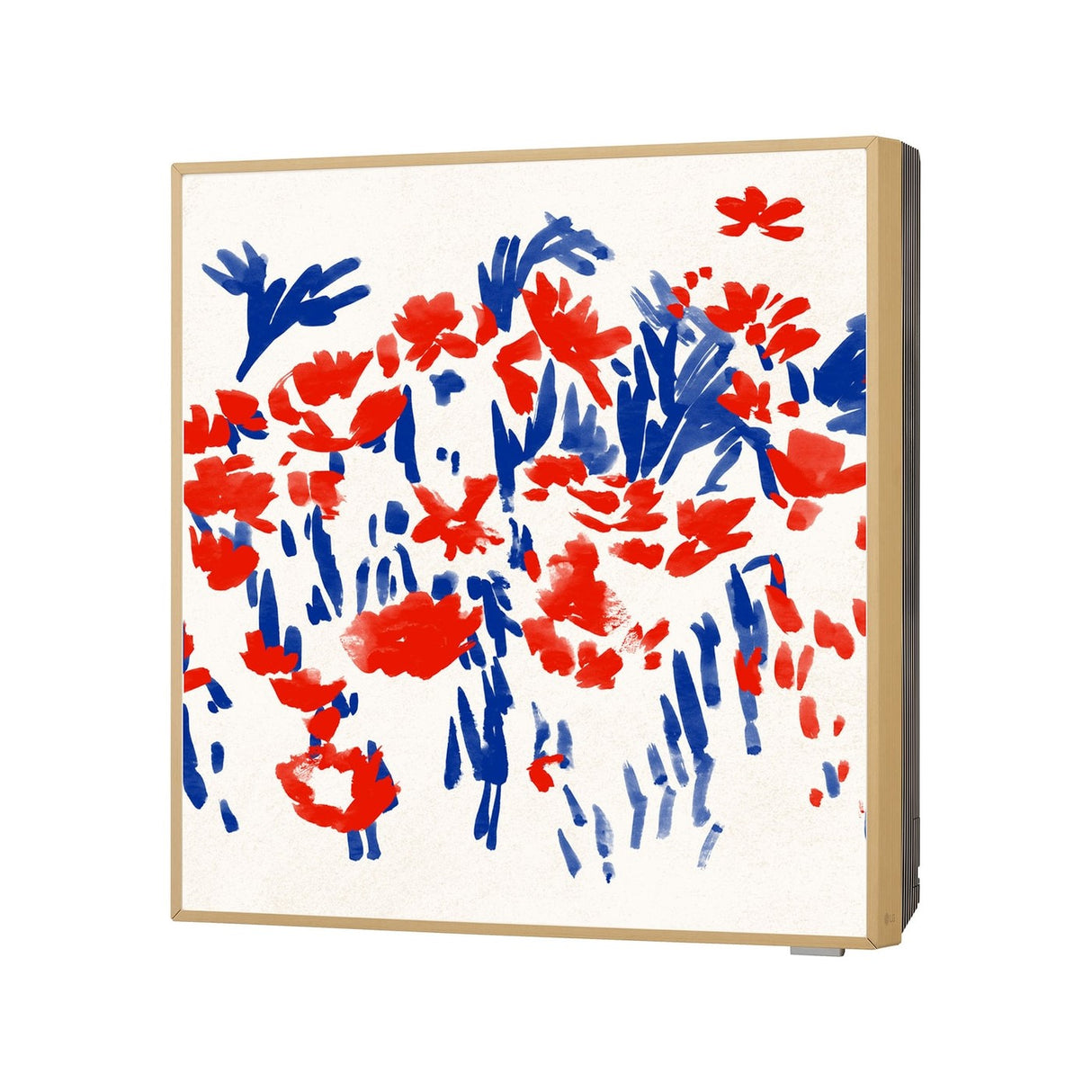

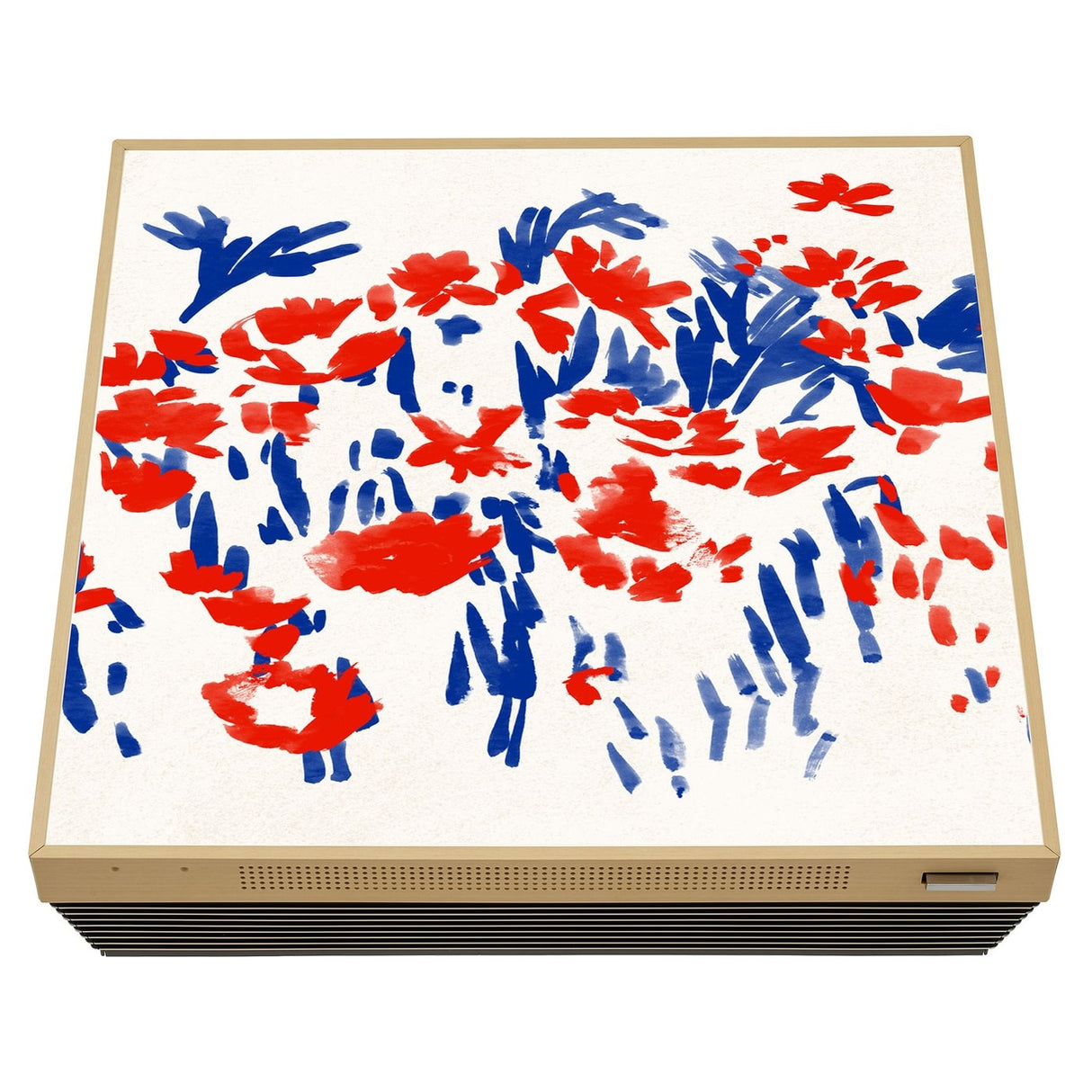

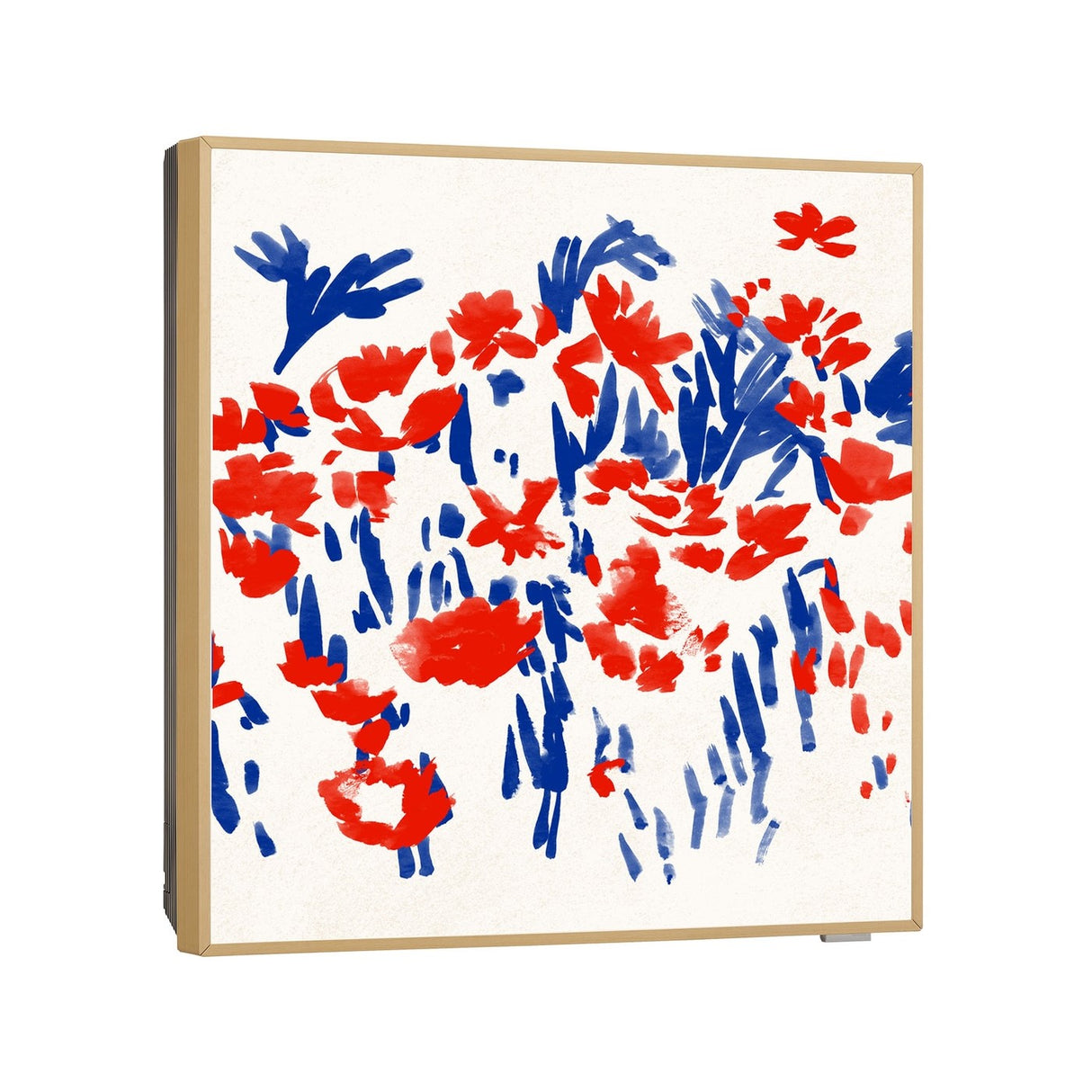

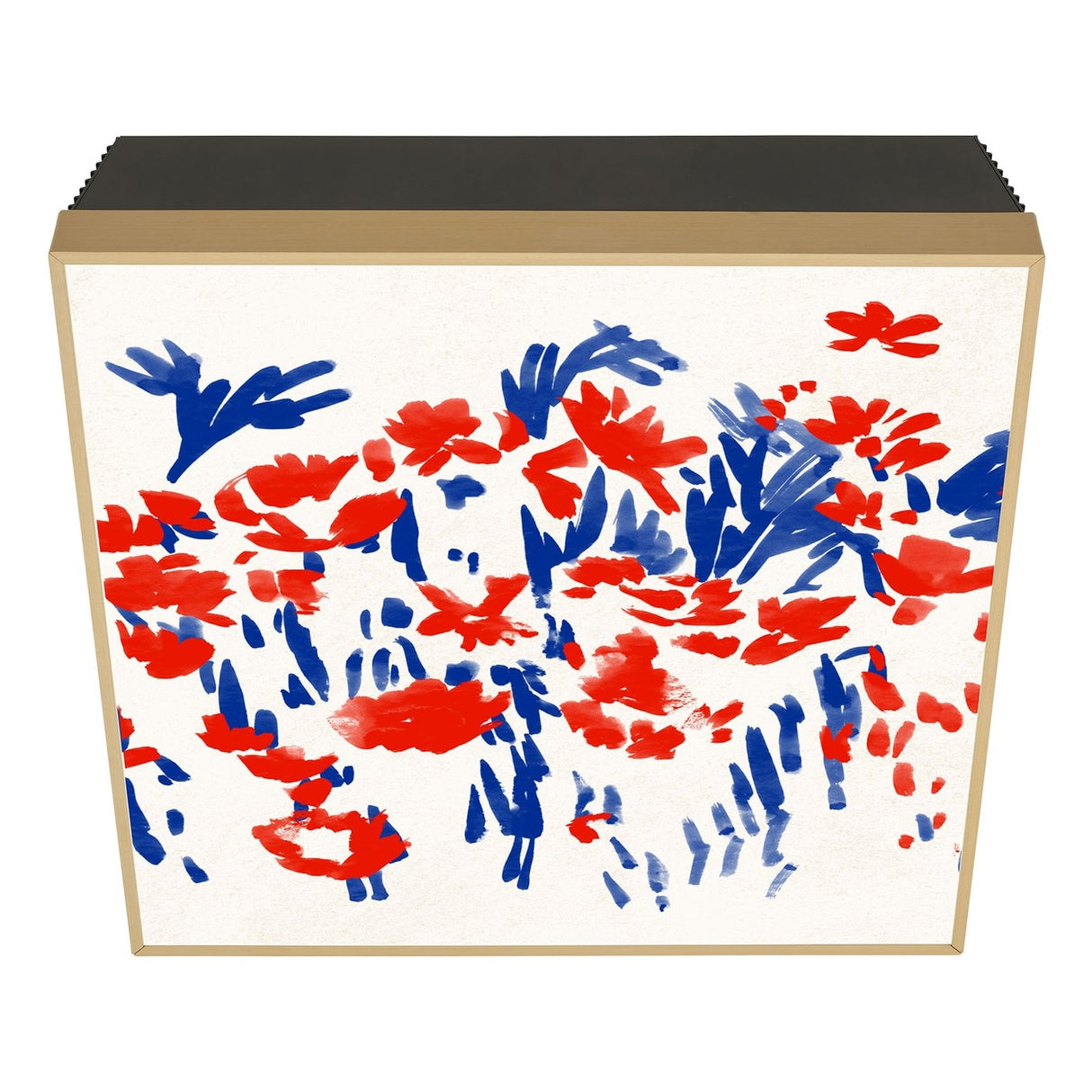

The LG ARTCOOL Gallery air conditioner is designed to harmonize with your interior thanks to its elegant and innovative design. You can easily edit the image placed on the front panel to create a space that perfectly matches your tastes and desires

Design

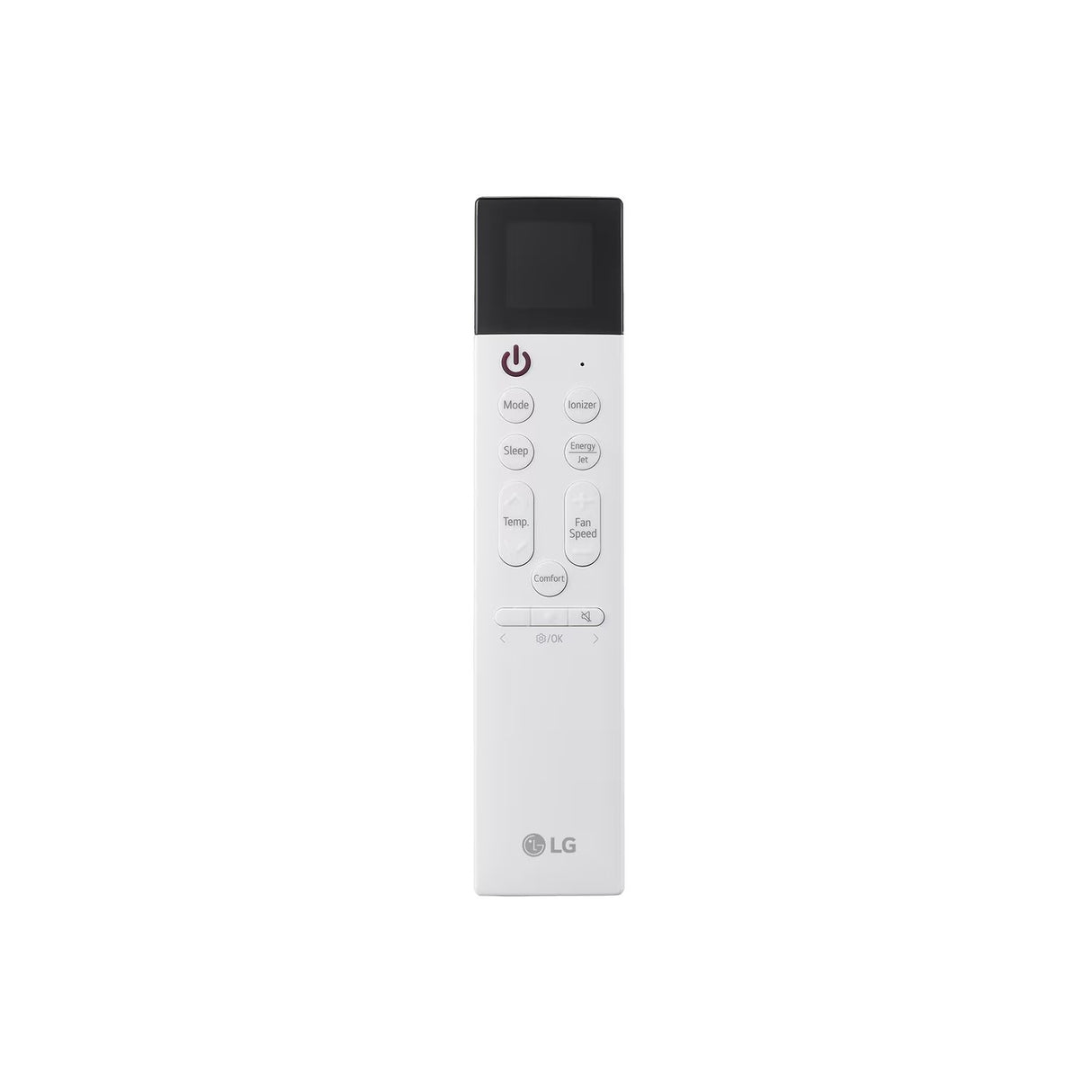

Remote control

Wherever you are, with the LG ThinQ app you can turn the air conditioner on or off, change operating modes and set the desired temperature. You can also use voice commands through Google Assistant.*

ThinQ

Maximum silence

LG air conditioners ensure reduced noise thanks to the special Skew Fan and the Inverter compressor, which eliminate unnecessary noise and allow the product to operate as silently as possible.

Massima silenziosità

Comfortable heating

During the winter season, LG air conditioners keep your home warm, thanks to the compressor with Dual Inverter technology.

Riscaldamento Confortevole

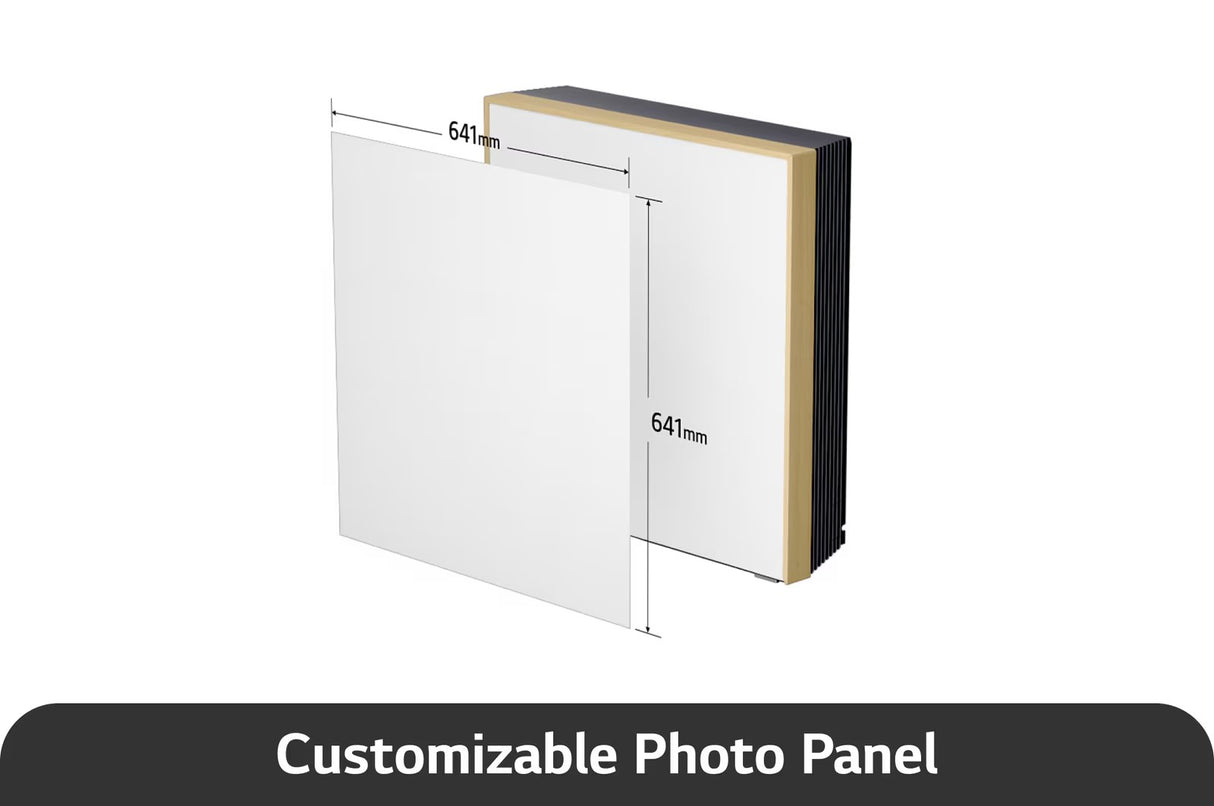

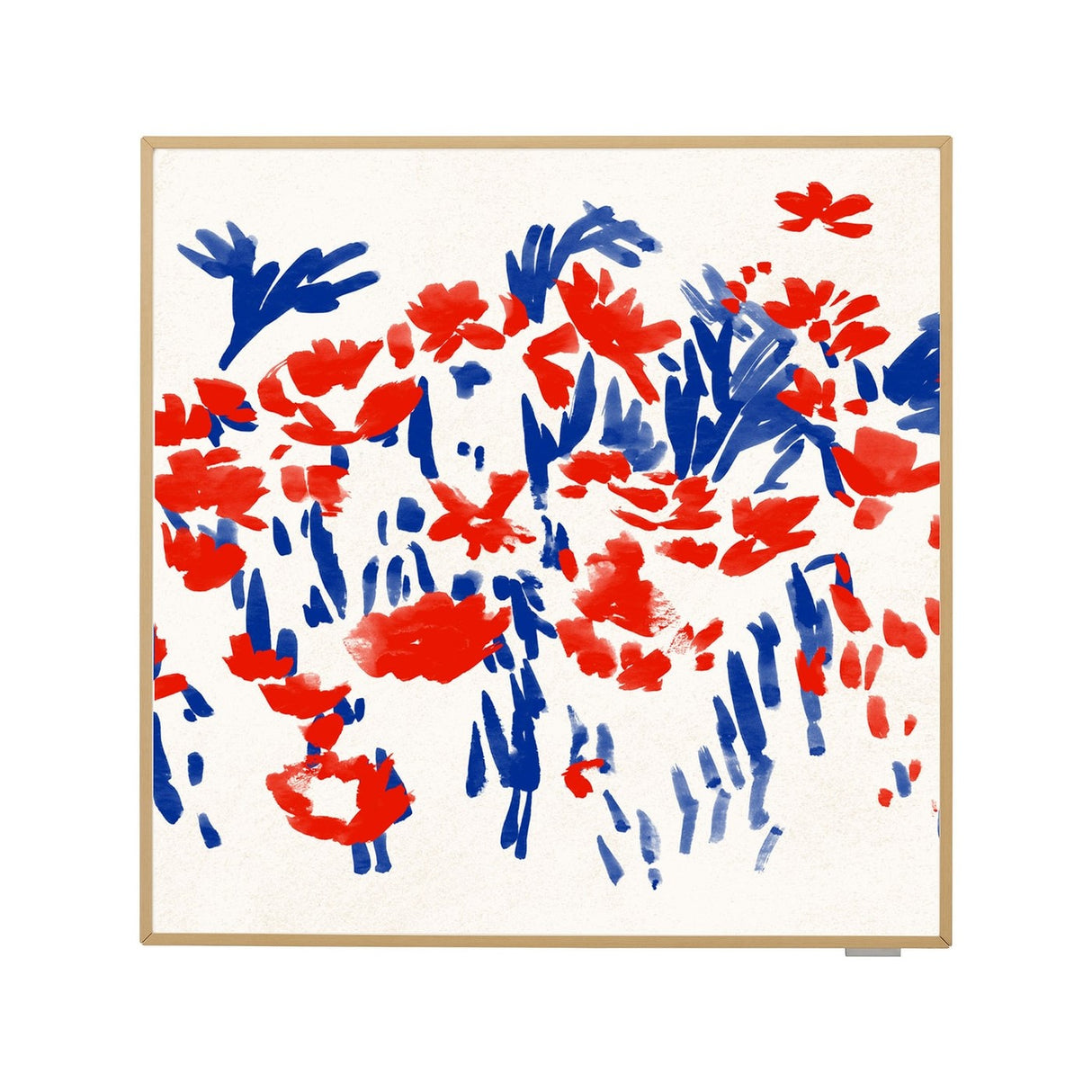

A customizable appearance

Changing the face of your ARTCOOL Gallery is quick and easy! Display your most beautiful photos, a work of art or an image that is dear to you to personalize your spaces.

aspetto personalizzabile
