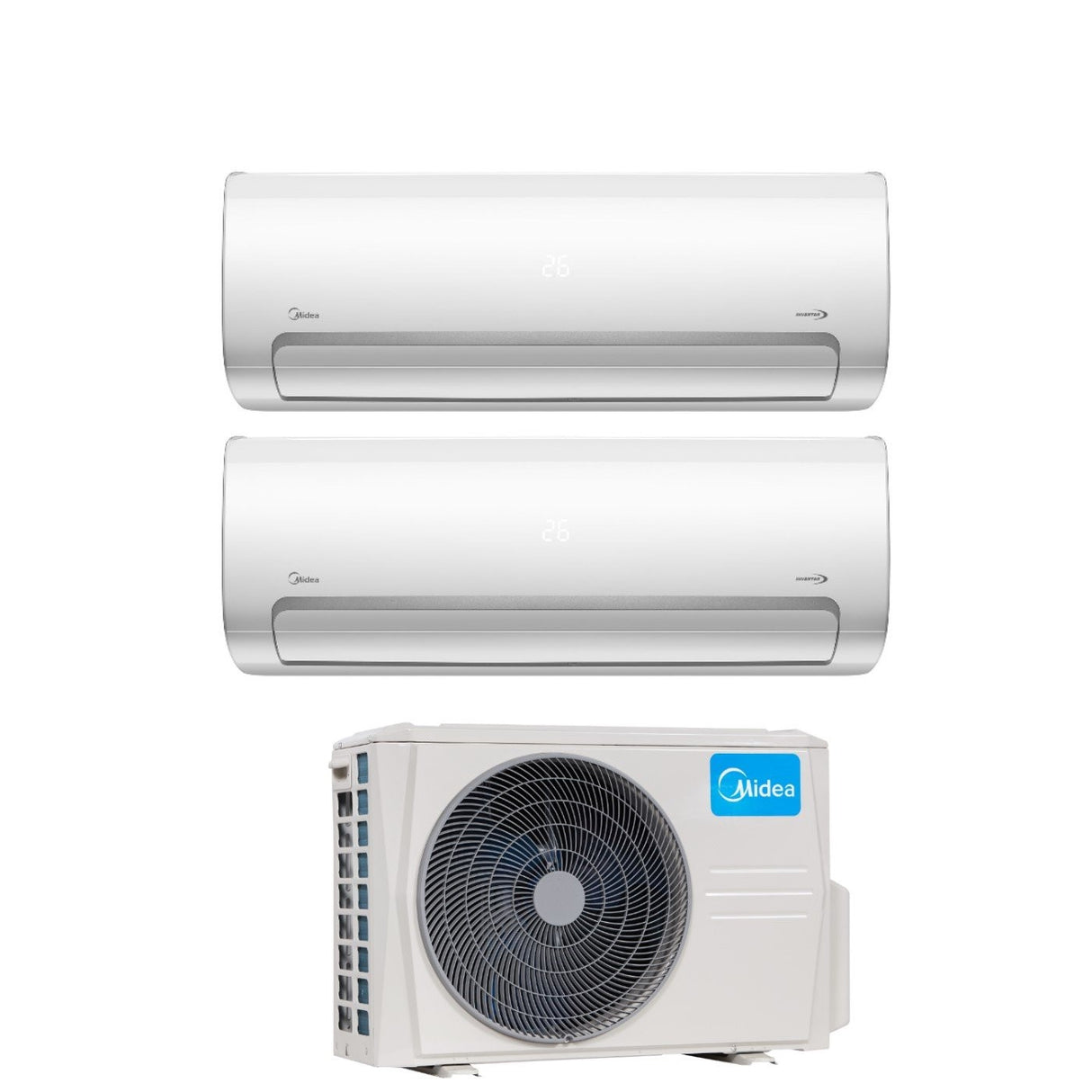

Midea Dual Split Inverter Air Conditioner MISSION PRO 12+12 series with M3OF-27HFN8-Q R-32 Wi-Fi Optional 12000+12000

• Model: 2 x Mission Pro MSMBBU-12HRFN8
• Power: 12000 btu/h
• Wi-Fi Optional: Code CE-SK 102

Performance:

• Cooling Capacity (kW): 3.52
• Heating Capacity (kW): 3.81
• Air flow (min-med-max) m3/min 4.0-6.2-8.3
• Sound pressure (Silent-Min-Med-Max) dB(A) 19-24-32-40
• Sound power (Hi) dB(A) 56

Dimensions:

• Connection hose (liquid): 6.35mm (1/4”)
• Connection hose (gas): 9.52mm (3/8”)
• Internal Unit WxDxH (mm): 810×200×300; 8.5kg

External Unit

Model:

• Catalog code: M3OF-27HFN8-Q
• Gases: R-32
• Max combinable internal units: 3
• Power (V/Hz/Φ): 220~240/50/1

Capacity:

- Cooling down

• Nominal capacity kW: 7.90
• Power Absorption (Max): W 2430
• SEER Seasonal energy efficiency: 6.1
• Energy Efficiency Class: A++
• Annual energy consumption KWh/A: 453

- Heating

• Nominal Capacity kW: 8.02
• Power Absorption (Max): W 2160
• SCOP Seasonal energy efficiency (W/W): 4.0
• Energy Efficiency Class: A+
• Annual energy consumption KWh/A: 1855

Performance:

• Outdoor Unit Air Flow: m3/h 2700
• Max. External Unit Sound Pressure (dB(A)): 54
• Sound power (Max) dB(A): 67
• Liquid side tubing 6.35 mm (X3)
• Gas side pipe 9.52 mm (X3)
• Cooling/Heating operating range (°C): -15°~50°/-15°~24°
• Operating limit temperature (Tol) °C -15

Dimensions:

• Outdoor Unit (WxDxH) (mm): 845-363-702 ; 51.1 kg
• Max. Total length/ each IU 60/30 m
• Piping length (min per unit): 3 m
• Max. height difference (each IU) 10 m

MIDEA Multi Line

Midea's range of MULTI systems is one of the most complete and extensive on the market, and covers all the user's installation needs, starting from Dual systems up to Penta combinations. The depth of the range also includes the internal units, available across all the main categories, such as Split, Ducted, 4-way Cassette, and Floor Console: all air conditioning systems characterized by very high efficiency, both in cooling and heating modes. To broaden the scope of possible installations, all Midea MULTI Lines are " Free Match ": internal units of different types can be connected to each external unit.

Relevant Features:

• Outdoor unit "Diamond"

The Midea external units are made with the innovative diamond-cut shape, without sharp edges and without visible screws at the front panel. The air expulsion grille, inspired by Archimedes' screw, contains a newly developed fan to reduce noise to a minimum. The T-shaped rib on the top panel allows for greater strength and stability

• High efficiency HSS compressors

The compressors used by Midea are characterized by a robust and reliable structure designed to operate at high temperature and pressure conditions in order to guarantee maximum reliability over time.

• Easy Installation

MULTI Midea condensing units allow the connection of up to 5 internal units of any type. Each single internal unit can be controlled totally independently.

• Energy saving

Precise control of the sine wave inverter and active PFC technology guarantee minimum energy absorption and the maximum level of silence

The Midea group was among the first companies to introduce the use of low GWP (Global Warming Potential) refrigerants in its products to counteract the effects of atmospheric overheating and the feared "Greenhouse Effect"

- Low GWP Index

Thanks to the reduced value of the GWP index (675), the R32 refrigerant is characterized by CO2 equivalent emissions that are significantly lower than those of other HFC refrigerants.

- Energy saving

Comparative tests highlight how, under the same conditions, the new R32 refrigerant guarantees a specific efficiency 2% higher than R410A

- Simple installation

Midea has developed a range of internal units that can be applied both to external units that use R32 refrigerant and to external units that use R410A refrigerant. In this way, warehouse logistics and the association of internal and external units is very simple and intuitive.

MIDEA MISSION PRO

The geometries used for the splits of the MISSION PRO range are pure and simple to look at.
The lines that accompany the body, both frontally and on the sides, are reminiscent of those formed by ocean waves. A true work of art, embellished by the presence of a display ingeniously hidden under the front plastic, which is revealed to the user only when the unit is turned on.

Superior Inverter Performance 4

The exclusive QuattroTM Inverter technology allows excellent performance in all conditions of use, making the Midea Inverter compressor one of the best AC compressors in the world. In all conditions, Midea Inverter compressors work powerfully, efficiently, quickly and consistently

• Maximum efficiency - The step-less linear modulation of the compressor allows the rotation speed, and therefore the capacity delivered, to be adapted extremely precisely to the environmental conditions. The compressor adapts its rotation speed perfectly to the needs of the system without waste and with maximum efficiency.

• Linear adjustment - The internal fan speed is user selectable linearly between 1% and 100% rather than being available in 4 or 5 levels. In this way it is possible to make the product deliver the air flow best suited to your needs, for maximum comfort.

• Less Noise - The speed of the external fan adapts to the external temperature conditions and the working modes of the product, to guarantee lower noise and maximum efficiency

• Better Comfort - The temperature that can be set on the products is managed at intervals of 0.5°C. This way you can find the most correct temperature setting for your well-being.

Do Not Disturb function

By pressing a button on the remote control it is possible to silence all the audible alarms, turn off the display of the internal unit and reduce the speed of the internal fan to a rotation speed lower than the minimum one, normally selectable

iECO function

This function allows you to limit the rotation frequency of the compressor to reduce the capacity delivered and significantly increase the specific efficiency of the product during use in cooling mode

GEAR function

The Mission PRO units are equipped with the Gear function which allows you to limit the maximum rotation speed of the compressor and the consequent capacity delivered, significantly improving the specific efficiency of the product. The internal unit display is able to show, in addition to the selected temperature, also the room temperature and the instantaneous electrical power absorbed during operation

Follow Me function

Select this function and the special sensor located in the infrared control will detect the ambient temperature around you, and then adjust the operation of the air conditioner according to your needs

Other features of the series

• Self-diagnosis In the event of a failure, a fault code system allows users to be notified of defects in a simple and clear manner to quickly activate the assistance service.


• 1W Stand By In the event of a prolonged shutdown, the internal units completely remove the power supply to the external unit, reducing electricity consumption in the Stand By phase.


• Refrigerant Leak Alarm If the temperatures of the refrigeration circuit are irregular due to refrigerant gas leaks, a specific fault code (EC) allows this condition to be identified.


• Midea Smart Kit Integrated The internal units of the MISSION-PRO series are equipped with the Smart Kit system to be managed by a dedicated APP via WLAN connection.


• Condensation control The MISSION-PRO units can work in cooling mode even with a low external temperature to air-condition technical rooms.

• Hydrophilic Aluminium The outdoor unit heat exchanger is treated with a special coating to improve resistance to corrosion from atmospheric agents.

• Multipurpose Mono and Multi Split Internal Units The MISSION-PRO internal units can be connected with the external units for Mono Split (R32) or with the external units of the multi range (R410A).

Wi-Fi Control (Optional)

Thanks to the presence of a special Smart Kit and the App available for both iOS and Android applications, it is possible to control the operation of Midea air conditioners in any situation: using the remote control, or directly from a smartphone. Furthermore, the App has been designed to offer even more functionality and ease of use

Midea Air allows you to use some exclusive functions.

• Smart diagnosis Thanks to the diagnostic program present in the application, the reference values ​​of over 100 operating parameters present in the product can be verified to evaluate the correct functioning of the system peripherals.

• Weekly timer The turning on and off of the product can be set on a weekly basis from the App to program the use of the product even remotely

Product Warranty: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase

• peso: 55.0 kg
• classe energetica raffreddamento: A++
• classe energetica riscaldamento: A+
• gas: R-32
• marca: Midea
• metri quadri : 35/35
• modello: Mission Pro 12+12 27
• potenza btu: 12000+12000
• superficie riscaldabile mq: 35/35
