Midea Inverter Air Conditioner XTREME PRO GREEN series 9000 Btu MSAGBU-09HRFN8/GR R-32 Integrated Wi-Fi

Technical features

• Indoor unit catalog code: MSAGBU-09HRFN8/GR
• EAN: 8052705166002
• Outdoor unit catalog code: MOX230-09HFN8
• EAN: 8052705162196
• Power: 9000 Btu

Energy efficiency

• SEER: 8.8
• SCOP: 4.6
• Cooling energy efficiency class: A+++
• Heating energy efficiency class: A++
• Annual energy consumption in cooling: 103 kWh/a
• Annual energy consumption in heating: 730 kWh/a

Electrical data

• Power (V,Hz, Ø): 220~240/50/1
• Refrigerant gas: R-32
• Operating range
• - Cooling: -15° ~ 50° C
• - Heating: -15° ~ 30° C

Installation data

• Liquid pipe diameter: 6.35 mm (1/4")
• Gas pipe diameter: 9.52 mm (3/8")
• Maximum pipe length: 25 m
• Maximum height difference between internal unit and external unit: 10 m

Dimensions and weight

• Indoor unit dimensions (WxDxH): 935x208x295 mm
• Internal unit weight: 8.7 kg
• External unit dimensions (WxDxH): 765x303x555 mm
• External unit weight: 26.7 kg

Midea Xtreme Pro Green air conditioner

Xtreme Pro Tech contains all the technology and design of the Xtreme line and helps improve air quality thanks to the Hepa filter and UV Pro technology.

UV Pro Technology

Thanks to its short-wave UV-C rays, Midea Xtreme Pro Tech helps reduce the transmission of germs and bacteria in the air, ensuring a healthier and safer home environment.

Triple defense filter

The triple defense filter helps block fine dust, pollen and harmful germs, preventing their multiplication and ensuring greater freshness and cleanliness in the air in your home.

Clean function at 56 °C

Set the high temperature deep cleaning function to keep your air conditioner healthy and clean, ensuring a more comfortable environment for the whole family.

DoubleCARE technology

The Xtreme Green units are equipped with a UV-C lamp for the removal of germs, bacteria and viruses, as well as a HEPA filter for the reduction of particles present in the air

1W Stand By

The internal units, in the event of a prolonged stop, completely remove the power supply to the external unit, reducing electricity consumption in the Stand-By phase

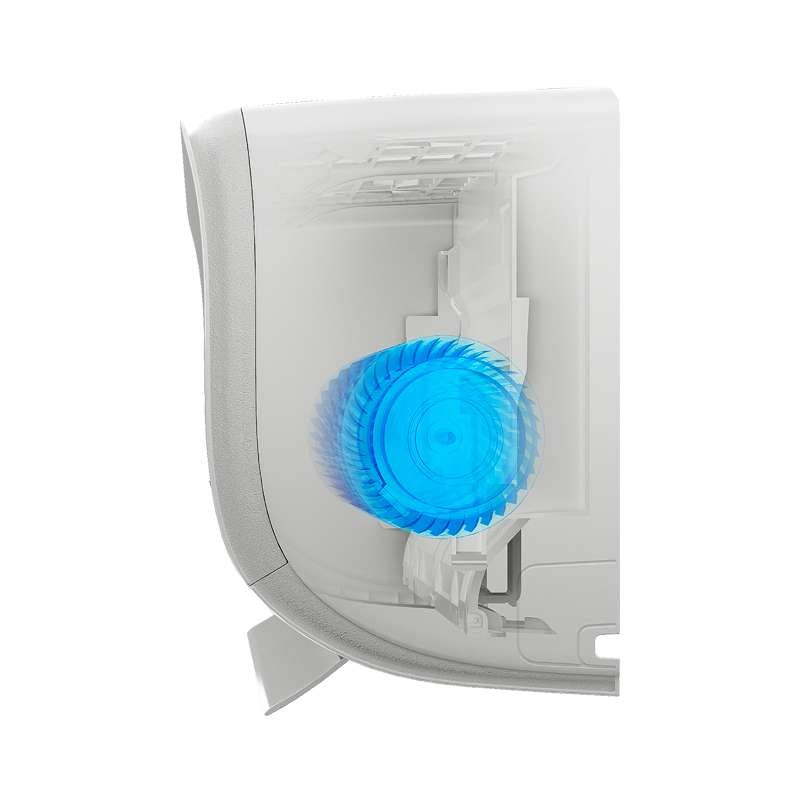

Four inverters

Inverter Quattro technology consists in the adoption of linear regulation systems for the speed of the internal fan and step-less linear regulation of the compressor and fan of the external unit. Quattro Inverter technology improves the efficiency and comfort of the products.

Follow Me function

The room temperature can be detected by a special sensor located in the infrared control, in order to obtain a more precise detection

LED display

The Xtreme Green indoor unit is equipped with a 2-character display that indicates the selected temperature values

Refrigerant leak alarm

If the temperatures of the refrigeration circuit are irregular due to refrigerant leaks, a specific fault code (EL-0C) allows you to identify this condition

GEAR function

The Xtreme Green units are equipped with the GEAR function which allows you to limit the maximum rotation speed of the compressor and the consequent capacity delivered, significantly improving the specific efficiency of the product.

Do Not Disturb function

By pressing a button on the remote control it is possible to silence all the acoustic warnings, turn off the display of the internal unit and reduce the speed of the internal fan to a rotation speed lower than the minimum speed, which can normally be selected.

Condensation control

The Xtreme Green units can operate in cooling mode even at low external temperatures to air-condition technical rooms.

Midea Smart Kit

The internal units of the Xtreme Green series are supplied with Midea Smart Kit to be managed by a dedicated APP via Wlan connection.

Mono-Multi Split multipurpose indoor units

Xtreme Green indoor units can be connected with Mono or Multi Split outdoor units

Self-diagnosis

In the event of a failure, a fault code system allows users to be notified of defects simply and clearly to quickly activate the assistance service.

Eco function

This function allows you to limit the rotation frequency of the compressor to reduce the capacity delivered and significantly increase the specific efficiency of the product during use in cooling mode.

Diamond Design outdoor unit

The outdoor units feature a unique diamond-cut shape that has no visible screws on the front of the unit. The units have optimized heat exchange surfaces to guarantee extremely high punctual and seasonal performance

Golden Fin

The outdoor unit heat exchanger is treated with a special coating to improve corrosion resistance to atmospheric agents.

Product guarantee: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase

• peso: 35.0 kg
• classe energetica raffreddamento: A+++
• classe energetica riscaldamento: A++
• gas: R-32
• marca: Midea
• metri quadri : 15-25 m2
• modello: MSAGBU-09HRFN8/GR + MOX230-09HFN8_1
• potenza btu: 9000
• superficie riscaldabile mq: 25
