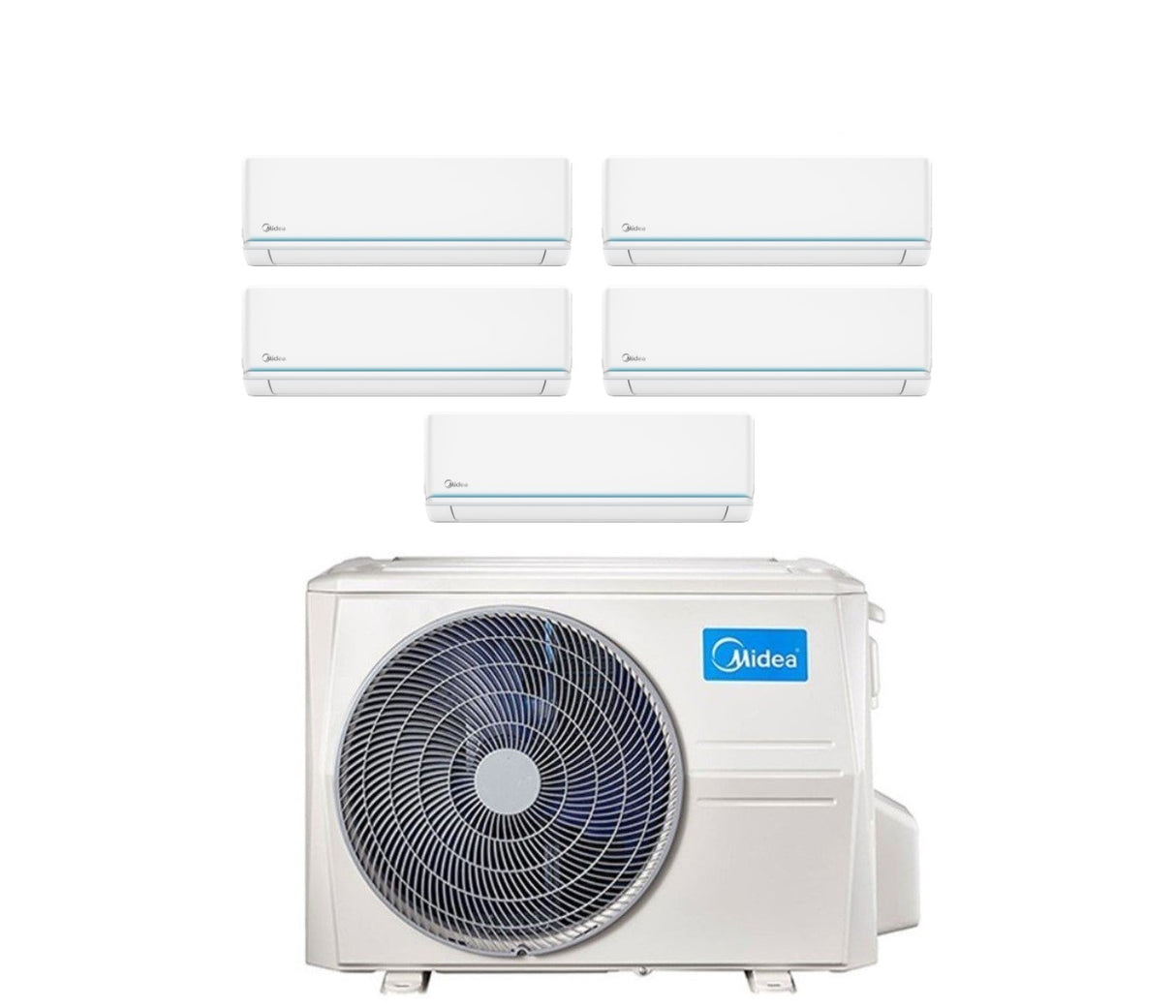

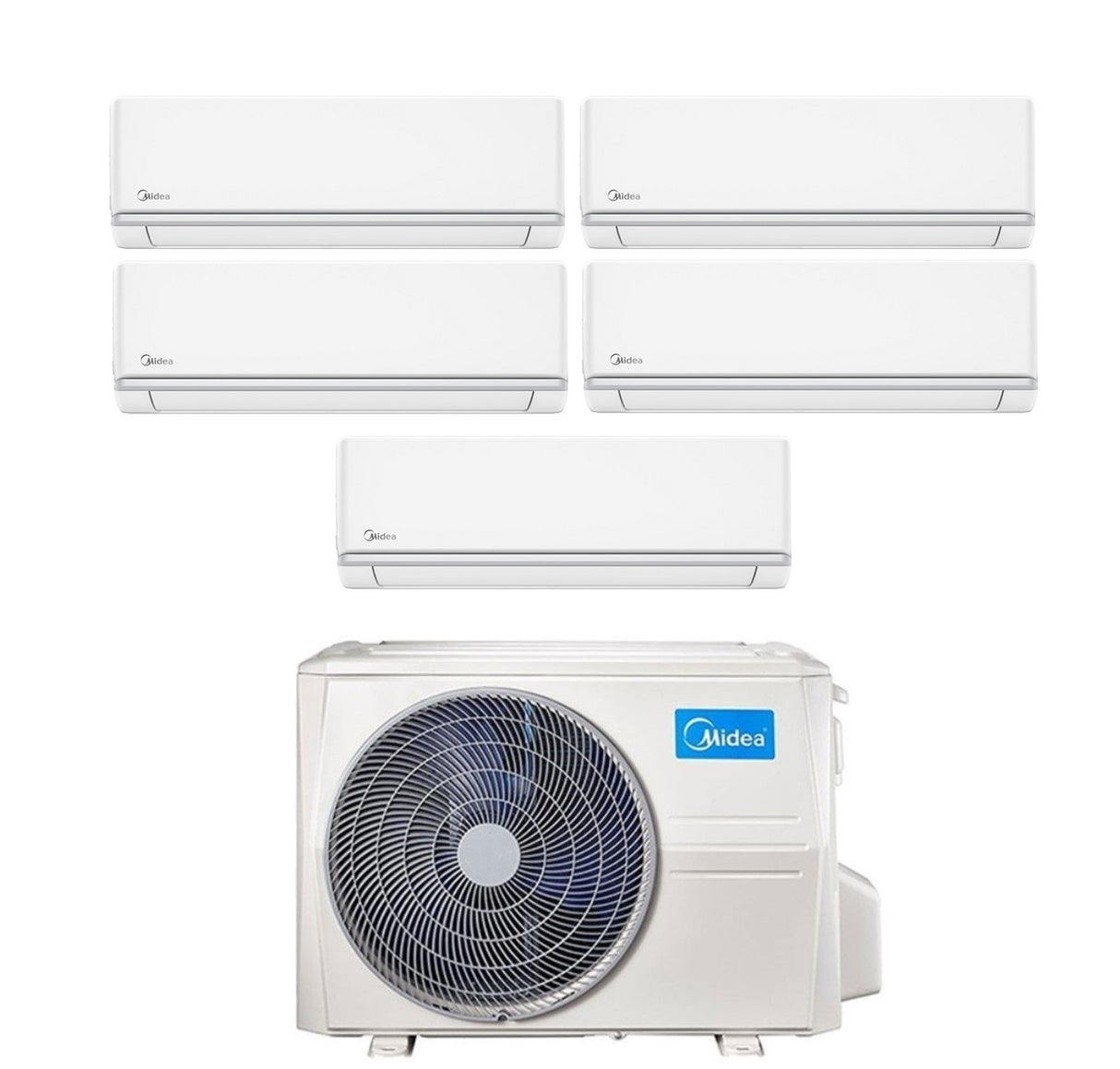

Midea Quadri Split Inverter Air Conditioner ELEGANCE 9+9+9+12 series with M5OE-42FN8-Q R-32 Wi-Fi Optional 9000+9000+9000+12000

• Outdoor Unit catalog code: M5O-42FN8-Q
• Max indoor units: up to 5 indoor units

Performance:

• Cooling Capacity: 12.30 kW
• Heating Capacity: 12.30 kW
• Std Cooling absorption: 3.83 kW
• Std Heating absorption: 3.30 kW
• Sound power level: 68 dB(A)
• Sound pressure level: 62 dB(A)

Characteristics:

• Power (V/Hz/Φ): 220~240/50/1
• Refrigerant gas: R-32
• Liquid tube diameter: 6.35 mm (1/4") x5
• Gas pipe diameter: 9.52 mm (3/8") x4 + 12.70 mm (1/2")
• Maximum pipe length: 35 m
• Maximum height difference Internal Unit / External Unit: 15 m
• Guaranteed temperature range:
• - Cooling: -15° ~ 50° C
• - Heating: -15° ~ 24° C

Dimensions:

• External Unit Dimensions (WxDxH): 946x410x810 mm
• External Unit Weight: 73.3 Kg

The evolution of technology. With the Midea Elegance Series air conditioner you can maintain control of your home consumption thanks to the iECO and GearShift functions, discover true comfort by setting the air conditioner to Follow Me, Breeze Away and Super Cool modes and enjoy your home safely thanks to the sterilization function of the air for deep cleaning and rapid disinfection. Furthermore, thanks to a special anti-corrosion treatment, the heat exchanger of the outdoor unit will be resistant to salt and external atmospheric pollutants.

Diamond Design Outdoor Unit

Innovative diamond cut shape with no sharp edges and no visible screws. The air exhaust grille contains a newly designed fan to reduce noise to a minimum.

Self-diagnosis

In the event of a failure, a fault code system allows users to be notified of defects in a simple and clear manner to quickly activate the assistance service

1W Stand By

The internal units, in the event of a prolonged stop, completely remove the power supply to the external unit, reducing electricity consumption in the Stand-By phase

Fan linear regulation

The rotation speed of the internal fan, beyond the usual predefined levels of activity, can be adjusted within the values ​​1-100%.

Condensation control

The units can operate in cooling mode even at low external temperatures to air-condition technical rooms

Golden Fin

The heat exchanger of the outdoor unit is treated with a special coating to improve corrosion resistance to atmospheric agents

Eco function

This function allows you to limit the rotation frequency of the compressor to reduce the capacity delivered and significantly increase the specific efficiency of the product during use in cooling mode

Refrigerant leak alarm

If the temperatures of the refrigeration circuit are irregular due to refrigerant leaks, a specific fault code (EL-0C) allows you to identify this condition

GEAR function

The SMART units are equipped with the GEAR function which allows you to limit the maximum rotation speed of the compressor and the consequent capacity delivered, significantly improving the specific efficiency of the product
