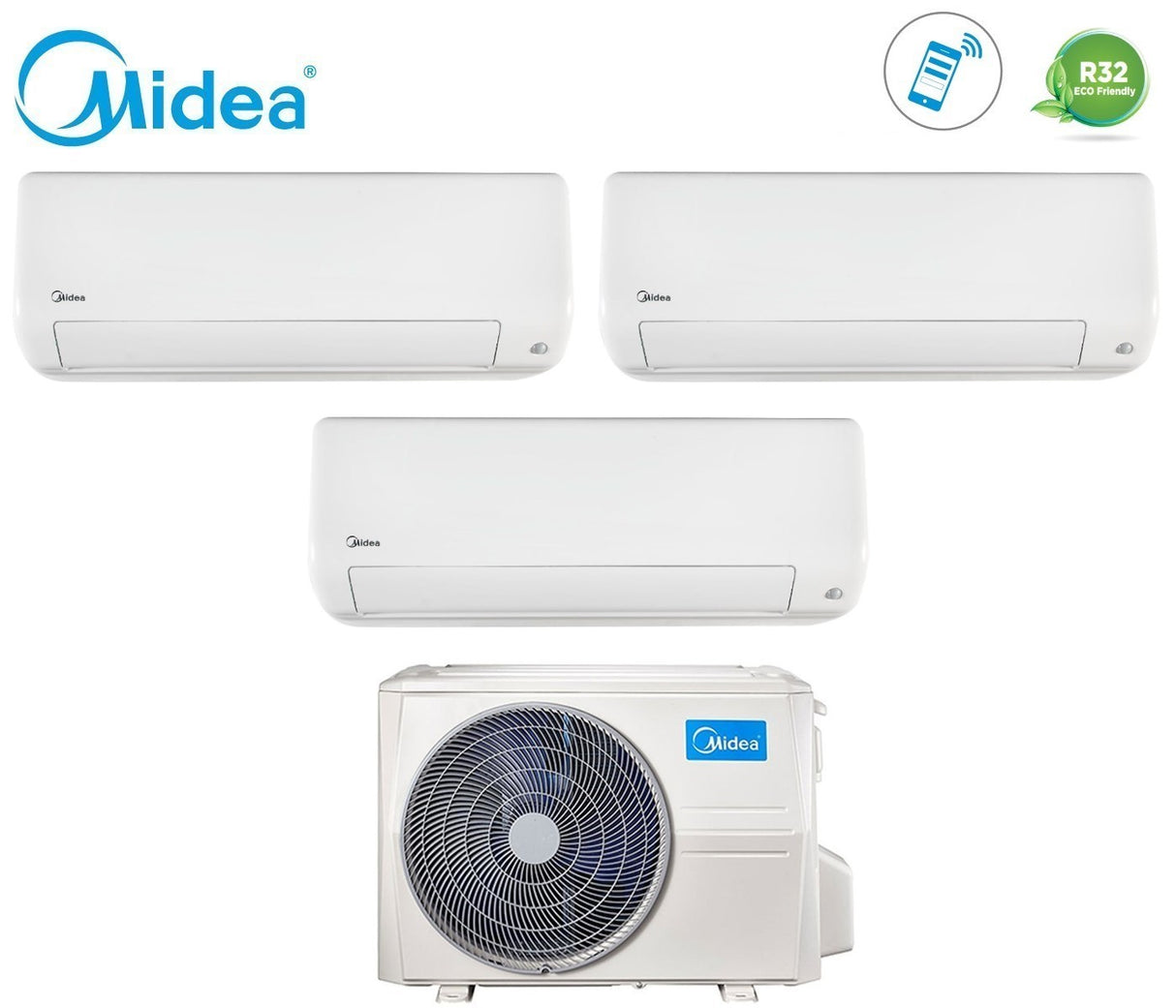

Midea Trial Split Inverter Air Conditioner ALL EASY PRO 12+12+12 series with M3OF-27HFN8-Q R-32 Integrated Wi-Fi 12000+12000+12000
Midea Trial Split Inverter Air Conditioner ALL EASY PRO 12+12+12 series with M3OF-27HFN8-Q R-32 Integrated Wi-Fi 12000+12000+12000 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
How shipping works
How shipping works
I costi di spedizione variano a seconda del peso e della modalità di spedizione dell'ordine.
I nostri servizi di spedizione:
- Spedizione standard: consegna stimata dai 2 ai 5 giorni lavorativi
- Spedizione Premium: consegna garantita in 24 ore lavorative
- Spedizione Premium + Consegna al piano: consegna garantita in 24 ore lavorative
Consulta le tabelle per i prezzi della spedizione standard per l'Italia e per le Isole Minori e Zone Disagiate.
Per ulteriori dettagli sulla Spedizione Premium, consulta la pagina di spedizione premium.
Servizio clienti
Servizio clienti
Il nostro servizio di assistenza è dedicato a fornire supporto ai nostri clienti per qualsiasi problema o domanda che possano avere prima o dopo l’acquisto dei nostri prodotti.
Utilizza il canale di comunicazione diretta per parlare con un nostro operatore, oppure inviaci una mail ad uno degli indirizzi elencati nella pagina contattaci.
Il nostro team di assistenza clienti è composto da professionisti altamente qualificati e sempre pronti ad aiutare i clienti a risolvere qualsiasi problema o rispondere a qualsiasi domanda in modo rapido ed efficiente. Ci impegniamo a garantire la massima soddisfazione del cliente e a fornire un servizio di assistenza post-vendita di altissima qualità. Quindi, se hai bisogno di assistenza, non esitare a contattarci; saremo lieti di aiutarti in ogni modo possibile.
Description
Description
Technical features
Internal Units
- Indoor Unit Catalog Code: 3x MSEPBU-12HRFN8
- EAN: 8052705161854E12
- Power: 12000 Btu
- Cooling Capacity: 3.50 kW
- Heating capacity:: 3.80 kW
- Air flow: 290~560 m 3 /h
- Sound Power Level: 59 dB(A)
- Sound pressure level: 22~40 dB(A)
- Liquid pipe diameter: 6.35 mm (1/4")
- Gas pipe diameter: 9.52 mm (3/8")
- Internal Unit Dimensions (WxDxH): 795x225x295 mm
- Internal Unit Weight: 10.2 Kg
- Integrated Wi-Fi
- Outdoor Unit Catalog Code: M3OF-27HFN8-Q
- EAN: 8052705160116
- Connectable Internal Units: 3
Energy efficiency:
- SEER : 6.1
- SCOP: 4
- Cooling Energy Efficiency Class: A++
- Heating Energy Efficiency Class: A+
- Annual energy consumption in Cooling: 453 kWh/a
- Annual energy consumption in Heating: 1993 kWh/a
Performance:
- Cooling Capacity: 7.91 kW
- Heating Capacity: 8.21 kW
- Std Cooling Absorption: 2450 W
- Std Heating absorption: 2200 W
- Sound power level: 67 dB(A)
- Sound pressure level: 54 dB(A)
Characteristics:
- Power (V/Hz/Φ): 220~240/50/1
- Refrigerant gas: R-32
- Guaranteed temperature range:
- - Cooling: -15° ~ 50°C
- - Heating: -15° ~ 24°C
- Pipe diameter Liquid: 6.35 mm (1/4") x3
- Gas pipe diameter: 9.52 mm (3/8") x3
- Maximum pipe length: 30 m
- Maximum internal unit / external unit height difference: 10 m External unit in position higher than internal units
- Maximum internal unit / external unit height difference: 15 m External unit positioned lower than internal units
Dimensions:
- External Unit Dimensions (WxDxH): 845x363x702 mm
- External Unit Weight: 51.1 Kg
Installing the indoor units is quick and easy, thanks to the graduated installation plate with integrated level and support bracket. The functional components can be disassembled in less than 1 minute. All Easy Pro is equipped with the Eco Eye function which allows you to check the presence of people in the rooms, activating an energy saving work cycle when they are not occupied, to reduce energy consumption. When using the product in dehumidification mode, it is possible to set a desired relative humidity value for the environment, so as not to excessively dry the air
Simplified installation and maintenance
A series of functions that allow you to install the product in less time. All functional parts of the unit can be removed with a few simple operations to facilitate cleaning and maintenance of the product
Intelligent eye
By pressing a button on the remote control, a sensor checks the presence of people in the room and, if no movement is detected in the room, a low energy consumption work cycle is activated
Smart drying
In dehumidification mode, it is possible to set the desired level of relative humidity in the room, in order to avoid excessively drying the air
Quick installation and easy maintenance
With Alle Easy Pro everything is easy, just 1 screw and 1 minute. Save 80% maintenance time compared to standard indoor units
Quick installation
- With All Easy Pro 6' 47 is enough
- Traditional system 11' 33"
Fan disassembly
- With All Easy Pro 1' 12" is enough
- Traditional 17' 37" system
PCB replacement
- 1' 3" is enough for assembly
- 1' 12" is enough for disassembly
Positioning and fixing of the plate without measuring tools
Quick installation with super thin plate equipped with graduated scale and integrated level
1. Mark guide point A following the instructions on the plate
2. Move the plate downwards until it meets the reference hole
3. Align the plate with the built-in level and mark the hole on the other side
Wiring in just 3 seconds
The pipe fixing clip folds to keep the product raised while connecting the pipes, offering plenty of space to facilitate all fitting tightening operations
Freedom of installation
- Maximum height difference of the pipes: 25 m
- Maximum pipe length: 50 m
A minimum distance from the ceiling of only 5 cm is required
Cleanliness and hygiene
Cleaning the internal fan is easy, thanks to the innovative design that allows disassembly in 1 minute with just 1 screw. This way you can save time and money to dedicate yourself to what you love
A flexible solution
Thanks to the extreme flexibility of All Easy Pro, you can install it at a minimum distance from the ceiling of just 5 cm, allowing optimal cooling of the environment
Simplified filter cleaning
All Easy Pro is hygienic and practical: 6 magnetic connectors hold the upper filter in place to allow it to be removed and cleaned whenever you want
Intelligent Eye Eco Master
The Intelligent Eye function automatically activates energy saving mode when it detects an empty room, thus reducing energy costs by up to 25%
Smart Kit App with voice control
With All Easy Pro technology, you can control the air conditioner with your voice or with the Midea Air app
Control your climate with your voice
The air conditioner is compatible with Amazon Echo, Google Home, Apple HomeKit.
Controlling the comfort in your home has never been easier. Thanks to the integration with the latest generation technologies Echo Voice Command by Amazon Alexa, Google Home and Apple HomeKit you will be able to "ask" your air conditioner for the best for you, with Midea.
Single and Multi Internal Units
The internal units are multipurpose so that they can be connected in both Mono and Multi configurations. You can therefore decide to install a Mono and add further units in the future.
Follow Me function
The room temperature can be detected by a special sensor located in the infrared control, in order to obtain a more precise detection
Emergency function
In the event of a failure of one of the product's sensors, operation can continue in Emergency mode until the faulty part is replaced
Deflector orientation memory
At each restart, the vertical air deflector automatically positions itself in the last used angle
Midea Mutlisplit Outdoor Unit
Midea external units are designed with the highest standards, to combine performance and design, thanks to the innovative diamond-cut shape, without sharp edges and without visible screws at the front panel. The air expulsion grille, inspired by Archimedes' screw, contains a newly developed fan, designed to reduce noise to a minimum. Finally, the T-shaped rib on the top panel allows for greater strength and stability
Free Combination
The units of the Multi range can be combined with different types of internal units of different sizes, in order to obtain the most correct configuration for the installation environment
Condensation control
The units of the Multi line can operate in cooling mode even at low external temperatures to air condition all environments where cooling is necessary even in the winter season
Low noise
The adoption of new compressors and latest generation sound-absorbing materials allows the units of the Multi range to be very silent
Electronically controlled expansion valves
The flow of refrigerant directed towards each indoor unit is managed through an electronically controlled expansion valve, in order to obtain maximum precision in managing the refrigerant flow
High length of pipes
The outdoor units of the multi range allow a long pipe length and a very high difference in height
Diamond Design Outdoor Unit
Innovative diamond cut shape with no sharp edges and no visible screws. The air exhaust grille contains a newly designed fan to reduce noise to a minimum.
Diagnostic monitor
On the units there is an alphanumeric display which, in addition to indicating the fault codes, allows you to read all the operating parameters of the system to simplify maintenance and assistance operations
Product Warranty: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase
Scheda Tecnica
Scheda Tecnica
- peso: 75.0 kg
- classe energetica raffreddamento: A++
- classe energetica riscaldamento: A+
- gas: R-32
- marca: Midea
- modello: ALL_EASY_PRO_12+12+12_27_1
- potenza btu: 12000+12000+12000
- superficie riscaldabile mq: 35/35/35
