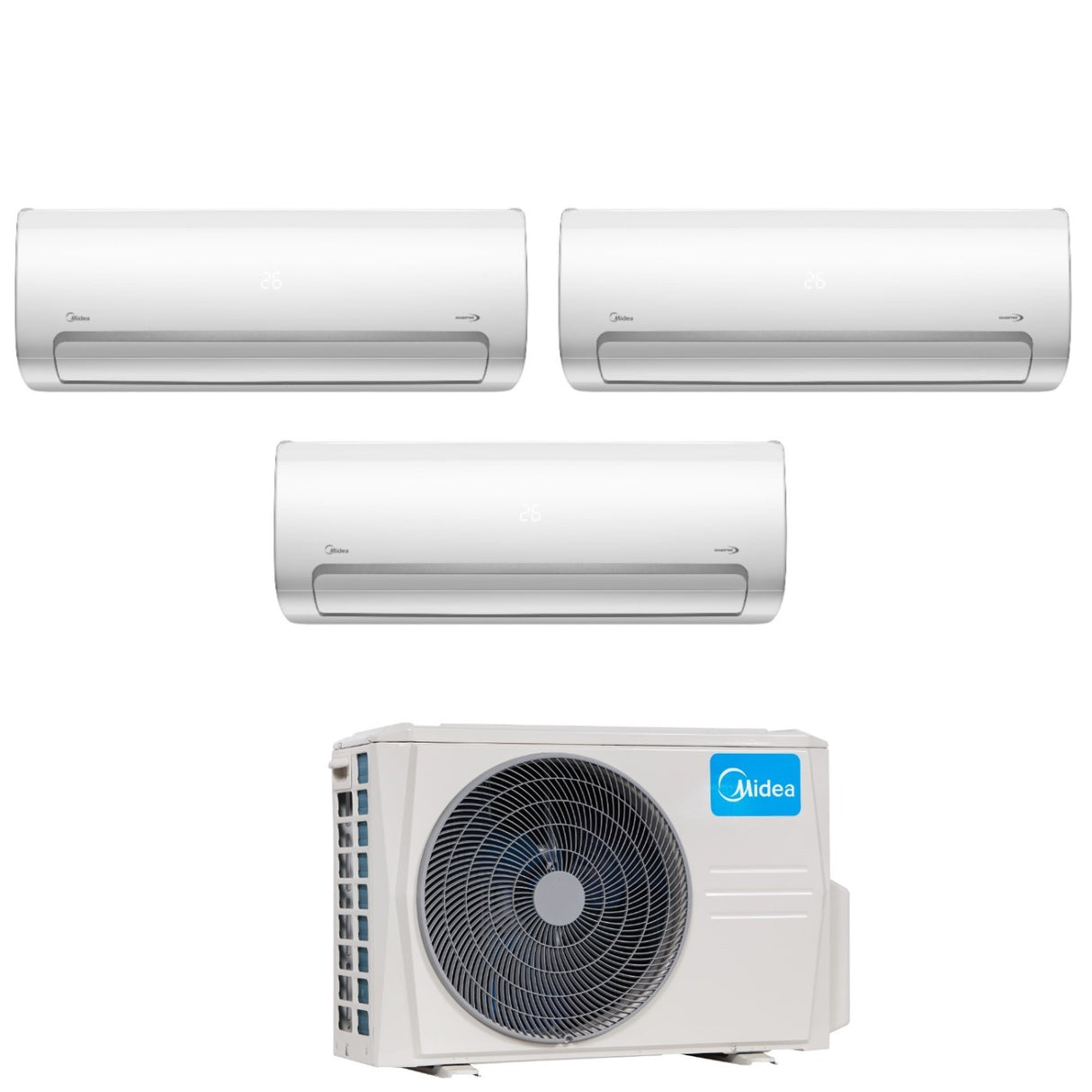

MIDEA TRIAL SPLIT INVERTER AIR CONDITIONER MISSION PRO 12+12+12 series with M3O-27NF8 R-32 Wi-Fi OPTIONAL 12000+12000+12000

Name: MIDEA TRIAL SPLIT INVERTER AIR CONDITIONER MISSION PRO 12+12+12 series with M3O-27NF8 R-32 Wi-Fi OPTIONAL 12000+12000+12000
Brand: Midea
SKU: CLIMAT_0192124241210
Price: 1384.0 EUR
Availability: OutOfStock

€1.384,00 VAT included

Tax included Shipping calculated at checkout.

How shipping works

I costi di spedizione variano a seconda del peso e della modalità di spedizione dell'ordine.

I nostri servizi di spedizione:

Spedizione standard: consegna stimata dai 2 ai 5 giorni lavorativi
Spedizione Premium: consegna garantita in 24 ore lavorative
Spedizione Premium + Consegna al piano: consegna garantita in 24 ore lavorative

Consulta le tabelle per i prezzi della spedizione standard per l'Italia e per le Isole Minori e Zone Disagiate.

Per ulteriori dettagli sulla Spedizione Premium, consulta la pagina di spedizione premium.

Servizio clienti

Il nostro servizio di assistenza è dedicato a fornire supporto ai nostri clienti per qualsiasi problema o domanda che possano avere prima o dopo l’acquisto dei nostri prodotti.

Utilizza il canale di comunicazione diretta per parlare con un nostro operatore, oppure inviaci una mail ad uno degli indirizzi elencati nella pagina contattaci.

Il nostro team di assistenza clienti è composto da professionisti altamente qualificati e sempre pronti ad aiutare i clienti a risolvere qualsiasi problema o rispondere a qualsiasi domanda in modo rapido ed efficiente. Ci impegniamo a garantire la massima soddisfazione del cliente e a fornire un servizio di assistenza post-vendita di altissima qualità. Quindi, se hai bisogno di assistenza, non esitare a contattarci; saremo lieti di aiutarti in ogni modo possibile.

Description

Technical features

Internal Units

1) Model:

Model: 3 x Mission Pro MSMBBU-12HRFN8
Power: 12000 btu/h

Performance:

Cooling Capacity (kW): 3.52
Heating Capacity (kW): 3.81
Air flow (min-med-max) m3/min 4.0-6.2-8.3
Sound pressure (Silent-Min-Med-Max) dB(A) 19-24-32-40
Sound power (Hi) dB(A) 56

Dimensions:

Connection hose (liquid): 6.35mm (1/4”)
Connection hose (gas): 9.52mm (3/8”)
Internal Unit WxDxH (mm): 810×200×300; 8.5kg

External Unit

Model:

Catalog code: M3O-27FN8-Q
Gases: R-32
Max combinable internal units: 3
Power (V/Hz/Φ): 220~240/50/1

Capacity:

Cooling down

Nominal Capacity kW: 7.91
Power Absorption (Max): W 2460
SEER Seasonal energy efficiency: 6.6
Energy Efficiency Class: A++
Annual energy consumption KWh/A: 425

Heating

Nominal Capacity kW: 8.21
Power Absorption (Max): W 2250
SCOP Seasonal energy efficiency (W/W): 4.0
Energy Efficiency Class: A+
Annual energy consumption KWh/A: 1960

Performance:

Outdoor Unit Air Flow: m3/h 2700
Max. External Unit Sound Pressure (dB(A)): 59
Sound power (Max) dB(A): 65
Cooling/Heating operating range (°C): -15°~50°/-15°~24°
Operating limit temperature (Tol) °C -15

Dimensions:

Outdoor Unit (WxDxH) (mm): 845x363x702; 53 kg
Max. Total length/ each IU 30/20 m
Piping length (min per unit): 3 m
Max. height difference (each IU) 10 m

MIDEA Multi Line

Midea's range of MULTI systems is one of the most complete and extensive on the market, and covers all the user's installation needs, starting from Dual systems up to Penta combinations. The depth of the range also includes the internal units, available across all the main categories, such as Split, Ducted, 4-way Cassette, and Floor Console: all air conditioning systems characterized by very high efficiency, both in cooling and heating modes. To broaden the scope of possible installations, all Midea MULTI Lines are " Free Match ": internal units of different types can be connected to each external unit.

Relevant Features:

Outdoor unit "Diamond"

Midea external units are made with the innovative diamond-cut shape, without sharp edges and without visible screws at the front panel. The air expulsion grille, inspired by Archimedes' screw, contains a newly designed fan to reduce noise to a minimum. The T-shaped rib on the top panel allows for greater strength and stability.

High efficiency HSS compressors

The compressors used by Midea are characterized by a robust and reliable structure designed to operate at high temperature and pressure conditions in order to guarantee maximum reliability over time.

Easy Installation

The MULTI Midea condensing units allow the connection of up to 5 internal units of any type. Each single indoor unit can be controlled totally independently.

Energy saving

Precise inverter sine wave control and active PFC technology guarantee minimum energy absorption and the maximum level of silence.

The Midea group was among the first companies to introduce the use of low GWP (Global Warming Potential) refrigerants in its products to counteract the effects of atmospheric overheating and the feared "Greenhouse Effect"

- Low GWP Index

Thanks to the reduced value of the GWP index (675), the R32 refrigerant is characterized by CO2 equivalent emissions that are significantly lower than those of other HFC refrigerants.

- Energy saving

Comparative tests highlight how, under the same conditions, the new R32 refrigerant guarantees a specific efficiency 2% higher than R410A

- Simple installation

Midea has developed a range of internal units that can be applied both to external units that use R32 refrigerant and to external units that use R410A refrigerant. In this way, warehouse logistics and the association of internal and external units is very simple and intuitive.

General characteristics

MIDEA Mission Pro

Series Features:

Self-diagnosis In the event of a failure, a fault code system allows users to be notified of defects in a simple and clear manner to quickly activate the assistance service.

Four inverters Quattro inverter technology consists in the adoption of linear regulation systems for the speed of the internal fan (selectable between 1% and 100%), regulation of the temperature required in the room at units of 0.5 °C and step-less linear modulation of compressor and fan of the outdoor unit.

1W Stand By In the event of a prolonged shutdown, the internal units completely remove the power supply to the external unit, reducing electricity consumption in the Stand By phase.

Refrigerant Leak Alarm If the temperatures of the refrigeration circuit are irregular due to refrigerant gas leaks, a specific fault code (EC) allows this condition to be identified.

GEAR function The MISSION-PRO units are equipped with the GEAR function which allows you to limit the maximum rotation speed of the compressor and the consequent capacity delivered, significantly improving the specific efficiency of the product.

Follow Me function The room temperature can be detected by a special sensor located in the infrared control, in order to obtain a more precise detection.

Do Not Disturb function By pressing a button on the remote control it is possible to silence all the audible alarms, turn off the display of the internal unit and reduce the speed of the internal fan to a rotation speed lower than the minimum one, which can normally be selected.

Condensation control The MISSION-PRO units can work in cooling mode even with a low external temperature to air-condition technical rooms.

ECO function This function allows you to limit the rotation frequency of the compressor to reduce the capacity delivered and significantly increase the specific efficiency of the product during use in cooling mode.

Hydrophilic Aluminium The outdoor unit heat exchanger is treated with a special coating to improve resistance to corrosion from atmospheric agents. Suitable for installations in coastal areas or particularly humid areas. Under the same environmental conditions, the new coating of the Midea condensers guarantees them a longevity up to 7 times greater than traditional models.

Multipurpose Mono and Multi Split Internal Units The MISSION-PRO internal units can be connected with the external units for Mono Split (R32) or with the external units of the multi range (R410A).

Wi-Fi Control (Optional)

Thanks to the presence of a special Smart Kit and the App available for both iOS and Android applications, it is possible to control the operation of Midea air conditioners in any situation: using the remote control, or directly from a smartphone. Furthermore, the App has been designed to offer even more functionality and ease of use.

Midea Air allows you to use some exclusive functions.

Smart diagnosis Thanks to the diagnostic program present in the application, the reference values of over 100 operating parameters present in the product can be verified to evaluate the correct functioning of the system peripherals.

Weekly timer The turning on and off of the product can be set on a weekly basis from the App to program the use of the product even remotely.

Product Warranty: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.

Scheda Tecnica

peso: 75.0 kg
classe energetica raffreddamento: A++
classe energetica riscaldamento: A+
gas: R-32
marca: Midea
modello: CLIMAT_0192124241210
potenza btu: 12000+12000+12000
superficie riscaldabile mq: 35/35/35
