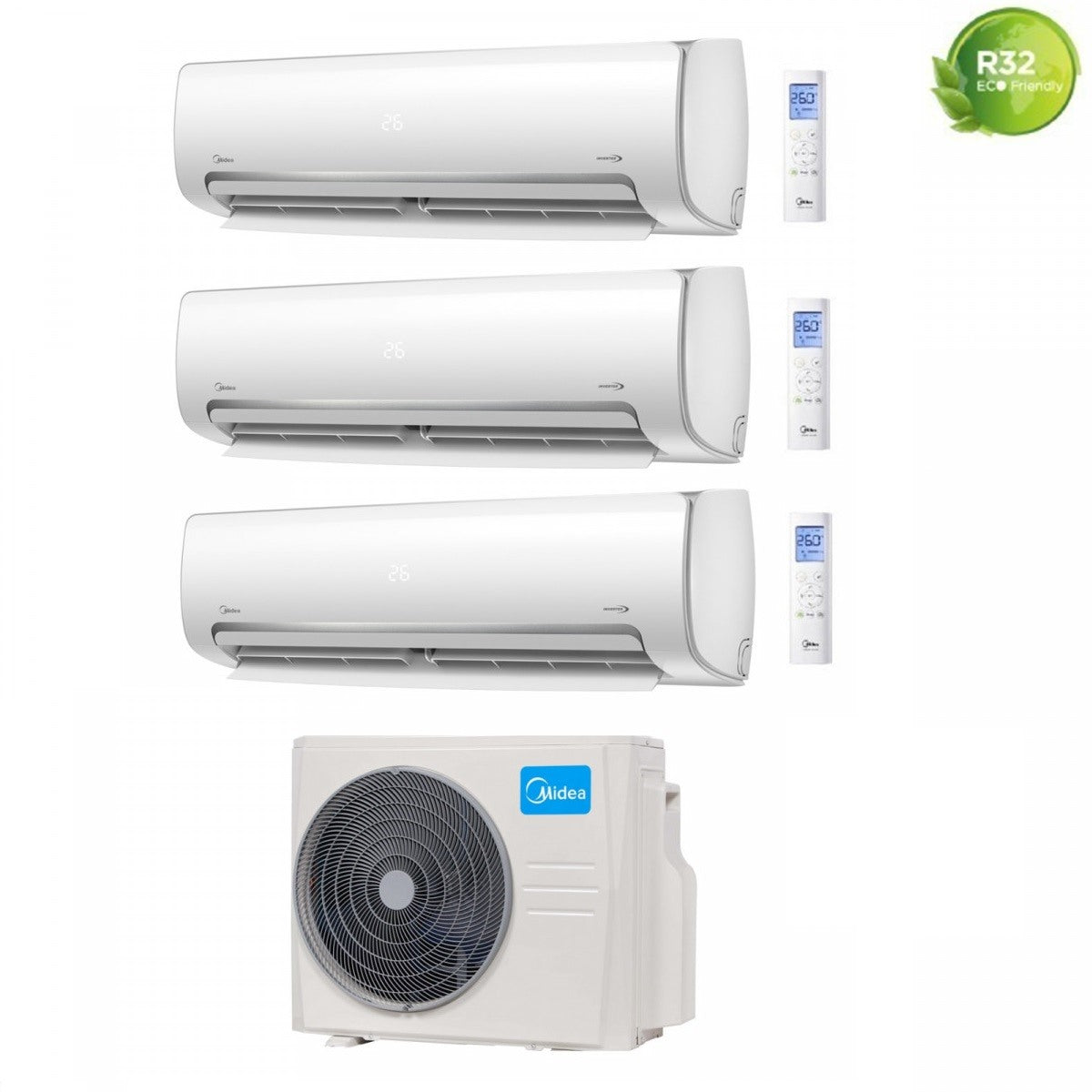

MIDEA TRIAL SPLIT INVERTER AIR CONDITIONER MISSION PRO 9+9+12 series with M3OF-21HFN8-Q R-32 Wi-Fi OPTIONAL 9000+9000+12000

MIDEA TRIAL SPLIT INVERTER AIR CONDITIONER MISSION PRO 9+9+12 series with M3OF-21HFN8-Q R-32 Wi-Fi OPTIONAL 9000+9000+12000

1) Model:

• Model: 2 x Mission Pro MSMBAU-09HRFN8
• Power: 9000 btu/h

Performance:

• Cooling Capacity (kW): 2.64
• Heating Capacity (kW): 2.93
• Air flow (min-med-max) m3/min 4.0-6.2-7.3
• Sound pressure (Silent-Min-Med-Max) dB(A) 19-24-31-39
• Sound power (Hi) dB(A) 55

Dimensions :

• Connection hose (liquid): 6.35mm (1/4”)
• Connection hose (gas): 9.52mm (3/8”)
• Internal Unit WxDxH (mm): 730×198×293 ; 7.4kg



2) Model:

• Model: Mission Pro MSMBBU-12HRFN8
• Power: 12000 btu/h

Performance:

• Cooling Capacity (kW): 3.52
• Heating Capacity (kW): 3.81
• Air flow (min-med-max) m3/min 4.0-6.2-8.3
• Sound pressure (Silent-Min-Med-Max) dB(A) 19-24-32-40
• Sound power (Hi) dB(A) 56

Dimensions:

• Connection hose (liquid): 6.35mm (1/4”)
• Connection hose (gas): 9.52mm (3/8”)
• Internal Unit WxDxH (mm): 810×200×300; 8.5kg

MIDEA Mission Pro

Series Features:

• Self-diagnosis In the event of a failure, a fault code system allows users to be notified of defects in a simple and clear manner to quickly activate the assistance service.



• Four inverters Quattro inverter technology consists in the adoption of linear regulation systems for the speed of the internal fan (selectable between 1% and 100%), regulation of the temperature required in the room at units of 0.5 °C and step-less linear modulation of compressor and fan of the outdoor unit.



• 1W Stand By In the event of a prolonged shutdown, the internal units completely remove the power supply to the external unit, reducing electricity consumption in the Stand By phase.



• Refrigerant Leak Alarm If the temperatures of the refrigeration circuit are irregular due to refrigerant gas leaks, a specific fault code (EC) allows this condition to be identified.



• GEAR function The MISSION-PRO units are equipped with the GEAR function which allows you to limit the maximum rotation speed of the compressor and the consequent capacity delivered, significantly improving the specific efficiency of the product.



• Follow Me function The room temperature can be detected by a special sensor located in the infrared control, in order to obtain a more precise detection.



• Do Not Disturb function By pressing a button on the remote control it is possible to silence all the audible alarms, turn off the display of the internal unit and reduce the speed of the internal fan to a rotation speed lower than the minimum one, which can normally be selected.



• Condensation control The MISSION-PRO units can work in cooling mode even with a low external temperature to air-condition technical rooms.



• ECO function This function allows you to limit the rotation frequency of the compressor to reduce the capacity delivered and significantly increase the specific efficiency of the product during use in cooling mode.



• Hydrophilic Aluminium The outdoor unit heat exchanger is treated with a special coating to improve resistance to corrosion from atmospheric agents. Suitable for installations in coastal areas or particularly humid areas. Under the same environmental conditions, the new coating of the Midea condensers guarantees them a longevity up to 7 times greater than traditional models.



• Multipurpose Mono and Multi Split Internal Units The MISSION-PRO internal units can be connected with the external units for Mono Split (R32) or with the external units of the multi range (R410A).

Wi-Fi Control (Optional)

Thanks to the presence of a special Smart Kit and the App available for both iOS and Android applications, it is possible to control the operation of Midea air conditioners in any situation: using the remote control, or directly from a smartphone. Furthermore, the App has been designed to offer even more functionality and ease of use.

Midea Air allows you to use some exclusive functions.

• Smart diagnosis Thanks to the diagnostic program present in the application, the reference values ​​of over 100 operating parameters present in the product can be verified to evaluate the correct functioning of the system peripherals.

• Weekly timer The turning on and off of the product can be set on a weekly basis from the App to program the use of the product even remotely.

• peso: 75.0 kg
• classe energetica raffreddamento: A++
• classe energetica riscaldamento: A+
• gas: R-32
• marca: Midea
• modello: 9+9+12missionpro+21
• potenza btu: 9000+9000+12000
• superficie riscaldabile mq: 25/25/35
