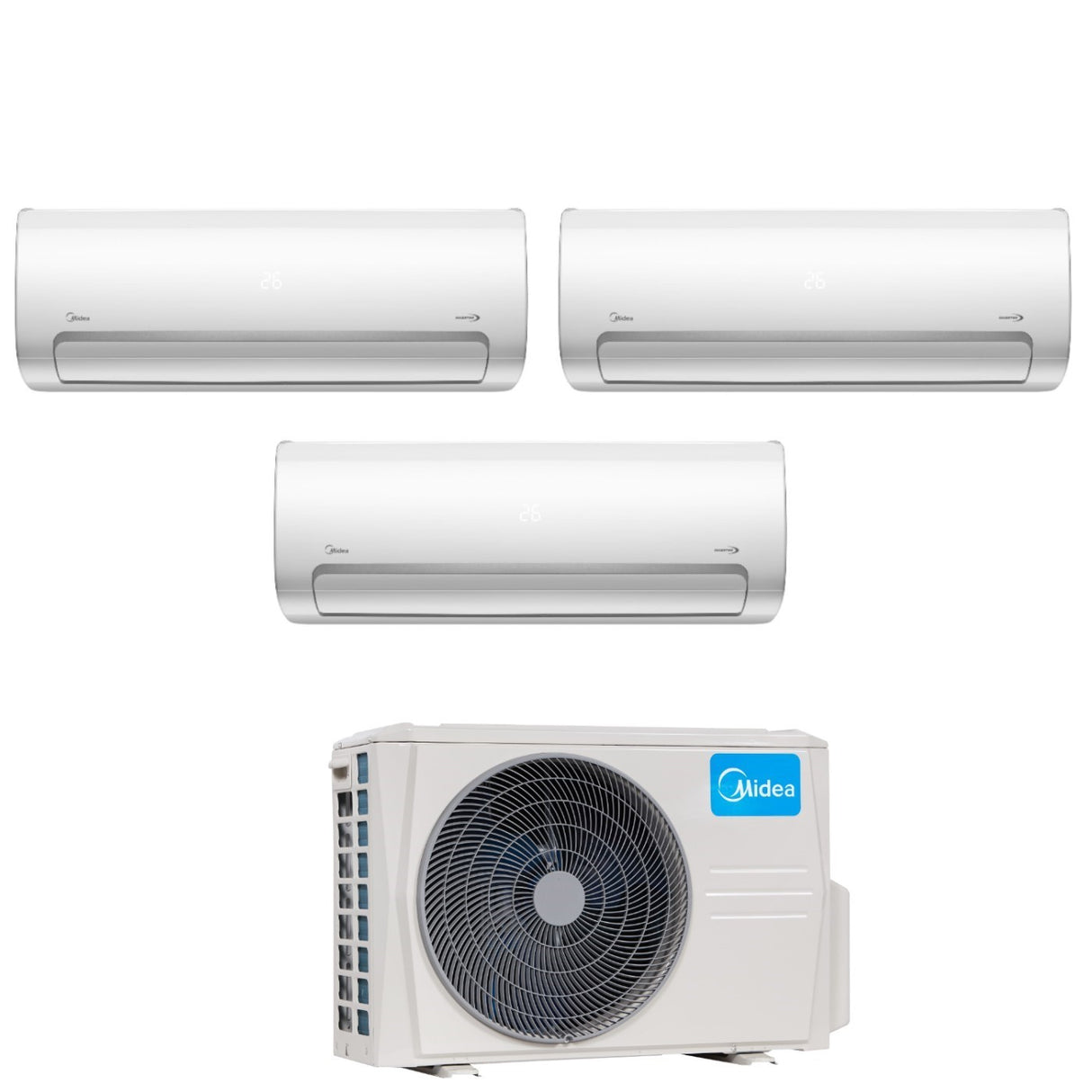

Midea Trial Split Inverter Air Conditioner MISSION PRO 9+9+18 series with M3O-36NF8 R-32 Optional Wi-Fi 9000+9000+18000 Midea CE-SK 102 Wi-Fi Kit (x3)

2) Model:

• Indoor Unit Code: 1x MSMBCU-18HRFN8
• Power: 18000 Btu
• Cooling Capacity: 5.30 kW
• Heating capacity: 5.50 kW
• Air flow rate: 500-580-750 m ³ /h
• Liquid tubing: 6.35 mm (1/4)
• Gas pipe: 12.7 mm (3/8)
• Internal Unit Dimensions: 980x225x325 mm
• Internal Unit Weight: 10.7 Kg
• Wi-Fi Optional: Code CE-SK 102

External Unit:

Model :

• Outdoor Unit Code: M3O-36NF8
• Connectable Internal Units: 3

Energy efficiency:

• SEER : 6.1 (W/W)
• SCOP : 4.0 (W/W)
• Energy Efficiency Class (Cooling): A++
• Energy Efficiency Class (Heating): A+
• Annual energy consumption Cooling/Heating: 453/1993 kWh/a

Performance:

• Cooling Capacity: 2.88-7.91-8.50 kW
• Heating capacity: 1.99-8.21-8.50 kW
• Std Cooling Absorption: 240-2450-3220 W
• Std Heating absorption: 320-2200-2840 kW
• Sound power level: 67 dB(A)
• Sound pressure level: 54 dB(A)

Characteristics:

• Power (V/Hz/Φ): 220~240/50/1
• Refrigerant gas: R-32
• Guaranteed temperature range:
• - Cooling: -15~48°C
• - Heating: -15~24°C
• Liquid piping: 6.35 mm (1/4)
• Gas pipes: 9.52 mm (3/8)

Dimensions:

• External Unit Dimensions (WxHxD): 845x363x702 mm
• External Unit Weight: 51.1 Kg

Midea

Midea external units are designed with the highest standards, to combine performance and design, thanks to the innovative diamond-cut shape, without sharp edges and without visible screws at the front panel. The air expulsion grille, inspired by Archimedes' screw, contains a newly developed fan, designed to reduce noise to a minimum. Finally, the T-shaped rib on the top panel allows for greater strength and stability

Mission Pro

Mission PRO is the ideal solution for those who want to combine environmental sustainability, high performance and safety. Such a product
as powerful as it is silent, capable of guaranteeing optimal rest for each member of the family. As with the entire residential range,
Mission PRO is also equipped with Midea's flagship technology, the QuattroTM Inverter, silent and with excellent performance with attention to domestic consumption

The ideal solution for those who care about the environment and saving money: Mission PRO combines high performance, reduced consumption and safety in a single product. An air conditioner that is as powerful as it is silent, to guarantee the whole family the best rest

Gear function

The Mission PRO units are equipped with the Gear function which allows you to limit the maximum rotation speed of the compressor and the consequent capacity delivered, significantly improving the specific efficiency of the product. The internal unit display is able to show, in addition to the selected temperature, also the room temperature and the instantaneous electrical power absorbed during operation

iECO function

Thanks to this function it is possible to limit the rotation frequency of the compressor to reduce the capacity supplied and significantly increase the specific efficiency of the product during use in cooling mode

"Do Not Disturb" function

Thanks to a simple button on the remote control it is possible to silence all the acoustic warnings, turn off the display of the internal unit and reduce the speed of the internal fan to a rotation speed lower than the minimum one, normally selectable

Linear Adjustment of Internal Fan Rotation Speed

The rotation speed of the internal fan, beyond the usual predefined levels of activity, can be adjusted within the values ​​1-100%

Wi-Fi Optional

Can be controlled with a smartphone via the Wi-Fi line . You control the temperature of your home or office all year round. By purchasing a special SMART KEY and installing the APP on your iOS or Android mobile device, it is possible to control every function of the air conditioner even remotely. Note: the room where the air conditioner is installed must be covered by a home Wi-Fi network

Product Warranty: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.
