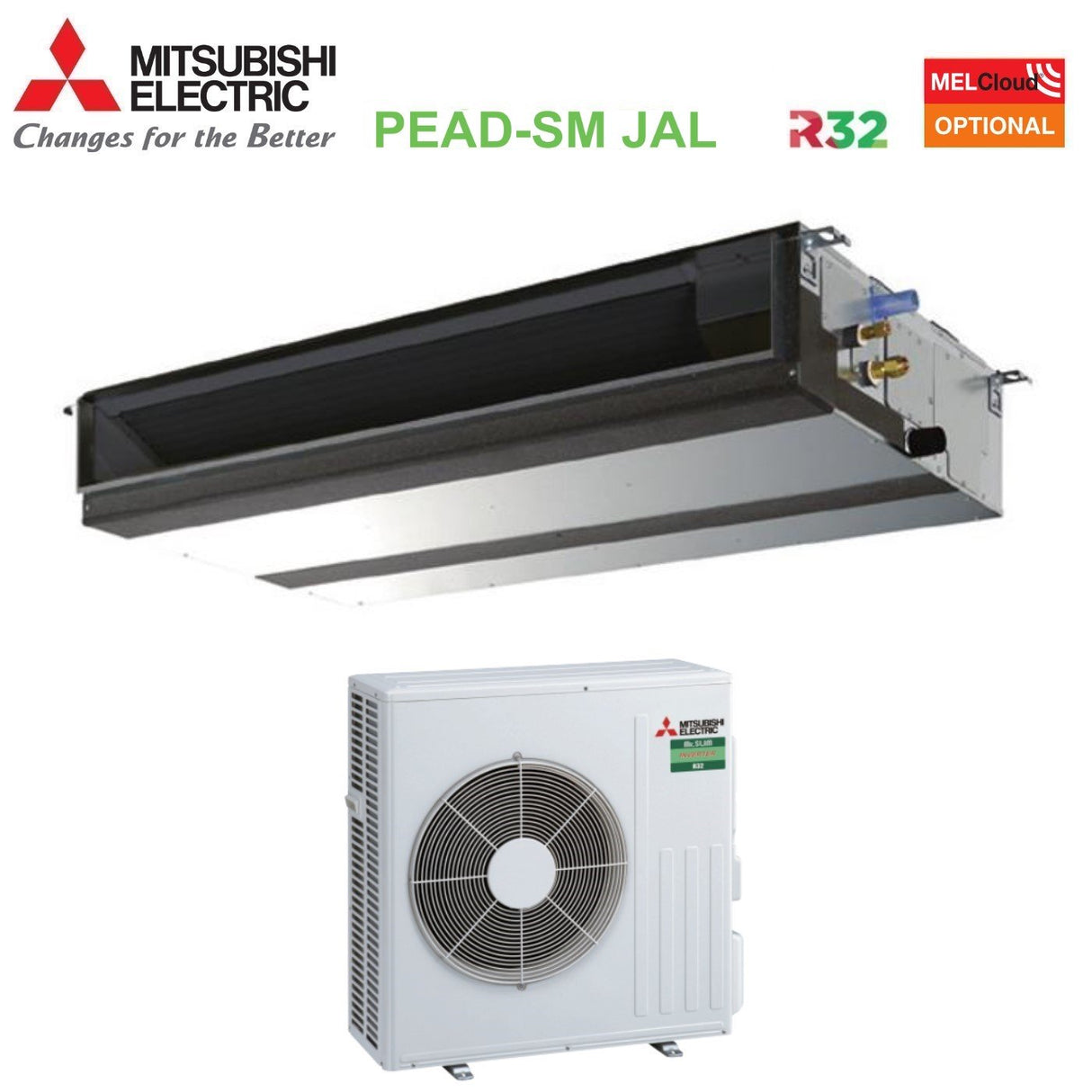

Mitsubishi Electric Ducted Air Conditioner Ducted Inverter Medium Head 24000 Btu PEAD-SM71JAL + SUZ-SM71VA Single Phase R-32 Wi-Fi Optional
Mitsubishi Electric Ducted Air Conditioner Ducted Inverter Medium Head 24000 Btu PEAD-SM71JAL + SUZ-SM71VA Single Phase R-32 Wi-Fi Optional is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
How shipping works
How shipping works
Shipping costs vary depending on the weight and shipping method of the order.
Our shipping services
Standard Shipping: estimated delivery in 2 to 5 working days
Premium Shipping: guaranteed delivery in 24 working hours
Premium Shipping + Flat Delivery: guaranteed delivery in 24 working hours
Please refer to the tables for Standard Shipping prices for Italy and for Minor Islands and Disturbed Areas.
For further details on Premium Shipping, please see the Premium Shipping page.
Customer service
Customer service
Our service department is dedicated to providing support to our customers for any problems or questions they may have before or after purchasing our products.
Use the direct communication channel to speak to one of our operators, or send us an e-mail to one of the addresses listed on the contact us page.
Our customer service team consists of highly qualified professionals who are always ready to help customers solve any problems or answer any questions quickly and efficiently. We strive to ensure maximum customer satisfaction and provide the highest quality after-sales service. So, if you need assistance, please do not hesitate to contact us; we will be happy to help you in any way we can.
Description
Description
Technical features
- Indoor unit catalog code: PEAD-SM71JAL
- Outdoor unit catalog code: SUZ-SM71VA
- Power: 24000 btu
- Optional Wi-Fi card: MAC-567IF-E
- Optional remote control: PAR-FL32MA-E
- Optional Infrared Receiver: PAR-FA32MA-W
- Simplified optional wired control: PAC-YT52CRA-K
- Optional Deluxe Wired Control: PAR-40MAA
- SEER : 5.5
- SCOP: 3.9
- Cooling Energy Efficiency Class: A
- Heating Energy Efficiency Class: A
- Annual Energy Consumption in Cooling: 451 kWh/a
- Annual Energy Consumption in Heating: 2080 Kwh/a
- Cooling Capacity: 7.1 kW
- Heating Capacity: 8.0 kW
- Cooling absorption: 2.08 kW
- Heating absorption: 2.21 kW
- Indoor Unit Treated Air: 17~25 m 3 /min
- Internal Unit Sound Power Level: 58 dB(A)
- External Unit Sound Power Level: 66 dB(A)
- Indoor Unit Sound Pressure Level: 26~34 dB(A)
- External Unit Sound Pressure Level: 49 dB(A)
Electrical Data
- Power (V,Hz, Ø): 220~240/50/1
- Refrigerant gas: R32
- Operating range
- - Cooling: -15° ~ 46° C
- - Heating: -10° ~ 24° C
- Liquid pipe diameter: 9.52 mm (3/8")
- Gas pipe diameter: 15.88 mm (5/8")
- Maximum length of pipes: 30 m
- Maximum height difference Internal Unit / External Unit: 30 m
Dimensions and weight
- Internal Unit Dimensions (HxWxD): 250x1100x732 mm
- Internal Unit Weight: 29 Kg
- External Unit Dimensions (HxWxD): 880x840x330 mm
- External Unit Weight: 55 Kg

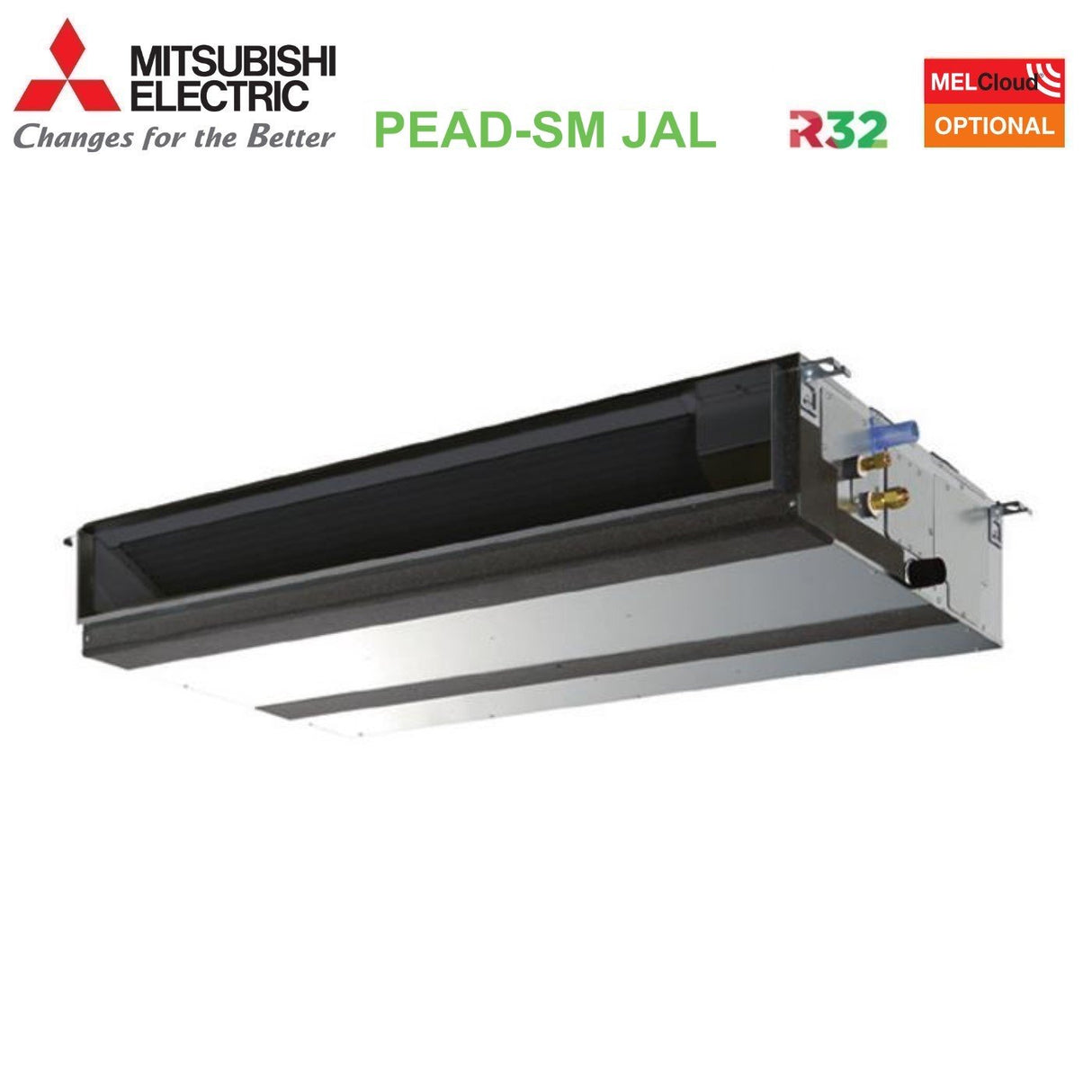

Mitsubishi Electric Ducted Medium Head Built- in Internal Unit, slim and perfect for small spaces
The built-in, slim and hidden internal units are the perfect solution for building air conditioning needs with the possibility of installing the internal units reduced to a minimum on the ceiling and a wider external static pressure
Compact indoor units
With a height reduced to approximately 250mm, ceiling installation of these units is possible even where space is extremely limited
External static pressure
The external static pressure conversion can be set to five levels. It is possible to set a maximum level of 150 Pa, the units are versatile and can be used in any type of building
MELCloud, Wi-Fi control
MELCloud is the new Wi-Fi control for your Mitsubishi Electric system. By taking advantage of the support of the cloud, the "Cloud", to transmit and receive information and the optional dedicated Wi-Fi interface MAC-567IF-E, you can easily control your system wherever you are via your PC, tablet or smartphone ; all you need is an internet connection. The MELCloud service was created to have maximum compatibility with PCs, Tablets and Smartphones thanks to dedicated Apps or via Web Browser.
One word is enough for you!
MELCloud is compatible with Google Home. By saying «Hey Google!», or «Ok Google!» you have full control of the climate control system. MELCloud is compatible with Amazon Alexa. One word will be enough to freely manage your air conditioning units
Product Warranty: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.
Specifications
Specifications
- peso: 80.0 kg
- classe energetica raffreddamento: A
- classe energetica riscaldamento: A
- costospedizionecad: IT49;AD165;AT106;BE111;BG136;HR123;DK175;EE170;FR144;DE102;LV131;LT123;LU80;NL119;PT114;CZ90;SK101;SI101;ES104;SE212;HU85;CH168;
- gas: R-32
- marca: MITSUBISHI ELECTRIC
- metri quadri : 80 - 100 m2
- modello: PEAD-SM71JAL + SUZ-SM71VA
- potenza btu: 24000
- superficie riscaldabile mq: 70
