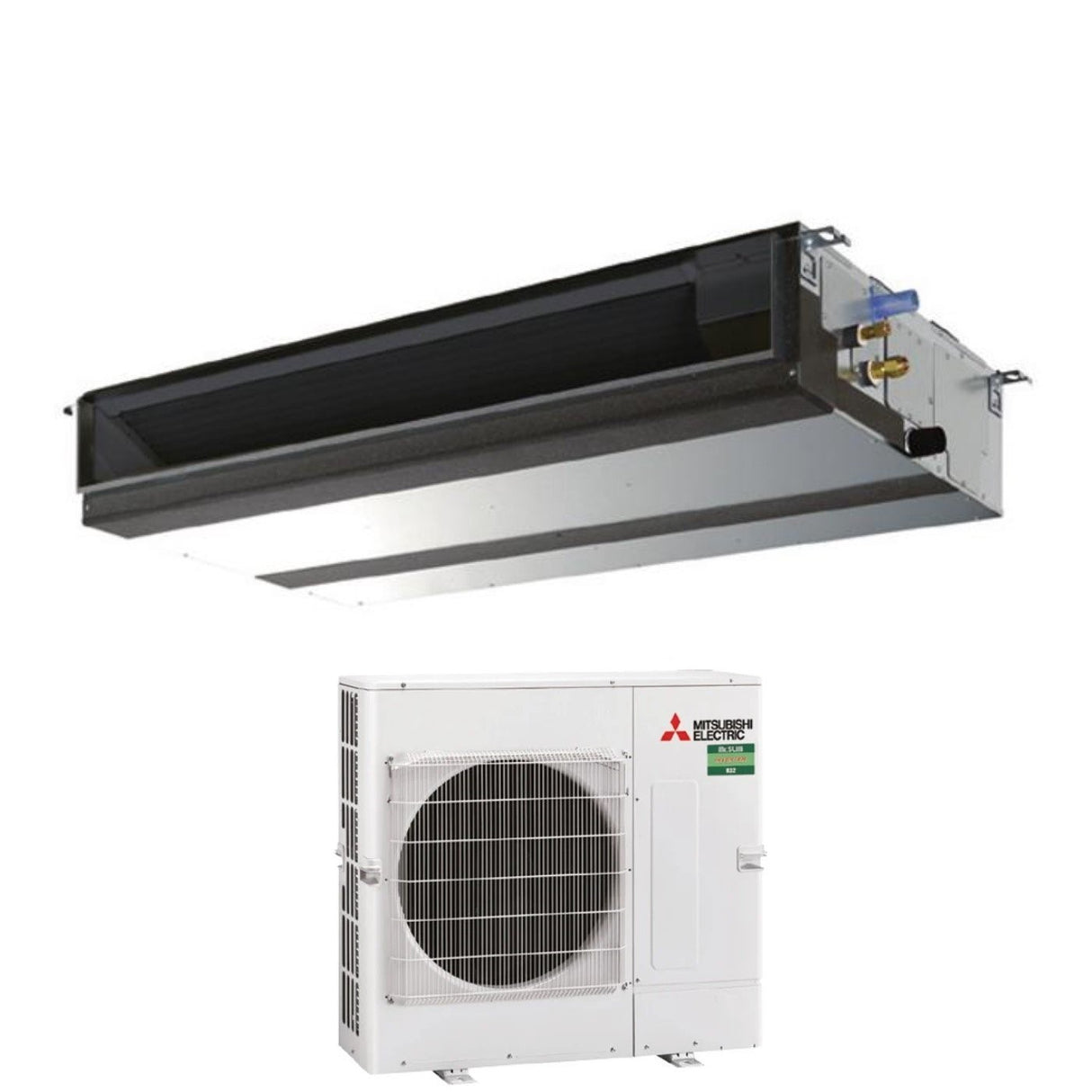

Mitsubishi Electric Air Conditioner Ducted Ducted Inverter Medium Head 42000 Btu PEAD-SM125JAL + PUZ-SM125YKA Three-phase R-32 Wi-Fi Optional
Mitsubishi Electric Air Conditioner Ducted Ducted Inverter Medium Head 42000 Btu PEAD-SM125JAL + PUZ-SM125YKA Three-phase R-32 Wi-Fi Optional is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
How shipping works
How shipping works
I costi di spedizione variano a seconda del peso e della modalità di spedizione dell'ordine.
I nostri servizi di spedizione:
- Spedizione standard: consegna stimata dai 2 ai 5 giorni lavorativi
- Spedizione Premium: consegna garantita in 24 ore lavorative
- Spedizione Premium + Consegna al piano: consegna garantita in 24 ore lavorative
Consulta le tabelle per i prezzi della spedizione standard per l'Italia e per le Isole Minori e Zone Disagiate.
Per ulteriori dettagli sulla Spedizione Premium, consulta la pagina di spedizione premium.
Servizio clienti
Servizio clienti
Il nostro servizio di assistenza è dedicato a fornire supporto ai nostri clienti per qualsiasi problema o domanda che possano avere prima o dopo l’acquisto dei nostri prodotti.
Utilizza il canale di comunicazione diretta per parlare con un nostro operatore, oppure inviaci una mail ad uno degli indirizzi elencati nella pagina contattaci.
Il nostro team di assistenza clienti è composto da professionisti altamente qualificati e sempre pronti ad aiutare i clienti a risolvere qualsiasi problema o rispondere a qualsiasi domanda in modo rapido ed efficiente. Ci impegniamo a garantire la massima soddisfazione del cliente e a fornire un servizio di assistenza post-vendita di altissima qualità. Quindi, se hai bisogno di assistenza, non esitare a contattarci; saremo lieti di aiutarti in ogni modo possibile.
Description
Description
Important Notice on Regulations for Fluorinated Gases IN ITALY
In accordance with Regulation (EU) No. 517/2014 and Presidential Decree No. 146/2018, equipment containing fluorinated gases that is not hermetically sealed can only be sold if installed by a certified company.
By law, each sale must be recorded in the Fluorinated Gas Database, including a declaration from the buyer ensuring that the installation complies with the regulations. Therefore, before completing the order, it will be necessary to provide this mandatory declaration.
Technical features
- Indoor unit catalog code: PEAD-SM125JAL
- Outdoor unit catalog code: PUZ-SM125YKA
- Power: 42000 btu
- Optional Wi-Fi card: MAC-567IF-E
- Optional remote control: PAR-FL32MA-E
- Optional Infrared Receiver: PAR-FA32MA-W
- Simplified optional wired control: PAC-YT52CRA-K
- Optional Deluxe Wired Control: PAR-40MAA
- SEER: 191.1%
- SCOP: 150.7%
- Energy Efficiency Class in Cooling: -
- Heating Energy Efficiency Class: -
- Annual Energy Consumption in Cooling: -
- Annual Energy Consumption in Heating: -
- Cooling Capacity: 12.1 kW
- Heating Capacity: 13.5 kW
- Cooling absorption: 4.17 kW
- Heating absorption: 3.85 kW
- Indoor Unit Treated Air: 29.5~42 m 3 /min
- Indoor Unit Sound Power Level: 66 dB(A)
- External Unit Sound Power Level: 72 dB(A)
- Indoor Unit Sound Pressure Level: 33~40 dB(A)
- External Unit Sound Pressure Level: 54 dB(A)
Electrical Data
- Power (V,Hz, Ø): 380~415/50/3
- Refrigerant gas: R32
- Operating range
- - Cooling: -15° ~ 46° C
- - Heating: -10° ~ 21° C
- Liquid pipe diameter: 9.52 mm (3/8")
- Gas pipe diameter: 15.88 mm (5/8")
- Maximum length of pipes: 40 m
- Maximum height difference Internal Unit / External Unit: 30 m
Dimensions and weight
- Internal Unit Dimensions (HxWxD): 250x1400x732 mm
- Internal Unit Weight: 39 Kg
- External Unit Dimensions (HxWxD): 981x1050x330 mm
- External Unit Weight: 84 Kg

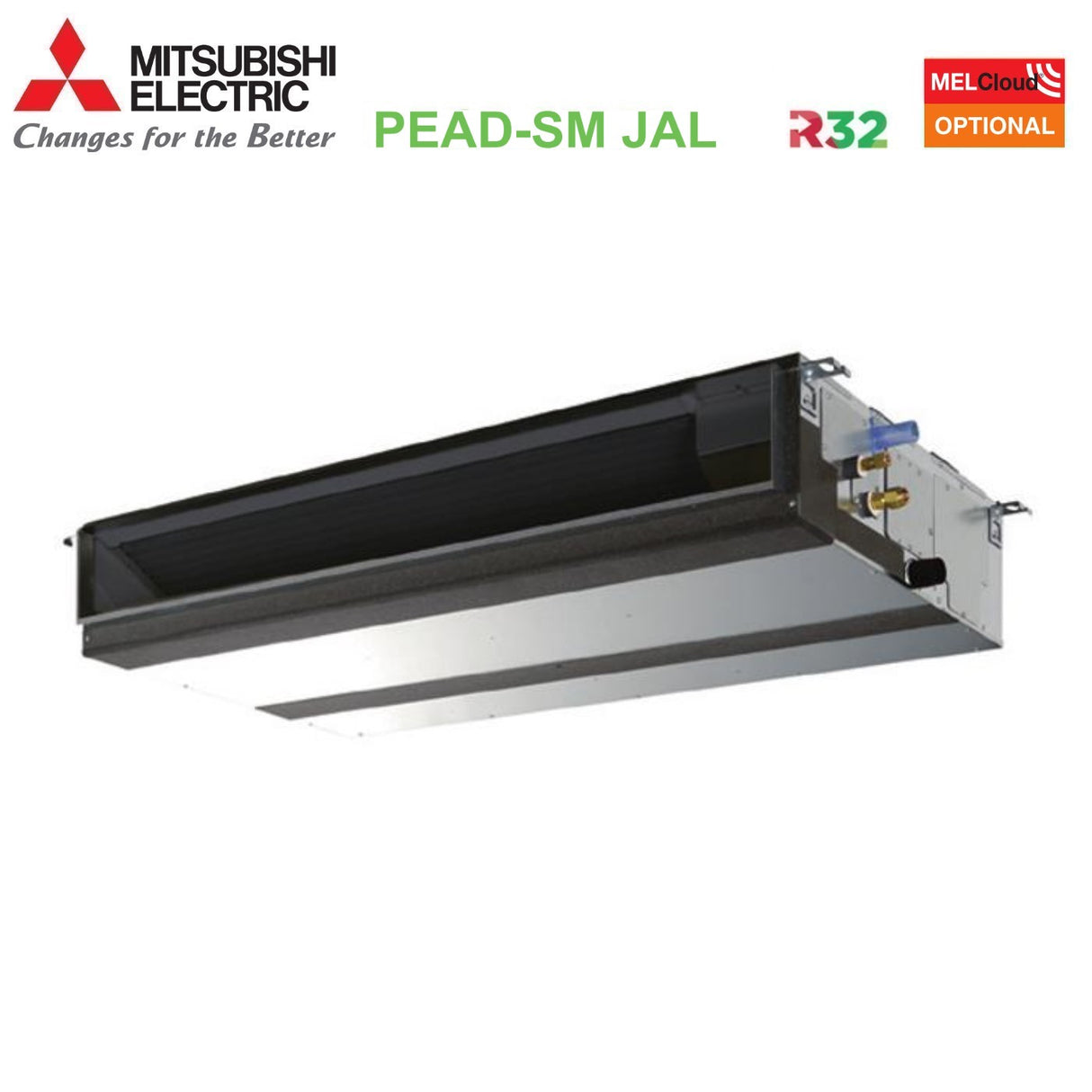

Mitsubishi Electric Ducted Medium Head Built- in Internal Unit, slim and perfect for small spaces
The built-in, slim and hidden internal units are the perfect solution for building air conditioning needs with the possibility of installing the internal units reduced to a minimum on the ceiling and a wider external static pressure
Compact indoor units
With a height reduced to approximately 250mm, ceiling installation of these units is possible even where space is extremely limited
External static pressure
The external static pressure conversion can be set to five levels. It is possible to set a maximum level of 150 Pa, the units are versatile and can be used in any type of building
MELCloud, Wi-Fi control
MELCloud is the new Wi-Fi control for your Mitsubishi Electric system. By taking advantage of the support of the cloud, the "Cloud", to transmit and receive information and the optional dedicated Wi-Fi interface MAC-567IF-E, you can easily control your system wherever you are via your PC, tablet or smartphone ; all you need is an internet connection. The MELCloud service was created to have maximum compatibility with PCs, Tablets and Smartphones thanks to dedicated Apps or via Web Browser.
One word is enough for you!
MELCloud is compatible with Google Home. By saying «Hey Google!», or «Ok Google!» you have full control of the climate control system. MELCloud is compatible with Amazon Alexa. One word will be enough to freely manage your air conditioning units
Product Warranty: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.
Scheda Tecnica
Scheda Tecnica
- peso: 130.0 kg
- gas: R-32
- marca: MITSUBISHI ELECTRIC
- metri quadri : 160 - 180 m2
- modello: PEAD-SM125JAL + PUZ-SM125YKA
- potenza btu: 42000
