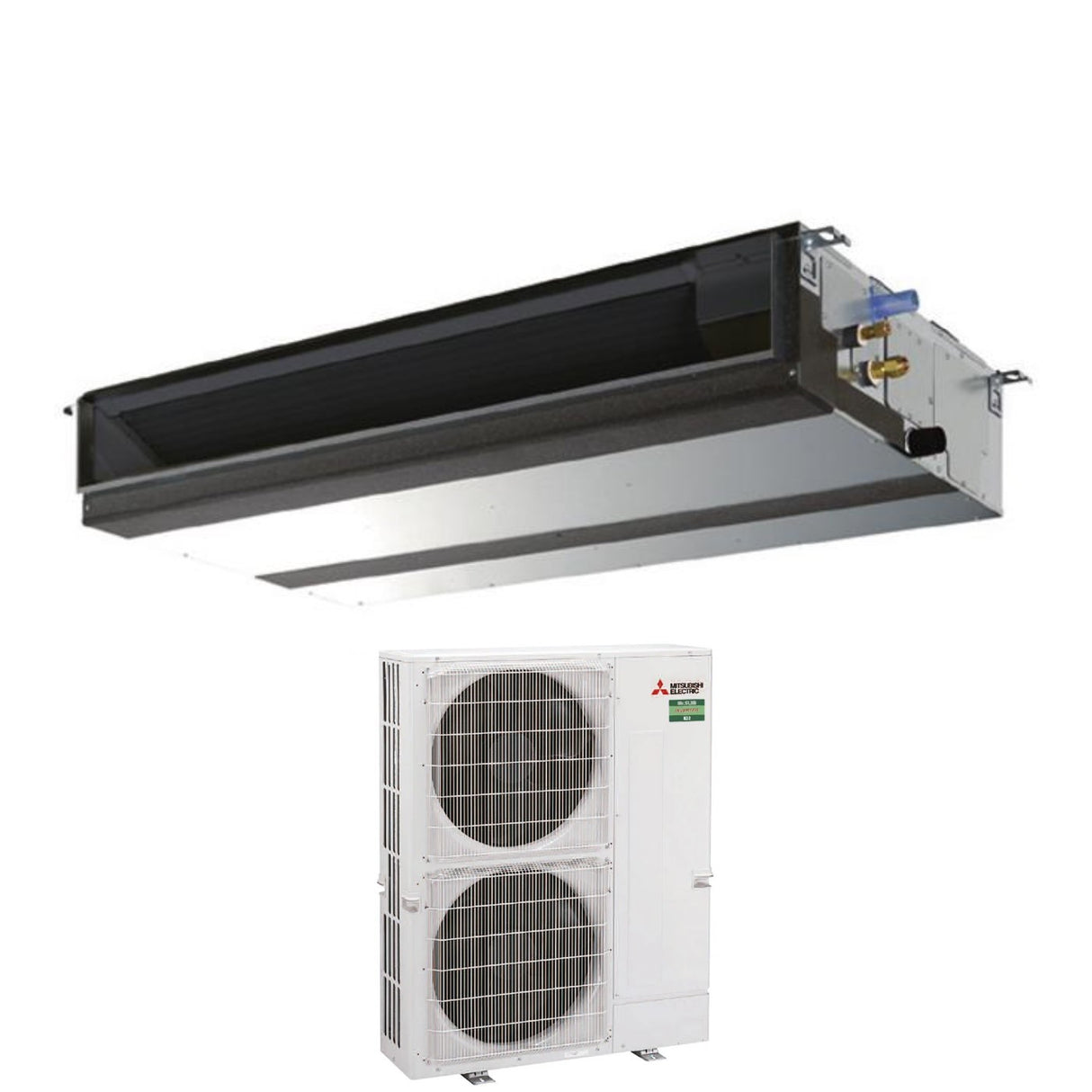

Mitsubishi Electric Air Conditioner Ducted Power Inverter Medium Head 42000 Btu PEAD-M125JA + PUZ-ZM125YKA Three-phase R-32 Wi-Fi Optional
Mitsubishi Electric Air Conditioner Ducted Power Inverter Medium Head 42000 Btu PEAD-M125JA + PUZ-ZM125YKA Three-phase R-32 Wi-Fi Optional is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
How shipping works
How shipping works
I costi di spedizione variano a seconda del peso e della modalità di spedizione dell'ordine.
I nostri servizi di spedizione:
- Spedizione standard: consegna stimata dai 2 ai 5 giorni lavorativi
- Spedizione Premium: consegna garantita in 24 ore lavorative
- Spedizione Premium + Consegna al piano: consegna garantita in 24 ore lavorative
Consulta le tabelle per i prezzi della spedizione standard per l'Italia e per le Isole Minori e Zone Disagiate.
Per ulteriori dettagli sulla Spedizione Premium, consulta la pagina di spedizione premium.
Servizio clienti
Servizio clienti
Il nostro servizio di assistenza è dedicato a fornire supporto ai nostri clienti per qualsiasi problema o domanda che possano avere prima o dopo l’acquisto dei nostri prodotti.
Utilizza il canale di comunicazione diretta per parlare con un nostro operatore, oppure inviaci una mail ad uno degli indirizzi elencati nella pagina contattaci.
Il nostro team di assistenza clienti è composto da professionisti altamente qualificati e sempre pronti ad aiutare i clienti a risolvere qualsiasi problema o rispondere a qualsiasi domanda in modo rapido ed efficiente. Ci impegniamo a garantire la massima soddisfazione del cliente e a fornire un servizio di assistenza post-vendita di altissima qualità. Quindi, se hai bisogno di assistenza, non esitare a contattarci; saremo lieti di aiutarti in ogni modo possibile.
Description
Description
The product is available to order.
Technical features
- Indoor unit catalog code: PEAD-M125JA
- Outdoor unit catalog code: PUZ-ZM125YKA
- Power: 42000 btu
- Optional Wi-Fi card: MAC-567IF-E
- Optional remote control: PAR-FL32MA-E
- Optional Infrared Receiver: PAR-FA32MA-W
- Simplified optional wired control: PAC-YT52CRA-K
- Optional Deluxe Wired Control: PAR-40MAA
- White Prism Remote Control: PAR-CT01MAA-SB
- Black Prism Remote Control: PAR-CT01MAA-PB
- SEER: 234.5%
- SCOP: 153.2%
- Energy Efficiency Class in Cooling: -
- Heating Energy Efficiency Class: -
- Annual Energy Consumption in Cooling: 765 kWh/a
- Annual Energy Consumption in Heating: 3335 Kwh/a
- Cooling Capacity: 12.5 kW
- Heating Capacity: 14.0 kW
- Cooling absorption: 3,333 kW
- Heating absorption: 3,349 kW
- Indoor Unit Treated Air: 29.5~42 m 3 /min
- Indoor Unit Sound Power Level: 66 dB(A)
- External Unit Sound Power Level: 70 dB(A)
- Indoor Unit Sound Pressure Level: 33~40 dB(A)
- External Unit Sound Pressure Level: 50 dB(A)
Electrical Data
- Power (V,Hz, Ø): 380~415/50/3
- Refrigerant gas: R32
- Operating range
- - Cooling: -15° ~ 46° C
- - Heating: -20° ~ 21° C
- Liquid pipe diameter: 6.35 mm (1/4")
- Gas pipe diameter: 15.88 mm (5/8")
- Maximum length of pipes: 100 m
- Maximum height difference Internal Unit / External Unit: 30 m
Dimensions and weight
- Internal Unit Dimensions (HxWxD): 250x1400x732 mm
- Internal Unit Weight: 43 Kg
- External Unit Dimensions (HxWxD): 1338x1050x330 mm
- External Unit Weight: 125 Kg

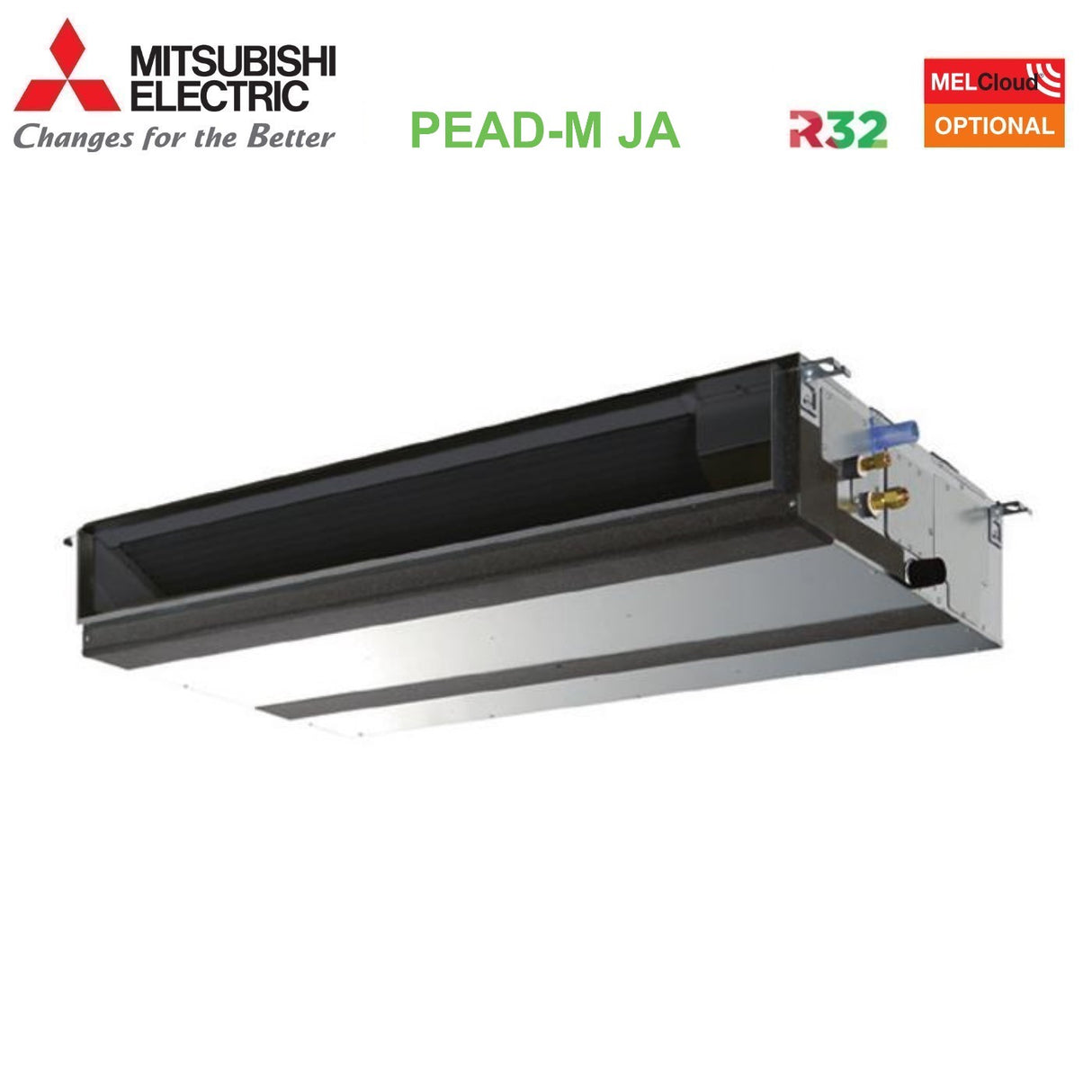

Mitsubishi Electric Ducted Medium Head PEAD-M JA
Cost-effectiveness and Installation Flexibility
The internal units of this series of air conditioners, with a low profile and hidden in the ceiling, are the perfect answer for air conditioning requirements in the presence of very limited ceiling installation space and external static pressure values subject to wide variations. The energy efficiency has been optimised, electricity consumption reduced and the operating costs of the appliance are therefore lower.
The ultra-slim indoor unit is characterized by particularly quiet operation. It is equipped with a direct expansion coil. It is suitable for ducted recessed installation. A height of only 250 mm guarantees cost-effectiveness and installation flexibility
Extremely Quiet Operation
In addition to the innovative silent features already present on other Mitsubishi Electric air conditioners, the PEAD series uses a sirocco-type fan with extremely silent operation
Condensate Drain Pump Included
The PEAD series units are not only easy to install but also The provision of a drain pump with a head of 550 mm facilitates the drainage of condensation water even in critical conditions
DC Inverter Fan
The PEAD units are equipped with a DC Inverter fan which allows the modulation of the number of revolutions, guaranteeing, as well as silence, optimal comfort and energy saving
Static pressure can be set
The external static pressure can be adjusted to suit the system configuration and installation conditions. Static pressure settings can be increased to suit all duct types, with 5 steps available from 35 Pa up to 150 Pa
Various installation possibilities
The PEAD series units are not only easy to install but also very versatile. It is possible to vary the position for the air intake, rear or lower , to optimize the space available
MELCloud, Wi-Fi control
MELCloud is the new Wi-Fi control for your Mitsubishi Electric system. By taking advantage of the support of the cloud, the "Cloud", to transmit and receive information and the optional dedicated Wi-Fi interface MAC-567IF-E, you can easily control your system wherever you are via your PC, tablet or smartphone ; all you need is an internet connection. The MELCloud service was created to have maximum compatibility with PCs, Tablets and Smartphones thanks to dedicated Apps or via Web Browser.
One word is enough for you!
MELCloud is compatible with Google Home. By saying «Hey Google!», or «Ok Google!» you have full control of the climate control system. MELCloud is compatible with Amazon Alexa. One word will be enough to freely manage your air conditioning units
Power Inverter R32 external units
The new R32 Commercial Power Inverter range outdoor units offer numerous advantages.
High seasonal efficiency: The use of R32 refrigerant guarantees an increase in seasonal cooling efficiency
Increased piping length: Increased installation flexibility for sizes 60-140 thanks to greater piping length
Nominal capacity in heating down to -3°C: Nominal capacity is maintained down to -3°C, facilitating use in harsh climates
• Compatibility with fan motor for prevalence
• Energy Monitoring MelCloud
Power Inverter
Energy efficiency finds its maximum expression in the Power Inverter series. The wide operating range and maximum flexibility in installation, thanks to particularly long refrigeration lines and the possibility of reusing existing pipes complete the offer. The Power Inverter Units are equipped with innovative Power Receiver technology and rotary compressors to achieve maximum efficiency
Product Warranty: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.
Scheda Tecnica
Scheda Tecnica
- peso: 170.0 kg
- gas: R-32
- marca: MITSUBISHI ELECTRIC
- metri quadri : 160 - 180 m2
- modello: PEAD-M125JA + PUZ-ZM125YKA
- potenza btu: 42000
