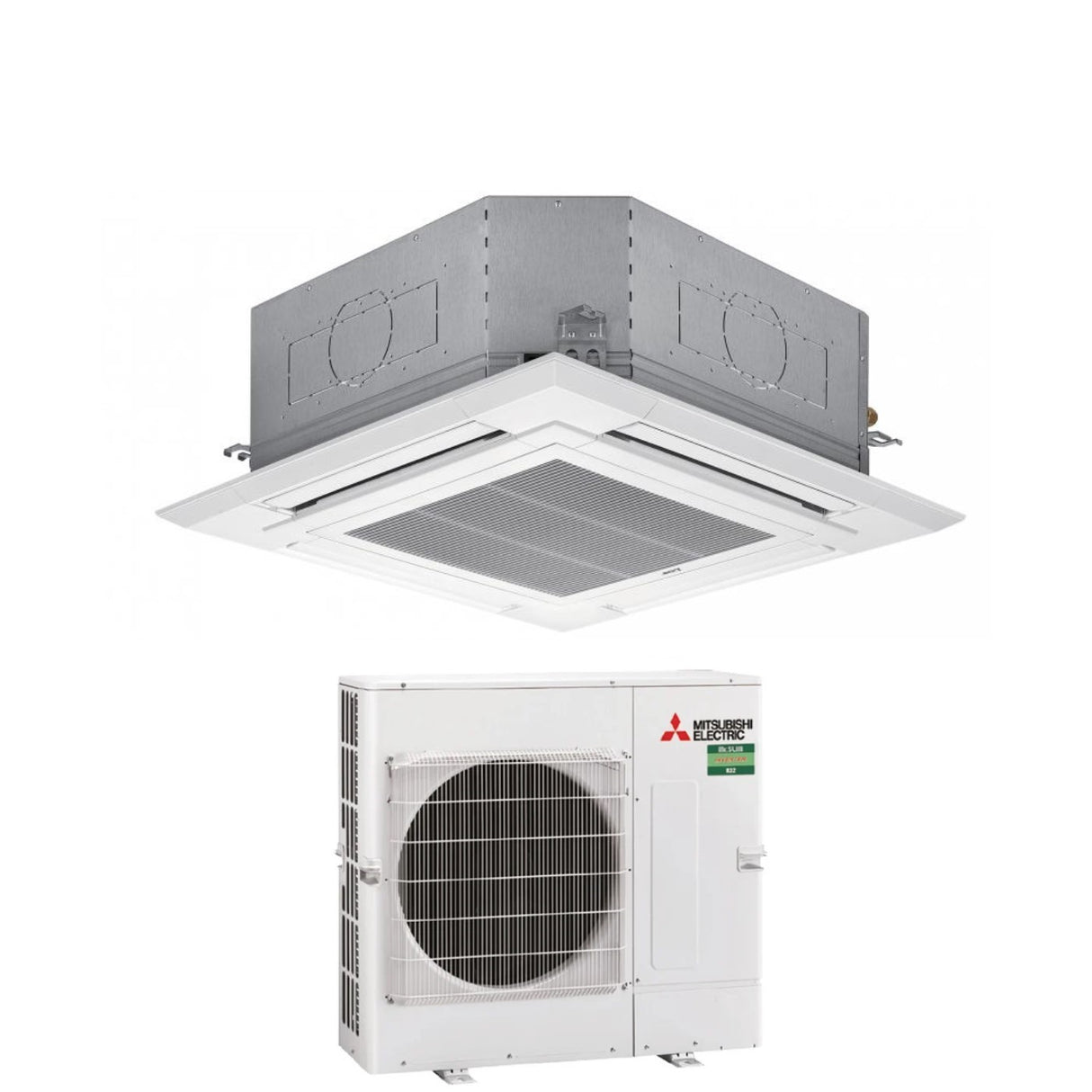

Mitsubishi Electric Air Conditioner Cassette 90x90 4-Way Inverter 34000 Btu PLA-SM100EA + PUZ-SM100YKA Three-Phase R-32 Wi-Fi Optional with Grille Included
Mitsubishi Electric Air Conditioner Cassette 90x90 4-Way Inverter 34000 Btu PLA-SM100EA + PUZ-SM100YKA Three-Phase R-32 Wi-Fi Optional with Grille Included is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
How shipping works
How shipping works
I costi di spedizione variano a seconda del peso e della modalità di spedizione dell'ordine.
I nostri servizi di spedizione:
- Spedizione standard: consegna stimata dai 2 ai 5 giorni lavorativi
- Spedizione Premium: consegna garantita in 24 ore lavorative
- Spedizione Premium + Consegna al piano: consegna garantita in 24 ore lavorative
Consulta le tabelle per i prezzi della spedizione standard per l'Italia e per le Isole Minori e Zone Disagiate.
Per ulteriori dettagli sulla Spedizione Premium, consulta la pagina di spedizione premium.
Servizio clienti
Servizio clienti
Il nostro servizio di assistenza è dedicato a fornire supporto ai nostri clienti per qualsiasi problema o domanda che possano avere prima o dopo l’acquisto dei nostri prodotti.
Utilizza il canale di comunicazione diretta per parlare con un nostro operatore, oppure inviaci una mail ad uno degli indirizzi elencati nella pagina contattaci.
Il nostro team di assistenza clienti è composto da professionisti altamente qualificati e sempre pronti ad aiutare i clienti a risolvere qualsiasi problema o rispondere a qualsiasi domanda in modo rapido ed efficiente. Ci impegniamo a garantire la massima soddisfazione del cliente e a fornire un servizio di assistenza post-vendita di altissima qualità. Quindi, se hai bisogno di assistenza, non esitare a contattarci; saremo lieti di aiutarti in ogni modo possibile.
Description
Description
Technical features
- Indoor unit catalog code: PLA-SM100EA
- Outdoor unit catalog code: PUZ-SM100YKA
- Power: 34000 btu
- Panel: PLP-6EA
- Optional Wi-Fi card: MAC-567IF-E
- Optional remote control: PAR-SE9FA-E
- Optional Infrared Receiver: PAR-SL100A-E
- Optional wired control: PAC-YT52CRA-K
- Optional wired control: PAR-40MAA
- SEER : 6
- SCOP: 4.5
- Cooling Energy Efficiency Class: A+
- Heating Energy Efficiency Class: A+
- Annual Energy Consumption in Cooling: 554 kWh/a
- Annual Energy Consumption in Heating: 2482 kWh/a
- Cooling Capacity: 9.5 kW
- Heating Capacity: 11.2 kW
- Cooling absorption: 2.79 kW
- Heating absorption: 3.1 kW
- Indoor Unit Treated Air: 19~29 m 3 /min
- Indoor Unit Sound Power Level: 61 dB(A)
- External Unit Sound Power Level: 70 dB(A)
- Indoor Unit Sound Pressure Level: 31~40 dB(A)
- External Unit Sound Pressure Level: 51 dB(A)
Electrical Data
- Power (V,Hz, Ø): 380~415/50/1
- Refrigerant gas: R32
- Operating range
- - Cooling: -15° ~ 46° C
- - Heating: -15° ~ 21° C
- Liquid pipe diameter: 6.35 mm (1/4")
- Gas pipe diameter: 15.88 mm (5/8")
- Maximum length of pipes: 30 m
- Maximum height difference Internal Unit / External Unit: 30 m
Dimensions and weight
- Internal Unit Dimensions (HxWxD): 298x840x840 mm
- Internal Unit Weight: 24 Kg
- Grid dimensions (HxWxD): 40x950x950 mm
- Grill Weight: 5 Kg
- External Unit Dimensions (HxWxD): 981x1050x330 mm
- External Unit Weight: 78 Kg

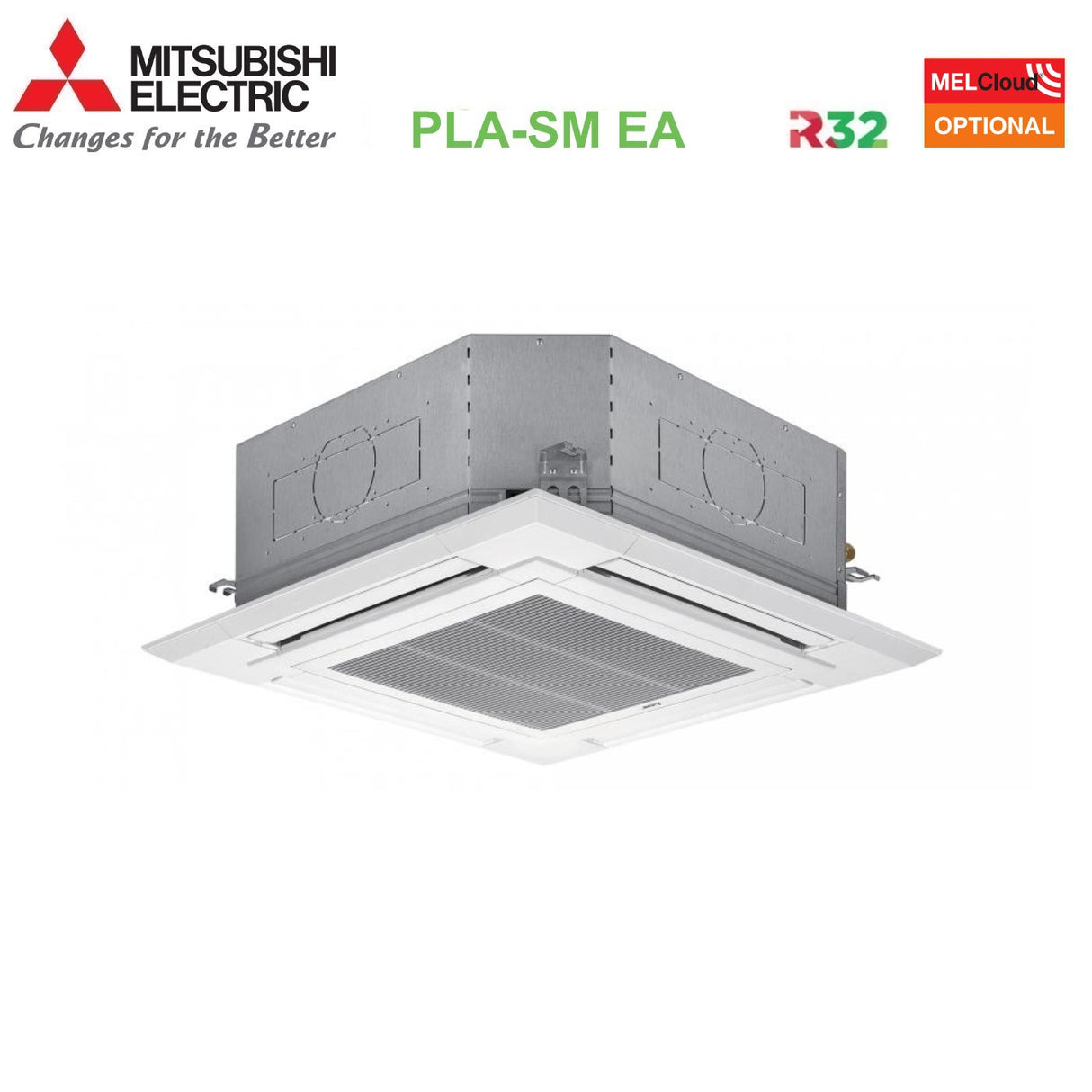

Mitsubishi Electric P-series 4-way cassette
Units range of new units designed to create a more comfortable environment, which guarantees maximum satisfaction for users.
Improved air jet Management of each individual deflector
Personalized air flow management allows you to create an environment with maximum comfort
In addition to being able to select between different air jet modes (for example, 2, 3, or 4 ways), this function allows you to select independent vertical air jets for each deflector, ensuring optimal maintenance of the room temperature and creating optimal comfort conditions
Diffuse airflow
The wide-angle jet allows you to distribute the air to every corner of the room. The large vents and grilles have been designed to make corner ventilation efficient
Single baffle management + large airflow
The combination of the adjustment of each individual deflector, which allows you to manage the best air flow for each type of environment, with a wide air jet works to ensure optimal temperature control in all environments. The result is a uniform and comfortable climate system
Air wave Hot air reaches everywhere
Air wave mode
“Air Wave” is an advanced flap control that manages the unit's airflow. The blown air is diffused from the unit horizontally and downwards at regular and delayed intervals to ensure uniform heating of the rooms
The Air Wave can only be used when the heating mode is active
Effect of the air wave on the thermograph
The comparison of the air distribution and temperature approximately 20 minutes after switching on the four-way cassette. The measurement is taken at a point 1.2 meters above the floor
Automatic speed adjustment
The automatic speed of the air jet is adopted to regulate the speed automatically in order to maintain the best comfort conditions in the rooms for as long as possible. This setting automatically adjusts the air jet, at speed, adapting to environmental conditions
Horizontal flow
The new internal unit is equipped with the "horizontal flow" function which allows for an air throw that touches the ceiling (Coanda effect), thus increasing the feeling of comfort perceived by the occupants
3D i-see sensor
The new 4-way recessed ceiling cassette is equipped with the exclusive "3D I-see Sensor", a 360° rotating sensor with a data acquisition interval of 3 minutes.
It is not only able to detect the temperature , but also the presence , position and number of people in the room
Thanks to it it is therefore possible to manage regulation logics based on the presence of occupants in the air-conditioned environment, with considerable energy savings
New External Units
Mitsubishi Electric introduces new models of R32 outdoor units, SUZ-SM and PUZ-SM, with compact dimensions, less than one meter in height. The units are available in sizes 71 and 100 single phase, 100, 125 and 140 three phase. Thanks to the single-fan chassis, these units boast greater flexibility and less visual impact, during and after installation
The dimensions are reduced, but the length of the pipes remains unchanged
• Maximum length: 40m (30m for sizes 71 and 100)
• Maximum height difference: 30m
MELCloud, Wi-Fi control
MELCloud is the new Wi-Fi control for your Mitsubishi Electric system. By taking advantage of the support of the cloud, the "Cloud", to transmit and receive information and the optional dedicated Wi-Fi interface MAC-567IF-E, you can easily control your system wherever you are via your PC, tablet or smartphone ; all you need is an internet connection. The MELCloud service was created to have maximum compatibility with PCs, Tablets and Smartphones thanks to dedicated Apps or via Web Browser.
One word is enough for you!
MELCloud is compatible with Google Home. By saying «Hey Google!», or «Ok Google!» you have full control of the climate control system. MELCloud is compatible with Amazon Alexa. One word will be enough to freely manage your air conditioning units
Product Warranty: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.
Scheda Tecnica
Scheda Tecnica
- peso: 199.0 kg
- classe energetica raffreddamento: A+
- classe energetica riscaldamento: A+
- gas: R-32
- marca: MITSUBISHI ELECTRIC
- metri quadri : 130 - 160 m2
- modello: PLA-SM100EA + PUZ-SM100YKA
- potenza btu: 34000
