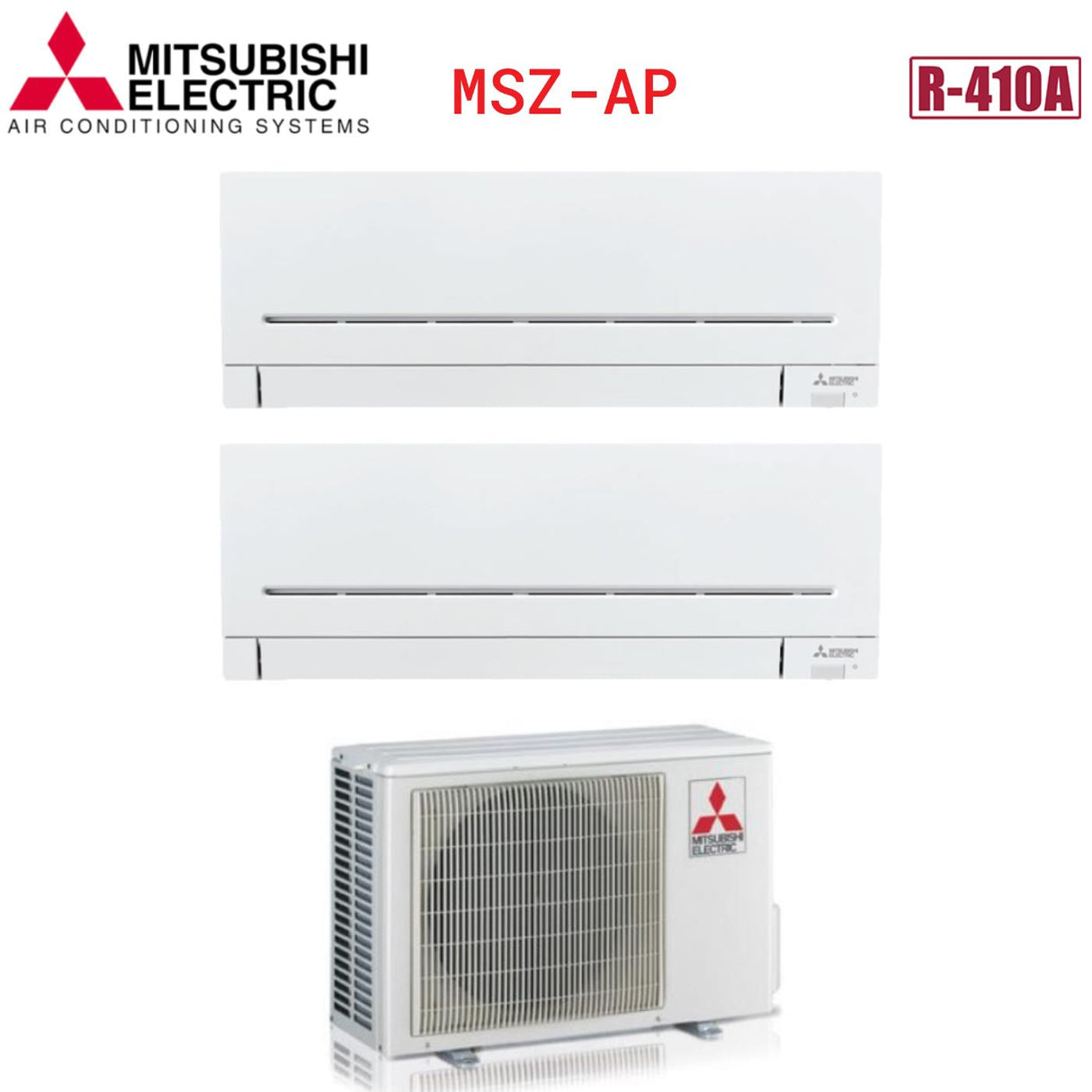

Air Conditioning Mitsubishi Electric Dual Split Inverter Series AP 12+15 MXZ-2D53VA2 R-410 Wi-Fi Optional 12000+15000

NB: IN THE ABSENCE OF THE AP DUAL SPLIT WITH R-410 GAS PRODUCT THE NEXT AP DUAL SPLIT WITH R-32 GAS MODEL WILL BE SHIPPED

Technical features

Indoor units:

1) Model:

• Indoor unit catalog code: 1 x MSZ-AP35VG
• Power (BTU/h) 9000
• Internal Unit HxWxD (mm): 299 x 798 x 219; 10.5kg
• Wi-Fi catalog code: Mac-567IF-E

2) Model:

• Indoor unit catalog code: 1 x MSZ-AP42VG
• Power (BTU/h) 15000
• Internal Unit HxWxD (mm): 299 x 798 x 219; 10.5kg
• Wi-Fi catalog code: Mac-567IF-E

External Unit:

Model:

• Outdoor unit catalog code: MXZ-2D53VA2
• Max number of internal units that can be connected: 2

Energy efficiency:

• SEER/SCOP (W/W): 7.1/4.2
• Energy Efficiency Class (cooling): A++
• Energy Efficiency Class (heating): A+
• Annual energy consumption 1 kWh/cooling: 262
• Annual energy consumption 1 kWh/per heating: 1507

Performance:

• Nominal cooling capacity (kW): 5.3
• Nominal heating capacity (kW): 6.4
• Power absorbed in cooling (W): 1560
• Power absorbed in heating (W): 1690
• Min-max outdoor unit sound pressure (dB-A): 50/53
• Nominal sound power dB(A): 64

Characteristics:

• Power (V/Hz/Φ): 230/50/1
• Refrigerant gas: R410A
• Guaranteed operating range:
  - Cooling °C: -10 ~ +46
  - Heating °C: -15 ~ +24

Dimensions:

• HxWxD (mm): 550 x 800 (+69) x 285 (+59.5) ; 37kg

General characteristics

MSZ-AP series

• R 410 refrigerant
• Elegant and compact design
• Horizontal air throw
• High seasonal energy efficiency for the entire range
• Optional silver ion air purifying filter
• Motorized deflector for lateral flow
• Minimum sound level
• Weekly timer
• Multisplit compatible
• Compatible with WiFi- MELCloud receiver

MSZ-AP units are characterized by ultra-compact dimensions with only 2 dimensional levels for 6 different powers.

Unparalleled versatility and enviable silence

The MXZ-F units can be connected to most of Mitsubishi Electric's Residential and Commercial line. The silence is even more efficient than previous models.

Efficiency

Thanks to careful design and the introduction of the R32 refrigerant, the efficiency of the new multisplit outdoor units is significantly increased, reaching class A+++ in cooling (sizes 2F42,2F53,3F54,3F68,4F72) and A++ (sizes 2F42,2F53 ,3F54) in heating .

Connectivity

The extraordinary connectivity available with the new external units allows you to satisfy every need.

The MXZ-F unit demonstrates all-round versatility , being connectable to a large part of the indoor unit range of the Residential and Commercial Line, whether they are wall-mounted units, ceiling cassettes or ducted .

Silence

The new MXZ-F multisplit outdoor units reach a new level of operating silence, reducing sound emission by up to 4dB compared to the previous model in cooling mode and up to 3dB in heating mode.

By setting this function, it is possible to automatically reduce the noise level of the external unit when the internal loads to be satisfied are reduced, such as during night cooling.

Energy monitoring

The new MXZ-F model supports the energy consumption monitoring function thanks to the MELCloud remote control system.

Automatic link correction

Simply press a button (from MXZ-3E/F to MXZ-6D) or activate a single indoor unit (MXZ-2E/F) to ensure correct connection between indoor units and outdoor unit.

In the event of an error in the connection, the system will automatically correct it.

Indoor unit combination table

Product Warranty: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.

• peso: 55.0 kg
• classe energetica raffreddamento: A+++
• classe energetica riscaldamento: A++
• gas: R-410
• marca: MITSUBISHI ELECTRIC
• metri quadri : 35/42
• modello: AP 12+15 R410
• potenza btu: 12000+15000
• superficie riscaldabile mq: 35/42
