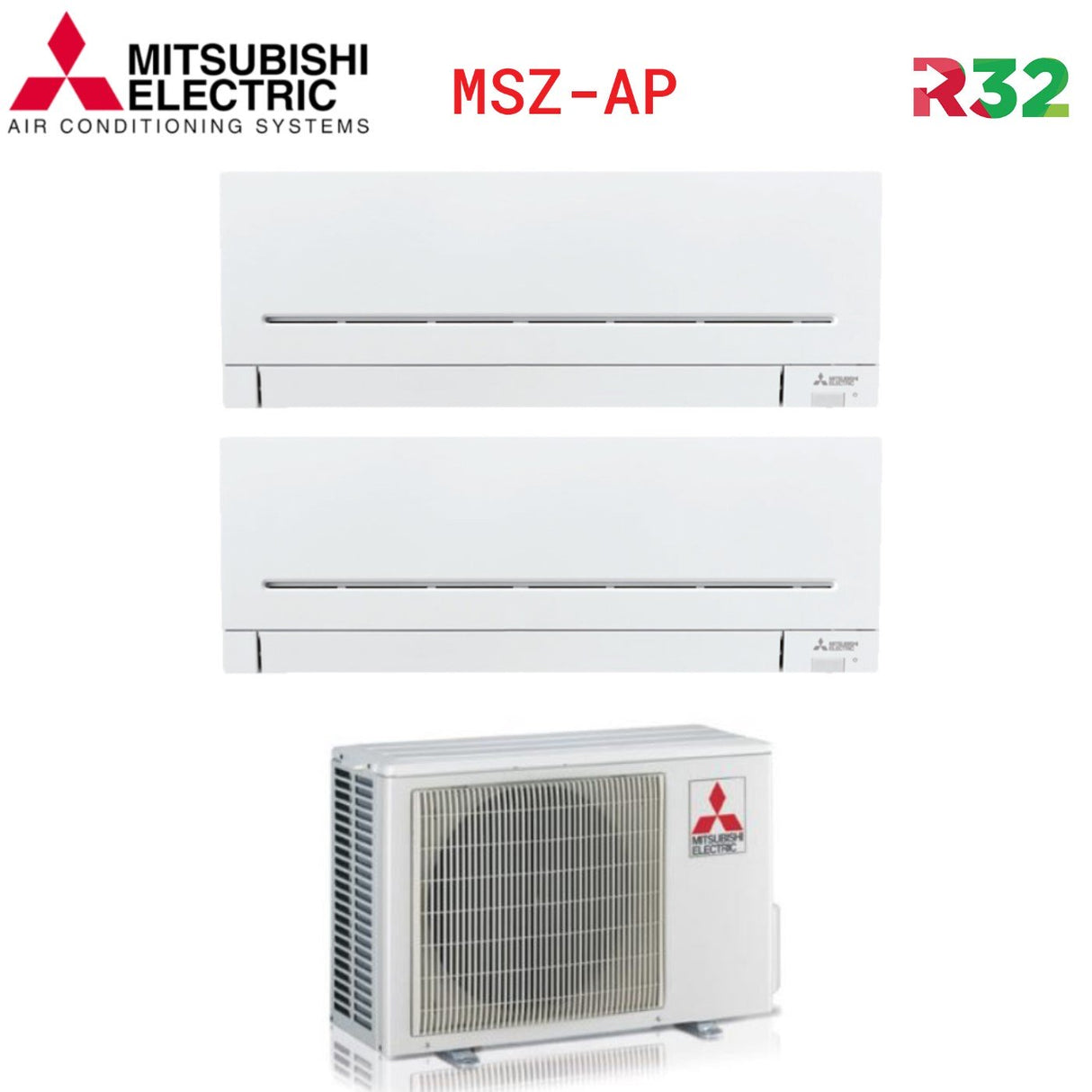

Mitsubishi Electric Dual Split Inverter Air Conditioner AP 12+18 Series with MXZ-3F68VF R-32 Wi-Fi Optional Plus Model 12000+18000
Mitsubishi Electric Dual Split Inverter Air Conditioner AP 12+18 Series with MXZ-3F68VF R-32 Wi-Fi Optional Plus Model 12000+18000 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
How shipping works
How shipping works
I costi di spedizione variano a seconda del peso e della modalità di spedizione dell'ordine.
I nostri servizi di spedizione:
- Spedizione standard: consegna stimata dai 2 ai 5 giorni lavorativi
- Spedizione Premium: consegna garantita in 24 ore lavorative
- Spedizione Premium + Consegna al piano: consegna garantita in 24 ore lavorative
Consulta le tabelle per i prezzi della spedizione standard per l'Italia e per le Isole Minori e Zone Disagiate.
Per ulteriori dettagli sulla Spedizione Premium, consulta la pagina di spedizione premium.
Servizio clienti
Servizio clienti
Il nostro servizio di assistenza è dedicato a fornire supporto ai nostri clienti per qualsiasi problema o domanda che possano avere prima o dopo l’acquisto dei nostri prodotti.
Utilizza il canale di comunicazione diretta per parlare con un nostro operatore, oppure inviaci una mail ad uno degli indirizzi elencati nella pagina contattaci.
Il nostro team di assistenza clienti è composto da professionisti altamente qualificati e sempre pronti ad aiutare i clienti a risolvere qualsiasi problema o rispondere a qualsiasi domanda in modo rapido ed efficiente. Ci impegniamo a garantire la massima soddisfazione del cliente e a fornire un servizio di assistenza post-vendita di altissima qualità. Quindi, se hai bisogno di assistenza, non esitare a contattarci; saremo lieti di aiutarti in ogni modo possibile.
Description
Description
Technical features
Indoor unit
1) Model:
- Indoor unit catalog code: 1 x MSZ-AP32VG
- Power: 12000 Btu
- Internal Unit Dimensions (HxWxD): 299 x 798 x 219 mm
- Internal Unit Weight: 10.5 kg
- Wi-Fi catalog code: Mac-567IF-E
- Indoor unit catalog code: 1 x MSZ-AP50VG
- Power: 18000 Btu
- Internal Unit Dimensions (HxWxD): 299 x 798 x 219
- Internal Unit Weight: 10.5 Kg
- Wi-Fi catalog code: Mac-567IF-E
External Unit:
Model:
- Outdoor unit catalog code: MXZ-3F68VF
Energy efficiency:
- SEER/SCOP (W/W): 7.96/4.12
- Energy Efficiency Class (cooling): A++
- Energy Efficiency Class (heating): A+
Performance:
- Nominal cooling capacity (kW): 6.8
- Nominal heating capacity (kW): 8.6
- Power absorbed in cooling (kW): 1.84
- Power absorbed in heating (kW): 1.91
- Min-max outdoor unit sound pressure (dB-A): 48/53
- Nominal sound power dB(A): 63
Characteristics:
- Power (V/Hz/Φ): 230/50/1
- Refrigerant gas: R-32
- Guaranteed operating range:
- Cooling °C: -10 ~ +46
- Heating °C: -15 ~ +24
Dimensions:
- HxWxD (mm): 710 x 840 x 330; Kg:58;
General characteristics
Multisplit DC Inverter
The Inverter system is an electronic device that allows you to efficiently vary the speed of the compressor and, consequently, the power supplied by the air conditioner, based on the cooling or heating request.
Compared to traditional fixed speed (On/Off) air conditioners, inverter air conditioners reach the required temperature sooner and keep it stable, without annoying changes, to the benefit of comfort and electricity consumption.
High seasonal efficiency
Operating economy is the great advantage of Mitsubishi Electric air conditioners. Thanks to the DC Inverter regulation system and the careful design of the components used, energy efficiency reaches extraordinary levels. The entire range of multi-split air conditioners (MXZ-D) reaches high efficiency values even on a seasonal basis.
Maximum Silence for Maximum Comfort
The DC Inverter multisplit units are characterized by the very low noise level emitted. By activating the silent mode, this level can be further reduced automatically when the demand is lower (e.g. during the night in cooling mode).
Compactness and Versatility
The dimensions of the outdoor unit are extremely compact so that they do not take up the space on the terrace or in the home garden. The extensive development of the pipes allows for a vast choice of installation location.
New MXZ outdoor unit
R32: reduced environmental impact
Thanks to the use of R32 refrigerant and a reduced pre-charge of the units compared to the previous model, the MXZ-F units introduce a significantly lower quantity of equivalent tonnes of CO2 into the environment.
Automatic link correction
Simply press a button (from MXZ-3E/F to MXZ-6D) or activate a single indoor unit (MXZ-2E/F) to ensure correct connection between indoor units and outdoor unit. In the event of an error in the connection, the system will automatically correct it.
Efficiency
Thanks to careful design and the introduction of the R32 refrigerant, the efficiency of the new multisplit outdoor units is significantly increased, reaching class A+++ in cooling (sizes 2F42,2F53,3F54,3F68,4F72) and A++ (sizes 2F42,2F53 ,3F54) in heating.
Silence
The new MXZ-F multisplit outdoor units reach a new level of operating silence, reducing sound emission by up to 4dB compared to the previous model in cooling mode and up to 3dB in heating mode.
Energy Monitoring
The new MXZ-F model supports the energy consumption monitoring function thanks to the MELCloud remote control system, also in the Multisplit R32 configuration.
MSZ-AP series
- Ecological refrigerant R32
- Compact design
- High seasonal energy efficiency for the entire range
- Optional silver ion air purifying filter
- Minimum sound level
- Weekly timer
- Multisplit compatible
- Wi-Fi compatible
Innovation and compact design
MSZ-AP units are characterized by ultra-compact dimensions with only 2 dimensional levels for 6 different powers.
Energy efficiency
Thanks to careful design and the introduction of R-32 refrigerant gas, the efficiency of the new MSZ-AP units is significantly increased, reaching class A+++ in cooling (sizes 25 and 35) and A++ in heating on the entire line.
R32: a refrigerant for the future
The R32 refrigerant used in MSZ-AP series air conditioners is characterized by a lower Global Warming Potential (GWP) than refrigerant gases used until now in residential air conditioning, reducing its potential negative impact on the environment. Its advantages are:
- High energy efficiency
- Reduction in the amount of refrigerant gas used
- Reduced environmental impact
- Easily chargeable and recoverable as pure gas
- Low toxicity and flammability
Air distribution
Thanks to the presence of the motorized louver it is possible to direct the air flow to achieve maximum comfort in every operating mode.
MELCloud - Energy consumption monitoring NEW (optional)
The new MSZ-AP model supports the energy consumption monitoring function thanks to the MELCloud Cloud remote control system, also in the Multisplit R32 configuration. It allows you to promptly adjust the air conditioning systems from your Smartphone and Tablet via a dedicated app.
Silent operation
Environmental comfort is also linked to the sound level and is especially important in bedrooms or studies. For sizes 25/35 the sound emission of the internal unit is only 19dB when operating at minimum speed, guaranteeing maximum acoustic comfort within the environment.
Night Mode
By activating the Night Mode function from the remote control it is possible to prepare the air conditioner for night-time operation:
Removing LED brightness
Deactivating the "beep" sound
3dB reduction in sound emission from the outdoor unit
Advanced filtering
Thanks to the air purifying filter present in the internal unit, the new MSZ-AP model guarantees the removal of dust and bad odors. Furthermore, for sizes 25-50, it is possible to provide the optional silver ion air purifier filter, which captures bacteria, pollen and other allergens.
Product Warranty: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase
Scheda Tecnica
Scheda Tecnica
- peso: 55.0 kg
- classe energetica raffreddamento: A+++
- classe energetica riscaldamento: A++
- gas: R-32
- marca: MITSUBISHI ELECTRIC
- metri quadri : 35/50
- modello: AP 12+18 R32
- potenza btu: 12000+18000
- superficie riscaldabile mq: 35/50
