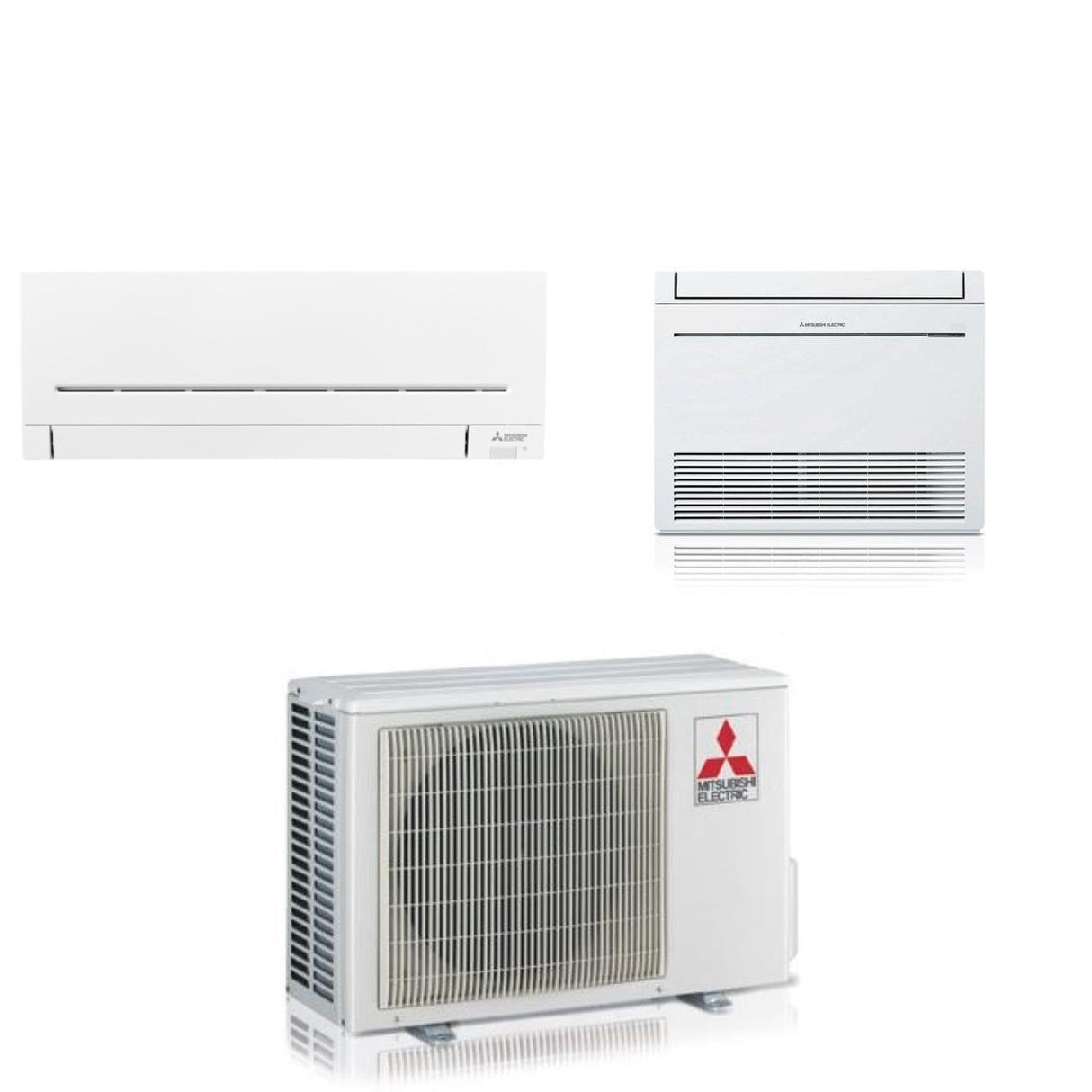

Mitsubishi Electric Dual Split Inverter Air Conditioning Series AP-VGK 7000 + Floor 9000 with MXZ-2F42VF R-32 Wi-Fi 7000+9000

Technical features

Internal units

1) Model:

External Unit

Model:

• Outdoor Unit catalog code: MXZ-2F42VF2/3
• Max indoor units: up to 2 indoor units

Energy efficiency:

• SEER: 8.69
• SCOP: 4.6
• Cooling Energy Efficiency Class: A+++
• Heating Energy Efficiency Class: A++
• Annual energy consumption in Cooling: 169 kWh/a
• Annual energy consumption in Heating: 974 kWh/a

Performance:

• Cooling Capacity: 4.2 kW
• Heating capacity: 4.5 kW
• Cooling absorption: 0.98 kW
• Heating absorption: 0.88 kW
• Sound power level: 59 dB(A)
• Sound pressure level: 44~50 dB(A)

Characteristics:

• Power (V/Hz/Φ): 220~240/50/1
• Refrigerant gas: R-32
• Guaranteed temperature range:
• - Cooling: -10° ~ 46° C
• - Heating: -15° ~ 24° C

Dimensions:

• External Unit Dimensions (HxWxD): 550x800x285 mm
• External Unit Weight: 37.0 Kg

Compact design and size

The MSZ-AP units are characterized by ultra-compact dimensions , with only 2 dimensional levels for 6 different powers

MELCloud integrated

The new MSZ-AP (in the VGK version) offers the experience of using MELCloud integrated into the machine. Ready to be configured and used, it allows the user to remotely manage all the functions of the air conditioner, thanks to the Wi-Fi controller.

Efficiency

Thanks to careful design and the introduction of the R32 refrigerant , the efficiency of the new MSZ-AP units is significantly increased, reaching class A+++ in cooling (sizes 25 and 35) and A++ in heating across the entire lineup.

Air distribution

Thanks to the presence of the motorized louver it is possible to direct the air flow to achieve maximum comfort in the room in every operating mode (sizes 25-50). Furthermore, the horizontal flow eliminates annoying air currents towards the occupants.

New backlit remote control

The backlit remote control allows easy viewing even at night

Silent operation

For sizes 25/35 the sound emission of the internal unit is only 19dB when operating at minimum speed, guaranteeing maximum acoustic comfort within the environment

Night Mode

By activating the Night Mode function from the remote control it is possible to prepare the air conditioner for night-time operation:

• LED brightness reduction
• Deactivating the "beep" sound
• 3dB reduction in external unit sound emission.

Advanced filtering

Thanks to the air purifying filter present in the internal unit, the new MSZ-AP model guarantees the removal of dust and bad odors. Furthermore, for sizes 25-50, it is possible to provide the optional silver ion air purifier filter, which captures bacteria, pollen and other allergens.

Energy monitoring

The new MSZ-AP model supports the energy consumption monitoring function thanks to the MELCloud Cloud remote control system.

Efficiency

Thanks to careful design and the introduction of the R32 refrigerant, the efficiency of the new multisplit outdoor units is significantly increased, reaching class A+++ in cooling (sizes 2F42,2F53,3F54) and A++ (sizes 2F42,2F53,3F54) in heating.

Connectivity

The extraordinary connectivity available with the new external units allows you to satisfy every need. The MXZ-F unit demonstrates all-round versatility , being connectable to a large part of the indoor unit range of the Residential and Commercial Line, whether they are wall-mounted units, ceiling cassettes or ducted.

Silence

The new MXZ-F multisplit outdoor units reach a new level of operating silence, reducing sound emission by up to 4dB compared to the previous model in cooling mode and up to 3dB in heating mode.

R32: reduced environmental impact

Thanks to the use of R32 refrigerant and a reduced pre-charge of the units compared to the previous model, the MXZ-F units introduce a significantly lower quantity of equivalent tonnes of CO2 into the environment.

Automatic noise reduction mode

By setting this function, it is possible to automatically reduce the noise level of the external unit when the internal loads to be satisfied are reduced, for example during night cooling.

Mitsubishi Electric MSZ-KT

Simple and elegant design

The floor-standing units have a design characterized by simple lines and flat surfaces which give elegance and modernity to the aesthetics and allow them to be perfectly combined with any type of furniture.

High heating capacity

The MFZ-KT model has a high capacity in heating mode compared to traditional air conditioners, which makes it suitable for winter and mid-season use.

Multi-flow vane

The delivery vent is characterized by the presence of three different deflectors, each with a profile specifically designed to optimize the distribution of the outgoing air, maximizing comfort in both cooling and heating.

Product Warranty: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.

• peso: 55.0 kg
• classe energetica raffreddamento: A+++
• classe energetica riscaldamento: A++
• gas: R-32
• marca: MITSUBISHI ELECTRIC
• metri quadri : 20/25
• modello: AP20VGK + KT25VG 42
• potenza btu: 7000+9000
• superficie riscaldabile mq: 20/25
