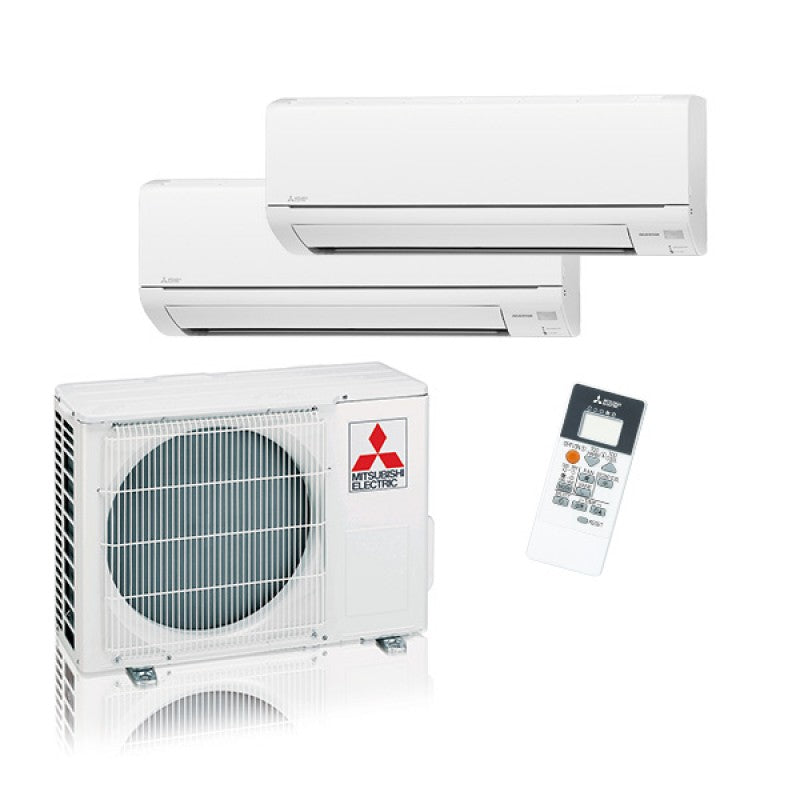

MITSUBISHI ELECTRIC DUAL SPLIT INVERTER AIR CONDITIONER DM 12+12 Series with MXZ-3DM50VA 12000+12000
MITSUBISHI ELECTRIC DUAL SPLIT INVERTER AIR CONDITIONER DM 12+12 Series with MXZ-3DM50VA 12000+12000 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
How shipping works
How shipping works
Shipping costs vary depending on the weight and shipping method of the order.
Our shipping services
Standard Shipping: estimated delivery in 2 to 5 working days
Premium Shipping: guaranteed delivery in 24 working hours
Premium Shipping + Flat Delivery: guaranteed delivery in 24 working hours
Please refer to the tables for Standard Shipping prices for Italy and for Minor Islands and Disturbed Areas.
For further details on Premium Shipping, please see the Premium Shipping page.
Customer service
Customer service
Our service department is dedicated to providing support to our customers for any problems or questions they may have before or after purchasing our products.
Use the direct communication channel to speak to one of our operators, or send us an e-mail to one of the addresses listed on the contact us page.
Our customer service team consists of highly qualified professionals who are always ready to help customers solve any problems or answer any questions quickly and efficiently. We strive to ensure maximum customer satisfaction and provide the highest quality after-sales service. So, if you need assistance, please do not hesitate to contact us; we will be happy to help you in any way we can.
Description
Description
Overview
MITSUBISHI ELECTRIC DUAL SPLIT INVERTER AIR CONDITIONER MSZ-DM 12+12 series with MXZ-3DM50VA: composed of 2 X MUZ-DM35VA with external machine MXZ-3DM50VA.
Technical specifications
Indoor units:
Model:
Indoor unit catalog code: 2 x MUZ-DM35VA
Dimension HxWxD (mm): 290x799x232; - 9.0 kg
Power: 12000 btu
External Unit:
Model:
Indoor unit catalog code: MXZ-3HJ50VA
Max number of internal units that can be connected: 3
Energy efficiency:
SEER/SCOP (W/W): 6.1/3.8
Energy Efficiency Class (cooling): A++
Energy Efficiency Class (heating): A
Annual energy consumption 1 kWh/cooling: 284
Annual energy consumption 1 kWh/per heating: 1455
Performance:
Nominal Cooling Capacity (kW): 5.0
Nominal heating capacity (kW): 6.0
Power absorbed in Cooling (W): 1.13
Power absorbed in heating (W): 1.31
Min-max outdoor unit sound pressure (dB-A): 50/53
Nominal sound power dB(A): 64
Characteristics:
Power (V/Hz/?): 230/50/1
Refrigerant gas: R410A
Guaranteed operation range:
- CoolingøC: +10 ~ +46
- HeatingøC: -10 ~ +24
Dimensions:
HxWxD (mm) : 710x840(+30)x330(+66) ; 57kg
Main features
MITSUBISHI, NEW MSZ-DM SERIES
Compactness and Design; The essential and neutral lines, the compact dimensions and the "pure white" color distinguish the appearance of the Smart Line air conditioners, making them compatible with any type of environment. Even the external unit, compact, light and silent, can be installed in limited spaces.
Easy-to-use timer: The 12-hour timer is especially suitable for use during bedtime. The automatic on and off operations can be easily set at hourly intervals
DC Inverter: The Inverter system is an electronic device which allows you to efficiently vary the speed of the compressor and, consequently, the power supplied by the air conditioner based on the cooling and heating request. Compared to traditional fixed speed (On/Off) air conditioners, inverter air conditioners reach the required temperature first and keep it stable, without annoying changes, to the advantage of comfort and electricity consumption.
Beyond class A+/A+ on a seasonal basis: Economy of operation is the great advantage of Mitsubishi Electric air conditioners. Thanks to the careful design of all components and the use of cutting-edge technologies, energy efficiency reaches extraordinary levels even on a seasonal basis. In particular, the Smart Line obtains SEER and SCOP (seasonal efficiency indices) values which allow it to reach values beyond Class A+/A+ across the entire range.
The Maximum of Silence for the Maximum of Comfort: The quality of the environment in which we stay also depends on the noise level
perceived. Mitsubishi Electric air conditioners help maintain the highest acoustic comfort by reducing noise emissions to a minimum.
Compact External Units: The dimensions of the external and internal units of the entire range are particularly compact. This allows installation even in rooms where the available space is limited
List of features
Poki-Poki Motor: The innovative technology, exclusive to Mitsubishi Electric, allows the creation of high density motors, high magnetic force and excel in efficiency and reliability
"RARE EARTH" Tip Permanent Magnet: The "rare earth" type permanent magnets that equip DC Inverter compressors have a significantly higher magnetic density than traditional ferrite.
DC Fan Motor: The DC fan motor allows a level of efficiency significantly higher than traditional AC motors
Pulse Amplitude Modulation: Inverter compressor control system that allows the use of electrical energy without losses in efficiency.
Stepped piping: The heat exchangers have piping with an internal groove to increase the heat exchange surface.
AutDiagnostica: A self-diagnostic system allows you to facilitate recovery operations
Anomaly recall: Anomalies are recorded in the history and can be viewed easily.
Reuse of existing pipes: Thanks to a highly stable refrigerant oil and highly robust components, the pipes of existing air conditioners can be reused without any reclamation.
Warranty
All products for sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.
Specifications
Specifications
- peso: 55.0 kg
- costospedizionecad: IT35;AD165;AT106;BE111;BG136;HR123;DK175;EE170;FR144;DE102;LV131;LT123;LU80;NL119;PT114;CZ90;SK101;SI101;ES104;SE212;HU85;CH168;
- marca: MITSUBISHI ELECTRIC
- modello: CLIMAT_1684
