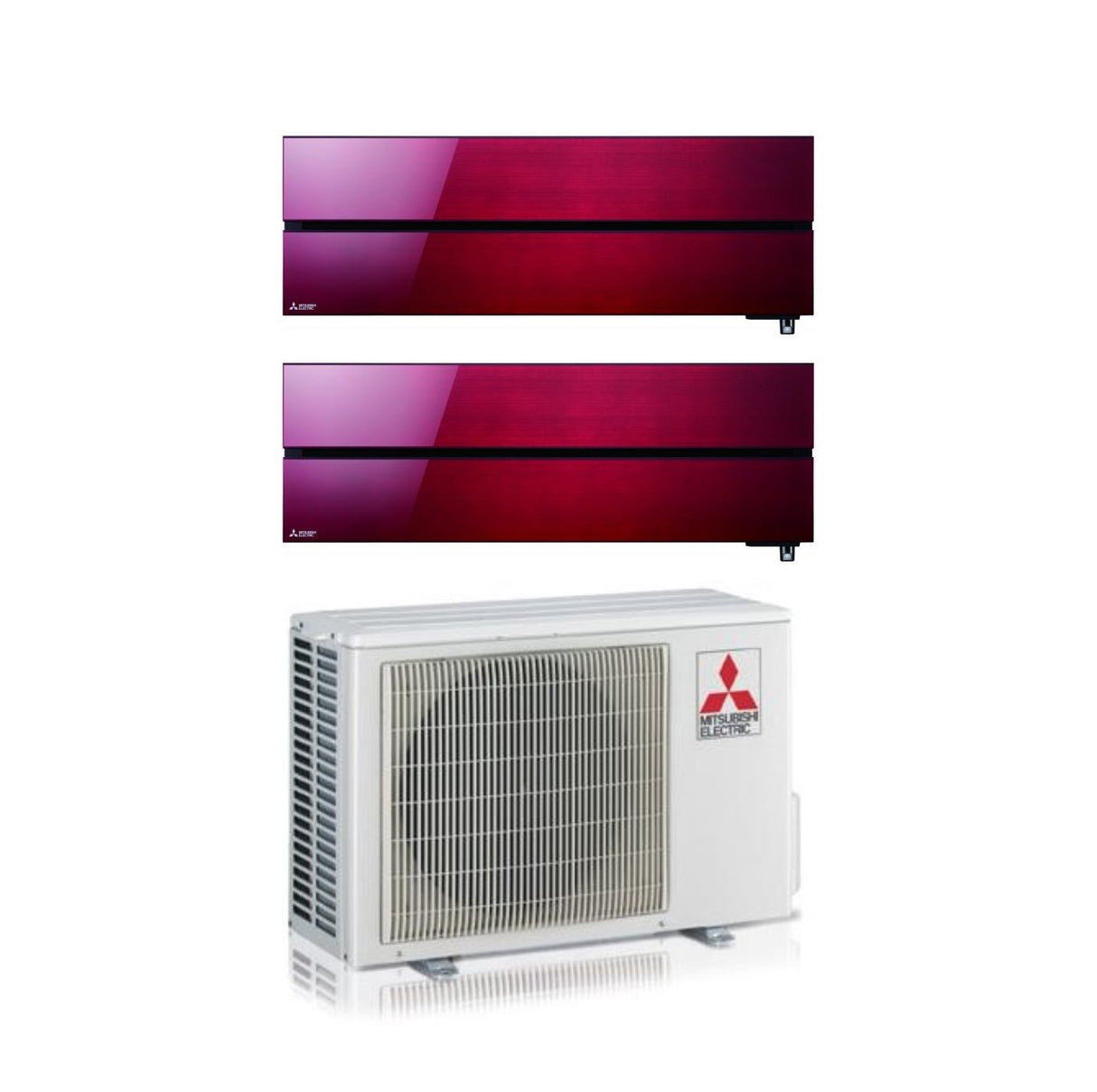

Mitsubishi Electric Dual Split Inverter Air Conditioner Kirigamine Style MSZ-LN 9+9 series with MXZ-2F42VF Ruby Red R-32 Integrated Wi-Fi Red Color 9000+9000

Technical features

Internal units

Model:

External Unit

Model:

• Outdoor Unit catalog code: MXZ-2F42VF2/3
• Max indoor units: up to 2 indoor units

Energy efficiency:

• SEER: 8.69
• SCOP: 4.6
• Cooling Energy Efficiency Class: A+++
• Heating Energy Efficiency Class: A++
• Annual energy consumption in Cooling: 169 kWh/a
• Annual energy consumption in Heating: 974 kWh/a

Performance:

• Cooling Capacity: 4.2 kW
• Heating capacity: 4.5 kW
• Cooling absorption: 0.98 kW
• Heating absorption: 0.88 kW
• Sound power level: 59 dB(A)
• Sound pressure level: 44~50 dB(A)

Characteristics:

• Power (V/Hz/Φ): 220~240/50/1
• Refrigerant gas: R-32
• Guaranteed temperature range:
• - Cooling: -10° ~ 46° C
• - Heating: -15° ~ 24° C

Dimensions:

• External Unit Dimensions (HxWxD): 550x800x285 mm
• External Unit Weight: 37.0 Kg

Multisplit DC Inverter

The Inverter system is an electronic device that allows you to efficiently vary the speed of the compressor and, consequently, the power supplied by the air conditioner, based on the cooling or heating request.

Compared to traditional fixed speed (On/Off) air conditioners, inverter air conditioners reach the required temperature sooner and keep it stable, without annoying changes, to the benefit of comfort and electricity consumption.

High seasonal efficiency

Operating economy is the great advantage of Mitsubishi Electric air conditioners. Thanks to the DC Inverter regulation system and the careful design of the components used, energy efficiency reaches extraordinary levels. The entire range of multi-split air conditioners (MXZ-D) reaches high efficiency values ​​even on a seasonal basis.

Maximum Silence for Maximum Comfort

The DC Inverter multisplit units are characterized by the very low noise level emitted. By activating the silent mode, this level can be further reduced automatically when the demand is lower (e.g. during the night in cooling mode).

Efficiency

Thanks to careful design and the introduction of the R32 refrigerant, the efficiency of the new multisplit outdoor units is significantly increased, reaching class A+++ in cooling (sizes 2F42,2F53,3F54) and A++ (sizes 2F42,2F53,3F54) in heating.

Connectivity

The extraordinary connectivity available with the new external units allows you to satisfy every need. The MXZ-F unit demonstrates all-round versatility , being connectable to a large part of the indoor unit range of the Residential and Commercial Line, whether they are wall-mounted units, ceiling cassettes or ducted.

Silence

The new MXZ-F multisplit outdoor units reach a new level of operating silence, reducing sound emission by up to 4dB compared to the previous model in cooling mode and up to 3dB in heating mode.

R32: reduced environmental impact

Thanks to the use of R32 refrigerant and a reduced pre-charge of the units compared to the previous model, the MXZ-F units introduce a significantly lower quantity of equivalent tonnes of CO2 into the environment.

Automatic noise reduction mode

By setting this function, it is possible to automatically reduce the noise level of the external unit when the internal loads to be satisfied are reduced, such as during night cooling.

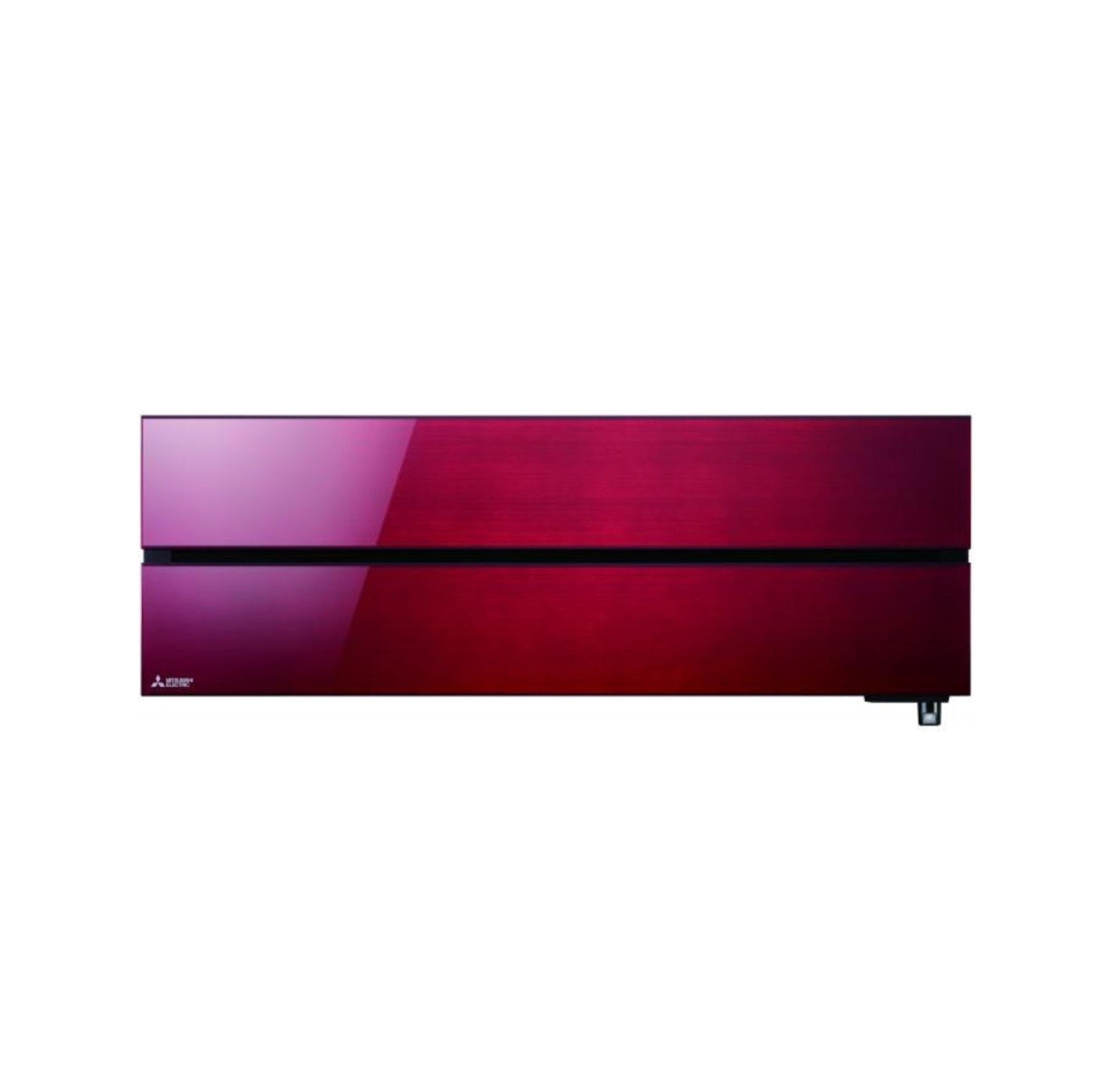

Mitsubishi Electric MSZ-LN Series Kirigamine Style For your luxury

Elegant Design

Handcrafted paint technology creates a refined design, giving the finish rich color and a high-quality feel. The new wall-mounted indoor units of the MSZ-LN series combine elegant and refined design with unrivaled performance. The new point of reference for air quality and distribution, for silence and efficiency has arrived!

Air distribution

The totally revolutionary geometry of the double deflector guarantees optimal air distribution; it is possible to independently direct the air flows exiting the right and left side of the unit.

The double flaps work independently, distributing pleasant air flows to people in the room.

Personal comfort

The 3D i-see infrared sensor uses advanced technologies to offer personalized comfort by monitoring the room temperature.

3D i-see sensor

The 3D i-see sensor presence sensor, integrated into the MSZ-LN units, presents new functions compared to the one installed in the Kirigamine MSZ-FH series for an increase in internal comfort. Thanks to the new implementations, not only is it possible to direct the flow directly/indirectly, but functions are available that "learn" the habits of the occupants and optimize the efficient and comfortable operation of the unit. The even airflow function, for example, "records" the occupancy profile of the room, creating a mapping that allows the most frequented areas to be optimally air conditioned based on the history.

Silent operation

Environmental comfort is also linked to the sound level and is especially important in bedrooms or studies. The Kirigamine line allows you to guarantee the ideal climate all year round with a sound level virtually imperceptible to the human ear.

The 19dB(A)2 achieved by the Kirigamine Style model is quieter than the noise generated by the rustling of leaves in the wind, making the air conditioner effectively inaudible to the occupants of the room.

This is why Kirigamine Style is particularly suitable for domestic environments such as bedrooms and living areas, where we spend most of our time and carry out our daily activities.

Healthy environment

Mitsubishi Electric's exclusive coating prevents the accumulation of dust and grease.

Advanced filtering

The Plasma Quad Plus filtration system of the MSZ-LN units achieves a new record in the level of air cleanliness. In fact, it is capable of retaining particles up to PM2.5, i.e. with a diameter of less than 2.5 μm.

This distinctive feature makes the unit ideal for families who are particularly attentive to air quality or for installation in environments with often compromised ambient air (e.g. rooms overlooking busy areas, in cities near production activities...) .

Plasma Quad Plus

This distinctive feature makes the unit ideal for families who are particularly attentive to air quality or for installation in environments with often compromised ambient air (e.g. rooms overlooking traffic areas, in the city, near production activities...). Through the use of Plasma Quad Plus technology, the unit is able to eliminate bacteria and viruses thanks to a technology that uses an electric field and a series of electric discharges through which the air released into the environment passes. With Plasma Quad Plus technology, 99% of the bacteria present in a 25m3 room is neutralized in just 115 minutes.

Dual Barrier Coating

With the MSZ-LN unit Mitsubishi Electric introduces another revolutionary technology: Double Barrier Coating.

During operation, the dust and impurities introduced during air conditioning operations are deposited on the internal components, especially the battery and fan, increasing the machine's consumption by up to 18%.

With Double Barrier Coating the internal components of MSZ-LN are treated with a second protective layer which prevents the deposit of dust and impurities even after long periods of time, reducing consumption and eliminating the need for maintenance of the unit regarding this problem.

MELCloud - Energy consumption monitoring

The ability to manage and monitor the air conditioning system remotely is a consolidated solution in the Mitsubishi Electric product range thanks to the MELCloud platform. It allows you to promptly adjust the air conditioning systems from your Smartphone and Tablet via a dedicated app.

The new MSZ-LN units are not only compatible with MELCloud, but are already designed by incorporating the Wi-Fi interface for connection to the network, which makes them already ready for the Cloud solution without the need for additional components. One of the new features that MSZ-LN is already equipped with is the possibility of monitoring electricity consumption via the MELCloud® application, to always have efficiency under control.

Functions and advantages of WiFi control

• On / Off
• Mode (Auto/Heating/Cooling/Ventilation)
• Ventilation speed
• Programmable weekly timer
• Flap inclination adjustment
• Room temperature detection and setting
• Weather information of the installation location

Product Warranty: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.

• peso: 55.0 kg
• classe energetica raffreddamento: A+++
• classe energetica riscaldamento: A++
• gas: R-32
• marca: MITSUBISHI ELECTRIC
• metri quadri : 25/25
• modello: LN-VGR 9+9 42
• potenza btu: 9000+9000
• superficie riscaldabile mq: 25/25
