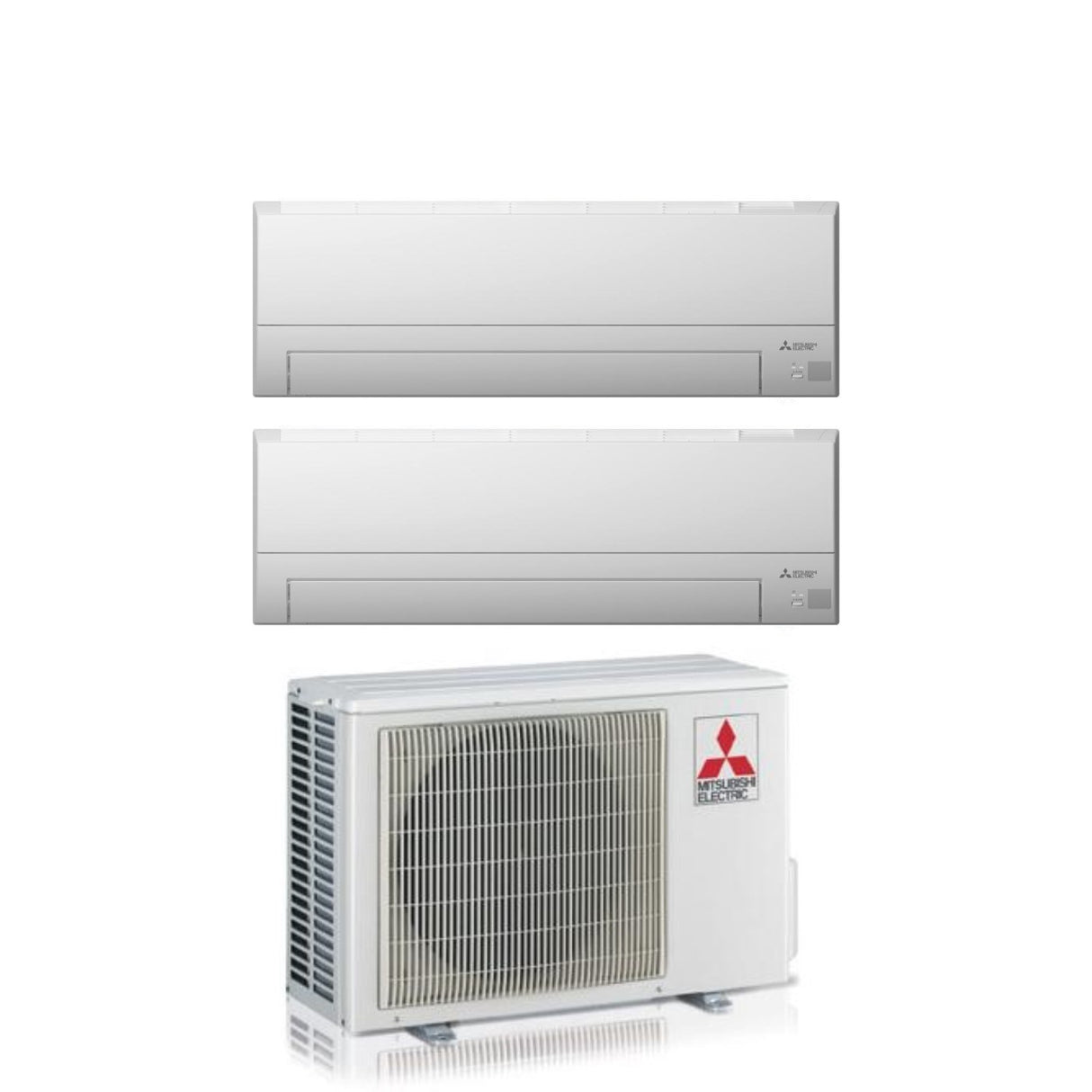

Mitsubishi Electric Dual Split Inverter Air Conditioner MSZ-BT 7+7 series with MXZ-2F42VF R-32 Wi-Fi Optional 7000+7000

Technical features

Internal units

Model:

External Unit

Model:

• Outdoor Unit catalog code: MXZ-2F42VF2/3
• Max indoor units: up to 2 indoor units

Energy efficiency:

• SEER: 8.69
• SCOP: 4.6
• Cooling Energy Efficiency Class: A+++
• Heating Energy Efficiency Class: A++
• Annual energy consumption in Cooling: 169 kWh/a
• Annual energy consumption in Heating: 974 kWh/a

Performance:

• Cooling Capacity: 4.2 kW
• Heating capacity: 4.5 kW
• Cooling absorption: 0.98 kW
• Heating absorption: 0.88 kW
• Sound power level: 59 dB(A)
• Sound pressure level: 44~50 dB(A)

Characteristics:

• Power (V/Hz/Φ): 220~240/50/1
• Refrigerant gas: R-32
• Guaranteed temperature range:
• - Cooling: -10° ~ 46° C
• - Heating: -15° ~ 24° C

Dimensions:

• External Unit Dimensions (HxWxD): 550x800x285 mm
• External Unit Weight: 37.0 Kg

Multisplit DC Inverter

The Inverter system is an electronic device that allows you to efficiently vary the speed of the compressor and, consequently, the power supplied by the air conditioner, based on the cooling or heating request.

Compared to traditional fixed speed (On/Off) air conditioners, inverter air conditioners reach the required temperature sooner and keep it stable, without annoying changes, to the benefit of comfort and electricity consumption.

High seasonal efficiency

Operating economy is the great advantage of Mitsubishi Electric air conditioners. Thanks to the DC Inverter regulation system and the careful design of the components used, energy efficiency reaches extraordinary levels. The entire range of multi-split air conditioners (MXZ-D) reaches high efficiency values ​​even on a seasonal basis.

Maximum Silence for Maximum Comfort

The DC Inverter multisplit units are characterized by the very low noise level emitted. By activating the silent mode, this level can be further reduced automatically when the demand is lower (e.g. during the night in cooling mode).

Efficiency

Thanks to careful design and the introduction of the R32 refrigerant, the efficiency of the new multisplit outdoor units is significantly increased, reaching class A+++ in cooling (sizes 2F42,2F53,3F54) and A++ (sizes 2F42,2F53,3F54) in heating.

Connectivity

The extraordinary connectivity available with the new external units allows you to satisfy every need. The MXZ-F unit demonstrates all-round versatility , being connectable to a large part of the indoor unit range of the Residential and Commercial Line, whether they are wall-mounted units, ceiling cassettes or ducted.

Silence

The new MXZ-F multisplit outdoor units reach a new level of operating silence, reducing sound emission by up to 4dB compared to the previous model in cooling mode and up to 3dB in heating mode.

R32: reduced environmental impact

Thanks to the use of R32 refrigerant and a reduced pre-charge of the units compared to the previous model, the MXZ-F units introduce a significantly lower quantity of equivalent tonnes of CO2 into the environment.

Automatic noise reduction mode

By setting this function, it is possible to automatically reduce the noise level of the external unit when the internal loads to be satisfied are reduced, such as during night cooling.

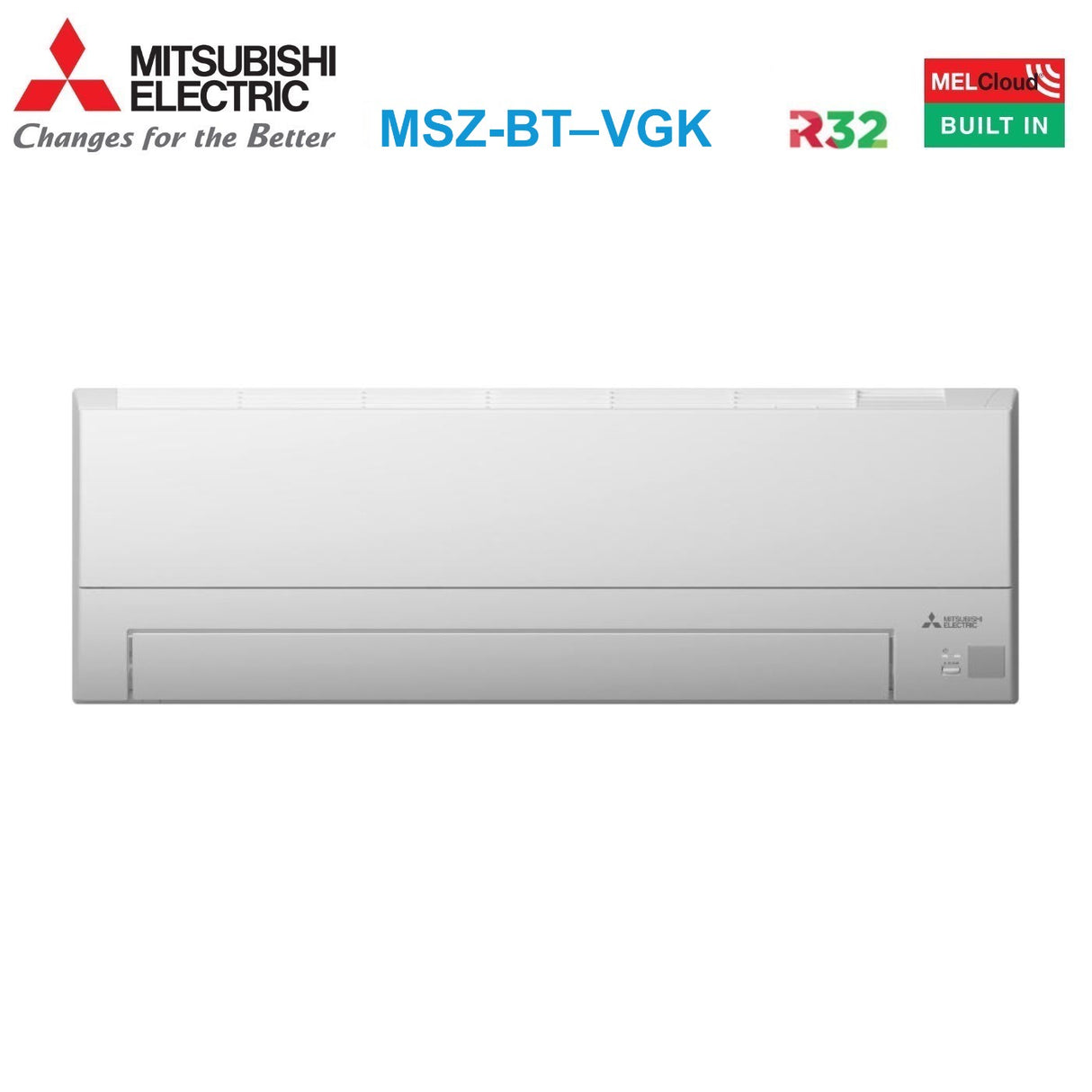

Mitsubishi Electric MSZ-BT series

High efficiency

Energy efficiency, simplicity and silence are distinctive features of this series of wall air conditioners with DC Inverter technology. The clean and linear design, the possibility of multisplit connection make this series suitable for any application, be it a home, an office or a small commercial business. Operating economy is the great advantage of the Mitsubishi Electric MSZ-BT series air conditioners. Thanks to the careful design of all components and the use of cutting-edge technologies, MSZ-BT reaches Class A++ in cooling and heating.

MELCloud Integrated

The new MSZ-BT offers the experience of using MELCloud integrated into the machine. Ready to be configured and used, it allows the user to remotely manage all the functions of the air conditioner, thanks to the Wi-Fi controller.

Silent operation

The sound emission of the internal unit is only 19dB when operating at minimum speed, guaranteeing maximum acoustic comfort within the environment.

• peso: 55.0 kg
• classe energetica raffreddamento: A+++
• classe energetica riscaldamento: A++
• gas: R-32
• marca: MITSUBISHI ELECTRIC
• metri quadri : 20/20
• modello: BT-VG 7+7 42
• potenza btu: 7000+7000
• superficie riscaldabile mq: 20/20
