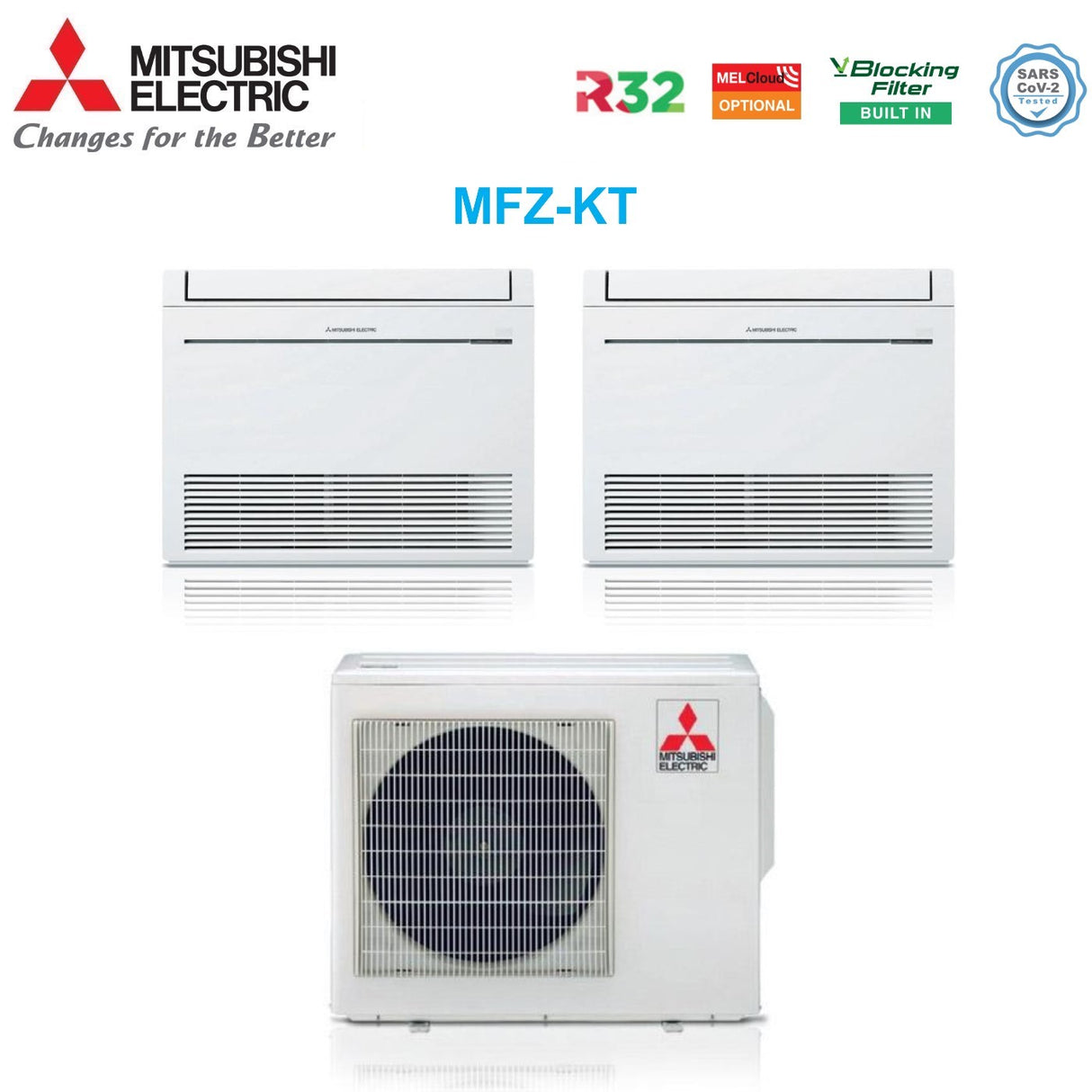

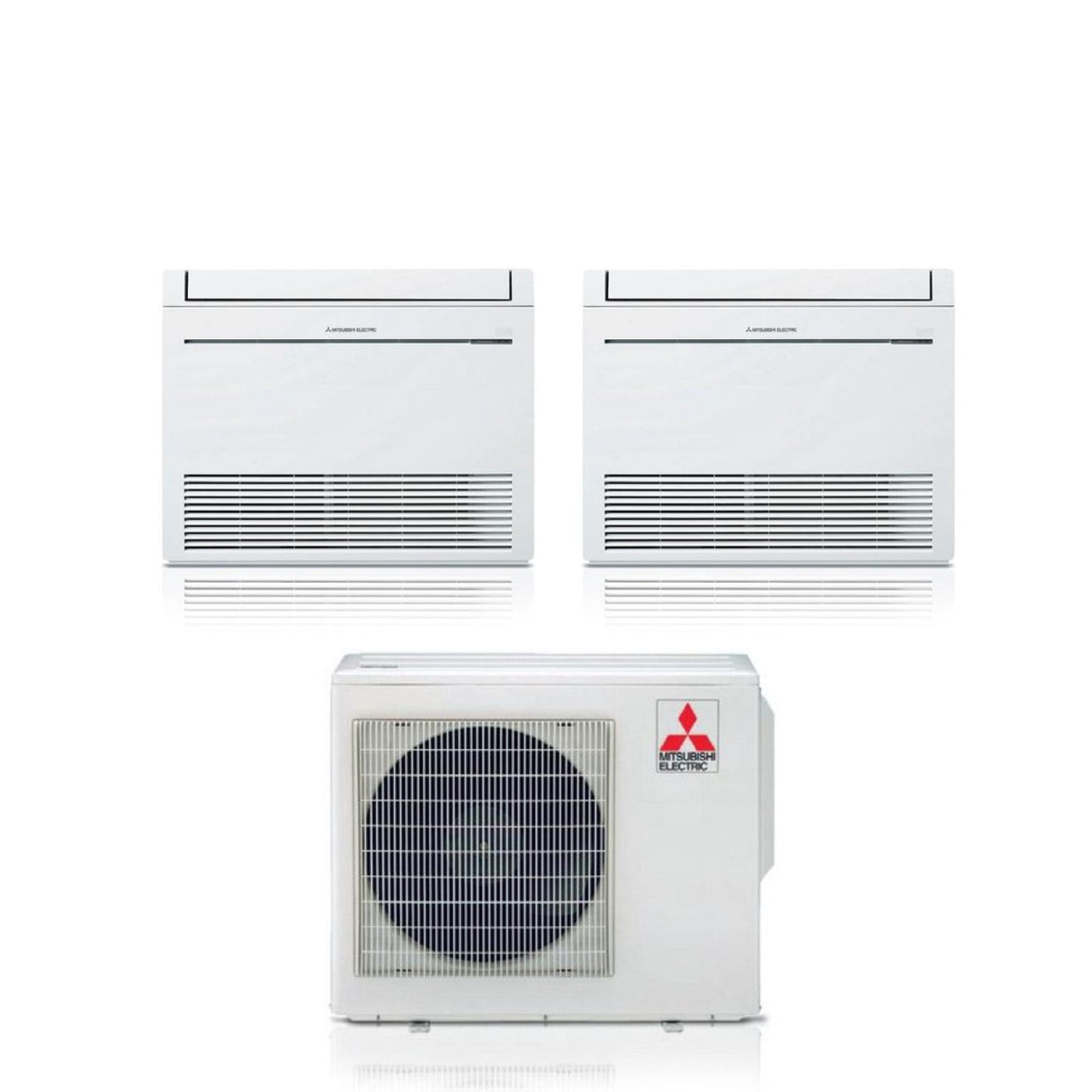

Mitsubishi Electric Air Conditioner Floor Dual Split Inverter MFZ-KT 12+12 series with MXZ-3F68VF R-32 Wi-Fi Optional with Remote Control Included 12000+12000
Mitsubishi Electric Air Conditioner Floor Dual Split Inverter MFZ-KT 12+12 series with MXZ-3F68VF R-32 Wi-Fi Optional with Remote Control Included 12000+12000 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
How shipping works
How shipping works
I costi di spedizione variano a seconda del peso e della modalità di spedizione dell'ordine.
I nostri servizi di spedizione:
- Spedizione standard: consegna stimata dai 2 ai 5 giorni lavorativi
- Spedizione Premium: consegna garantita in 24 ore lavorative
- Spedizione Premium + Consegna al piano: consegna garantita in 24 ore lavorative
Consulta le tabelle per i prezzi della spedizione standard per l'Italia e per le Isole Minori e Zone Disagiate.
Per ulteriori dettagli sulla Spedizione Premium, consulta la pagina di spedizione premium.
Servizio clienti
Servizio clienti
Il nostro servizio di assistenza è dedicato a fornire supporto ai nostri clienti per qualsiasi problema o domanda che possano avere prima o dopo l’acquisto dei nostri prodotti.
Utilizza il canale di comunicazione diretta per parlare con un nostro operatore, oppure inviaci una mail ad uno degli indirizzi elencati nella pagina contattaci.
Il nostro team di assistenza clienti è composto da professionisti altamente qualificati e sempre pronti ad aiutare i clienti a risolvere qualsiasi problema o rispondere a qualsiasi domanda in modo rapido ed efficiente. Ci impegniamo a garantire la massima soddisfazione del cliente e a fornire un servizio di assistenza post-vendita di altissima qualità. Quindi, se hai bisogno di assistenza, non esitare a contattarci; saremo lieti di aiutarti in ogni modo possibile.
Description
Description
Important Notice on Regulations for Fluorinated Gases IN ITALY
In accordance with Regulation (EU) No. 517/2014 and Presidential Decree No. 146/2018, equipment containing fluorinated gases that is not hermetically sealed can only be sold if installed by a certified company.
By law, each sale must be recorded in the Fluorinated Gas Database, including a declaration from the buyer ensuring that the installation complies with the regulations. Therefore, before completing the order, it will be necessary to provide this mandatory declaration.
Technical features
- Indoor unit catalog code: 2x MFZ-KT35VG
- Power: 12000 Btu
- Cooling capacity: 3.5 kW
- Heating capacity: 4.3 kW
- Treated air: 3.5 ~ 9.7 m 3 /min
- Sound power level: 54 dB(A)
- Sound pressure level: 19~44 dB(A)
- Liquid pipe diameter: 6.35 mm (1/4")
- Gas pipe diameter: 9.52 mm (3/8")
- Dimensions (HxWxD): 600x750x215 mm
- Weight: 14.5 kg
- Wi-Fi Optional: MAC-587IF-E
External unit
- Outdoor unit catalog code: MXZ-3F68VF
- Number of connectable internal units: Up to 3 internal units
Energy efficiency
- SEER: 7.96
- SCOP: 4.12
- Cooling energy efficiency class: A++
- Heating energy efficiency class: A+
- Annual energy consumption in cooling: 299 kWh/a
- Annual energy consumption in heating: 2312 kWh/a
Performance
- Cooling capacity: 6.8 kW
- Heating capacity: 8.6 kW
- Cooling absorption: 1.84 kW
- Heating absorption: 1.91 kW
- Sound power level: 63 dB(A)
- Sound pressure level: 48~53 dB(A)
Electrical data
- Power (V/Hz/Φ): 220~240/50/1
- Refrigerant gas: R-32
- Guaranteed temperature range:
- - Cooling: -10° ~ 46° C
- - Heating: -15° ~ 24° C
- Liquid tube diameter: 6.35 mm (1/4") x3
- Gas pipe diameter: 9.52 mm (3/8") x3
- Maximum pipe length: 60 m
- Maximum height difference between internal unit and external unit: 15 m Internal Unit Above
- Maximum height difference between internal unit and external unit: 10 m Internal Unit Below
Dimensions and weight
- External unit dimensions (HxWxD): 710x840x330 mm
- External unit weight: 58.0 kg
Multisplit DC Inverter Mitsubishi Electric
The Inverter system is an electronic device that allows you to efficiently vary the speed of the compressor and, consequently, the power supplied by the air conditioner, based on the cooling or heating request.
Compared to traditional fixed speed (On/Off) air conditioners, inverter air conditioners reach the required temperature sooner and keep it stable, without annoying changes, to the benefit of comfort and electricity consumption.
High seasonal efficiency
Operating economy is the great advantage of Mitsubishi Electric air conditioners. Thanks to the DC Inverter regulation system and the careful design of the components used, energy efficiency reaches extraordinary levels. The entire range of multi-split air conditioners (MXZ-D) reaches high efficiency values even on a seasonal basis.
Maximum Silence for Maximum Comfort
The DC Inverter multisplit units are characterized by the very low noise level emitted. By activating the silent mode, this level can be further reduced automatically when the demand is lower (e.g. during the night in cooling mode).
Efficiency
Thanks to careful design and the introduction of the R32 refrigerant, the efficiency of the new multisplit outdoor units is significantly increased, reaching class A+++ in cooling (sizes 2F42,2F53,3F54) and A++ (sizes 2F42,2F53,3F54) in heating.
Connectivity
The extraordinary connectivity available with the new external units allows you to satisfy every need. The MXZ-F unit demonstrates all-round versatility , being connectable to a large part of the indoor unit range of the Residential and Commercial Line, whether they are wall-mounted units, ceiling cassettes or ducted.
Silence
The new MXZ-F multisplit outdoor units reach a new level of operating silence, reducing sound emission by up to 4dB compared to the previous model in cooling mode and up to 3dB in heating mode.
R32: reduced environmental impact
Thanks to the use of R32 refrigerant and a reduced pre-charge of the units compared to the previous model, the MXZ-F units introduce a significantly lower quantity of equivalent tonnes of CO2 into the environment.
Automatic noise reduction mode
By setting this function, it is possible to automatically reduce the noise level of the external unit when the internal loads to be satisfied are reduced, such as during night cooling.

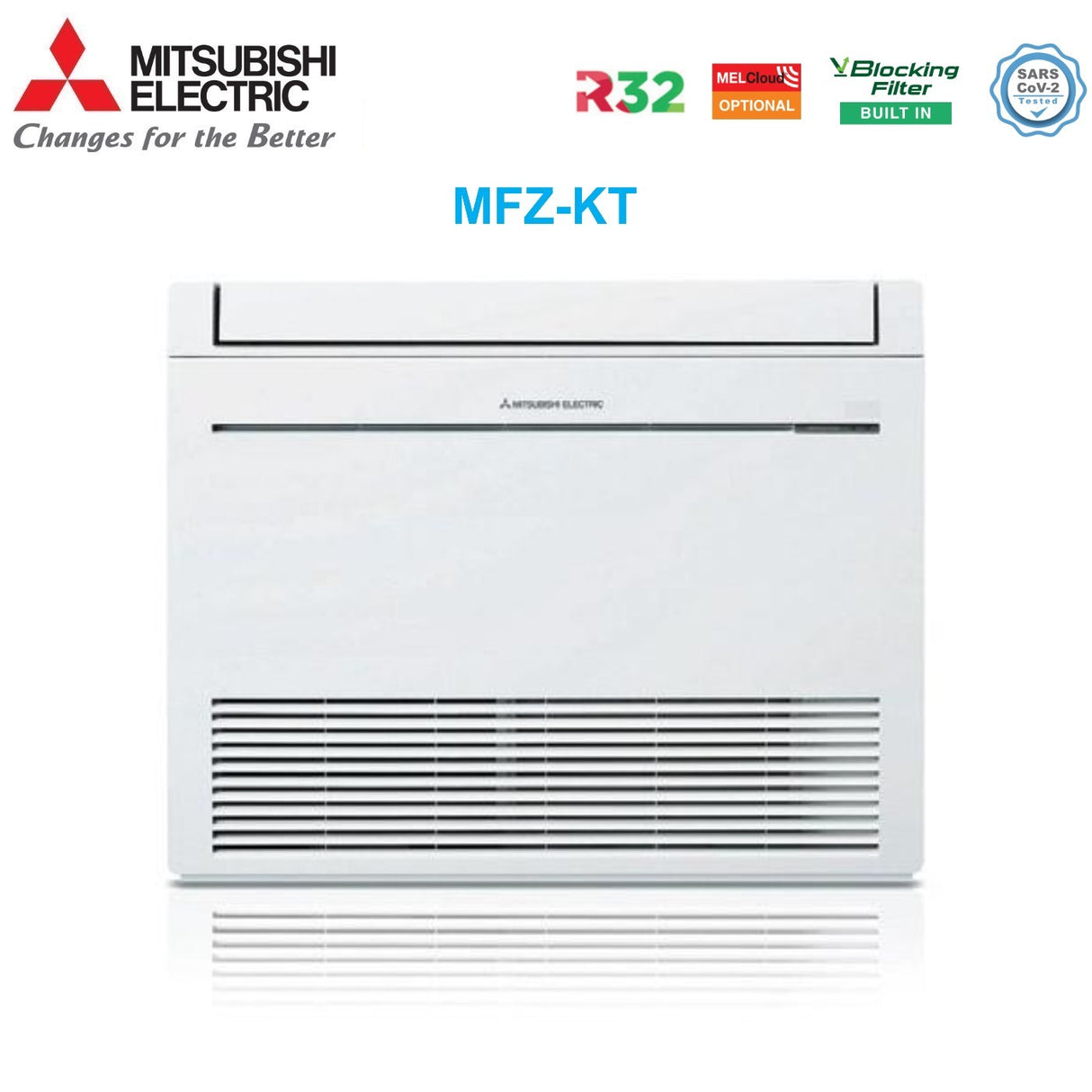

The MFZ-KT units are designed to optimize air distribution and offer a simple and elegant design to adapt to any type of furniture.
Multi-flow vane
The delivery vent is characterized by the presence of three different deflectors , each with a profile specifically designed to optimize the distribution of the outgoing air, maximizing comfort in both cooling and heating
V Blocking is a new purifying filter that improves the previous silver ion filter system, adding an antiviral action capable of inhibiting viruses, bacteria, mold and allergens
Standard purifying filter supplied
The standard purifying filter guarantees the removal of coarse polluting particles such as dust and impurities from the air with an additional antibacterial, anti-mold and odor-capturing effect.
Improved technology
The V Blocking filter system inhibits 99% of suspended harmful substances: viruses, bacteria, mold and allergens. The antiviral effect is guaranteed by an electrostatic filter and a non-woven fabric filter system which allows the small particles present in the environments to be effectively captured and removed
Greater air filtration capacity
V Blocking is a new purifying filter that improves the previous silver ion filter system, adding an antiviral action capable of inhibiting viruses, bacteria, mold and allergens
The importance of breathing excellent quality air
Air quality is the measure of how much the air we breathe is free of elements characteristic of air pollution. It therefore measures how healthy the air around us is.
The air, in the environments we live in daily, directly influences the quality of our life.
What are the benefits of breathing excellent quality air?
Breathing excellent quality air reduces the onset of allergies, asthma, better oxygenation and better quality of sleep.
MELCloud, Wi-Fi control
MELCloud is the new Wi-Fi control for your Mitsubishi Electric system. Taking advantage of the support of the cloud to transmit and receive information and the dedicated MAC-587IF-E Wi-Fi interface,
you can easily control your system wherever you are via your PC, tablet or smartphone; all you need is an internet connection. MELCloud can also be controlled by voice, thanks to compatibility with the voice assistants Google Home and Amazon Alexa . The MELCloud service was created to have maximum compatibility with PCs, Tablets and Smartphones thanks to dedicated Apps or via Web Browser.
System registration
To activate the MELCloud service it is necessary to proceed with system registration. Once the interface has been connected to the internal unit and paired with the router, it is possible to proceed with registering the system itself. To activate Wi-Fi control, simply go to the website www.melcloud.com, register as a user and register the interface used. From this moment on it will be possible to exploit all the potential of the MELCloud service and manage your air conditioner or your ECODAN heat pump from anywhere via the internet.
Product Warranty: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.
Scheda Tecnica
Scheda Tecnica
- peso: 55.0 kg
- classe energetica raffreddamento: A++
- classe energetica riscaldamento: A+
- gas: R-32
- marca: MITSUBISHI ELECTRIC
- metri quadri : 35/35
- modello: KT 12+12 68
- potenza btu: 12000+12000
- superficie riscaldabile mq: 35/35
