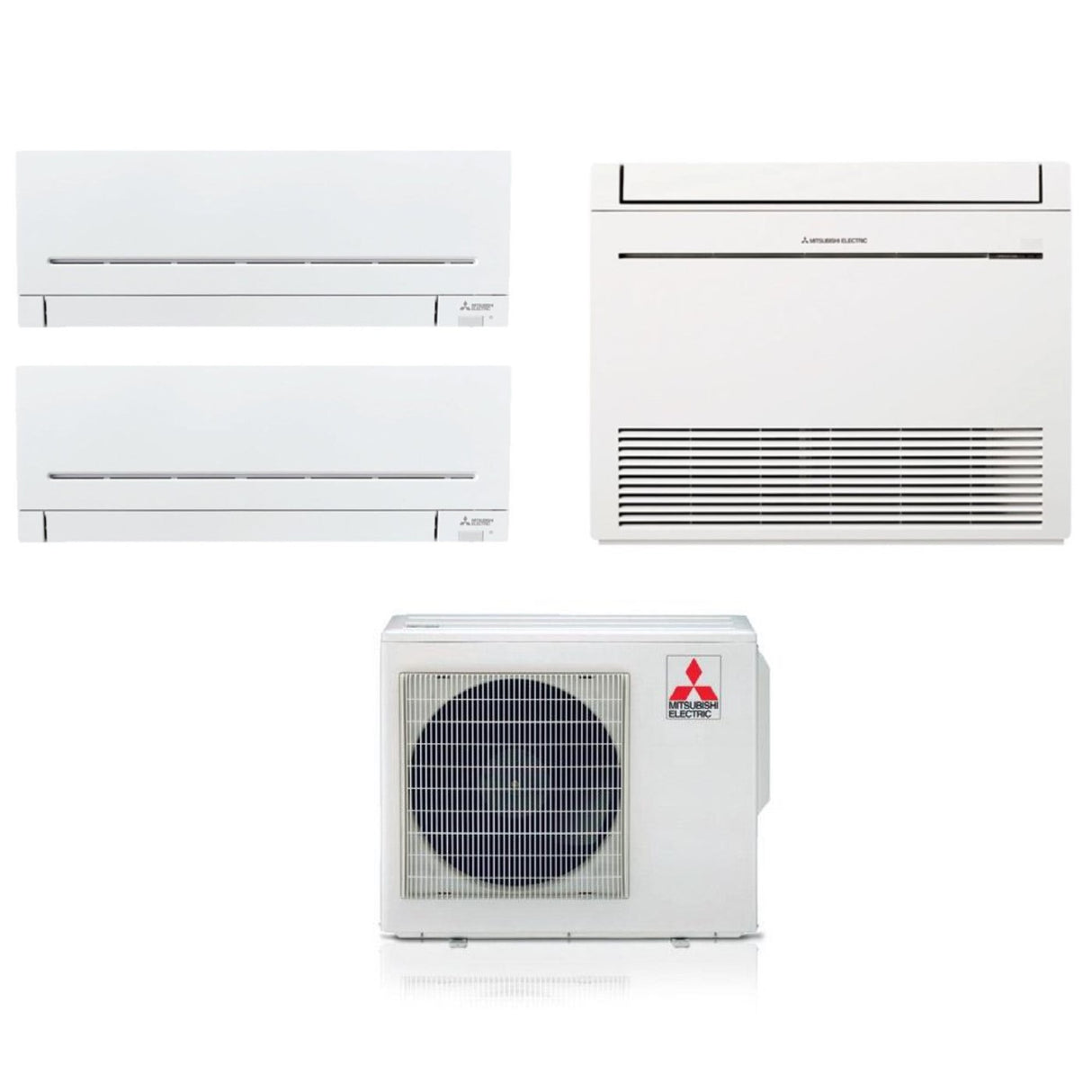

Air Conditioning Mitsubishi Electric Trial Split Inverter AP series + MFZ-KT Floor 9+9+12 with MXZ-3F68VF R-32 Wi-Fi Optional 9000+9000+12000

Technical features

Internal Units

1) Model:

• Series: AP
• Indoor Unit Code: 2 x MSZ-AP25VG
• Sound pressure: 19 - 24 - 30 - 36 - 42 dB(A)
• Sound Power: 57 dB(A)
• Liquid tube diameter: 6.35 mm (1/4")
• Gas hose diameter: 9.52 (3/8")
• Internal Unit Dimensions (HxWxD): 299x798x219 mm
• Internal Unit Weight: 10.5 Kg
• Wi-Fi Optional (Code MAC-567IF-E )

External Unit

Model:

• Catalog code: MXZ-3F68VF
• Gases: R-32
• Minimum-max number of internal units that can be connected: 3

Energy efficiency:

• Nominal cold cooling capacity 6.8 kW
• Nominal hot cooling capacity 8.6 kW
• SEER 7.96
• SCOP 4.12
• Cooling energy class A++
• Heating energy class A+

Performance:

• Maximum external unit sound pressure level: 53 dB(A)
• External unit sound power level: 63 dB(A)

Electrical data:

• Power: 230/1/50
• Liquid tube diameter: 6.35 mm (1/4")
• Gas hose diameter: 9.52 (3/8")

Dimensions

• External Unit Dimensions (HxWxD): 710x840x330 mm
• External Unit Weight: 58 Kg

Multisplit DC Inverter

The Inverter system is an electronic device that allows you to efficiently vary the speed of the compressor and, consequently, the power supplied by the air conditioner, based on the cooling or heating request.

Compared to traditional fixed speed (On/Off) air conditioners, inverter air conditioners reach the required temperature sooner and keep it stable, without annoying changes, to the benefit of comfort and electricity consumption.

High seasonal efficiency

Operating economy is the great advantage of Mitsubishi Electric air conditioners. Thanks to the DC Inverter regulation system and the careful design of the components used, energy efficiency reaches extraordinary levels. The entire range of multi-split air conditioners (MXZ-D) reaches high efficiency values ​​even on a seasonal basis.

Maximum Silence for Maximum Comfort

The DC Inverter multisplit units are characterized by the very low noise level emitted. By activating the silent mode, this level can be further reduced automatically when the demand is lower (e.g. during the night in cooling mode).

Compactness and Versatility

The dimensions of the outdoor unit are extremely compact so that they do not take up the space on the terrace or in the home garden. The extensive development of the pipes allows for a vast choice of installation location.

New MXZ outdoor unit

R32: reduced environmental impact

Thanks to the use of R32 refrigerant and a reduced pre-charge of the units compared to the previous model, the MXZ-F units introduce a significantly lower quantity of equivalent tonnes of CO2 into the environment.

Automatic link correction

Simply press a button (from MXZ-3E/F to MXZ-6D) or activate a single indoor unit (MXZ-2E/F) to ensure correct connection between indoor units and outdoor unit. In the event of an error in the connection, the system will automatically correct it.

Efficiency

Thanks to careful design and the introduction of the R32 refrigerant, the efficiency of the new multisplit outdoor units is significantly increased, reaching class A+++ in cooling (sizes 2F42,2F53,3F54,3F68,4F72) and A++ (sizes 2F42,2F53 ,3F54) in heating.

Silence

The new MXZ-F multisplit outdoor units reach a new level of operating silence, reducing sound emission by up to 4dB compared to the previous model in cooling mode and up to 3dB in heating mode.

Energy Monitoring

The new MXZ-F model supports the energy consumption monitoring function thanks to the MELCloud remote control system, also in the Multisplit R32 configuration.

MSZ-AP series

• Ecological R32 refrigerant
• Compact design
• High seasonal energy efficiency for the entire range
• Optional silver ion air purifying filter
• Minimum sound level
• Weekly timer
• Multisplit compatible
• Wi-Fi compatible

Innovation and compact design

MSZ-AP units are characterized by ultra-compact dimensions with only 2 dimensional levels for 6 different powers.

Energy efficiency

Thanks to careful design and the introduction of R-32 refrigerant gas, the efficiency of the new MSZ-AP units is significantly increased, reaching class A+++ in cooling (sizes 25 and 35) and A++ in heating on the entire line.

R32: a refrigerant for the future

The R32 refrigerant used in MSZ-AP series air conditioners is characterized by a lower Global Warming Potential (GWP) than refrigerant gases used until now in residential air conditioning, reducing its potential negative impact on the environment. Its advantages are:

• High energy efficiency
• Reduction in the amount of refrigerant gas used
• Reduced environmental impact
• Easily chargeable and recoverable as pure gas
• Low toxicity and flammability

Air distribution

Thanks to the presence of the motorized louver it is possible to direct the air flow to achieve maximum comfort in every operating mode.

MELCloud - Energy consumption monitoring NEW (optional)

The new MSZ-AP model supports the energy consumption monitoring function thanks to the MELCloud Cloud remote control system, also in the Multisplit R32 configuration. It allows you to promptly adjust the air conditioning systems from your Smartphone and Tablet via a dedicated app.

Silent operation

Environmental comfort is also linked to the sound level and is especially important in bedrooms or studies. For sizes 25/35 the sound emission of the internal unit is only 19dB when operating at minimum speed, guaranteeing maximum acoustic comfort within the environment.

Night Mode

By activating the Night Mode function from the remote control it is possible to prepare the air conditioner for night-time operation:

• Removing LED brightness
• Deactivating the "beep" sound
• 3dB reduction in sound emission from the outdoor unit

Advanced filtering

Thanks to the air purifying filter present in the internal unit, the new MSZ-AP model guarantees the removal of dust and bad odors. Furthermore, for sizes 25-50, it is possible to provide the optional silver ion air purifier filter, which captures bacteria, pollen and other allergens.

MFZ-KT SERIES

Simple and elegant design

The floor-standing units have a design characterized by simple lines and flat surfaces which give elegance and modernity to the aesthetics and allow them to be perfectly combined with any type of furniture.

High heating capacity

The MFZ-KT model has a high capacity in heating mode compared to traditional air conditioners, which makes it suitable for winter and mid-season use.

Multi-flow vane

The delivery vent is characterized by the presence of three different deflectors, each with a profile specifically designed to optimize the distribution of the outgoing air, maximizing comfort in both cooling and heating.

Product Warranty: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase

• peso: 75.0 kg
• classe energetica raffreddamento: A+++
• classe energetica riscaldamento: A++
• gas: R-32
• marca: MITSUBISHI ELECTRIC
• modello: Ap + Pavimento 9+9+12 68
• potenza btu: 9000+9000+12000
• superficie riscaldabile mq: 25/25/35
