MITSUBISHI ELECTRIC
Garanzia Italiana 24 mesi
SKU: AP-VGK 7+9+12 68

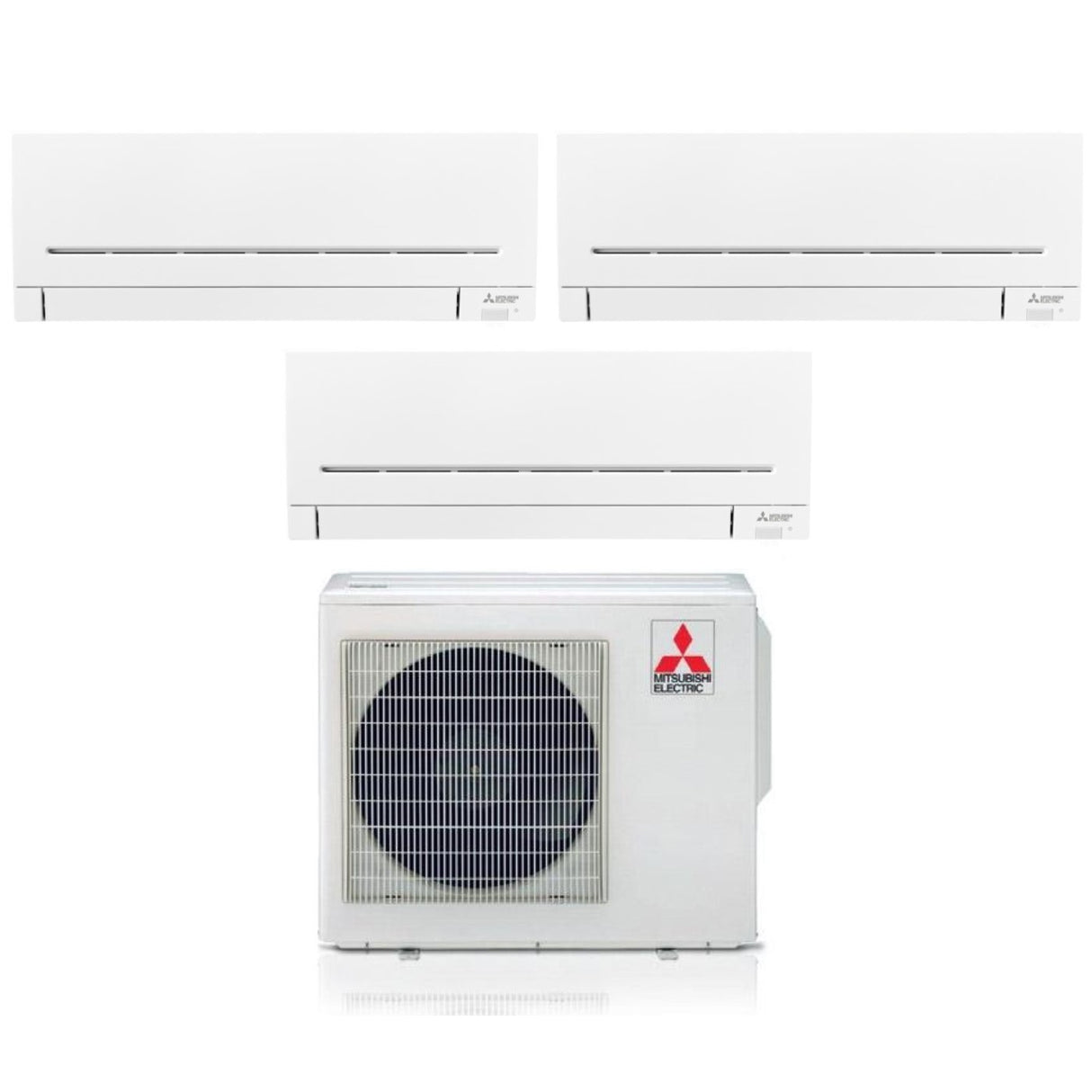

Mitsubishi Electric Trial Split Inverter Air Conditioner AP-VGK Series 7+9+12 with MXZ-3F68VF2 R-32 Integrated Wi-Fi 7000+9000+12000

Trustpilot
€3.171,00 VAT included
Tax included Shipping calculated at checkout.

How shipping works

I costi di spedizione variano a seconda del peso e della modalità di spedizione dell'ordine.

I nostri servizi di spedizione:

  • Spedizione standard: consegna stimata dai 2 ai 5 giorni lavorativi
  • Spedizione Premium: consegna garantita in 24 ore lavorative
  • Spedizione Premium + Consegna al piano: consegna garantita in 24 ore lavorative

Consulta le tabelle per i prezzi della spedizione standard per l'Italia e per le Isole Minori e Zone Disagiate.

Per ulteriori dettagli sulla Spedizione Premium, consulta la pagina di spedizione premium.

Servizio clienti

Il nostro servizio di assistenza è dedicato a fornire supporto ai nostri clienti per qualsiasi problema o domanda che possano avere prima o dopo l’acquisto dei nostri prodotti.

Utilizza il canale di comunicazione diretta per parlare con un nostro operatore, oppure inviaci una mail ad uno degli indirizzi elencati nella pagina contattaci.

Il nostro team di assistenza clienti è composto da professionisti altamente qualificati e sempre pronti ad aiutare i clienti a risolvere qualsiasi problema o rispondere a qualsiasi domanda in modo rapido ed efficiente. Ci impegniamo a garantire la massima soddisfazione del cliente e a fornire un servizio di assistenza post-vendita di altissima qualità. Quindi, se hai bisogno di assistenza, non esitare a contattarci; saremo lieti di aiutarti in ogni modo possibile.

Description

Technical features

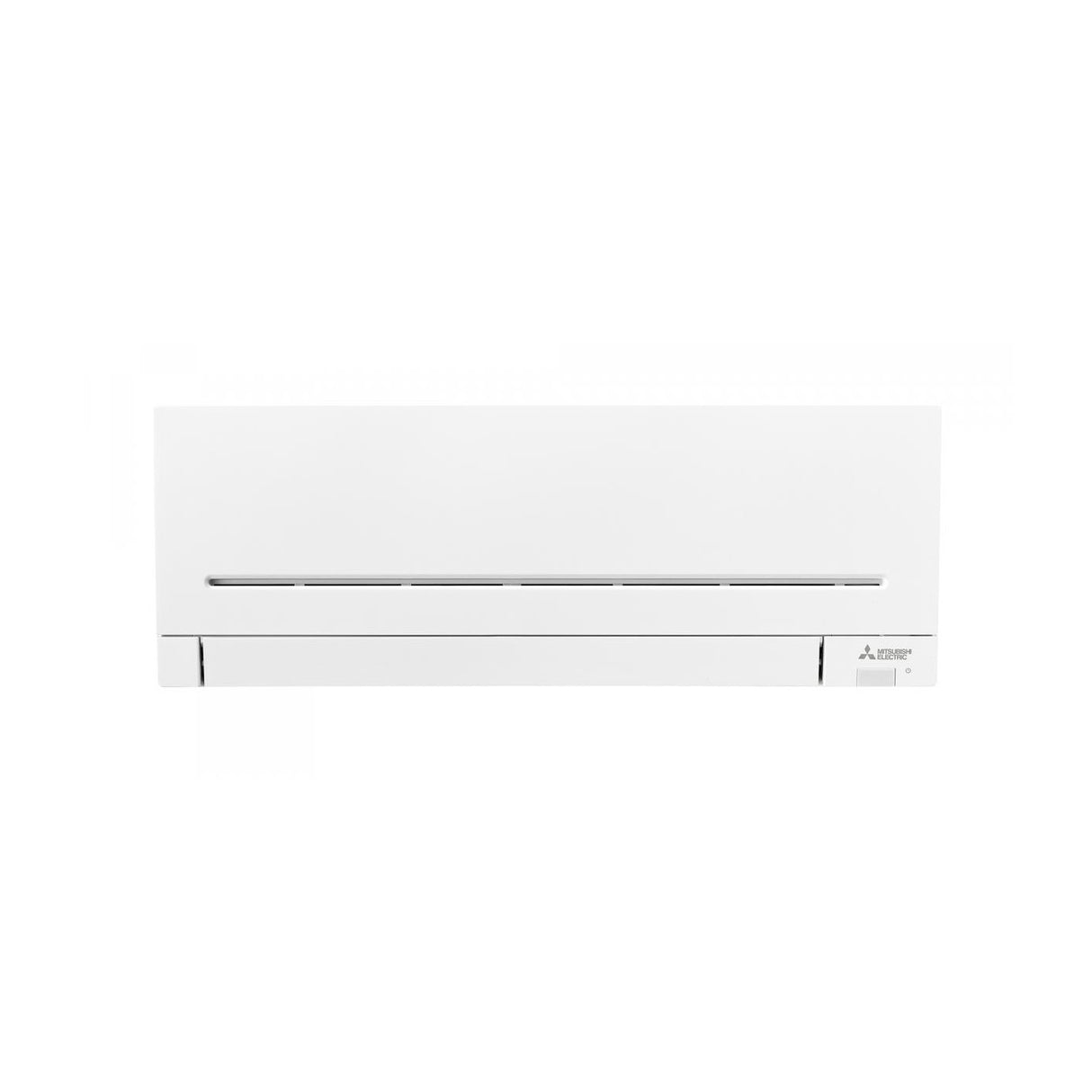

Internal units

1) Model:

  • Indoor Unit Catalog Code: 1x MSZ-AP20VGK
  • Power: 7000 Btu
  • Cooling Capacity: 2.0 kW
  • Heating Capacity: 2.5 kW
  • Treated Air: 3.5 ~ 7.3 m 3 /min
  • Sound Power Level: 60 dB(A)
  • Sound pressure level: 21~42 dB(A)
  • Liquid pipe diameter: 6.35 mm (1/4")
  • Gas pipe diameter: 9.52 mm (3/8")
  • Internal Unit Dimensions (HxWxD): 250x760x178 mm
  • Internal Unit Weight: 8.2 kg
  • Integrated Wi-Fi

2) Model:

  • Indoor Unit Catalog Code: 1x MSZ-AP25VGK
  • Power: 9000 Btu
  • Cooling Capacity: 2.5 kW
  • Heating Capacity: 3.2 kW
  • Treated Air: 4.9 ~ 12.9 m 3 /min
  • Sound Power Level: 57 dB(A)
  • Sound pressure level: 19~45 dB(A)
  • Liquid pipe diameter: 6.35 mm (1/4")
  • Gas pipe diameter: 9.52 mm (3/8")
  • Internal Unit Dimensions (HxWxD): 299x798x219 mm
  • Internal Unit Weight: 10.5 kg
  • Integrated Wi-Fi

3) Model:

  • Indoor Unit Catalog Code: 1x MSZ-AP35VGK
  • Power: 12000 Btu
  • Cooling Capacity: 3.5 kW
  • Heating Capacity: 4.0 kW
  • Treated Air: 4.9 ~ 12.9 m 3 /min
  • Sound Power Level: 57 dB(A)
  • Sound pressure level: 19~45 dB(A)
  • Liquid pipe diameter: 6.35 mm (1/4")
  • Gas pipe diameter: 9.52 mm (3/8")
  • Internal Unit Dimensions (HxWxD): 299x798x219 mm
  • Internal Unit Weight: 10.5 kg
  • Integrated Wi-Fi

External Unit

Model:

  • Outdoor Unit catalog code: MXZ-3F68VF2/3
  • Max indoor units: up to 3 indoor units

Energy efficiency:

  • SEER: 7.96
  • SCOP: 4.12
  • Cooling Energy Efficiency Class: A++
  • Heating Energy Efficiency Class: A+
  • Annual energy consumption in Cooling: 299 kWh/a
  • Annual energy consumption in Heating: 2312 kWh/a

Performance:

  • Cooling Capacity: 6.8 kW
  • Heating Capacity: 8.6 kW
  • Cooling absorption: 1.84 kW
  • Heating absorption: 1.91 kW
  • Sound power level: 63 dB(A)
  • Sound pressure level: 48~53 dB(A)

Characteristics:

  • Power (V/Hz/Φ): 220~240/50/1
  • Refrigerant gas: R-32
  • Guaranteed temperature range:
  • - Cooling: -10° ~ 46° C
  • - Heating: -15° ~ 24° C
Installation Data:
  • Pipe diameter Liquid: 6.35 mm (1/4") x3
  • Gas pipe diameter: 9.52 mm (3/8") x3
  • Maximum pipe length: 60 m
  • Maximum height difference Internal Unit / External Unit: 15 m External Unit Above
  • Maximum height difference Internal Unit / External Unit: 10 m External Unit Below

Dimensions:

  • External Unit Dimensions (HxWxD): 710x840x330 mm
  • External Unit Weight: 58.0 Kg

Compact design and size

The MSZ-AP units are characterized by ultra-compact dimensions , with only 2 dimensional levels for 6 different powers

MELCloud integrated

The new MSZ-AP (in the VGK version) offers the experience of using MELCloud integrated into the machine. Ready to be configured and used, it allows the user to remotely manage all the functions of the air conditioner, thanks to the Wi-Fi controller.

Efficiency

Thanks to careful design and the introduction of the R32 refrigerant , the efficiency of the new MSZ-AP units is significantly increased, reaching class A+++ in cooling (sizes 25 and 35) and A++ in heating across the entire lineup.

Air distribution

Thanks to the presence of the motorized louver it is possible to direct the air flow to achieve maximum comfort in the room in every operating mode (sizes 25-50). Furthermore, the horizontal flow eliminates annoying air currents towards the occupants.

New backlit remote control

The backlit remote control allows easy viewing even at night

Silent operation

For sizes 25/35 the sound emission of the internal unit is only 19dB when operating at minimum speed, guaranteeing maximum acoustic comfort within the environment

Night Mode

By activating the Night Mode function from the remote control it is possible to prepare the air conditioner for night-time operation:

  • LED brightness reduction
  • Deactivating the "beep" sound
  • 3dB reduction in external unit sound emission.

Advanced filtering

Thanks to the air purifying filter present in the internal unit, the new MSZ-AP model guarantees the removal of dust and bad odors. Furthermore, for sizes 25-50, it is possible to provide the optional silver ion air purifier filter, which captures bacteria, pollen and other allergens.

Energy monitoring

The new MSZ-AP model supports the energy consumption monitoring function thanks to the MELCloud Cloud remote control system.

Efficiency

Thanks to careful design and the introduction of the R32 refrigerant, the efficiency of the new multisplit outdoor units is significantly increased, reaching class A+++ in cooling (sizes 2F42,2F53,3F54) and A++ (sizes 2F42,2F53,3F54) in heating.


Connectivity

The extraordinary connectivity available with the new external units allows you to satisfy every need. The MXZ-F unit demonstrates all-round versatility , being connectable to a large part of the indoor unit range of the Residential and Commercial Line, whether they are wall-mounted units, ceiling cassettes or ducted.

Silence

The new MXZ-F multisplit outdoor units reach a new level of operating silence, reducing sound emission by up to 4dB compared to the previous model in cooling mode and up to 3dB in heating mode.

R32: reduced environmental impact

Thanks to the use of R32 refrigerant and a reduced pre-charge of the units compared to the previous model, the MXZ-F units introduce a significantly lower quantity of equivalent tonnes of CO2 into the environment.

Automatic noise reduction mode

By setting this function, it is possible to automatically reduce the noise level of the external unit when the internal loads to be satisfied are reduced, such as during night cooling.

Automatic link correction
Simply press a button (from MXZ-3E/F to MXZ-6D) or activate a single indoor unit (MXZ-2E/F) to ensure correct connection between indoor units and outdoor unit. In the event of an error in the connection, the system will automatically correct it

Product Warranty: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.

Scheda Tecnica
  • peso: 75.0 kg
  • classe energetica raffreddamento: A+++
  • classe energetica riscaldamento: A++
  • gas: R-32
  • marca: MITSUBISHI ELECTRIC
  • modello: AP-VGK 7+9+12 68
  • potenza btu: 7000+9000+12000
  • superficie riscaldabile mq: 20/25/35
