Technical features

NB: IN CASE OF NON-AVAILABILITY WE WILL SHIP THE NEW MODEL:

MSZ-HR <---(Click)

Indoor units:

Model:

External Unit:

Model:

Energy efficiency:

Performance:

Nominal cooling capacity (kW): 5.0
Nominal heating capacity (kW): 6.0
Power absorbed in cooling (W): 1.13
Power absorbed in heating (W): 1.31
Min-max outdoor unit sound pressure (dB-A): 50-53
Nominal sound power dB(A): 63

Characteristics:

Power (V/Hz/Φ): 230/50/1
Refrigerant gas: R410A
Guaranteed operating range:
Cooling °C: -15 ~ +46
Heating °C: -15 ~ +24

Dimensions:

General characteristics

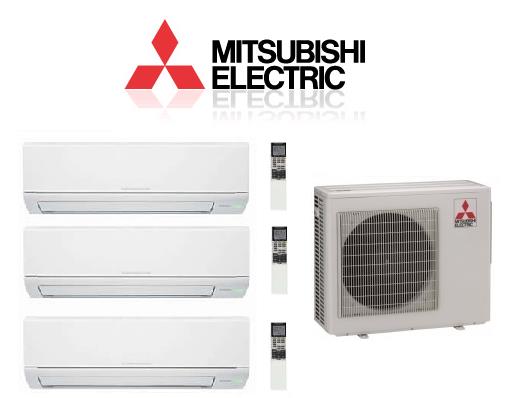

MITSUBISHI MSZ-DM series

Compactness and Design

The essential and neutral lines, the compact dimensions and the "pure white" color distinguish the appearance of the Smart Line air conditioners, making them compatible with any type of environment. Even the external unit, compact, light and silent, can be installed in limited spaces.

Easy to use timer

The 12-hour timer is especially suitable for use during sleeping hours. Automatic on and off operations can be easily set at hourly intervals

DC Inverter

The Inverter system is an electronic device that allows you to efficiently vary the speed of the compressor and, consequently, the power supplied by the air conditioner based on the cooling or heating request. Compared to traditional fixed speed (On/Off) air conditioners, inverter air conditioners reach the required temperature sooner and keep it stable, without annoying changes, to the benefit of comfort and electricity consumption.

Above class A+/A+ on a seasonal basis

Operating economy is the great advantage of Mitsubishi Electric air conditioners. Thanks to the careful design of all components and the use of cutting-edge technologies, energy efficiency reaches extraordinary levels even on a seasonal basis. In particular, the Smart Line obtains SEER and SCOP (seasonal efficiency indices) values ​​which allow it to reach values ​​beyond Class A+/A+ across the entire range.

Maximum Silence for Maximum Comfort

The quality of the environment in which we stay also depends on the perceived noise level. Mitsubishi Electric air conditioners help maintain the highest acoustic comfort by reducing noise emissions to a minimum.

Compact Outdoor Units:

The dimensions of the external and internal units of the entire range are particularly compact. This allows installation even in rooms where the space available is limited

Characteristics

Poki-Poki Motor: The innovative technology, exclusive to Mitsubishi Electric, allows the creation of high density motors, high magnetic force and excel in efficiency and reliability

“RARE EARTH” Type Permanent Magnet : The “rare earth” type permanent magnets that equip DC Inverter compressors have a significantly higher magnetic density than traditional ferrite.

DC Fan Motor : The DC fan motor allows a level of efficiency significantly higher than traditional AC motors

Pulse Amplitude Modulation: Inverter compressor driving system that allows the use of electrical energy without losses in efficiency.

Stepped Tubing: The heat exchangers have tubing with an internal groove to increase the heat exchange surface.

Self Diagnostics: A self-diagnostic system allows you to facilitate recovery operations

Anomaly recall: Anomalies are recorded in the history and can be easily viewed.

Reuse of existing pipes: Thanks to a highly stable refrigerant oil and highly robust components, existing air conditioner pipes can be reused without any reclamation.
