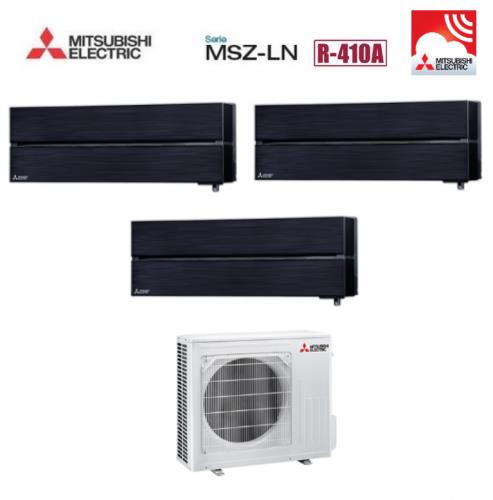

Mitsubishi Electric Trial Split Inverter Air Conditioning Kirigamine Style LN 12+12+12 Series with MXZ-3E68VA Onyx Black Wi-Fi R-410 12000+12000+12000 Black

Technical features

Indoor units:

Model:

• Indoor unit catalog code: 3 x MSZ-LN35VGB
• Power (BTU/h) 12000
• Internal Unit HxWxD (mm): 307 x 890 x 233; 15.5kg

External Unit:

Model:

• Indoor unit catalog code: MXZ-3E68VA
• Max number of internal units that can be connected: 3

Energy efficiency:

• SEER/SCOP (W/W): 5.6/3.9
• Energy Efficiency Class (cooling): A+
• Energy Efficiency Class (heating): A
• Annual energy consumption 1 kWh/cooling: 425
• Annual energy consumption 1 kWh/per heating: 2466

Performance:

• Nominal cooling capacity (kW): 6.8
• Nominal heating capacity (kW): 8.6
• Power absorbed in cooling (W): 1840
• Power absorbed in heating (W): 2350
• Min-max outdoor unit sound pressure (dB-A): 50/53
• Nominal sound power dB(A): 64

Characteristics:

• Power (V/Hz/Φ): 230/50/1
• Refrigerant gas: R410A
• Guaranteed operating range:
  - Cooling °C: -10 ~ +46
  - Heating °C: -15 ~ +24

Dimensions:

• HxWxD (mm): 710 x 840 (+30) x 330 (+66) ; 57kg

General characteristics

Multisplit DC Inverter

The Inverter system is an electronic device that allows you to efficiently vary the speed of the compressor and, consequently, the power supplied by the air conditioner, based on the cooling or heating request.

Compared to traditional fixed speed (On/Off) air conditioners, inverter air conditioners reach the required temperature sooner and keep it stable, without annoying changes, to the benefit of comfort and electricity consumption.

High seasonal efficiency

Operating economy is the great advantage of Mitsubishi Electric air conditioners. Thanks to the DC Inverter regulation system and the careful design of the components used, energy efficiency reaches extraordinary levels. The entire range of multi-split air conditioners (MXZ-D) reaches high efficiency values ​​even on a seasonal basis.

Maximum Silence for Maximum Comfort

The DC Inverter multisplit units are characterized by the very low noise level emitted. By activating the silent mode, this level can be further reduced automatically when the demand is lower (e.g. during the night in cooling mode).

Compactness and Versatility

The dimensions of the outdoor unit are extremely compact so that they do not take up the space on the terrace or in the home garden. The extensive development of the pipes allows for a vast choice of installation location.

General characteristics

MSZ-LN Kirigamine Style Series

For your luxury

Elegant Design

Handcrafted paint technology creates a refined design, giving the finish rich color and a high-quality feel. The new wall-mounted indoor units of the MSZ-LN series combine elegant and refined design with unrivaled performance. The new point of reference for air quality and distribution, for silence and efficiency has arrived!

Personal comfort

The 3D i-see infrared sensor uses advanced technologies to offer personalized comfort by monitoring the room temperature.

• Air distribution


The totally revolutionary geometry of the double deflector guarantees optimal air distribution; it is possible to independently direct the air flows exiting the right and left side of the unit.



The double flaps work independently, distributing pleasant air flows to people in the room.

• 3D i-see sensor


The 3D i-see sensor presence sensor, integrated into the MSZ-LN units, presents new functions compared to the one installed in the Kirigamine MSZ-FH series for an increase in internal comfort. Thanks to the new implementations, not only is it possible to direct the flow directly/indirectly, but functions are available that "learn" the habits of the occupants and optimize the efficient and comfortable operation of the unit. The even airflow function, for example, "records" the occupancy profile of the room, creating a mapping that allows the most frequented areas to be optimally air conditioned based on the history.

• Silent operation


Environmental comfort is also linked to the sound level and is especially important in bedrooms or studies. The Kirigamine line allows you to guarantee the ideal climate all year round with a sound level virtually imperceptible to the human ear.

The 19dB(A)2 achieved by the Kirigamine Style model is quieter than the noise generated by the rustling of leaves in the wind, making the air conditioner effectively inaudible to the occupants of the room.

This is why Kirigamine Style is particularly suitable for domestic environments such as bedrooms and living areas, where we spend most of our time and carry out our daily activities.

Healthy environment

Mitsubishi Electric's exclusive coating prevents the accumulation of dust and grease.

• Advanced filtering


The Plasma Quad Plus filtration system of the MSZ-LN units achieves a new record in the level of air cleanliness. In fact, it is capable of retaining particles up to PM2.5, i.e. with a diameter of less than 2.5 μm.

This distinctive feature makes the unit ideal for families who are particularly attentive to air quality or for installation in environments with often compromised ambient air (e.g. rooms overlooking busy areas, in cities near production activities...) .

• Plasma Quad Plus


This distinctive feature makes the unit ideal for families who are particularly attentive to air quality or for installation in environments with often compromised ambient air (e.g. rooms overlooking traffic areas, in the city, near production activities...). Through the use of Plasma Quad Plus technology, the unit is able to eliminate bacteria and viruses thanks to a technology that uses an electric field and a series of electric discharges through which the air released into the environment passes. With Plasma Quad Plus technology, 99% of the bacteria present in a 25m3 room is neutralized in just 115 minutes.

• Dual Barrier Coating

With the MSZ-LN unit Mitsubishi Electric introduces another revolutionary technology: Double Barrier Coating.

During operation, the dust and impurities introduced during air conditioning operations are deposited on the internal components, especially the battery and fan, increasing the machine's consumption by up to 18%.

With Double Barrier Coating the internal components of MSZ-LN are treated with a second protective layer which prevents the deposit of dust and impurities even after long periods of time, reducing consumption and eliminating the need for maintenance of the unit regarding this problem.

MELCloud - Energy consumption monitoring

The ability to manage and monitor the air conditioning system remotely is a consolidated solution in the Mitsubishi Electric product range thanks to the MELCloud platform. It allows you to promptly adjust the air conditioning systems from your Smartphone and Tablet via a dedicated app.

The new MSZ-LN units are not only compatible with MELCloud, but are already designed by incorporating the WiFi interface inside them for connection to the network, which makes them already ready for the Cloud solution without the need for additional components. One of the new features that MSZ-LN is already equipped with is the possibility of monitoring electricity consumption via the MELCloud® application, to always have efficiency under control.

Features and benefits of WIFI control

• On / Off
• Mode (Auto/Heating/Cooling/Ventilation)
• Ventilation speed
• Programmable weekly timer
• Flap inclination adjustment
• Room temperature detection and setting
• Weather information of the installation location
