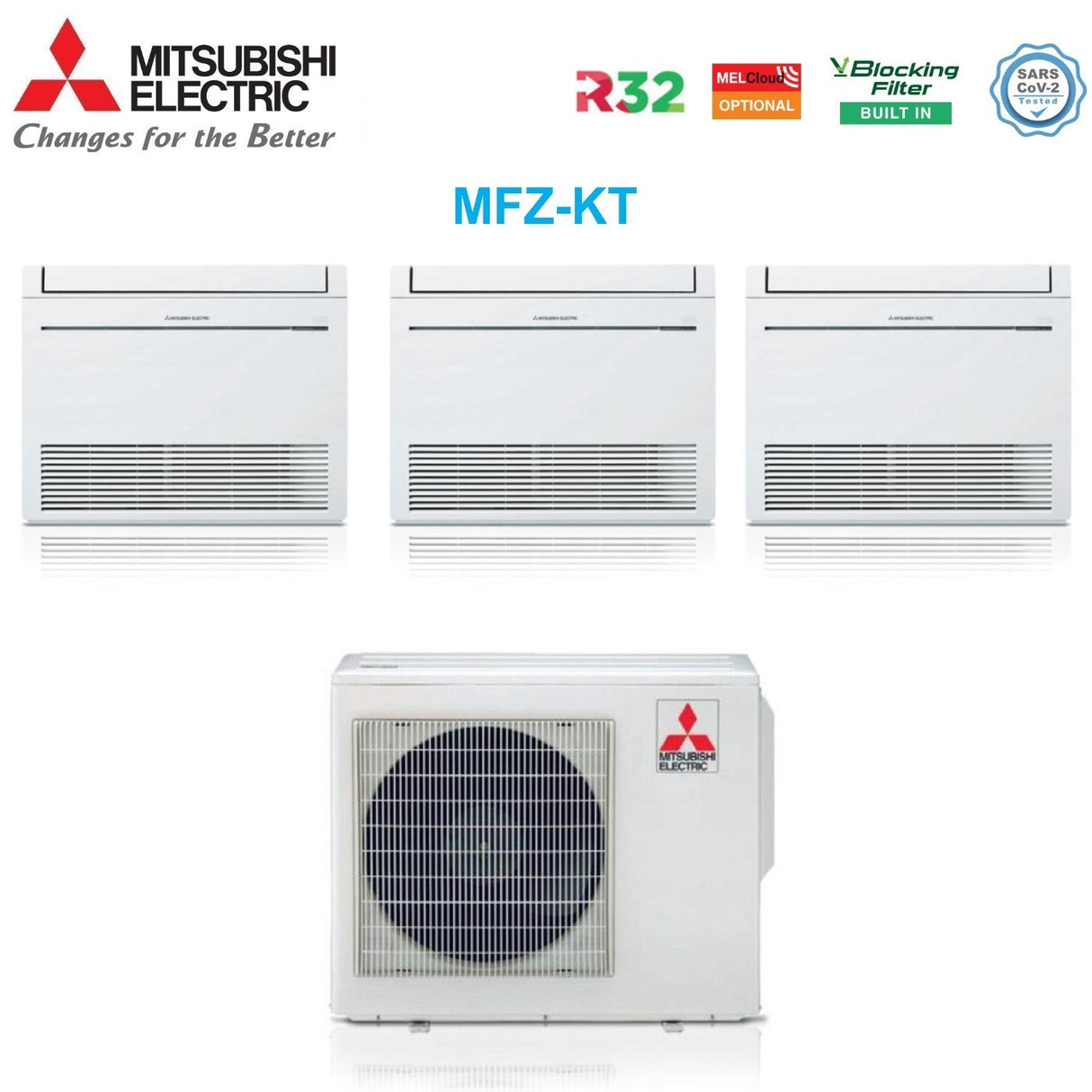

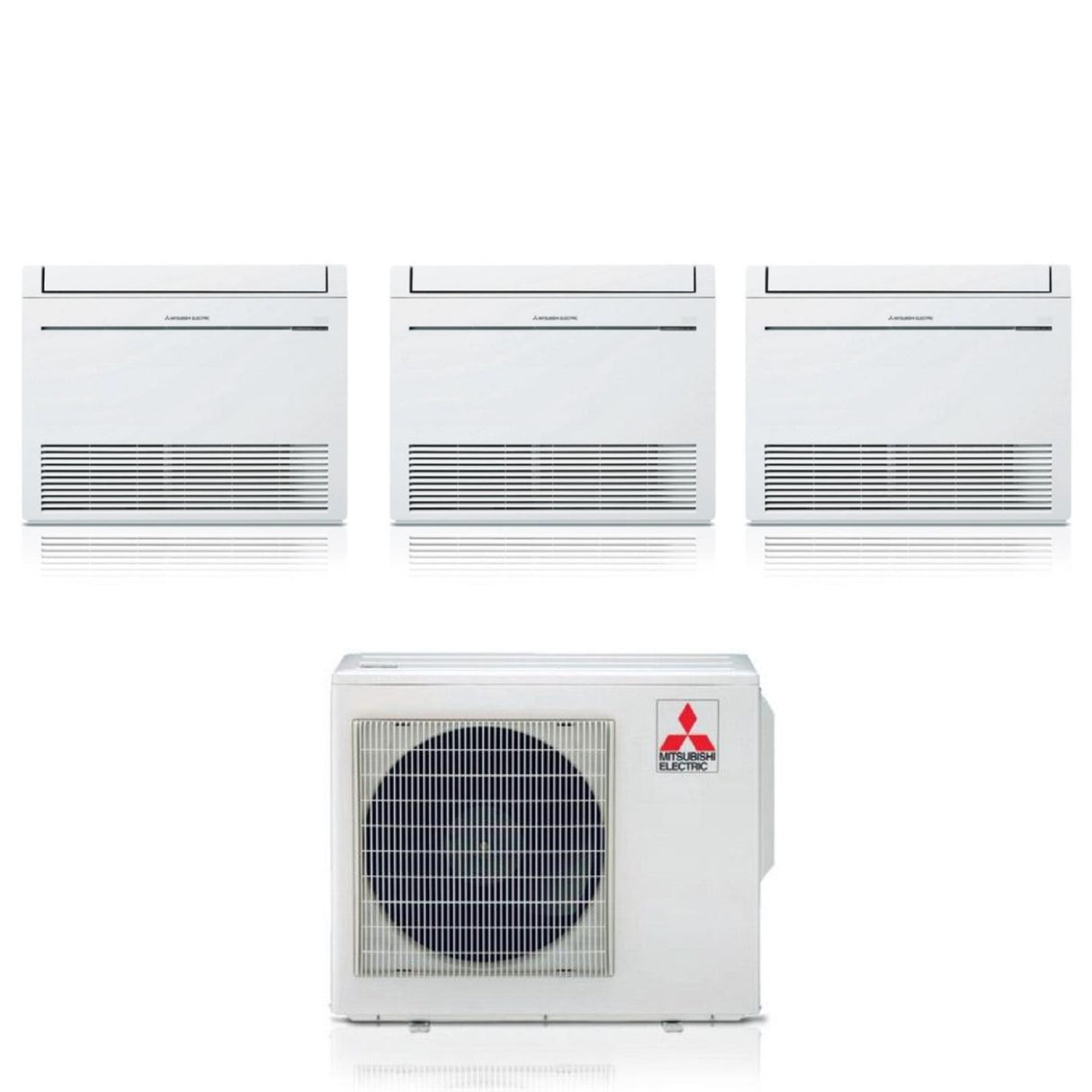

Mitsubishi Air Conditioner Floor Trial Split Inverter MFZ-KT 9+9+9 series with MXZ-3F54VF3 R-32 9000+9000+9000 - New
Mitsubishi Air Conditioner Floor Trial Split Inverter MFZ-KT 9+9+9 series with MXZ-3F54VF3 R-32 9000+9000+9000 - New is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
How shipping works
How shipping works
Shipping costs vary depending on the weight and shipping method of the order.
Our shipping services
Standard Shipping: estimated delivery in 2 to 5 working days
Premium Shipping: guaranteed delivery in 24 working hours
Premium Shipping + Flat Delivery: guaranteed delivery in 24 working hours
Please refer to the tables for Standard Shipping prices for Italy and for Minor Islands and Disturbed Areas.
For further details on Premium Shipping, please see the Premium Shipping page.
Customer service
Customer service
Our service department is dedicated to providing support to our customers for any problems or questions they may have before or after purchasing our products.
Use the direct communication channel to speak to one of our operators, or send us an e-mail to one of the addresses listed on the contact us page.
Our customer service team consists of highly qualified professionals who are always ready to help customers solve any problems or answer any questions quickly and efficiently. We strive to ensure maximum customer satisfaction and provide the highest quality after-sales service. So, if you need assistance, please do not hesitate to contact us; we will be happy to help you in any way we can.
Description
Description
Technical features

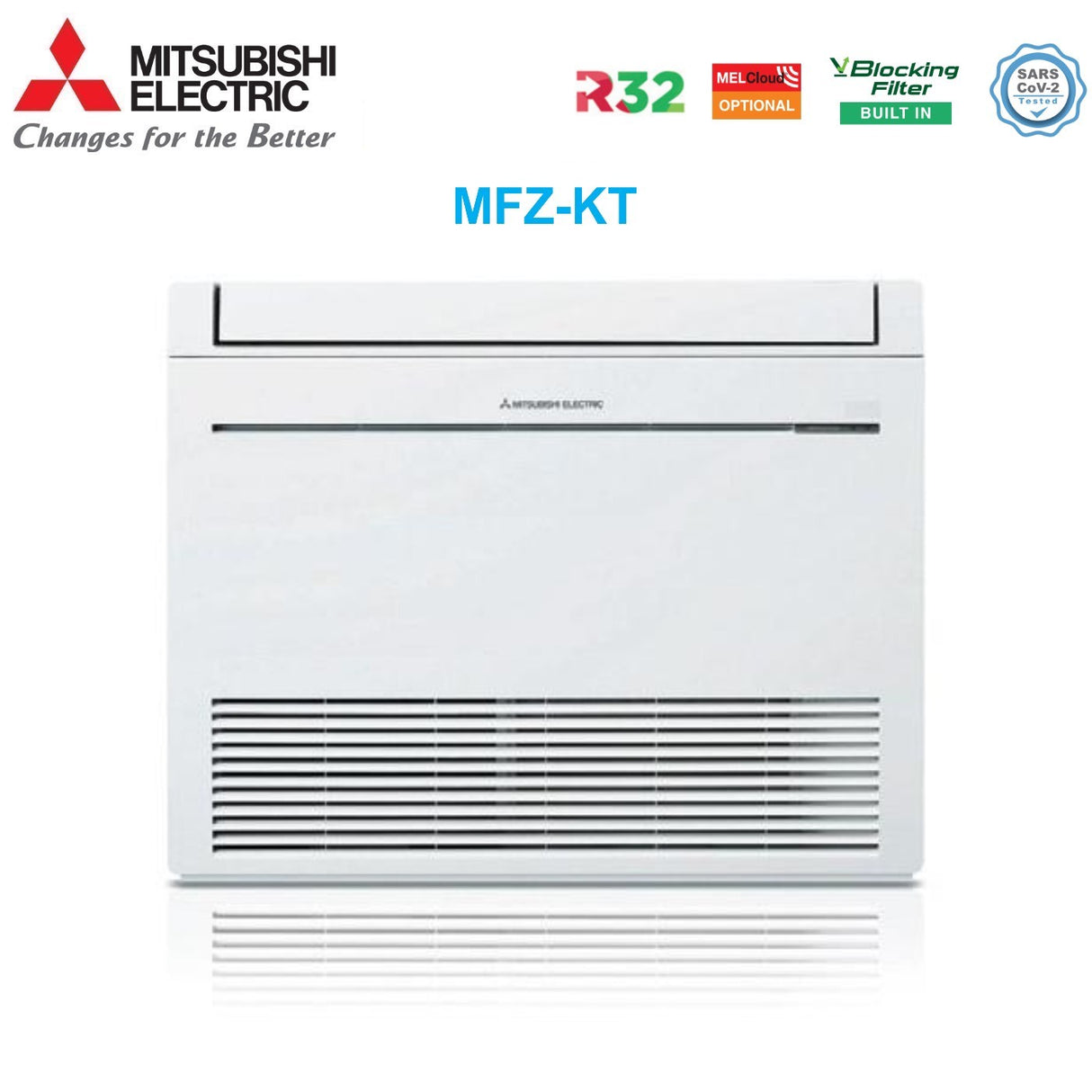

Indoor unit :
Model:
- Indoor unit catalog code: 3x MXZ-KT25VG
- Type: Inverter
- Power (BTU): 9000
- Weight: 15
External Unit
Model:
- Outdoor Unit Catalog Code: MXZ-3F54VF3
- Max number of internal units that can be connected: 3
- Weight: 58 kg
Technical Characteristics Cooling:
- Nominal Capacity (min/max): 5.4Kw (2.9-6.8)
- Nominal Absorbed Power: 1.32 Kw
- SEER: 8.52Kw
- Energy Efficiency Class: A+++
- Annual Energy Consumption: 222 KWh/a
- Theoretical load: 5.4 Kw
Technical Characteristics Heating:
- Nominal Capacity (min/max) : 7.0 (2.6-9.0)
- Nominal Absorbed Power: 1.4 Kw
- SCOP: 4.61 kW
- Energy Efficiency Class: A++
- Annual Energy Consumption: 1520 Kwh/a
- Theoretical load: 5 kw
Performance ;
- Sound pressure min/max: 46/50 dB (A)
- Nominal Sound Power: 60 dB (A)
Dimensions:
- Internal Unit H x W x D: 600 x 750 x 215
- External Unit H x W x D: 710 x 840 x 330
Installation Data:
- Liquid Pipe Diameter: 6.35 mm (1/4) x3
- Gas Pipe Diameter: 9.52 mm (3/8) x3
- Maximum length of pipes: 50 m
- Maximum height difference Internal Unit/External Unit: 15 m External Unit Above
- Maximum height difference Internal Unit7 External Unit: 10 m External Unit Below
Operation Range:
- Cooling : 10 ~ +46 °C
- Heating: 15 ~ +24 °C
General characteristics
The MFZ-KT units are designed to optimize air distribution and offer a simple and elegant design to adapt to any type of furniture.
- Compact and refined design
- High Energy Efficiency
- Exclusive Deflector Movement
- High Efficiency Antibacterial Filter Supplied
- Multisplit compatible
High Heating Capacity:
V Blocking Air Purifying Filter Supplied:
V Blocking is a new purifying filter that improves the previous silver ion filter system, adding an antiviral action capable of inhibiting viruses, bacteria, mold and allergens.
Standard Purifier Filter Supplied:
The standard purifying filter guarantees the removal of coarse polluting particles such as dust and impurities from the air with an additional antibacterial, anti-mold and odor-capturing effect
Multi-Flow Vane:
The delivery vent is characterized by the presence of three different deflectors, each with a profile specifically designed to optimize the distribution of the outgoing air, maximizing comfort in both cooling and heating.
Product Warranty: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.
Specifications
Specifications
- peso: 75.0 kg
- classe efficienza energetica: A++
- classe energetica raffreddamento: A+++
- classe energetica riscaldamento: A++
- costospedizionecad: IT49;AD165;AT106;BE111;BG136;HR123;DK175;EE170;FR144;DE102;LV131;LT123;LU80;NL119;PT114;CZ90;SK101;SI101;ES104;SE212;HU85;CH168;
- gas: R-32
- marca: Mitsubishi Electric
- modello: KT 9+9+9 54
- potenza btu: 9000+9000+9000
- superficie riscaldabile mq: 25/25/25
