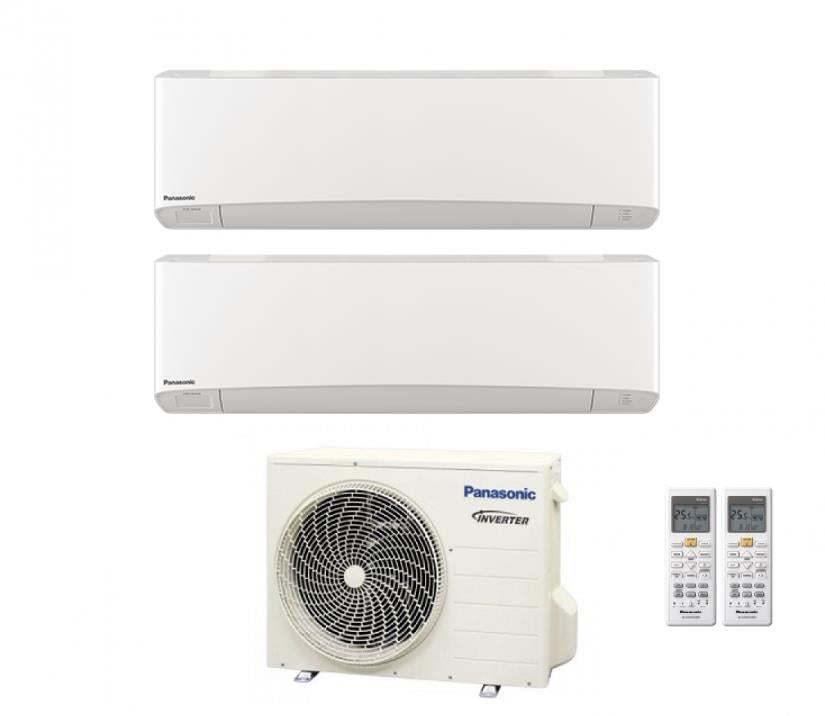

Panasonic Dual Split Inverter Air Conditioner ETHEREA White 7000+12000 with CU-2E15SBE 7+12

Air Conditioner PANASONIC DUAL SPLIT INVERTER ETHEREA SILVER 7000+12000 with CU-2E15SBE 7+12

---

INTERNAL UNITS

Model:

• Indoor unit catalog code: CS-Z20VKEW
• Power: 7000 Btu
• Integrated Wi-Fi
• Optional wired control (Code CZ-RD514C)
• Internal Unit Dimensions (HxWxD): 295x919x194 mm

OUTDOOR UNIT

Model:

• Catalog code: CU-2E15SBE
• Max combinable indoor units: 2 (From 3.2 to 5.6 kW)
• Gas: R410A
• Energy efficiency:
• SEER Seasonal Efficiency (W/W): 6.5; SCOP (W/W) : 4.0
• Energy Efficiency Class (Cooled): A++
• Energy Efficiency Class (Heating): A+
• CEA cooling consumption (kWh): 242
• CEA heating consumption (kWh): 1400

Performance:

• Cooling Capacity (kW): 4.5
• Heating capacity (kW): 5.4
• Cooling Power Absorption (W): 1230
• Heating power consumption (W): 1170
• Sound pressure levelû Cooling / Heating (Hi) dB(A) 47 / 49
• Sound power level Cooling / Heating (Hi) dB 62 / 64

Electrical data:

• Power (V/Hz/?): 220~240/50/1

Operation fields:

• - Cooling: -10 / +46 øC
• - Heating: -15 / +24 øC

Dimensions and Weight

• External Unit HxWxD (mm):619 x 824 +70 x 299; 39kg

Free Multi Systems

Panasonic offers the possibility of air conditioning multiple rooms thanks to the multisplit systems of the residential Inverter + (Etherea) and Inverter Standard (Multi RE) lines, designed according to new eco-sustainability requirements.

Thanks to Free Multi it will be possible to control 2, 3, 4 or 5 rooms with a single external unit. With these air conditioning systems, you will not only be able to avoid wasting outdoor space, but also take advantage of the better energy efficiency compared to the use of multiple monosplit systems, saving up to 30% of electricity.

• Compatible with Internet control INTERNET CONTROL (optional)
• High efficiency inverter control system, for even greater savings
• A high SEER coefficient (seasonal cooling efficiency) 7.00 A++
• A high SCOP coefficient (seasonal heating efficiency) 4.00 A+
• Up to -15øC in heating: The air conditioner can operate in heat pump mode even with an external temperature of -15øC.
• Up to -10øC in cooling: The air conditioner can operate in cooling mode even with an external temperature of -10øC.
• R22 Renewal: The Panasonic Renewal system allows you to reuse existing R22 gas pipes (in good condition) when installing a new system with R410A gas.
• The compressor has a 5 year warranty.

New Etherea units

R-32 refrigerant: more efficient and eco- friendly

Panasonic air conditioners are designed to guarantee a comfortable climate inside their customers' homes. The entire residential range is efficient and eco-sustainable, thanks to the R32 refrigerant. Living according to your sustainable lifestyle is now easier than ever.

Surprisingly slim design

An innovative design that fits perfectly with modern environments. We have selected the best materials to offer a refined design. Now available in silver and matte white modes.


Maximize energy savings with new models

The Econavi system sensors automatically adjust the power of the air flow, allowing you to save energy efficiently, without sacrificing comfort and convenience.


Plus product

R32 refrigerant. The heat pumps use the new refrigerant R32 thus allowing a reduction in the heating potential value.

Econavi. The Econavi system's intelligent sensors detect sunlight intensity, human movements, activity levels or the absence of people and automatically adjust the power and direction of the airflow. With the Econavi system you can save up to 38%.

The inverter guarantees greater efficiency, better comfort. More precise thermoregulation, which avoids peaks and keeps the temperature more constant with lower energy consumption.

nanoe™ . The nanoe™ purification system uses nanoparticles. It neutralizes both airborne and adhesive microorganisms, such as bacteria, viruses and mold, and ensures effective cleaning of the air in the environment.

Super Quiet. Thanks to Super Quiet technology, our air conditioners ensure extremely quiet operation. The sound pressure level of the indoor unit is only 19 dB(A), valid for Z20/Z25/Z35 models.

Mild Dry Cooling function. This function helps to prevent the rapid drop in ambient humidity (relative humidity is maintained at a level 10% higher than with the cooling function). It is ideal when you sleep with the air conditioning on.

Aerowings . More comfort with Aerowings. Large ventilation flow. Two fins improve the direction of the air flow.

Internet Control. This new generation system provides the possibility of remote control of the air conditioner or heat pump unit via the internet from anywhere, using a smartphone equipped with an Android or iOS operating system, a tablet or a PC.

Easy control via BMS. The communication port is integrated into the indoor unit, and allows connectivity and management via a building management system

---

Warranty All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.

• peso: 55.0 kg
• classe energetica raffreddamento: A+++
• classe energetica riscaldamento: A++
• costospedizionecad: IT35;AD165;AT106;BE111;BG136;HR123;DK175;EE170;FR144;DE102;LV131;LT123;LU80;NL119;PT114;CZ90;SK101;SI101;ES104;SE212;HU85;CH168;
• gas: R-410
• marca: Panasonic
• metri quadri : 20/35
• modello: 7+12etherea+15
• potenza btu: 7000+12000
• superficie riscaldabile mq: 20/35
