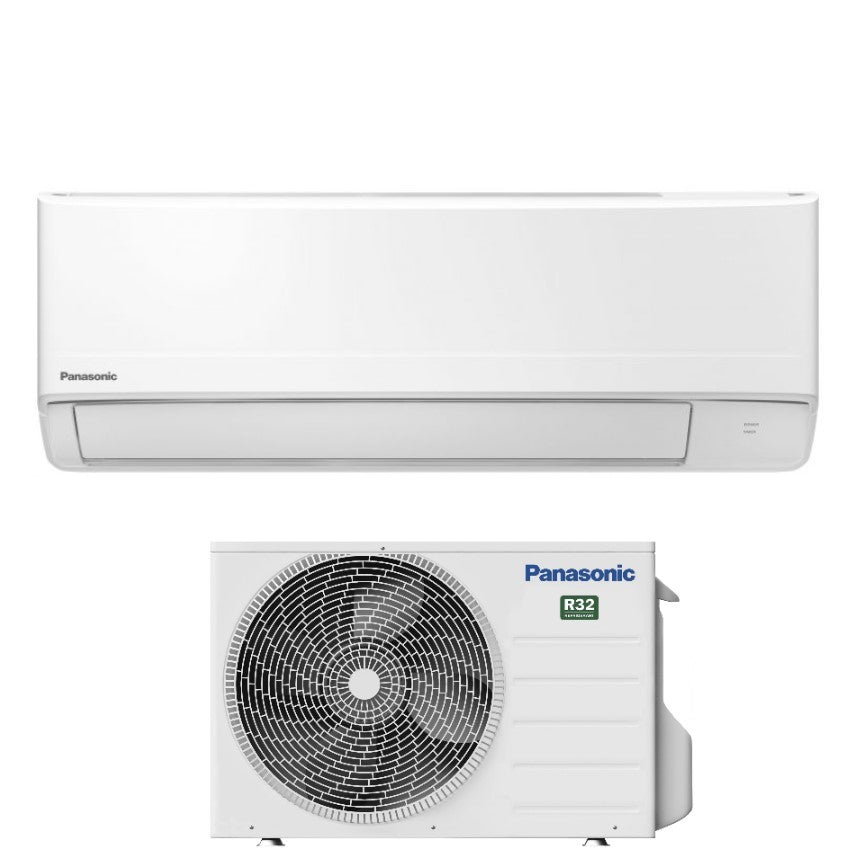

Panasonic Inverter Air Conditioner BZ Series 12000 Btu CS-BZ35XKE R-32 Wi-Fi Optional

Performance

• Cooling Capacity: 3.4 kW
• Heating Capacity: 3.84 kW
• Indoor Unit Treated Air: 10.8 ~ 11.3 m ³ /min
• Internal Unit Sound Power Level: 54 dB(A)
• External Unit Sound Power Level: 64 dB(A)
• Indoor Unit Sound Pressure Level: 20~38 dB(A)
• External Unit Sound Pressure Level: 48 dB(A)

Electrical Data

• Power (V,Hz, Ø): 220~240/50/1
• Refrigerant gas: R32
• Operating range
• - Cooling: -10° ~ 43°C
• - Heating: -15° ~ 24°C

---

Panasonic New BZ Unit, Compact and Efficient

• Compact and elegant design: only 779 mm wide

• PM2.5 filter for a cleaner environment

• Super silent sound pressure operation

• Greater comfort with Aerowings

• High energy saving: A++ / A+

• Optional Wifi with CZ-TACG1 Wifi Kit for remote management via Panasonic Comfort Cloud App

• Compatibility with voice control systems

• These units can be installed by reusing R410A and R22 refrigerant piping

---

The ideal air conditioner to install in narrow spaces

New Super Compact Design

The new BZ indoor units are only 779 mm wide. It is thus possible to extend installation opportunities, including narrow spaces above the door

---

PM2.5 filter

PM2.5 particulate matter is an air pollutant composed of dust, dirt, cigarette smoke and droplets. The filter captures PM2.5 particles including pollutants dangerous to health, house dust and pollen

---

Greater airflow control with Aerowings

The Aerowings function, equipped with two independent fins, ensures greater control of the airflow in the upper direction. Without Aerowings, with direct airflow, the direction of the flow never changes, so you can easily start to feel too cold as you are subjected to continuous exposure to a cold airflow

---

Optional Wi-Fi compatible with Voice Assistance

With the optional CZ-TACG1 device and the Panasonic Comfort Cloud application you can manage all functions of up to 200 units from your smartphone, access energy statistics, set programming and define different access permissions for other users. Compatible with Google Assistant and Amazon Alexa

---

A small gesture for the future

Not everyone is ready for change. Panasonic, on the other hand, believes that technological development can improve people's lives. For this reason, a new line of air conditioners has been designed in R32, an absolutely innovative refrigerant: it is easy to install, has a low environmental impact and allows you to save energy. The result? Greater well-being for people and the planet. Welcome R32!

---

R32 refrigerant

The new generation of air conditioners with R32 refrigerant represents an innovation in every sense. Can we list them?

1. Simplicity of installation

• Easy to install, like models with R410A refrigerant. (Just remember to check that the pressure gauge and vacuum pump are compatible with R32 refrigerant)

• The refrigerant is 100% pure, making its recycling or reuse easier

2. Respect for the environment

• Zero impact on the ozone layer

• Impact on global warming reduced by approximately 75%

3. Increased efficiency

• Cost reduction and greater savings: Reduction of refrigerant charge by 30%

• Higher A+++ efficiency compared to R410A

---

New Voice Control. Words are worth more than actions

Unlimited control, full access to the features of your air conditioners. Improving your comfort is now a breeze thanks to our Panasonic Comfort Cloud-enabled air conditioner and Voice Control

---

Operate the Air with Your Voice

Enjoy the convenience of accessing these four basic operations with just your voice

Turn the air conditioning on and off. Improve your rest with greater control

Turn the air conditioning on and off with ease when preparing a comfortable space for little ones

---

Switch Modes Get extra help during a hectic day

Conveniently change the air conditioning operating mode to cooling and heating or auto when your hands are full

---

Adjust the Temperature Simple and immediate control at any time

Adjust the temperature with a simple voice command

---

Check Current Status Hands-free comfort for the whole family

Easy access for the elderly to check the settings and current working status of the air conditioning

---

Manage more with Your Voice

Simplify your day's routines by grouping them into individual actions

---

Set up your routine with a Custom Command

With the routine function, you can customize voice commands and control multiple devices, including our network-enabled air conditioners

---

How to Set It Up

To synchronize with Voice Assistant, you must first register your air conditioner on Panasonic Comfort Cloud

Convenient centralized control. Intelligent control. Temperature control anytime, anywhere

---

---

Panasonic Comfort Cloud

Advanced smartphone control for the residential range

Control the operation of your air-to-air heat pump with Panasonic Comfort Cloud and with additional functions only available through the Cloud, anywhere, anytime

New possibilities, new applications

Families : Multiple users can be set up. In the case of second homes, these can be pre-cooled or pre-heated remotely. You can also remotely turn off the air conditioning system if someone forgets and leaves the system on

Multi properties : up to 200 units can be managed with a single smartphone, monitoring the consumption of each system and remotely viewing error codes for fast and better maintenance

Small and medium-sized offices : the owner can easily control the office premises and give his staff access to each individual unit. The owner has the opportunity to know where energy waste for heating and cooling can occur and adopt the best solutions

---

Remote control of your system

With Panasonic Comfort Cloud you can manage:

• Turning the indoor unit on and off

• Heating and cooling operating mode

• Weekly timer setting (up to 6 events per day, 42 in a week)

• Error code notification

---

Energy monitoring and statistics

Monitoring the energy consumption of each unit during operation is the key to reducing the cost of your energy bill. Panasonic Comfort Cloud stores the energy consumption* of each unit, which can then be displayed in simple and impactful statistical graphs. This feature is available for VKE, TKE and UKE generation models. With the weekly timer it is possible to adjust operation to optimize energy consumption

---

Scalability and user management

Additional units and stations can be incorporated easily, as can the inclusion of different users with different access permissions. It is thus possible to better manage the family home, a second home, as well as offering opportunities for the management of small/medium sized or multi-property offices

• Up to 200 units. Up to 10 sites (20 units per site)

• The main user can authorize use by other users with permissions limited to individual units and their configuration

---

Product Warranty: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.
