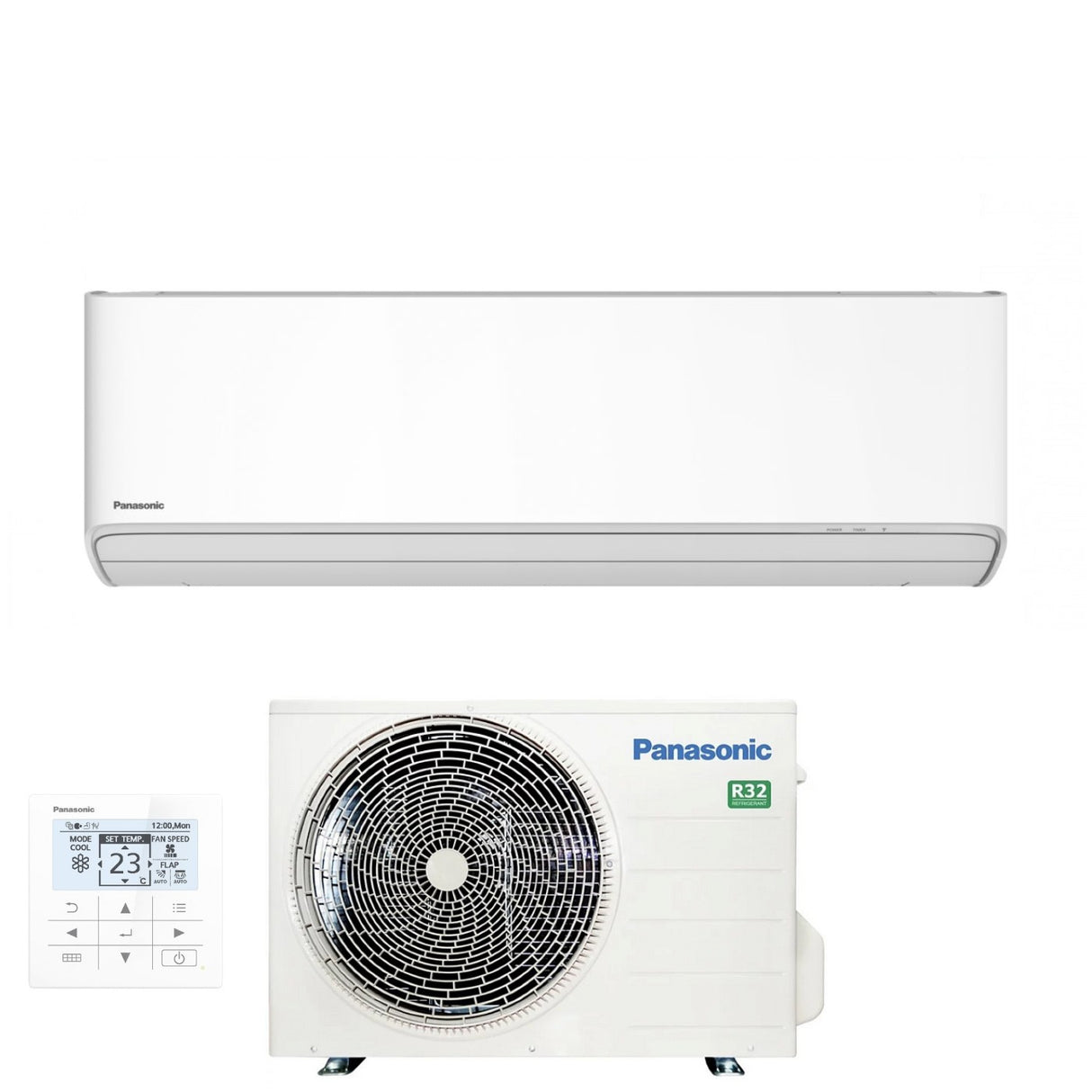

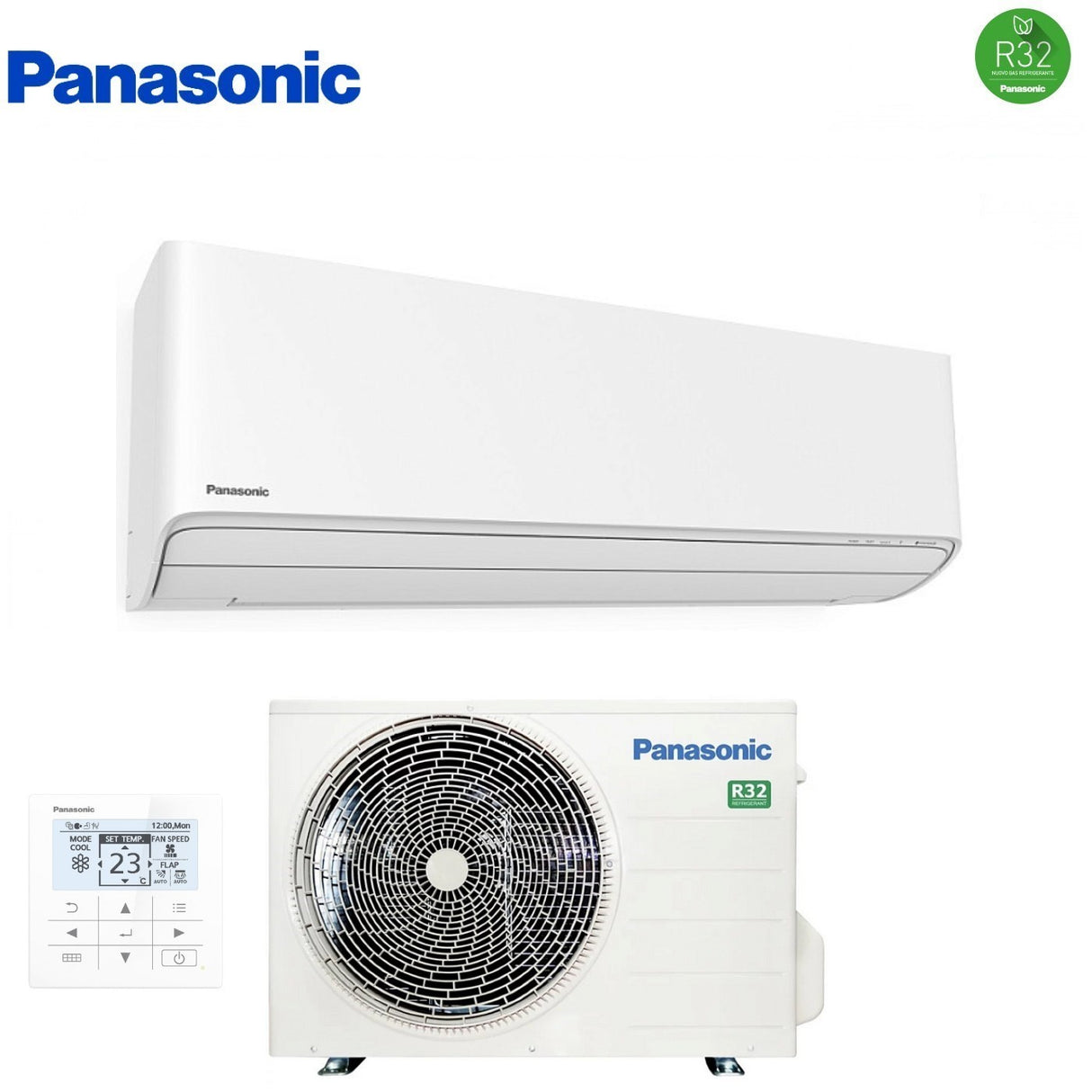

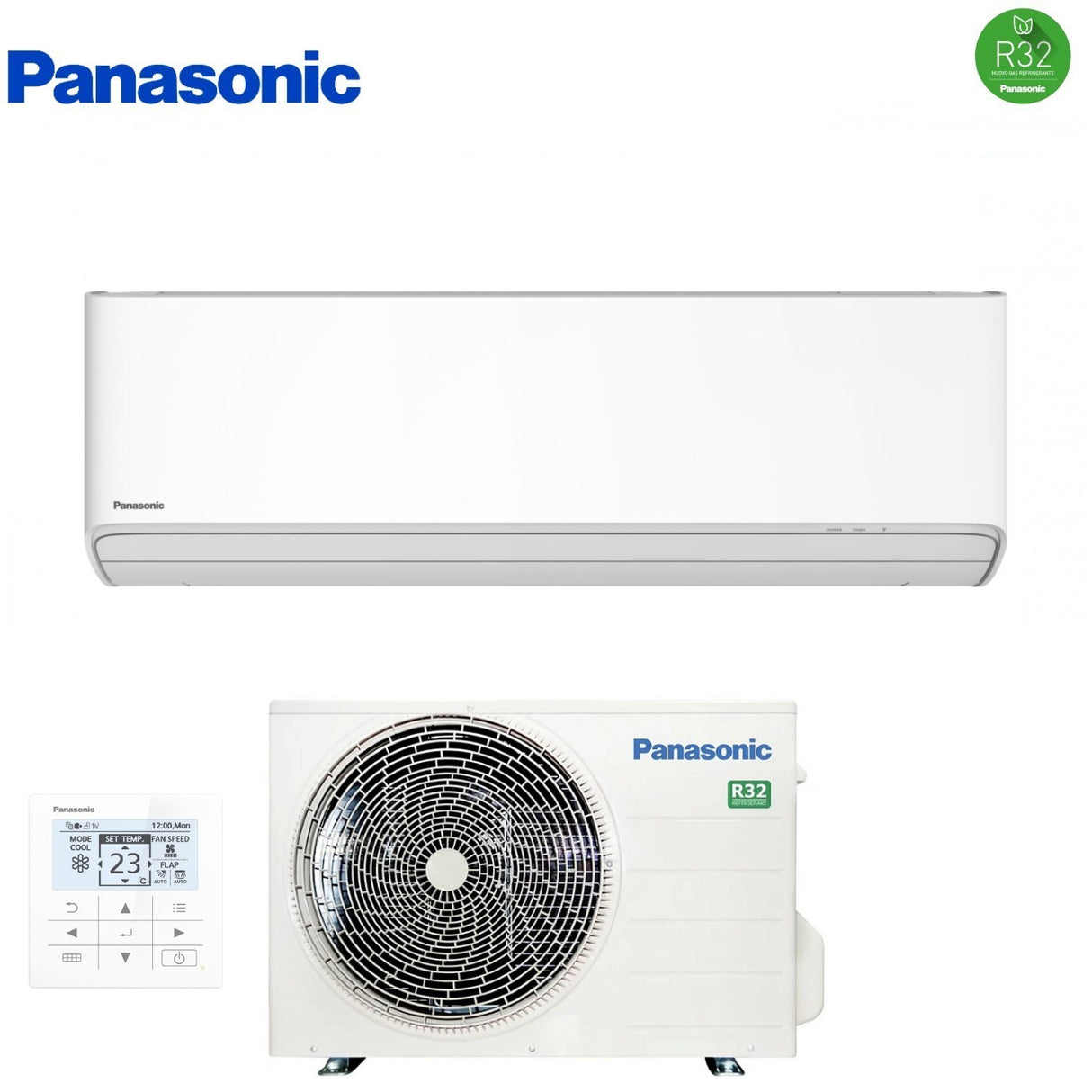

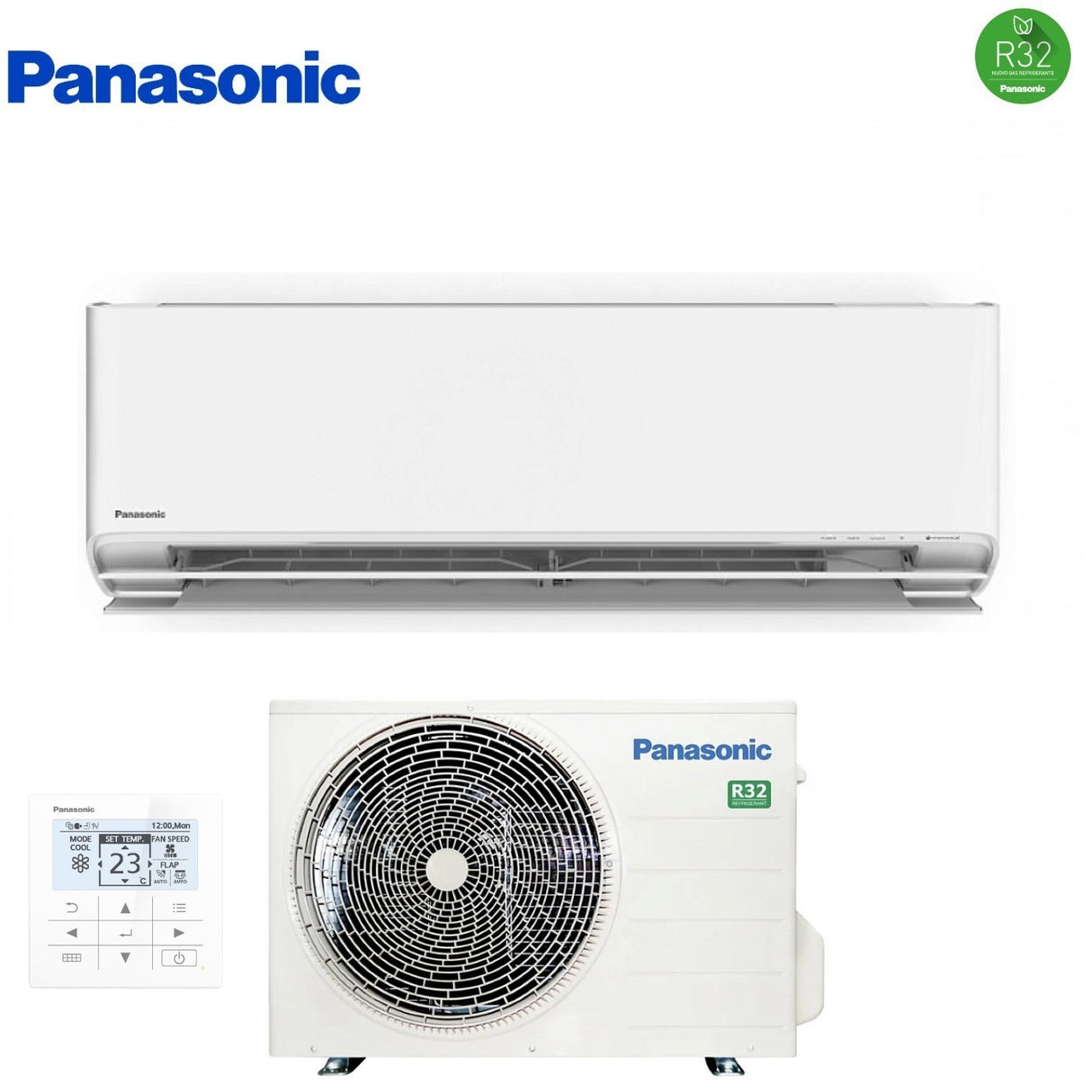

Panasonic Inverter Air Conditioner CS series 12000 Btu CS-Z35YKEA R-32 Integrated Wi-Fi Class A+++/A++ with Wired Control Included
Panasonic Inverter Air Conditioner CS series 12000 Btu CS-Z35YKEA R-32 Integrated Wi-Fi Class A+++/A++ with Wired Control Included is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
How shipping works
How shipping works
Shipping costs vary depending on the weight and shipping method of the order.
Our shipping services
Standard Shipping: estimated delivery in 2 to 5 working days
Premium Shipping: guaranteed delivery in 24 working hours
Premium Shipping + Flat Delivery: guaranteed delivery in 24 working hours
Please refer to the tables for Standard Shipping prices for Italy and for Minor Islands and Disturbed Areas.
For further details on Premium Shipping, please see the Premium Shipping page.
Customer service
Customer service
Our service department is dedicated to providing support to our customers for any problems or questions they may have before or after purchasing our products.
Use the direct communication channel to speak to one of our operators, or send us an e-mail to one of the addresses listed on the contact us page.
Our customer service team consists of highly qualified professionals who are always ready to help customers solve any problems or answer any questions quickly and efficiently. We strive to ensure maximum customer satisfaction and provide the highest quality after-sales service. So, if you need assistance, please do not hesitate to contact us; we will be happy to help you in any way we can.
Description
Description
Technical features
- Indoor unit catalog code: CS-Z35YKEA
- Outdoor unit catalog code: CU-Z35YKEA
- Power: 12000 Btu
- Built-in Wi-Fi
Energy efficiency
- SEER : 9.6
- SCOP: 4.6
- Cooling energy efficiency class: A+++
- Heating energy efficiency class: A++
- Annual energy consumption in cooling: 128 kWh/a
- Annual energy consumption in heating: 974 kWh/a
- Cooling capacity: 3.50 kW
- Heating capacity: 3.20 kW
- Cooling absorption: 0.85 kW
- Heating absorption: 0.90 kW
- Indoor unit sound power level: 58 ~ 59 dB(A)
- External unit sound power level: 63 ~ 65 dB(A)
- Indoor unit sound pressure level: 21 ~ 43 dB(A)
- Outdoor unit sound pressure level: 48 ~ 50 dB(A)
Electrical data
- Power (V,Hz, Ø): 220~240/50/1
- Refrigerant gas: R32
- Operating range
- - Cooling: -25° ~ 43°C
- - Heating: -15° ~ 24°C
- Liquid pipe diameter: 6.35 mm (1/4")
- Gas pipe diameter: 9.52 mm (3/8")
- Maximum pipe length: 20 m
Dimensions and weight
- Indoor unit dimensions (HxWxD): 295x870x229 mm
- Indoor unit weight: 11.0 kg
- External unit dimensions (HxWxD): 542x780x289 mm
- External unit weight: 30.0 kg
Panasonic CS Complete line with high efficiency even at -25°C
This wall-mounted air conditioner has been specially designed for professional applications such as server rooms, where it is necessary to cool the internal environment even when the external temperature is low. Furthermore, this air conditioner is equipped with an automatic switching system, to maintain the internal temperature even in the event of strong variations in the external temperature
High savings and maximum comfort
Panasonic air conditioners produce maximum comfort with a very low energy cost, generating cleaner air free of viruses, bacteria, pollen and odors
A comfortable home all year round
Panasonic units guarantee a more comfortable environment throughout the year, heating in winter, cooling in summer and improving your comfort and well-being
The air conditioning connects to the future Panasonic Comfort Cloud App. Advanced remote control
Easily control and access all remote control features anytime, anywhere. The Panasonic Comfort Cloud app allows you to conveniently manage and monitor multiple units from a single device. Furthermore, thanks to energy monitoring, it is possible to further reduce operating costs.

Voice control. Words are worth more than actions
Via the Comfort Cloud app, the air conditioner can also be connected to some of the leading voice assistants on the market to further optimize the air conditioning standard without having to lift a finger.

Not everyone is ready for change. Panasonic, on the other hand, believes that technological development can improve people's lives. For this reason, a new line of air conditioners has been designed in R32 , an absolutely innovative refrigerant: it is easy to install, has a low environmental impact and allows you to save energy. The result? Greater well-being for people and the planet. Welcome R32!

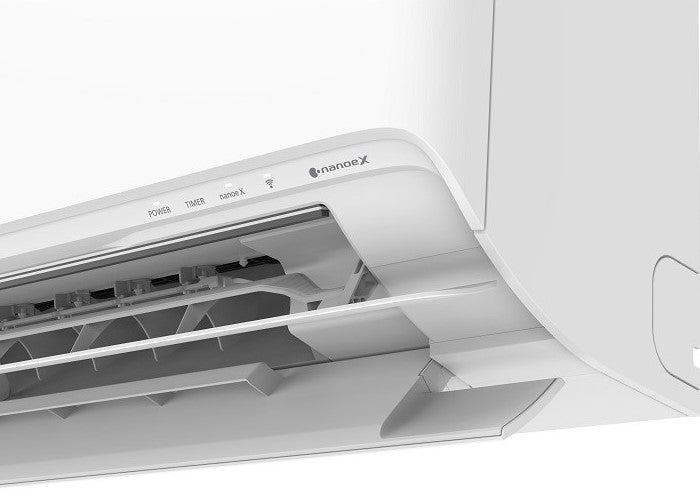

Greater airflow control with Aerowings
The Aerowings function, equipped with two independent fins, ensures greater control of the airflow in the upper direction. Without Aerowings, with direct airflow, the direction of the flow never changes, so you can easily start to feel too cold as you are subjected to continuous exposure to a cold airflow.
Advantages
- Designed for 24/7 weekly operation
- Wired control, with optional rotation mode
- Enhanced SEER/SCOP for world-class energy efficiency
- Aerowings 2.0 function for better control of airflow direction
- Built-in Wi-Fi for instant connectivity via the Panasonic Comfort Cloud App
- Compatible with Google Assistant and Amazon Alexa
- Frame and components designed for easy installation
Specifications
Specifications
- peso: 35.0 kg
- classe energetica raffreddamento: A+++
- classe energetica riscaldamento: A++
- costospedizionecad: IT25;AD113;AT73;BE75;BG88;HR89;DK125;EE122;FR94;DE63;LV94;LT88;LU59;NL68;PT82;CZ66;SK73;SI74;ES75;SE131;HU56;CH135;
- gas: R-32
- marca: Panasonic
- metri quadri : 25-40 mq
- modello: CS-Z35YKEA_1
- potenza btu: 12000
